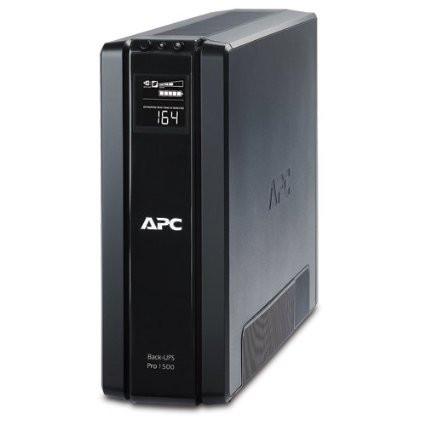

APC UPS 1.5 KVA Built in Battery

Output

Output power capacity

865Watts / 1.5 kVA

Max Configurable Power (Watts)

865Watts / 1.5 kVA

Nominal Output Voltage

230V

Efficiency at Full Load

85.0 %

Output Frequency (sync to mains)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Output Connections

(2) India 3-pin 6A (selector_surgetitle)

(4) India 3-pin 6A (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

India 3-pin 16A

Cord Length

1.52meters

Input voltage range for main operations

160 - 280V

Number of Power Cords

1

Efficiency at Full Load

85.0 %

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

7.2hour(s)

Expected Battery Life (years)

2 – 4

Replacement battery cartridge note

9Ah x 2 internal batteries

RBC Quantity

1

Extended Run Options

APC-Power-Saving-Back-UPS-Pro-1500-230V-India

Communications & Management

Interface Port(s)

USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

680Joules

Data Line Protection

Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height

301mm , 30.1cm

Maximum Width

114mm , 11.4cm

Maximum Depth

382mm , 38.2cm

Net Weight

11.76kg

Shipping weight

13.19kg

Shipping Height

381mm , 38.1cm

Shipping Width

229mm , 22.9cm

Shipping Depth

483mm , 48.3cm

Color

Black

Master Carton Units

2.0

Master Carton Weight

28.14

SCC Codes

1073130426879 3

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

45.0dBA

Warranty

2 years
