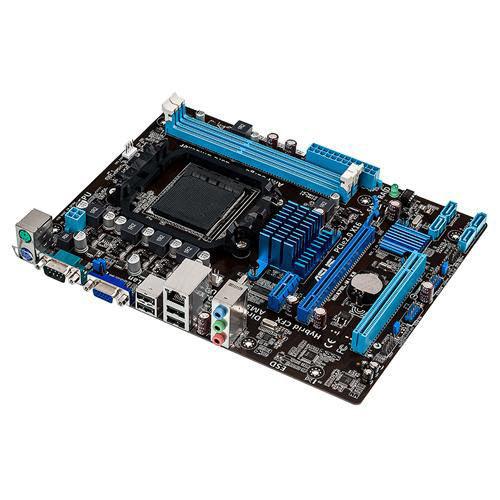

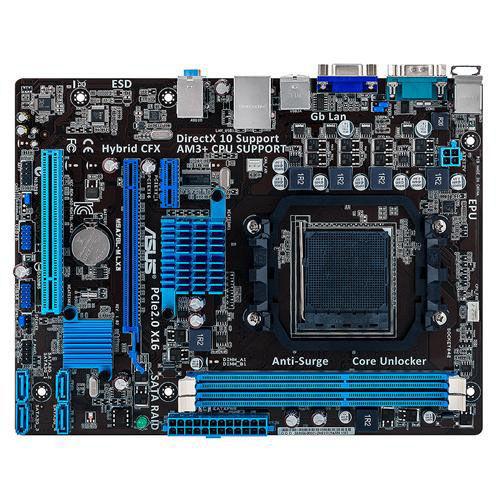

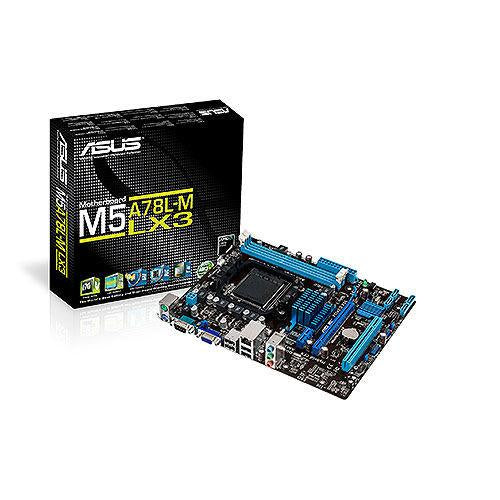

ASUS M5A78L-M LX3 (AM3+) Compatible Motherboard for Desktop Computer/PC

Motherboard

ASUS M5A78L-M LX3

Brand

ASUS

Compatible with

AMD

Socket Type

AMD AM3+

Chipset

AMD 760G (780L)/SB710

Form Factor

9.6 cm x 7.4 cm ( 24.4 cm x 18.8 cm )

uATX Form Factor

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

2 x DIMM, Max. 16GB, DDR3 1066/1333/1600/1866 MHz Un-buffered, ECC, Non-ECC Memory

* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.

* Due to CPU spec., AMD AM3 CPUs on this motherboard support up to DDR3 1333MHz.

* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Dual Channel Memory Architecture

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Available Expansion Slots

Maximum shared memory of 1024 MB

Supports DirectX 10

Hybrid CrossFireX™ Support *1

- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz

VGA output support : RGB port

Integrated ATI Radeon™ HD 3000 GPU

LAN

Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2

Available USB Ports

Built-in Controller :

8 x USB 2.0 port(s) (4 at mid-board, 4 at back panel, black)

Special Features

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS Exclusive Features :

- Anti-Surge

ASUS EPU :

- EPU

ASUS EZ DIY :

- ASUS MyLogo 2

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Core Unlocker

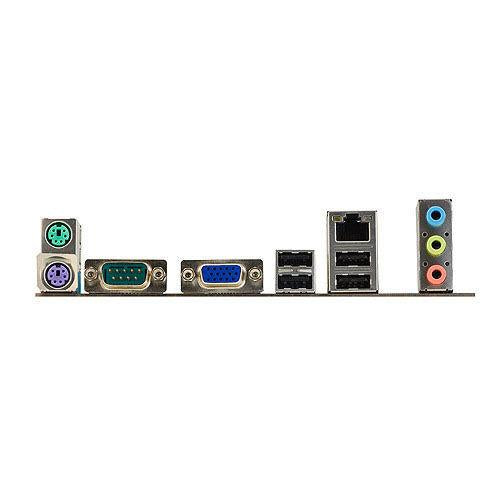

Back I/O Ports

1 x D-Sub

1 x PS/2 mouse (green)

1 x PS/2 keyboard (purple)

1 x LAN (RJ45) port(s)

3 x Audio jack(s)

4 x USB 2.0

1 x COM port(s)

Internal I/O

4 x SATA 3Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x CPU Fan connector(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Chassis Fan connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x System panel(s)

Warranty

  3 Years
