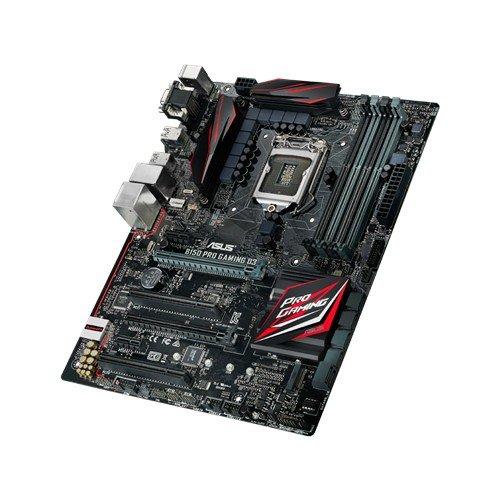

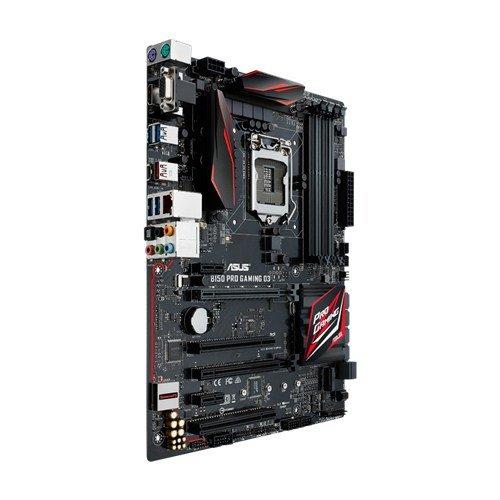

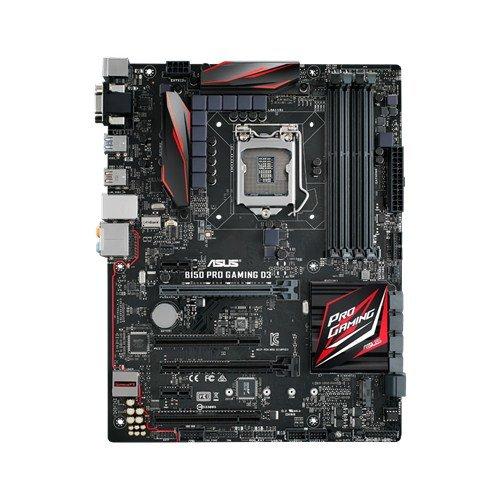

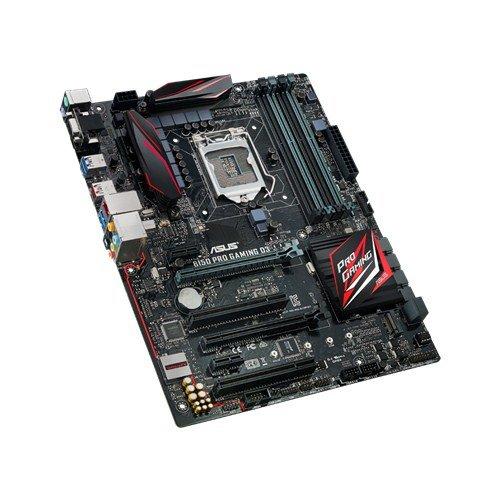

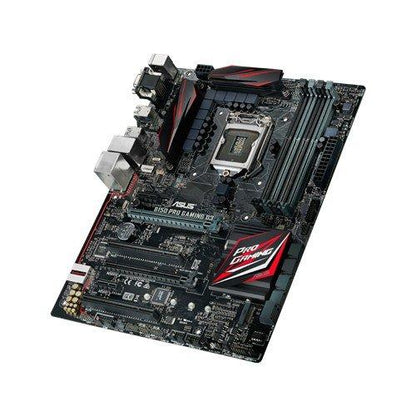

ASUS B150 PRO-GAMING D3 Intel Compatible Motherboard for Desktop Computer/PC

ASUS B150 PRO-GAMING D3 Intel Compatible Motherboard for Desktop Computer/PC

Rs. 7,800.00
Rs. 7,800.00
Sale Sold out
Taxes included.

ITEM DETAILS : ASUS B150 PRO-GAMING D3 Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • LGA1151 socket for 6th-gen Intel® CoreTM i7 / Core i5 / Core i3, Pentium® and Celeron
  • GA1151 socket for 6th-gen Intel® CoreTM i7 / Core i5 / Core i3, Pentium® and Celeron Processors Dual DDR3 1866 (O.C.) support SupremeFX: Flawless audio that makes you part of the game Sonic Radar ll: Scan and detect your enemies to dominate Intel Gigabit Ethernet, LANGuard and GameFirst III: Top-speed protected networkingRAMCache: Speed up your game loadsGamer's Guardian: Highly-durable components and smart DIY featuresUSB 3.1 Type-A/C and M.2: Ultra-speedy transfers for faster gaming

TECHNICAL DETAILS:

Motherboard

ASUS B150 PRO-GAMING D3

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® B150

Form Factor

ATX Form Factor
12 inch x 9.3 inch ( 30.5 cm x 23.6 cm )

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR3 2133/2000(O.C.)/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black) *1
2 x PCIe 3.0/2.0 x1
2 x PCI

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Audio

SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

Available USB Ports

ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (Type-A)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (USB Type-CTM, Reversible)
Intel® B150 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B150 chipset :
6 x USB 2.0/1.1 port(s) (6 at mid-board)

Special Features

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache

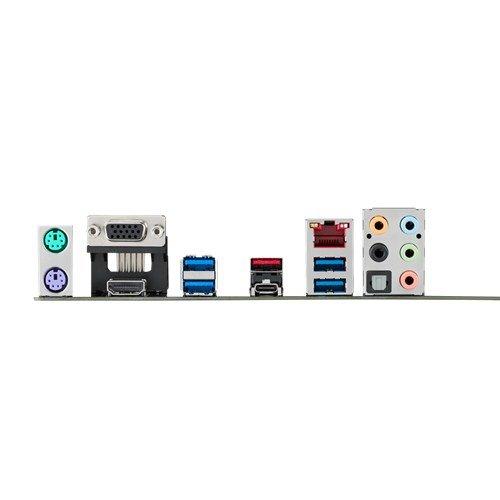

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 USB Type-CTM
4 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector

WARRANTY

3 YEARS
