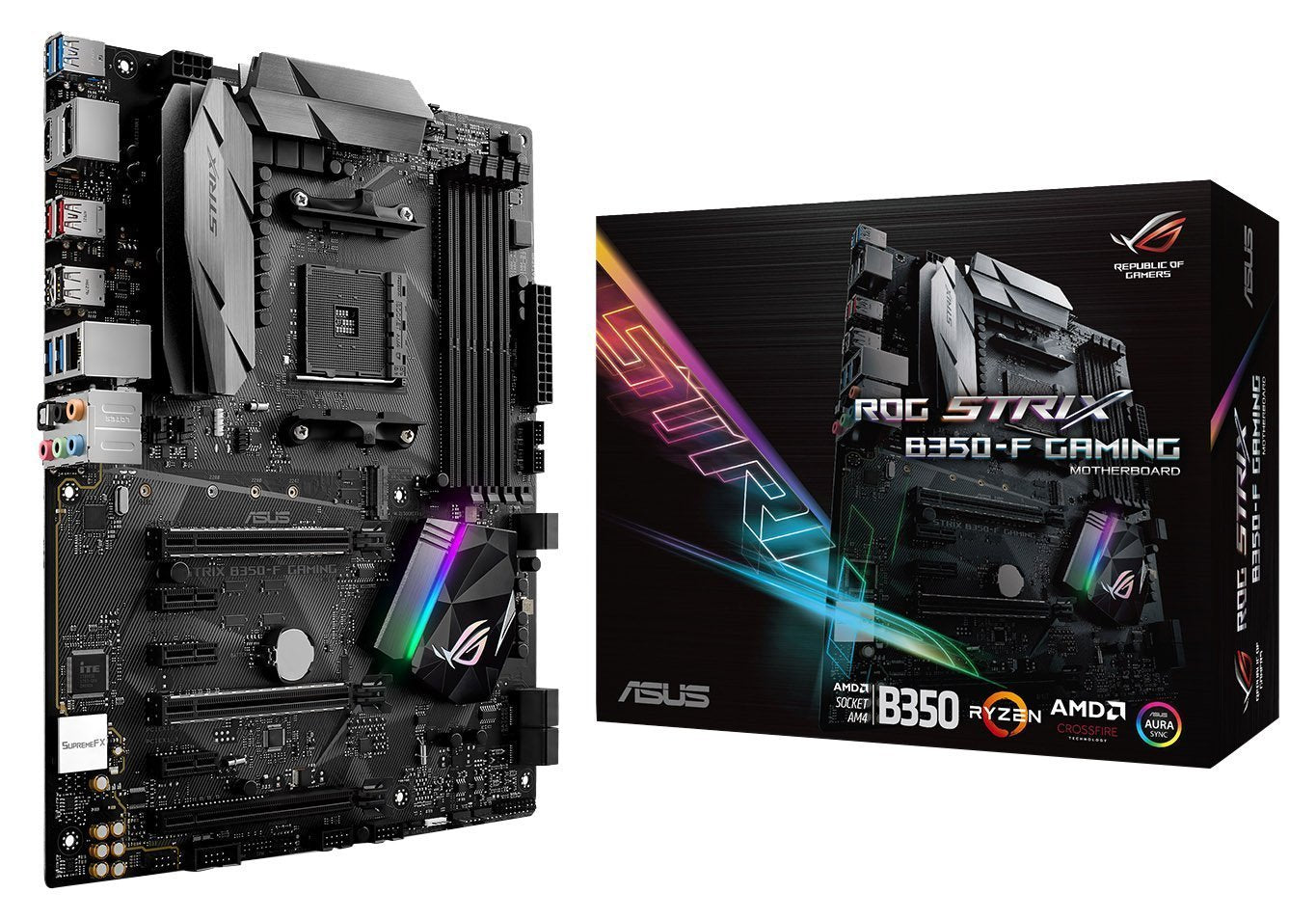

ASUS B350-F GAMING Compatible Motherboard for Desktop Computer/PC

Motherboard

ASUS B350-F GAMING

Brand

ASUS

Compatible with

AMD

Socket Type

AMD AM4

Chipset

AMD B350

Form Factor

9.6 in. x 8.1 in. (24.3 cm x 20.5 cm) m-ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

AMD 7th Generation A-series/Athlon™ Processors

4 x DIMM, Max. 64GB, DDR4 2933(O.C.)/2666/3200(O.C.)/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

AMD Ryzen™ Processors

4 x DIMM, Max. 64GB, DDR4 2133/2400 MHz Non-ECC, Un-buffered Memory *

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Available Expansion Slots

AMD Ryzen™ Processors

1 x PCIe 2.0 x16 (max at x4 mode) *1

1 x PCIe 3.0/2.0 x16 (x8 mode)

2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)

AMD B350 chipset

3 x PCIe 2.0 x1

AMD 7th Generation A-series/Athlon™ Processors

LAN

Intel® I211-AT, 1 x Gigabit LAN Controller(s)

ROG GameFirst Technology

Anti-surge LANGuard

Audio

- Supports : Jack-detection, Front Panel Jack-retasking, Multi-streaming

- Supports up to 32-Bit/192kHz playback

8-Channel High Definition Audio CODEC S1220A ROG SupremeFX

- Impedance sense for front and rear headphone outputs

- Dual Headphone Amplifiers

Audio Feature :

- Sonic Radar III

- Optical S/PDIF out port(s) at back panel

- Sonic Studio III

and SNR stereo playback output - High quality SNR recording input 120 dB 113 dB

- SupremeFX Shielding Technology

Available USB Ports

AMD B350 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B350 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)

AMD B350 chipset :

6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

AMD Ryzen™/7th Generation A-series/Athlon™ Processors :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

Special Features

Digi+VRM

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS Q-Design :

- ASUS Q-LED (VGA, CPU, DRAM, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Shield

ASUS EZ DIY :

- ASUS EZ Flash 3

- ASUS CrashFree BIOS 3

Gaming Aesthetics :

- AURA-RGB Lighting

Gamer's Guardian:

- SafeSlot

- Stainless Steel Back I/O

- DIGI+ VRM

- Highly Durable Components

- DRAM Overcurrent Protection

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

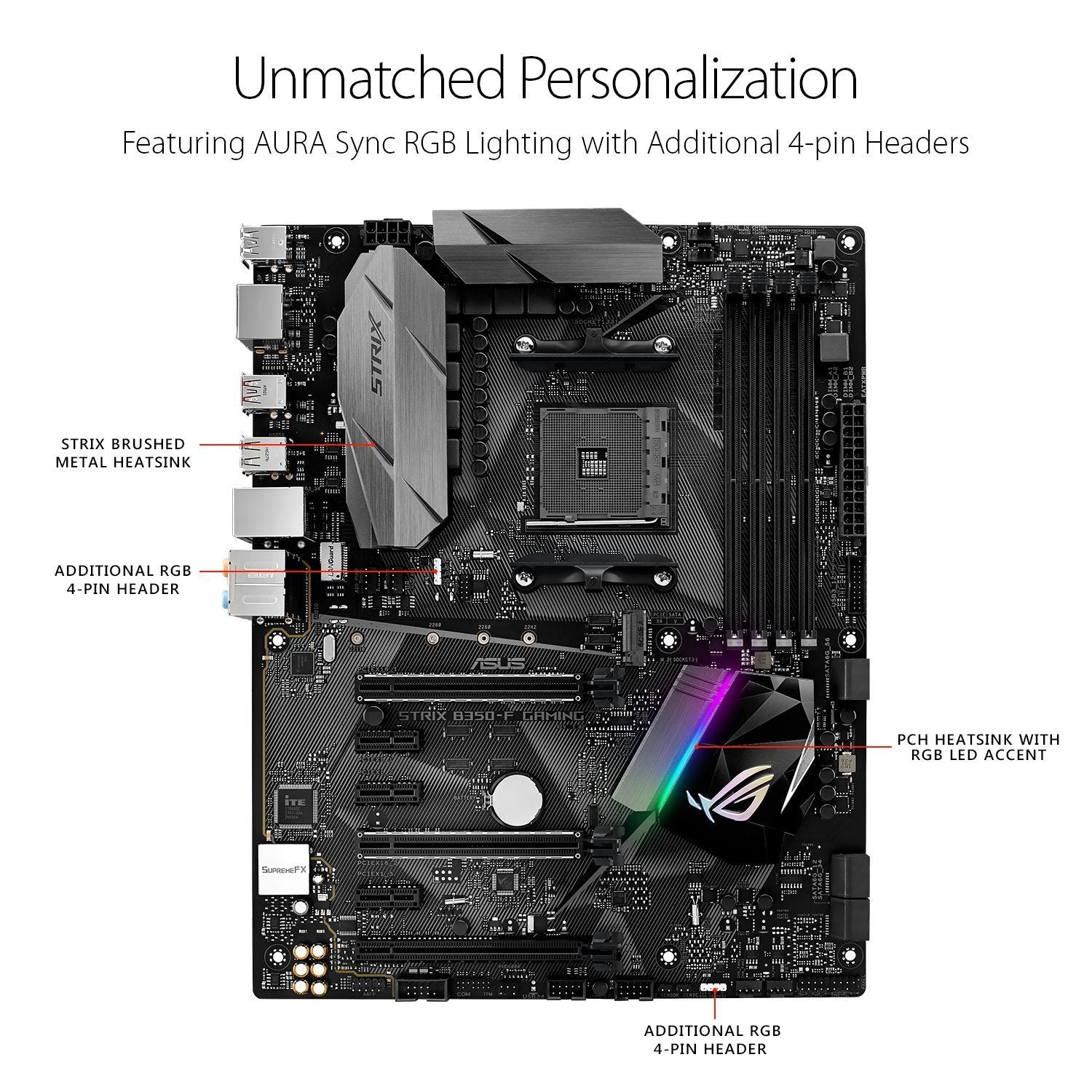

AURA :

- Aura Lighting Control

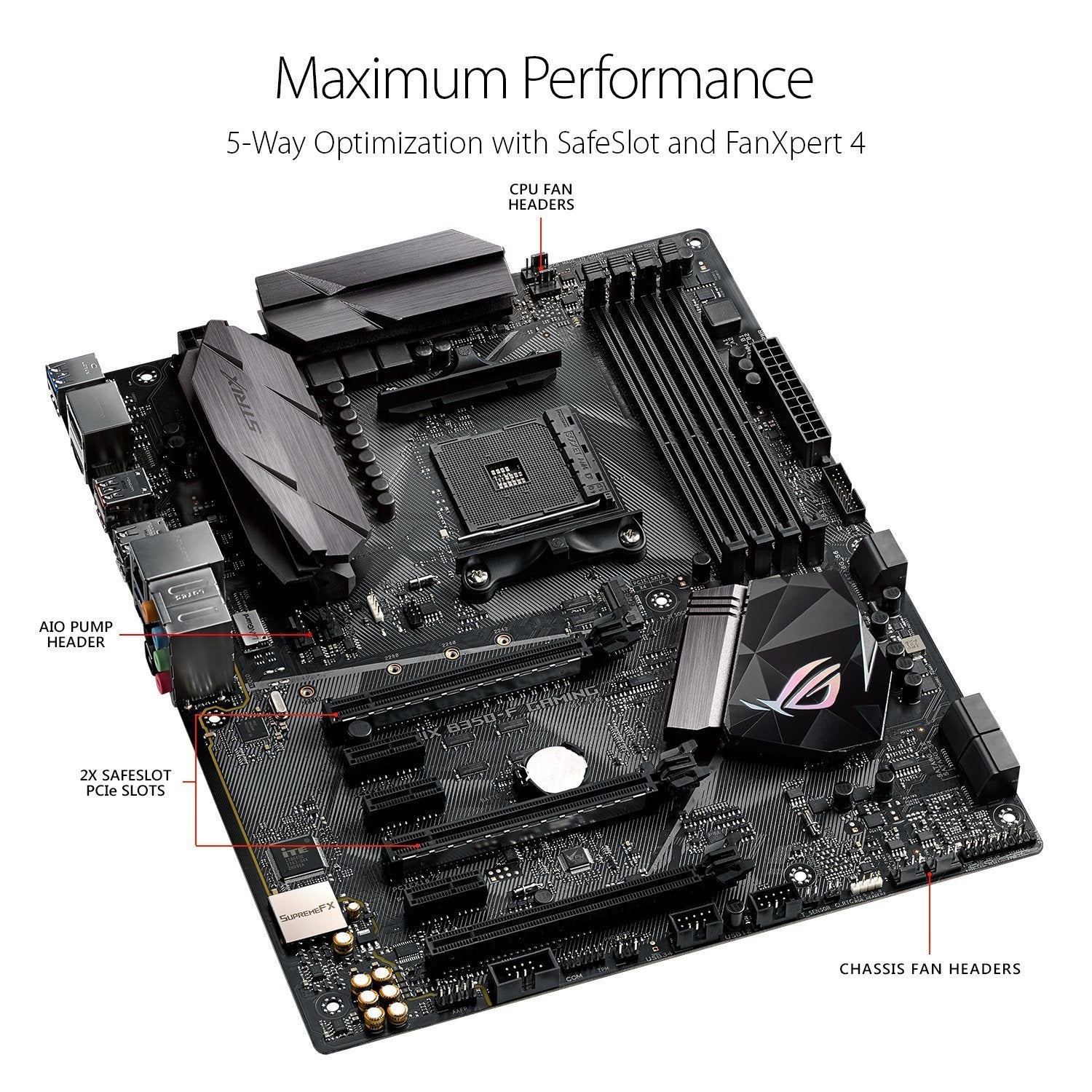

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

TPU

- Auto Tuning, TurboV, GPU Boost

- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors

Back I/O Ports

1 x HDMI

2 x USB 2.0

4 x USB 3.1 Gen 1

1 x LAN (RJ45) port(s)

5 x Audio jack(s)

2 x USB 3.1 Gen 2 Type-A

1 x DisplayPort

1 x Optical S/PDIF out

Internal I/O

1 x Thermal sensor connector(s)

1 x COM port(s) connector(s)

1 x CPU OPT Fan connector(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x Clear CMOS jumper(s)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

1 x System panel connector

1 x AIO_PUMP connector

1 x CPU Fan connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x TPM connector(s)

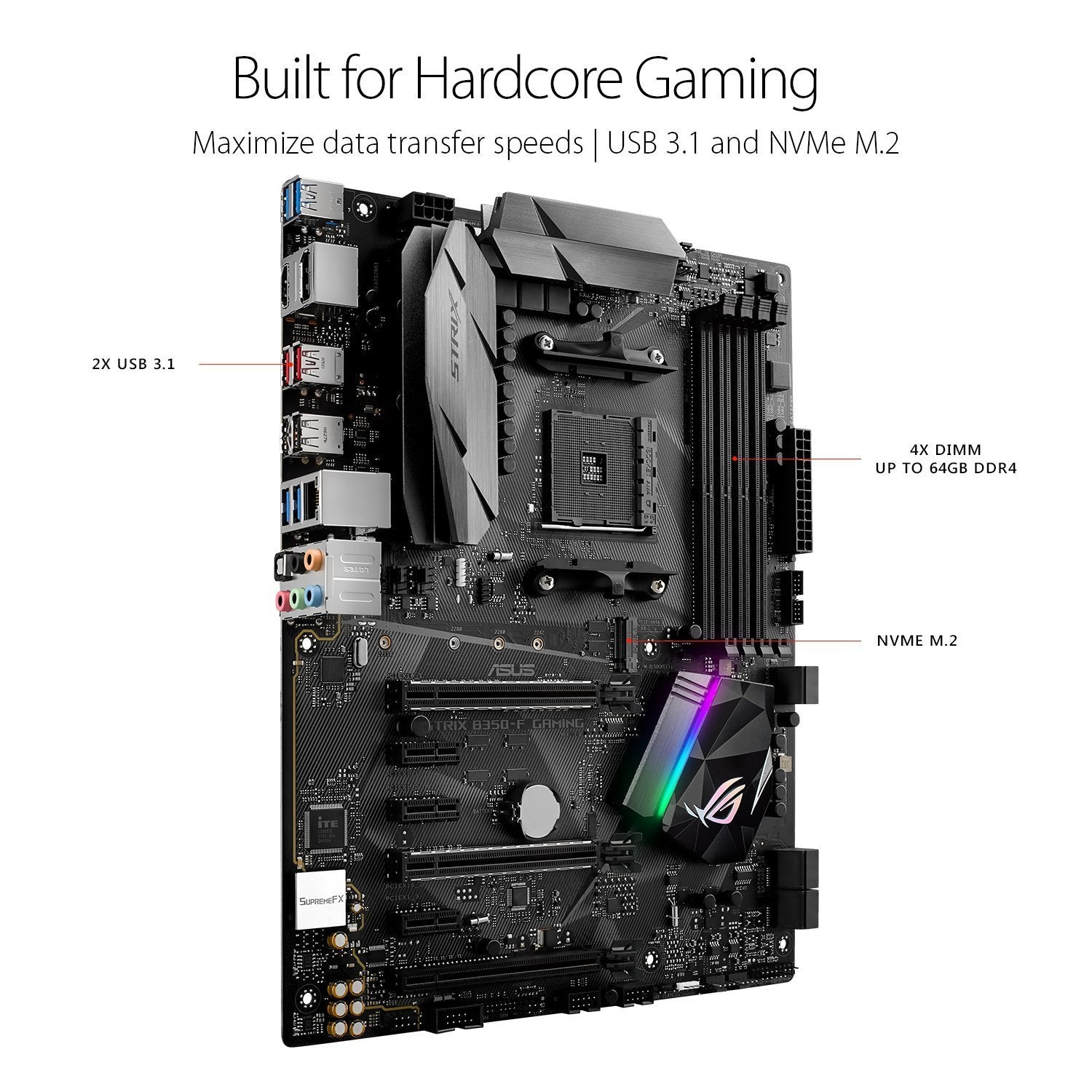

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x 24-pin EATX Power connector(s)

2 x RGB Header(s)

1 x Front panel audio connector(s) (AAFP)

6 x SATA 6Gb/s connector(s)

3 x Chassis Fan connector(s)

Warranty

3 Years
