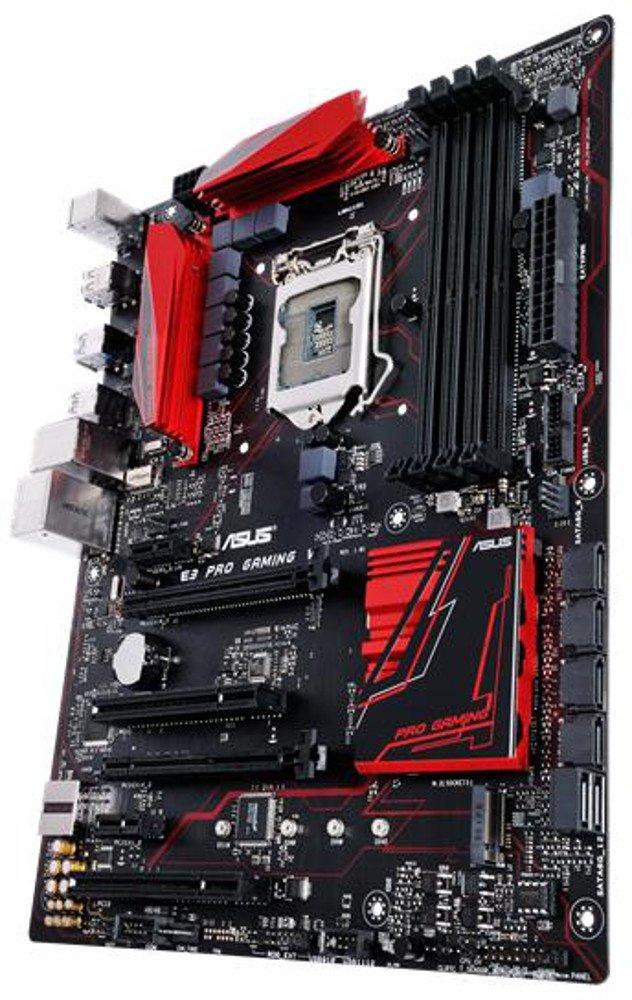

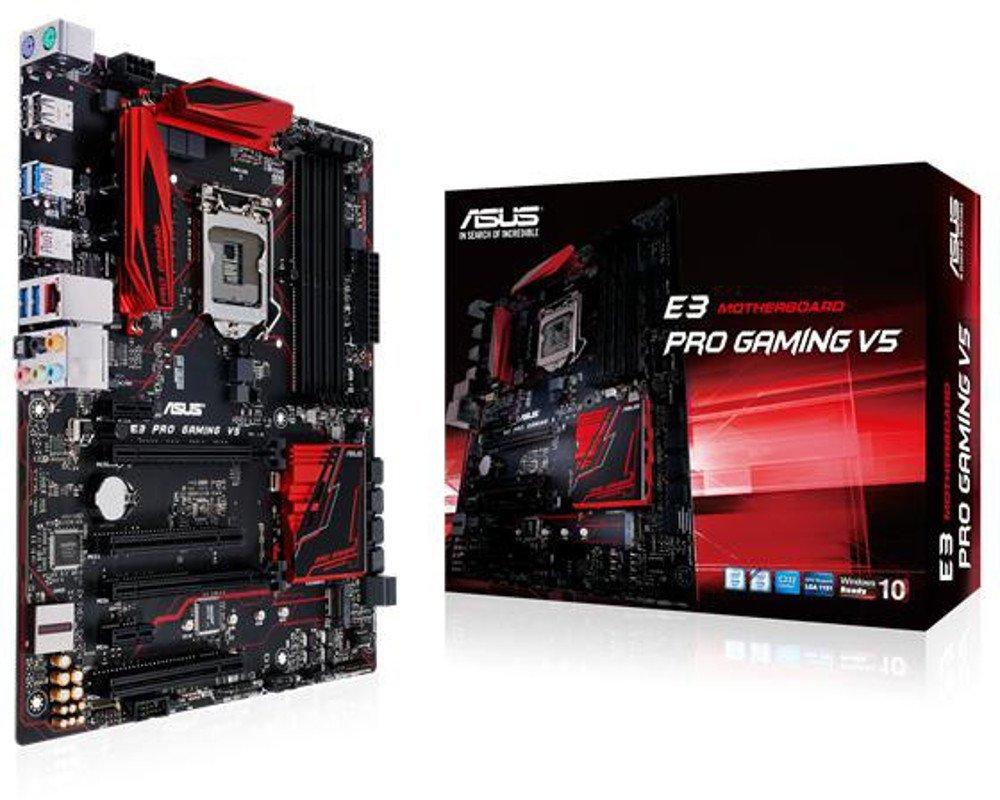

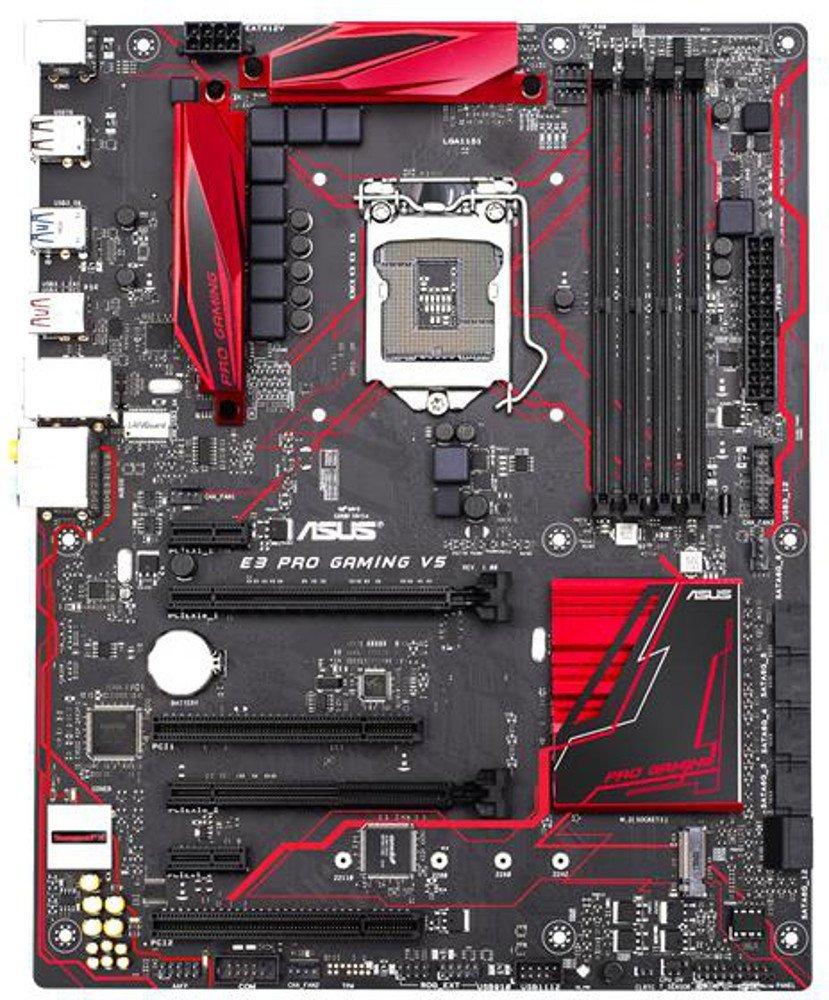

ASUS E3 PRO GAMING V5 (1151) Intel Compatible Motherboard for Desktop Computer/PC

ASUS E3 PRO GAMING V5 (1151) Intel Compatible Motherboard for Desktop Computer/PC

Rs. 15,391.00
Rs. 15,391.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS E3 PRO GAMING V5 (1151) Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • LGA1151 socket for Intel Xeon E3-1200 v5 processors and 6th-genereation Core, Pentium and Celeron processors
  • Sonic Radar ll: Scan and detect your enemies to dominate
  • RAMCache: Speed up your game loads
  • USB 3.1 type-A/C and M.2 - ultra-speedy transfers for faster gaming

TECHNICAL DETAILS:

Motherboard

ASUS E3 PRO GAMING V5

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® C232

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by Intel® E3-1200 v6 and 7th Generation processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on Intel® E3-1200 v5 and 6th Generation processors will run at the maximum transfer rate of DDR4 2133MHz.

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI

LAN

Intel® I219LM, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Audio

SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

Available USB Ports

ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (Type-A)
ASMedia® USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (USB Type-CTM, Reversible)
Intel® C232 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® C232 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Special Features

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 USB Type-CTM
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)

WARRANTY

3 YEARS
