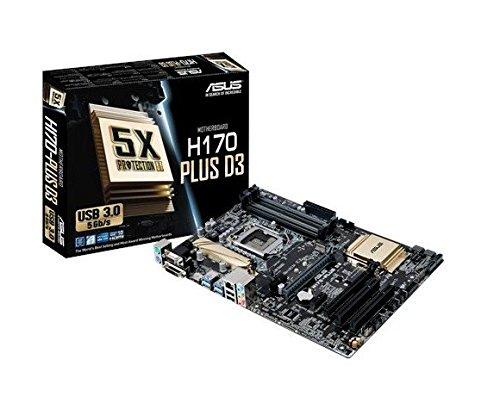

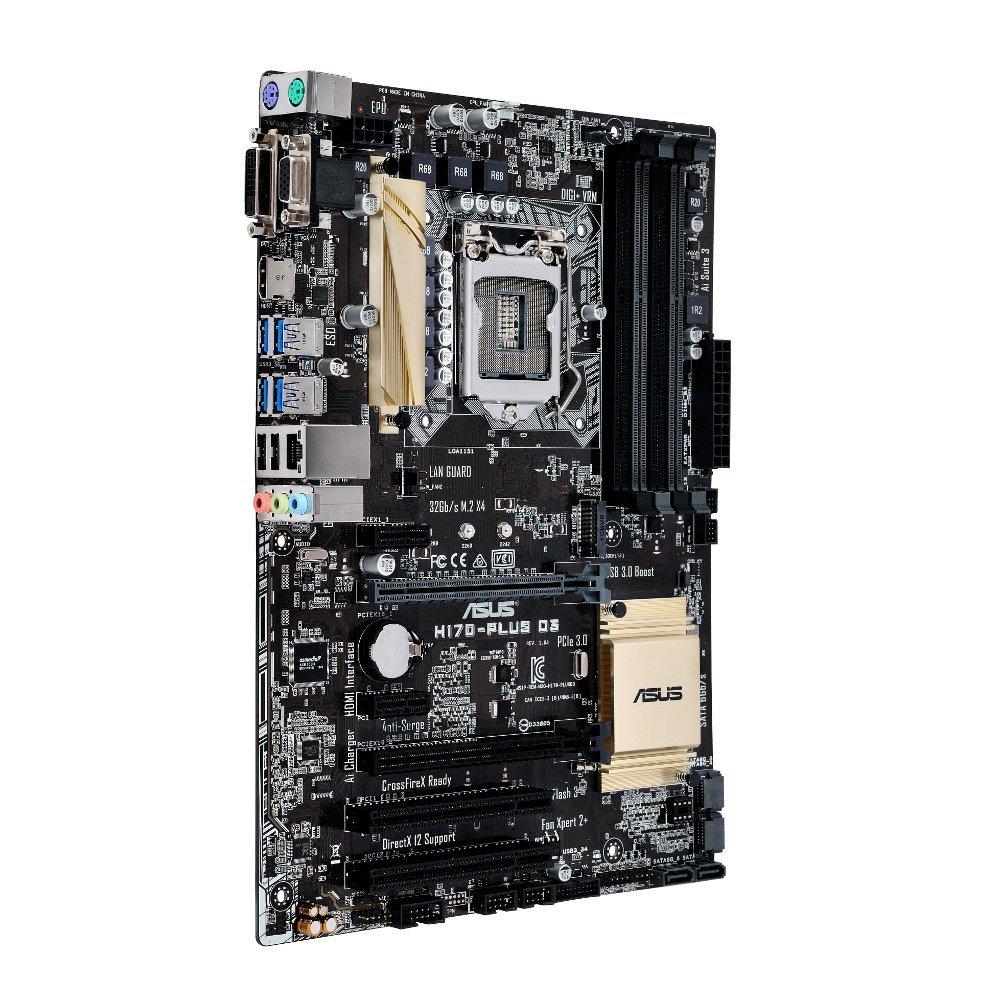

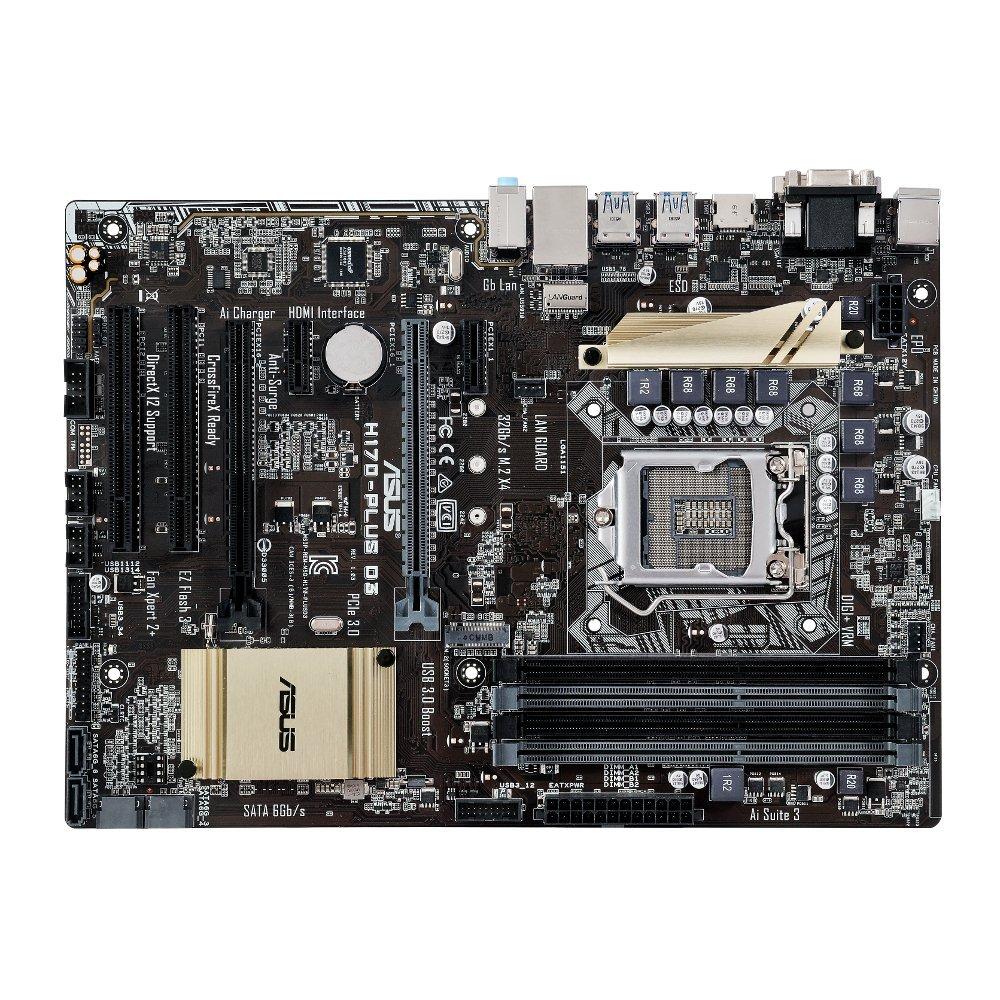

ASUS H170-PLUS D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

ASUS H170-PLUS D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

Rs. 7,150.00
Rs. 7,150.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS H170-PLUS D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Supports Intel® Socket 1151 for 6th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium®/Celeron® Processors
  • Supports 4 x DIMM, Max. 64GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  • Intel® H170 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  • Supports Raid 0, 1, 5, 10 and Supports Intel® Smart Response Technology*1
  • ntel® H170 chipset : 8 x USB 3.0/2.0 port(s) (4 at back panel, blue, 4 at mid-board) Intel® H170 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

TECHNICAL DETAILS:

Motherboard

ASUS H170-PLUS D3

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H170

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1
2 x PCI

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Available USB Ports

Intel® H170 chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
Intel® H170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost *3
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
Media Streamer

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

WARRANTY

3 YEARS
