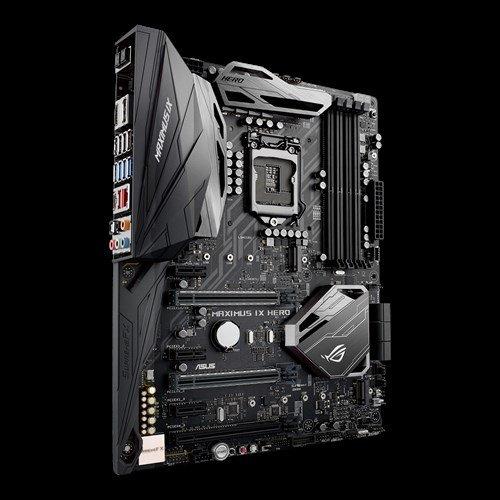

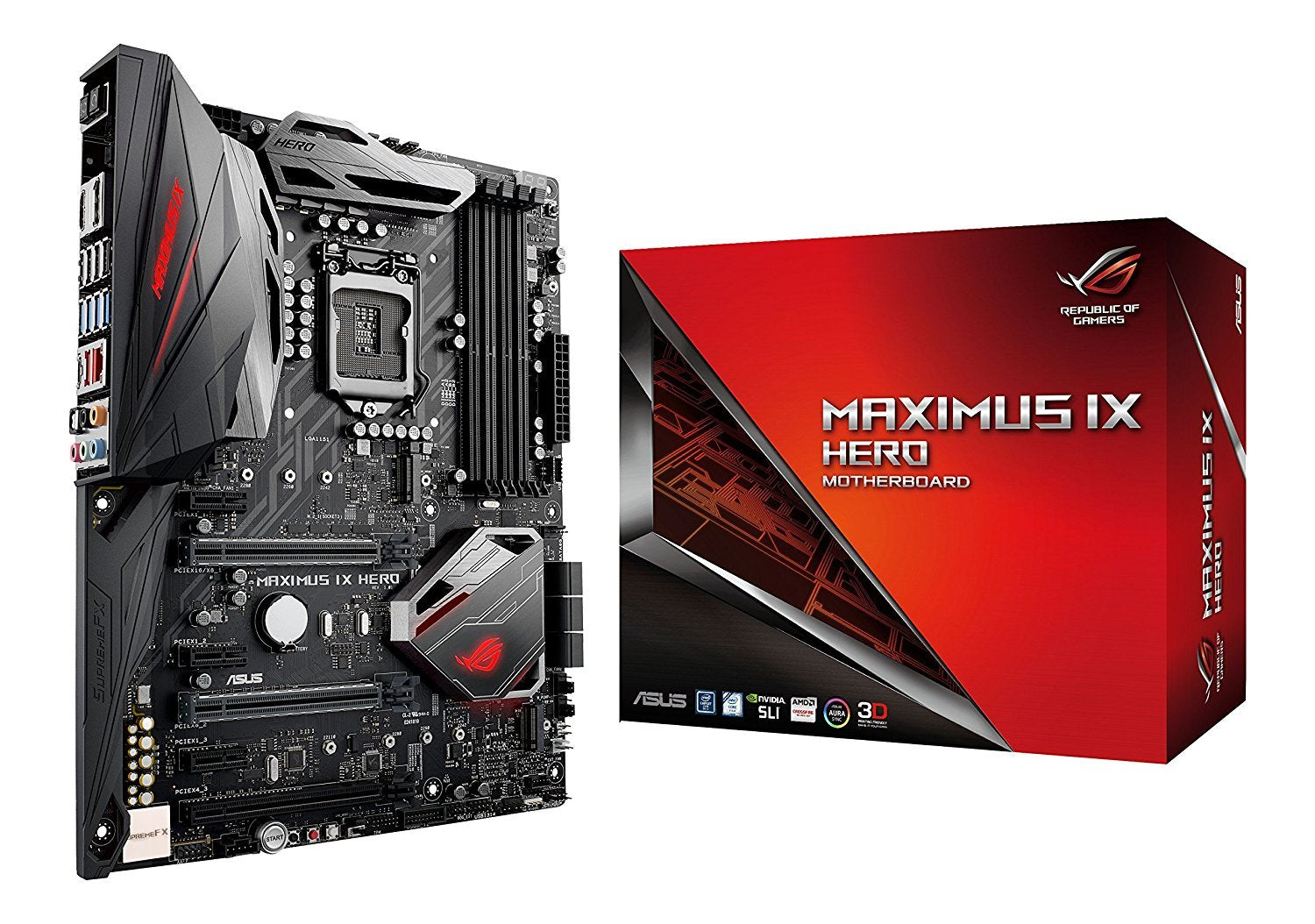

ASUS MAXIMUS IX HERO Intel Compatible Motherboard for Desktop Computer/PC

ASUS MAXIMUS IX HERO Intel Compatible Motherboard for Desktop Computer/PC

Rs. 25,239.00
Rs. 25,239.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS MAXIMUS IX HERO Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Intel® Socket 1151 for 7th/6th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium®/Celeron® Processors
  • 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory
  • Multi-VGA output support : HDMI/DisplayPort ports
  • Supports NVIDIA® 2-Way SLITM Technology & Supports AMD 3-Way CrossFireXTM Technology
  • Intel® I219V Anti-surge, LANGuard, ROG GameFirst Technology

TECHNICAL DETAILS:

Motherboard

ASUS MAXIMUS IX HERO

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z270

Form Factor

ATX Form Factor
12 cm x 9.6 cm ( 30.5 cm x 24.4 cm )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
4 x DIMM, Max. 64GB, DDR4 2800(O.C.)/3600(O.C.)/3300(O.C.)/3733(O.C.)/3400(O.C.)/3200(O.C.)/4133(O.C.)/3000(O.C.)/3866(O.C.)/2666(O.C.)/2400(O.C.)/3333(O.C.)/3466(O.C.)/4000(O.C.)/2133(O.C.) MHz Un-buffered, Non-ECC Memory

Multi-GPU Support

Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 3.0/2.0 x16
3 x PCIe 3.0/2.0 x1

LAN

Intel® I219V
ROG GameFirst Technology
Anti-surge LANGuard

Audio

Audio Feature :
- Sonic Radar III
- Sonic Studio III
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
8-Channel High Definition Audio CODEC S1220 ROG SupremeFX
- ESS® ES9023P
- SupremeFX Shielding Technology
- High quality and SNR stereo playback output 120 dB 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *6

Available USB Ports

Intel® Z270 Chipset :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z270 Chipset : *7
6 x USB 2.0 port(s) (2 at mid-board, 4 at back panel, black)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 port(s) (Type-A + USB Type-CTM, 2 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS CrashFree BIOS 3
TPU
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS Q-LED (Boot Device LED, VGA, CPU)
- ASUS Q-DIMM
Gamer's Guardian:
- SafeSlot

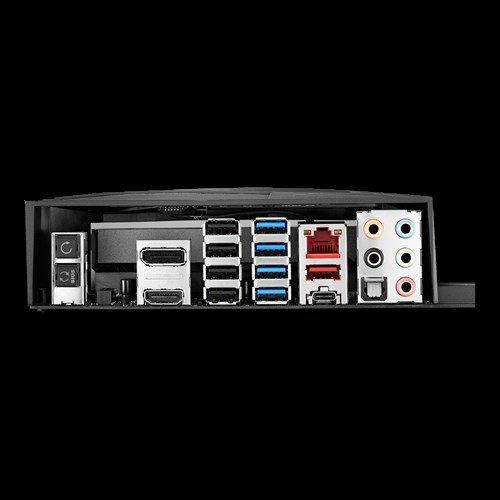

Back I/O Ports

5 x Gold-plated audio jacks
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Clear CMOS button(s)
1 x USB 3.1 Gen 2 (black)USB Type-CTM
1 x USB BIOS Flashback Button(s)
1 x Optical S/PDIF out
4 x USB 3.1 Gen 1 (blue)
1 x HDMI
1 x DisplayPort
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (red)Type-A

Internal I/O

1 x MemOK! button(s)
1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x RGB Header(s)
1 x EXT_Fan header
1 x LN2 Mode switch(es)
3 x Chassis Fan connector(s)
1 x Clear CMOS button(s)
1 x AIO_PUMP connector
1 x CPU Fan connector(s)
1 x W_OUT header
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x W_FLOW header
1 x H_AMP fan connector
1 x Start button
1 x 24-pin EATX Power connector(s)
1 x ROG extension (ROG_EXT) header(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x Thunderbolt header(s)
1 x TPM connector(s)
1 x Front panel audio connector(s) (AAFP)

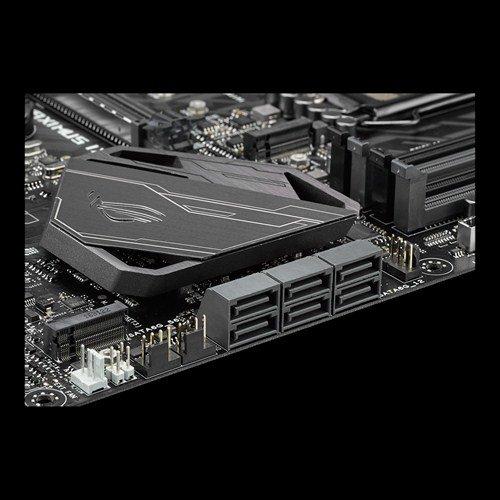

6 x SATA 6Gb/s connector(s)
1 x W_PUMP+ connector
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x CPU OPT Fan connector(s)
1 x Reset button(s)
1 x 8-pin EATX 12 V Power connector
3 x 3D Mount screw port(s)
1 x Safe Boot button
1 x Slow Mode jumper(s)
1 x USB BIOS Flashback button(s)
1 x W_IN header
1 x Thermal sensor connector(s)
1 x System panel connector
1 x ReTry button

WARRANTY

3 YEARS
