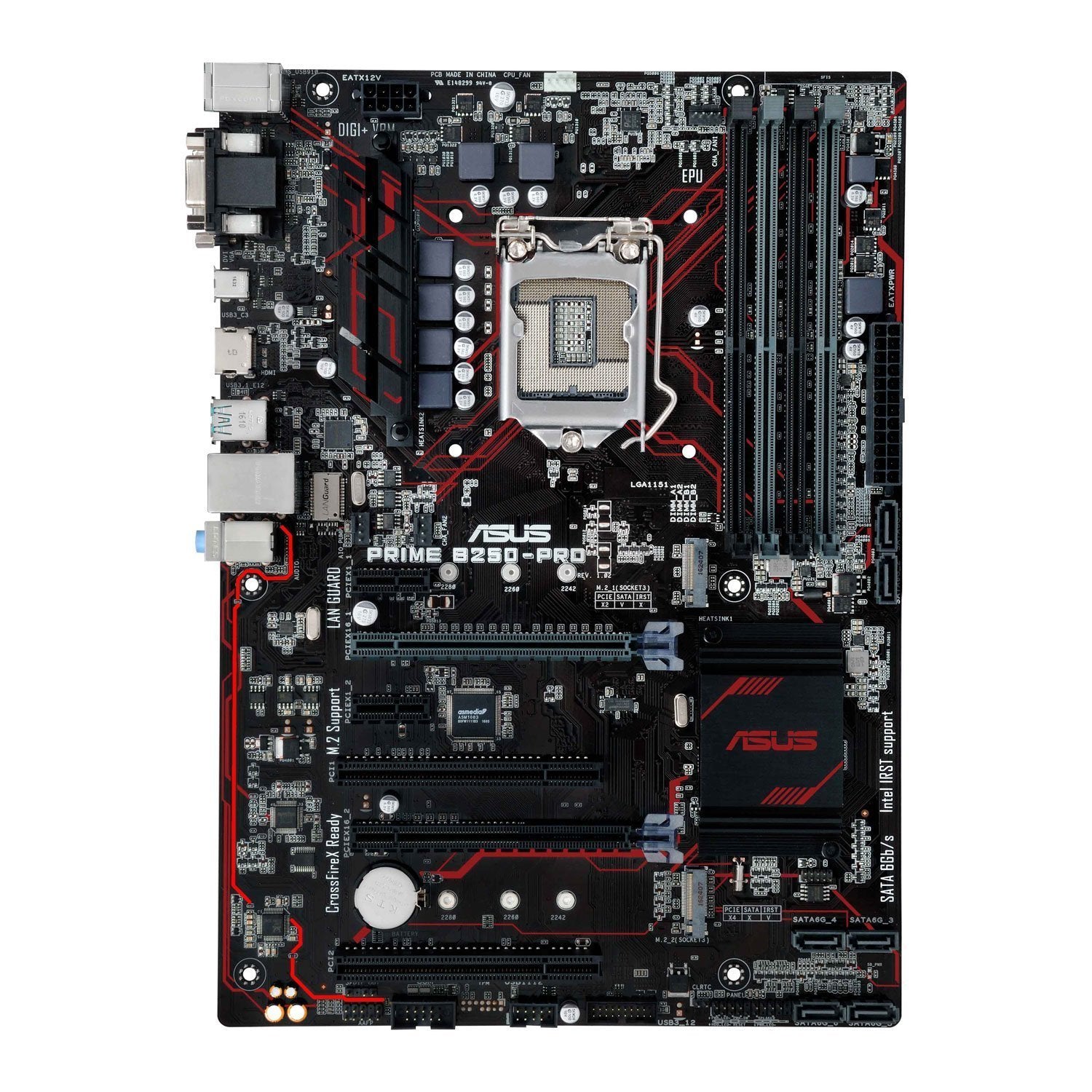

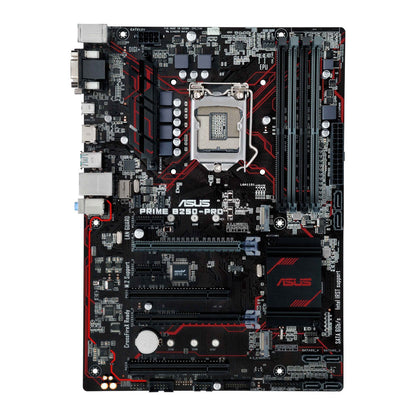

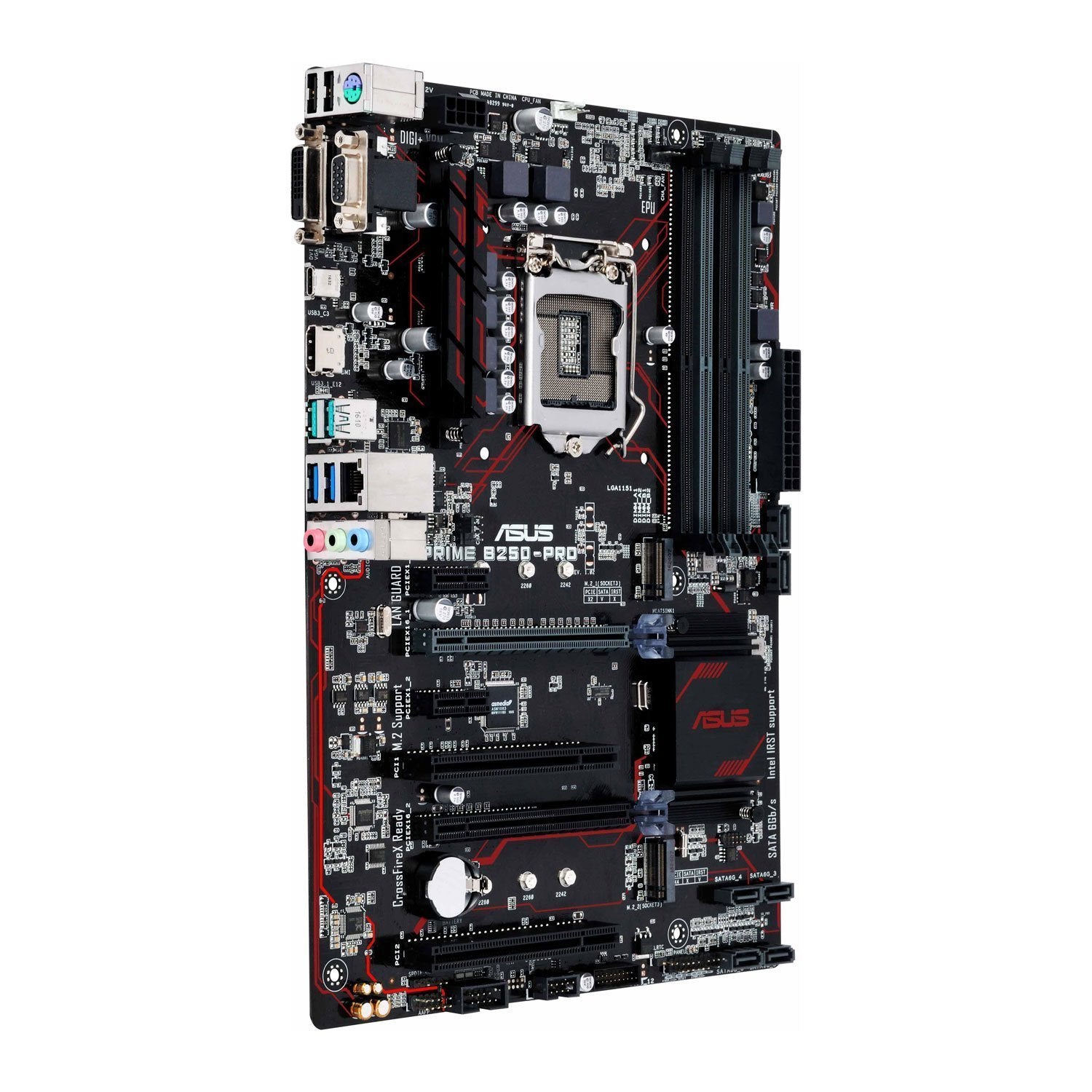

ASUS PRIME B250-PRO Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME B250-PRO Intel Compatible Motherboard for Desktop Computer/PC

Rs. 9,997.00
Rs. 9,997.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME B250-PRO Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Intel® Socket 1151 for 7th/6th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium®/Celeron® Processors
  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  • Multi-VGA output support : HDMI/DVI-D/RGB ports
  • Intel® OptaneTM Memory Ready
  • Realtek® ALC887 8-Channel High Definition Audio CODEC

TECHNICAL DETAILS:

Motherboard

ASUS PRIME B250-PRO

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® B250

Form Factor

ATX Form Factor
12. cm x 8.6 cm ( 30.5 cm x 21.8 cm )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (black, max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio

Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
Realtek® ALC887 8-Channel High Definition Audio CODEC *4

Available USB Ports

ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A, 2 at back panel, teal blue)
Intel® B250 Chipset :
4 x USB 3.1 Gen 1 port(s) (Type-A, 2 at back panel, black, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at mid-board, Type-A, 2 at back panel, blue)
Intel® B250 Chipset :
1 x USB 3.1 Gen 1 port(s) (Support 3A power output, USB Type-CTM, 1 at back panel, , Reversible)

Special Features

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Shield
ASUS 5X Protection III :
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS DIGI+ VRM: 6 Phase digital power design
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyLogo 2
ASUS EPU :
- EPU
ASUS Exclusive Features :
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ESD Guards
- AI Suite 3
Digi+VRM
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+

Back I/O Ports

1 x DVI-D
2 x USB 3.1 Gen 1 (blue)
1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )
2 x USB 2.0
3 x Audio jack(s)
2 x USB 3.1 Gen 2 (teal blue)
1 x LAN (RJ45) port(s)
1 x HDMI
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub

Internal I/O

1 x System panel connector
2 x M.2 Socket 3
1 x Front panel audio connector(s) (AAFP)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x Chassis Fan connector(s) (2 x 4 -pin)
6 x SATA 6Gb/s connector(s)
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x 24-pin EATX Power connector(s)
1 x Clear CMOS jumper(s)
1 x S/PDIF out header(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x AIO PUMP Header
1 x Serial Port header
1 x 8-pin ATX 12V Power connector(s)

WARRANTY

3 YEARS
