ASUS PRIME B250F GAMING Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME B250F GAMING Intel Compatible Motherboard for Desktop Computer/PC

Rs. 11,037.00
Rs. 11,037.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME B250F GAMING Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Intel® Socket 1151 for 7th/6th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium®/Celeron® Processors
  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  • Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
  • Supports AMD 2-Way CrossFireX Technology
  • Intel® I219V, Anti-surge, LANGuard, ROG GameFirst Technology

TECHNICAL DETAILS:

Motherboard

ASUS PRIME B250F GAMING

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® B250

Form Factor

12 cm x 9.6 cm ( 30.5 cm x 24.4 cm )
ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR4 2133/2400 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
Dual Channel Memory Architecture

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
4 x PCIe 3.0/2.0 x1

LAN

Intel® I219V
ROG GameFirst Technology
Anti-surge LANGuard

Audio

- Supports : Front Panel Jack-retasking, Multi-streaming, Jack-detection
SNR recording input 113 dB SNR stereo playback output - High quality 120 dB and
- Impedance sense for front and rear headphone outputs
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Studio III
- Sonic Radar III
- Dual Headphone Amplifiers
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- SupremeFX Shielding Technology

Available USB Ports

Intel® B250 Chipset :
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 port(s) (Support 3A power output, Type-A + USB Type-CTM)
Intel® B250 Chipset : *5
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Special Features

Gamer's Guardian:
- DRAM Overcurrent Protection
- DIGI+ VRM
- Highly Durable Components
- Stainless Steel Back I/O
- SafeSlot
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (Boot Device LED, VGA, DRAM, CPU)
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS CrashFree BIOS 3
Gaming Aesthetics :
- AURA-RGB Lighting
- 3D printing friendly
Performance Optimization :
- GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- AI Suite 3
- DIGI + VRM
ASUS Exclusive Features :
- AI Suite 3
- ESD Guards
- Ai Charger

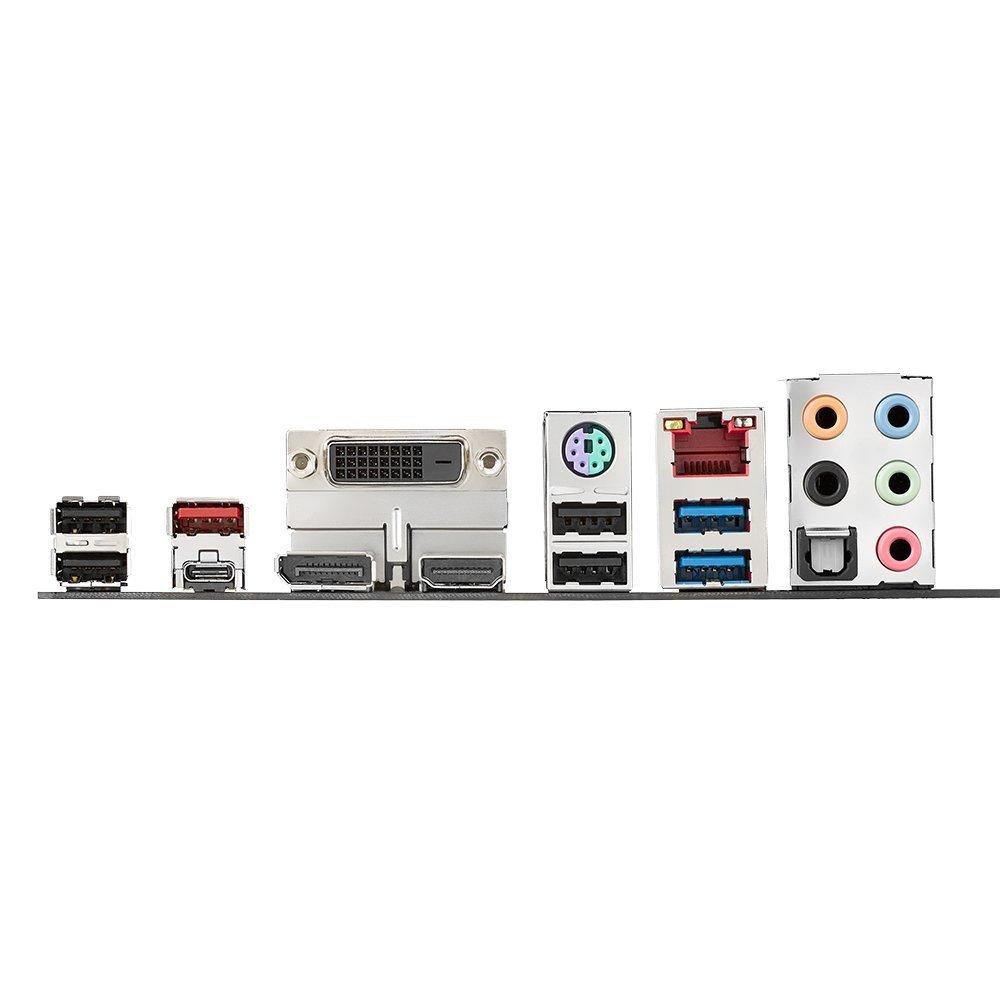

Back I/O Ports

2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
1 x DisplayPort
2 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
1 x HDMI
4 x USB 2.0
1 x LAN (RJ45) port(s)
1 x DVI-D
5 x Audio jack(s)
1 x PS/2 keyboard/mouse combo port(s)

Internal I/O

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x ROG extension (ROG_EXT) header(s)
2 x Chassis Fan connector(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (Support SATA mode only)
6 x SATA 6Gb/s connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x CPU Fan connector(s)
1 x RGB Header(s)
1 x COM port header
1 x 14-1 pin TPM connector
1 x 24-pin EATX Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x AAFP connector
1 x Clear CMOS jumper(s)
3 x 3D Mount screw port(s)
1 x T_Sensor Connector
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x AIO_PUMP connector
1 x CPU OPT Fan connector(s)

WARRANTY

3 YEARS
