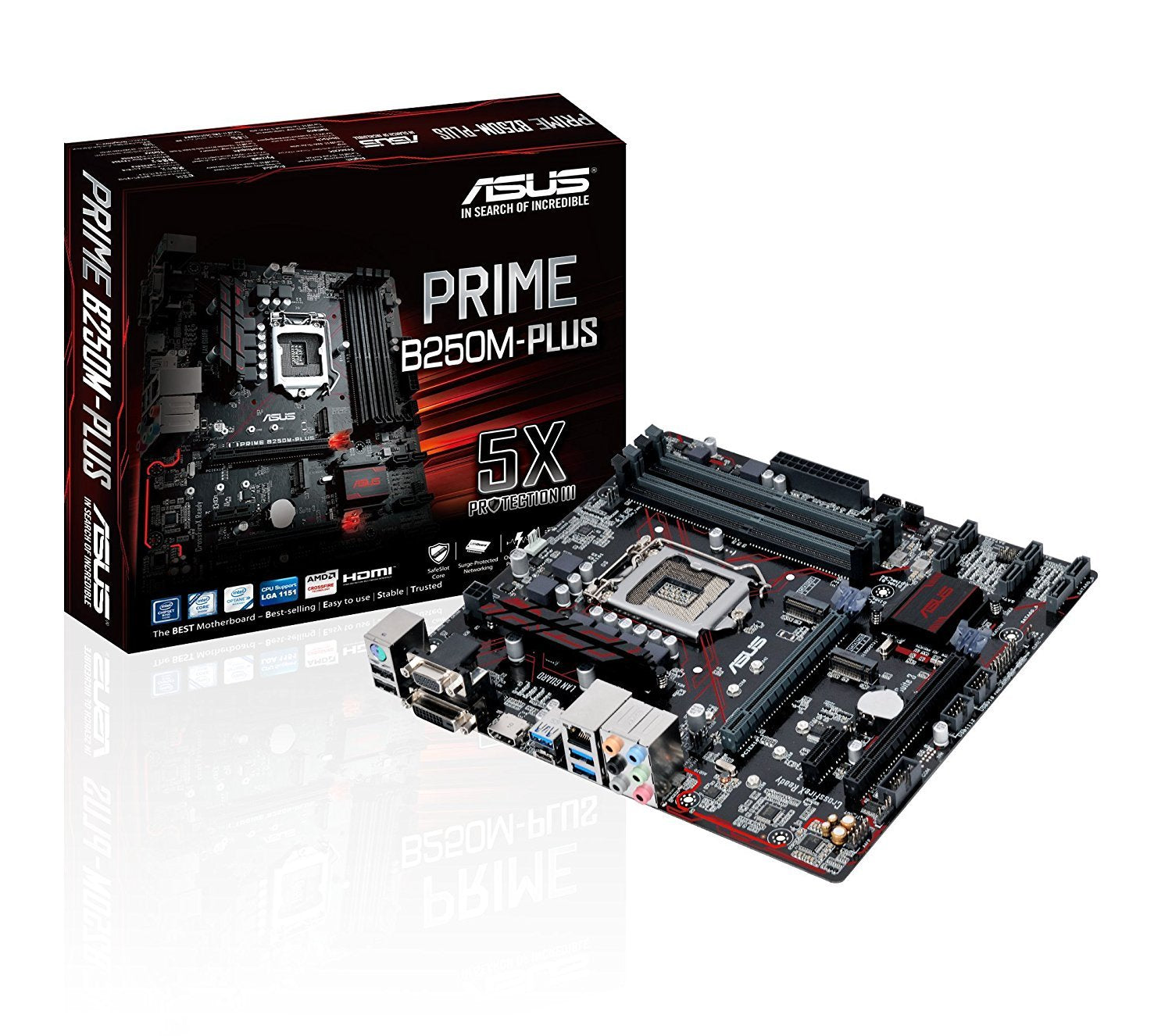

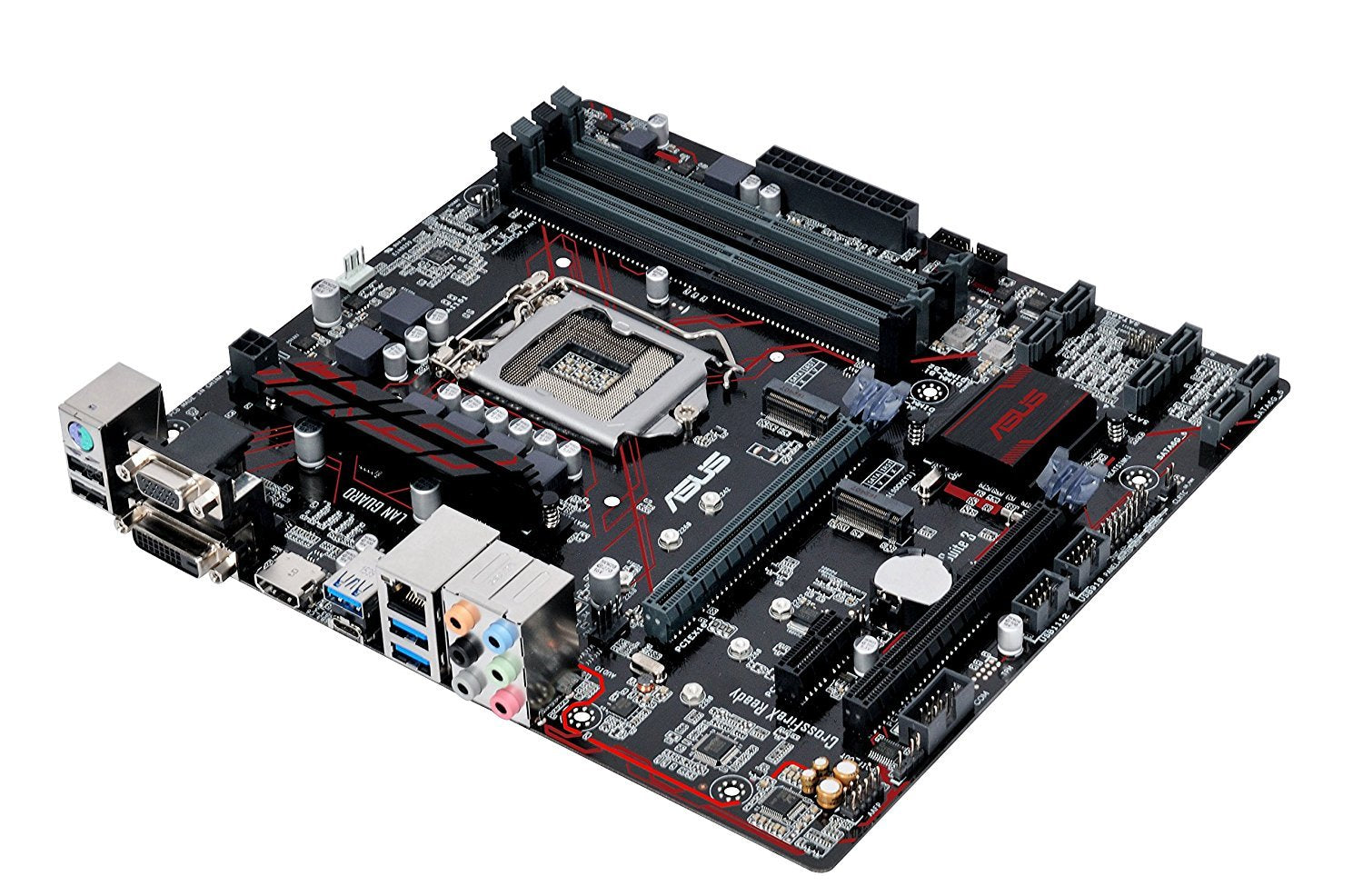

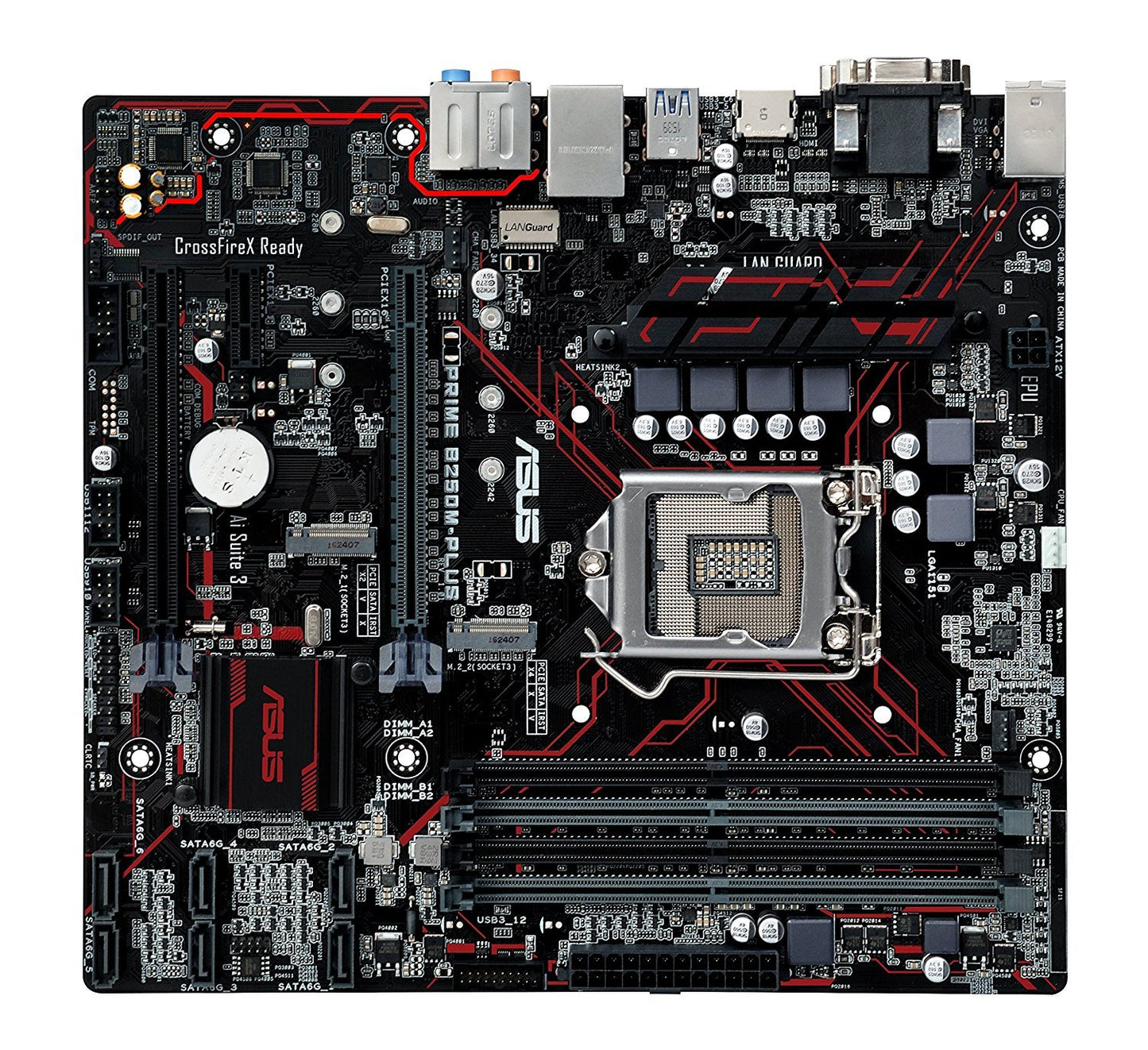

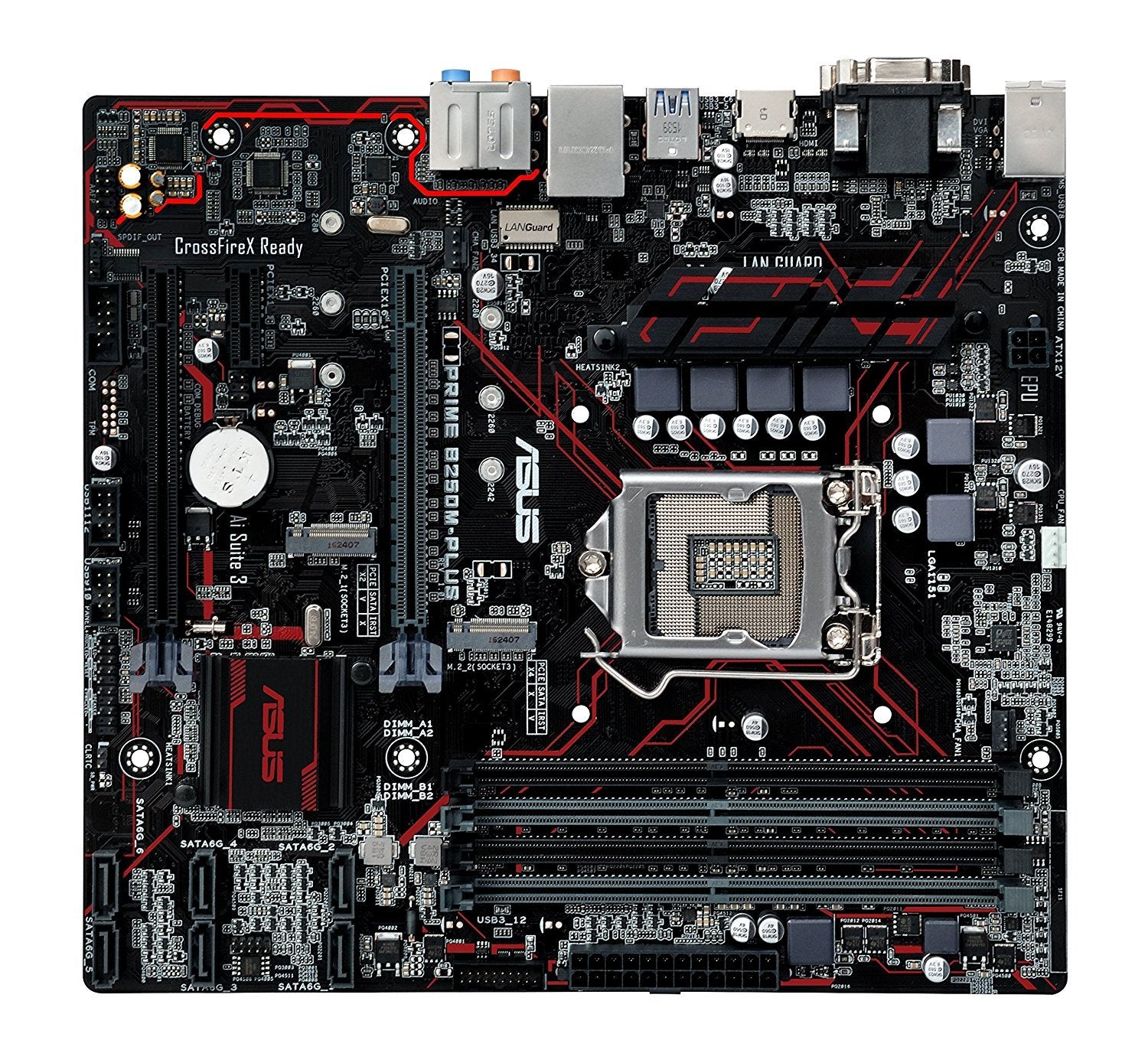

ASUS PRIME B250M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME B250M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

Rs. 8,613.00
Rs. 8,613.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME B250M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

    TECHNICAL DETAILS:

    Motherboard

    ASUS PRIME B250M-PLUS

    Brand

    ASUS

    Compatible with

    Intel

    Socket Type

    LGA1151

    Chipset

    Intel® B250

    Form Factor

    mATX Form Factor
    9.6 cm x 8.8 cm ( 24.4 cm x 22.4 cm )

    Supported Memory (Ram) Type

    DDR4

    No. of RAM Slots

    Supports Intel® Extreme Memory Profile (XMP)
    * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
    ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
    Dual Channel Memory Architecture
    4 x DIMM, Max. 64GB, DDR4 2133/2400 MHz Un-buffered, Non-ECC Memory

    Multi-GPU Support

    Supports AMD CrossFireX™ Technology

    Available Expansion Slots

    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    1 x PCIe 3.0/2.0 x1
    1 x PCIe 3.0/2.0 x16 (x4 mode, black)

    LAN

    1 x Gigabit LAN Controller(s), Intel® I219V
    ASUS LAN Guard
    Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

    Audio

    Audio Feature :
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Supports : Front Panel Jack-retasking, Jack-detection
    Realtek® ALC887 8-Channel High Definition Audio CODEC

    Available USB Ports

    Intel® B250 Chipset :
    6 x USB 2.0/1.1 port(s) (4 at mid-board, 2 at back panel, black)
    Intel® B250 Chipset :
    1 x USB 5Gb/s port(s) port(s) (USB Type-CTM, Support 3A power output, 1 at back panel, )
    Intel® B250 Chipset :
    5 x USB 3.1 Gen 1 port(s) (Type-A, 2 at mid-board, 3 at back panel, blue)

    Special Features

    ASUS Exclusive Features :
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - AI Suite 3
    - ESD Guards
    ASUS EPU :
    - EPU
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert 2+
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Q-Design :
    - ASUS Q-DIMM
    - ASUS Q-Slot
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS UEFI BIOS EZ Mode
    - ASUS EZ Flash 3

    Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x LAN (RJ45) port(s)
    1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )
    6 x Audio jack(s)
    1 x DVI-D
    1 x HDMI
    3 x USB 3.1 Gen 1 (blue) Type-A
    2 x USB 2.0

    Internal I/O

    1 x System panel connector
    2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
    1 x 4-pin ATX 12V Power connector(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x COM port header
    1 x S/PDIF out header(s)
    1 x Clear CMOS jumper(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    1 x 24-pin EATX Power connector(s)
    6 x SATA 6Gb/s connector(s)

    WARRANTY

    3 YEARS
