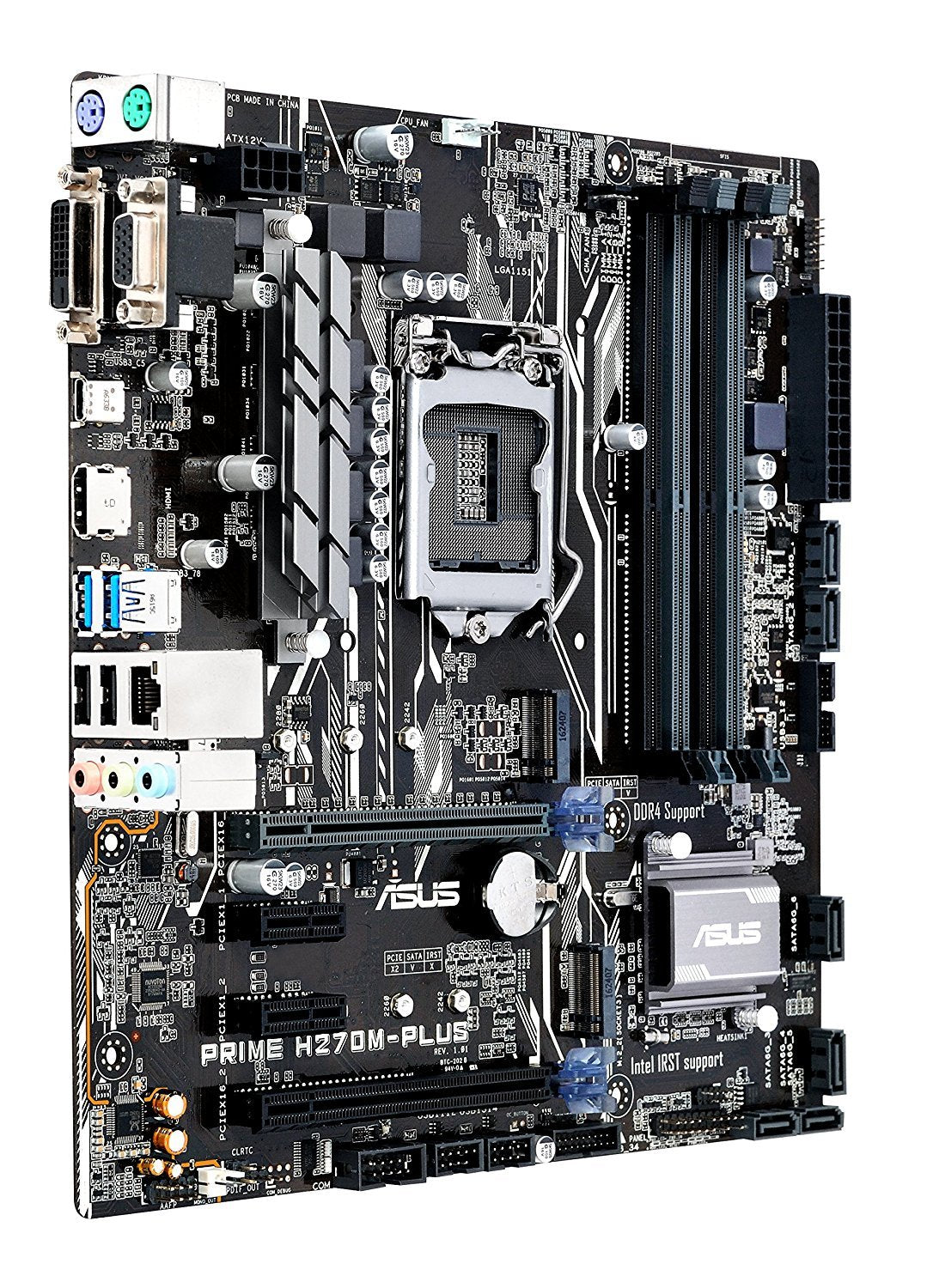

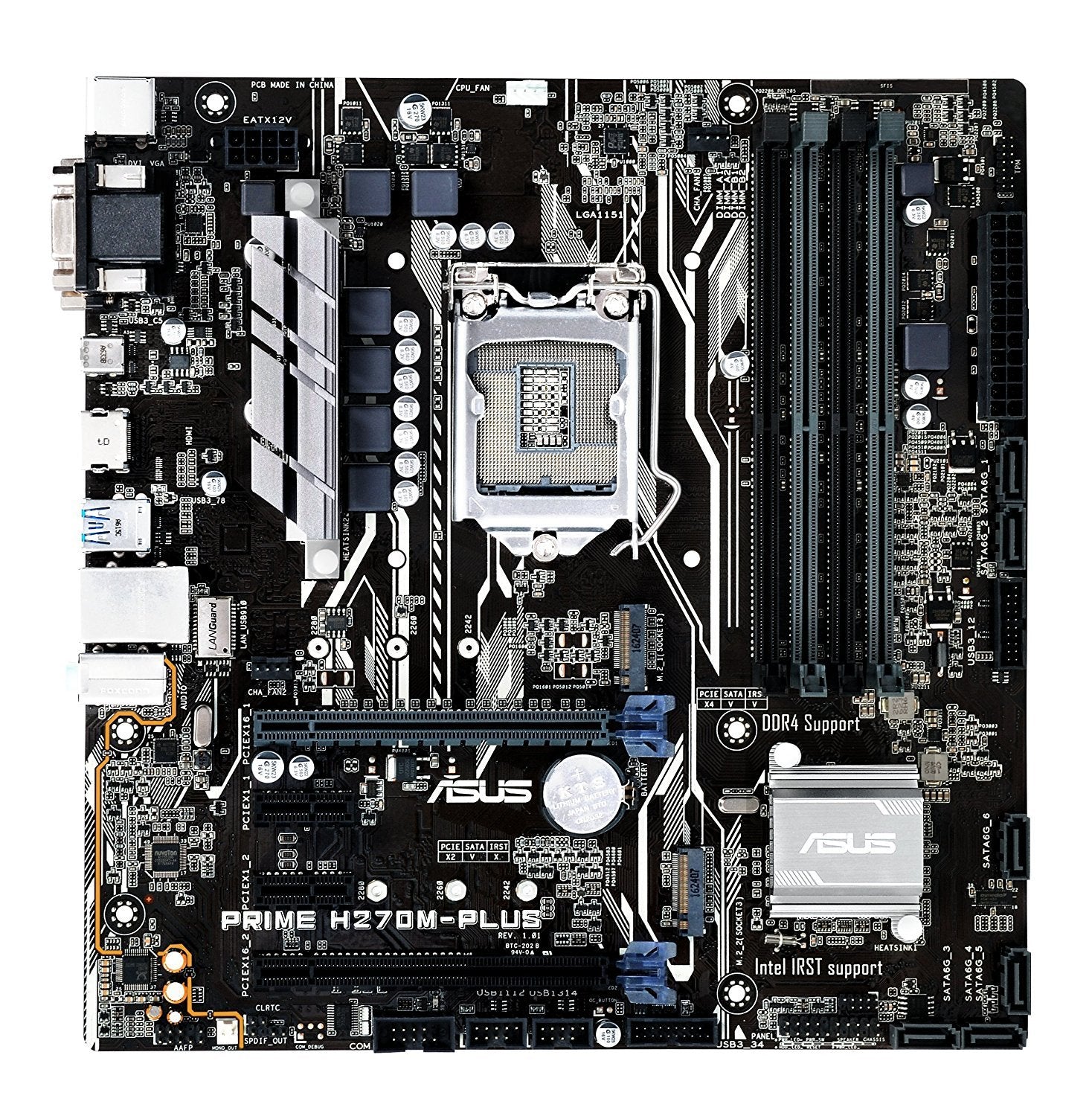

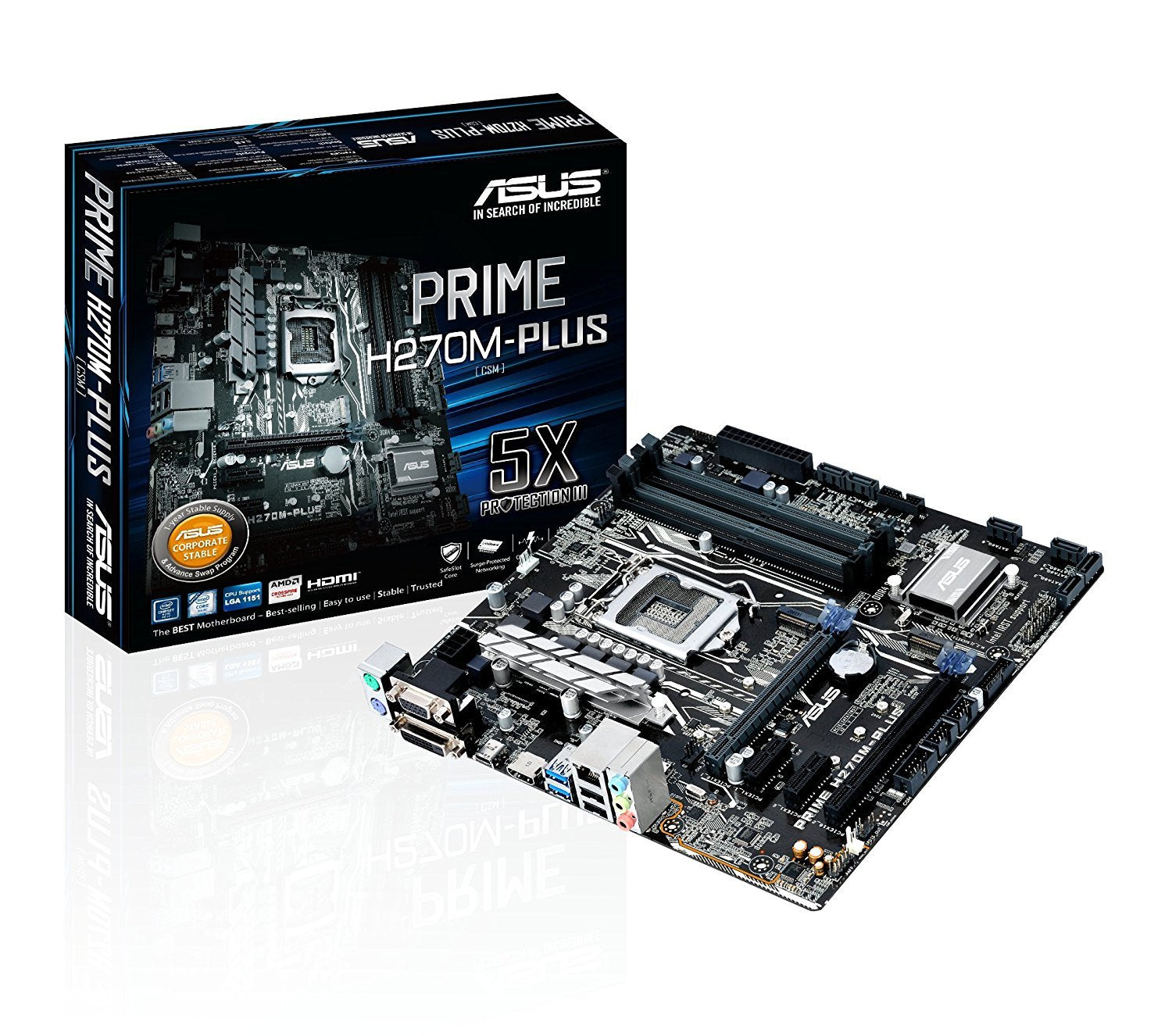

ASUS PRIME H270M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME H270M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

Rs. 10,257.00
Rs. 10,257.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME H270M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • 5X Protection III: Multiple hardware safeguards for all-round protection Fan Xpert 4 Core: Flexible controls for ultimate cooling and quietness Dual native M.2 support: lightning-fast storage speeds USB Type-C: Convenient reversible connectivity Intel® OptaneTM memory ready: Exploit the latest high-speed storage technology

TECHNICAL DETAILS:

Motherboard

ASUS PRIME H270M-PLUS

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H270

Form Factor

mATX Form Factor
9.6 cm x 9.4 cm ( 24.38 cm x 23.88 cm )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor.
4 x DIMM, Max. 64GB, DDR4 2133/2400 MHz Non-ECC, Un-buffered Memory

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1

LAN

1 x Gigabit LAN Controller(s), Intel® I219V

Audio

- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
8-Channel High Definition Audio CODEC Realtek® ALC887

Available USB Ports

Intel® H270 Chipset :
6 x USB 3.0 port(s) (2 at back panel, +blue)
Intel® H270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
Intel® H270 Chipset :
1 x USB 5Gb/s port(s) port(s) (USB Type-CTM, Support 3A power output)

Special Features

ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EPU :
- EPU
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS 5X Protection III :
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS DIGI+ VRM: 6 Phase digital power design
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Back I/O Ports

1 x 8-channel Audio I/O
2 x USB 2.0
1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )
2 x USB 3.1 Gen 1 (blue) Type-A
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x DVI-D
1 x PS/2 mouse (green)
1 x PS/2 keyboard (purple)

Internal I/O

2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Clear CMOS jumper(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
4 x SATA 6Gb/s connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel connector
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x TPM header
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x COM port header
1 x MONO out header
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x Front panel audio connector(s) (AAFP)

WARRANTY

3 YEARS
