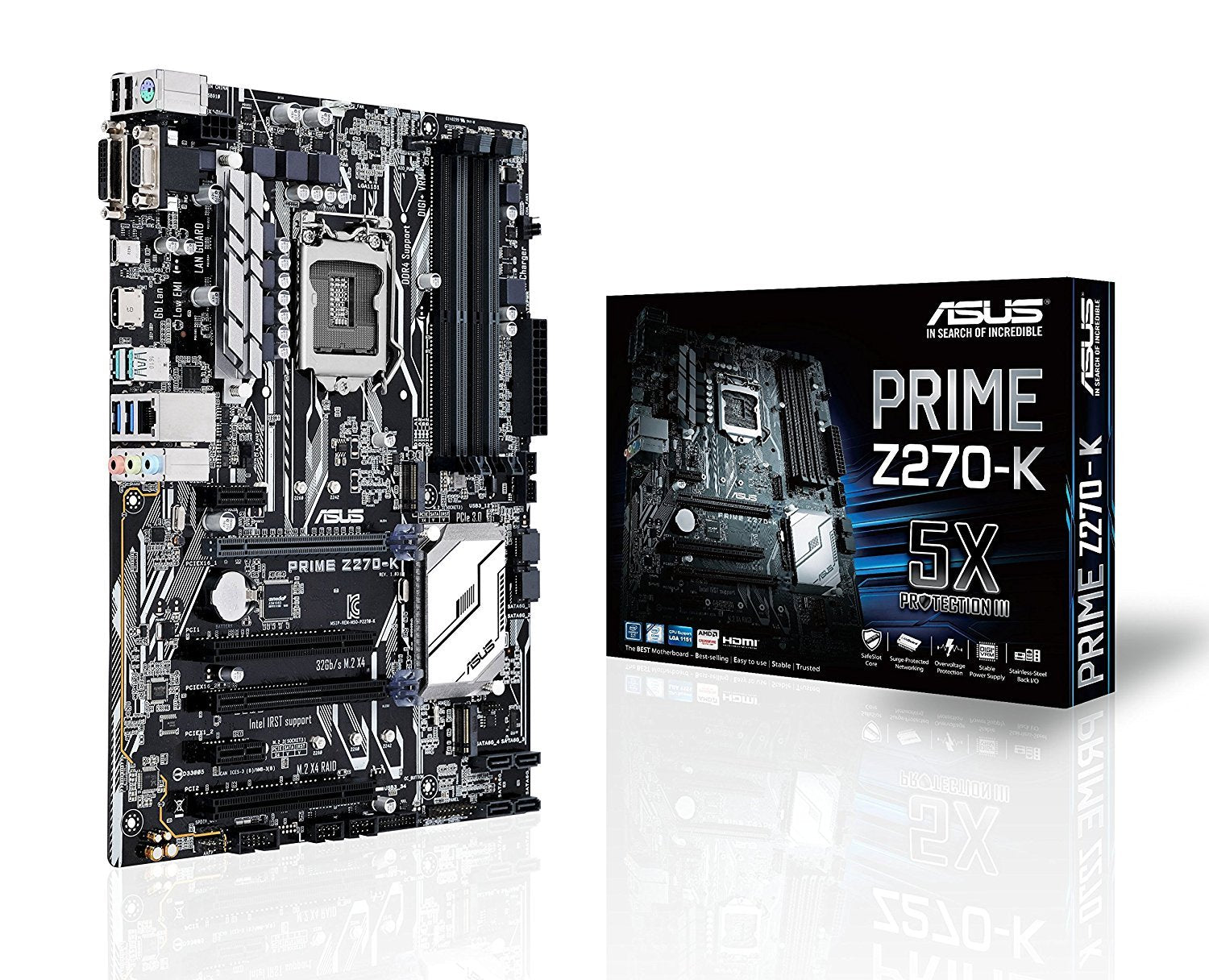

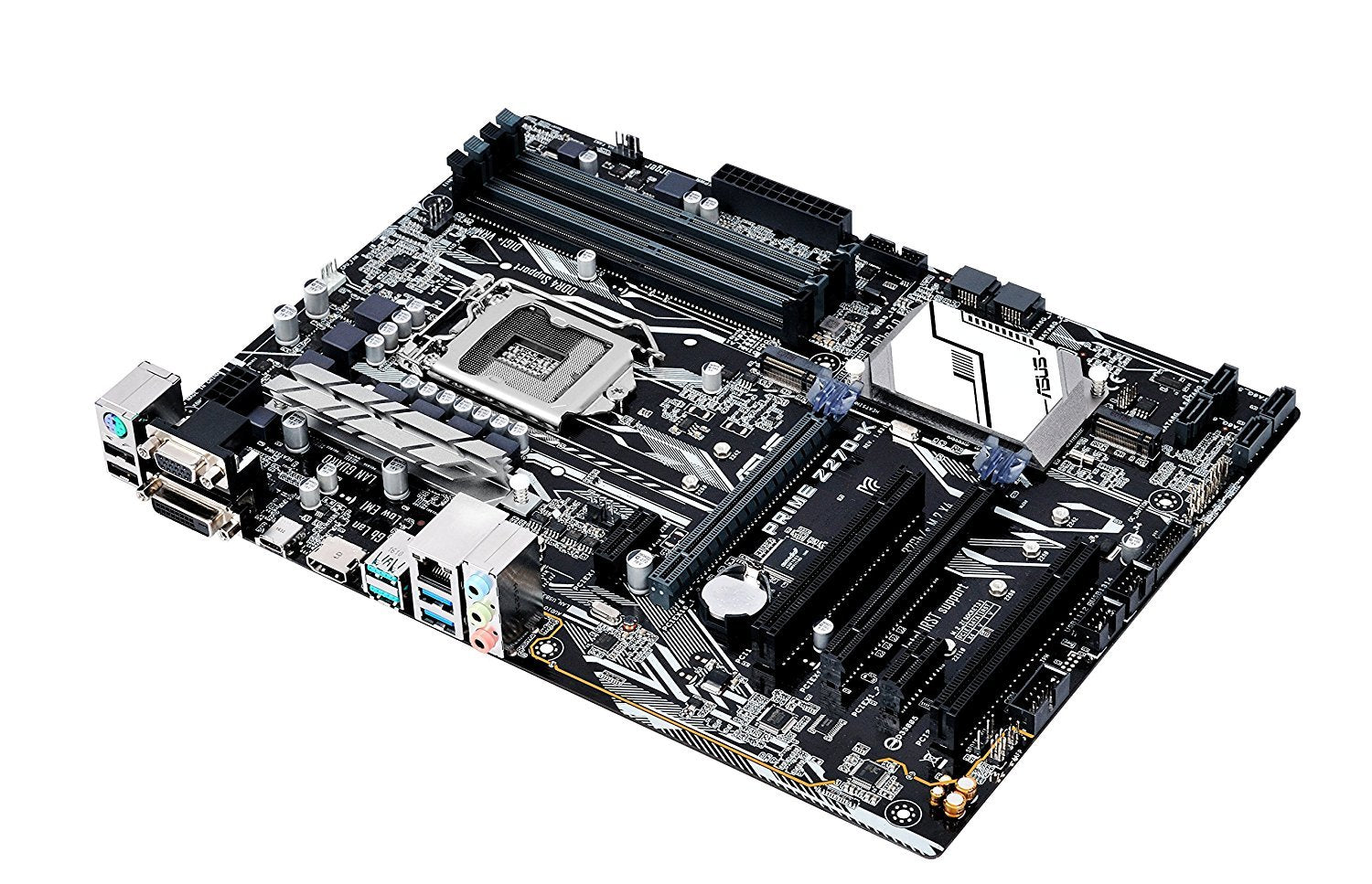

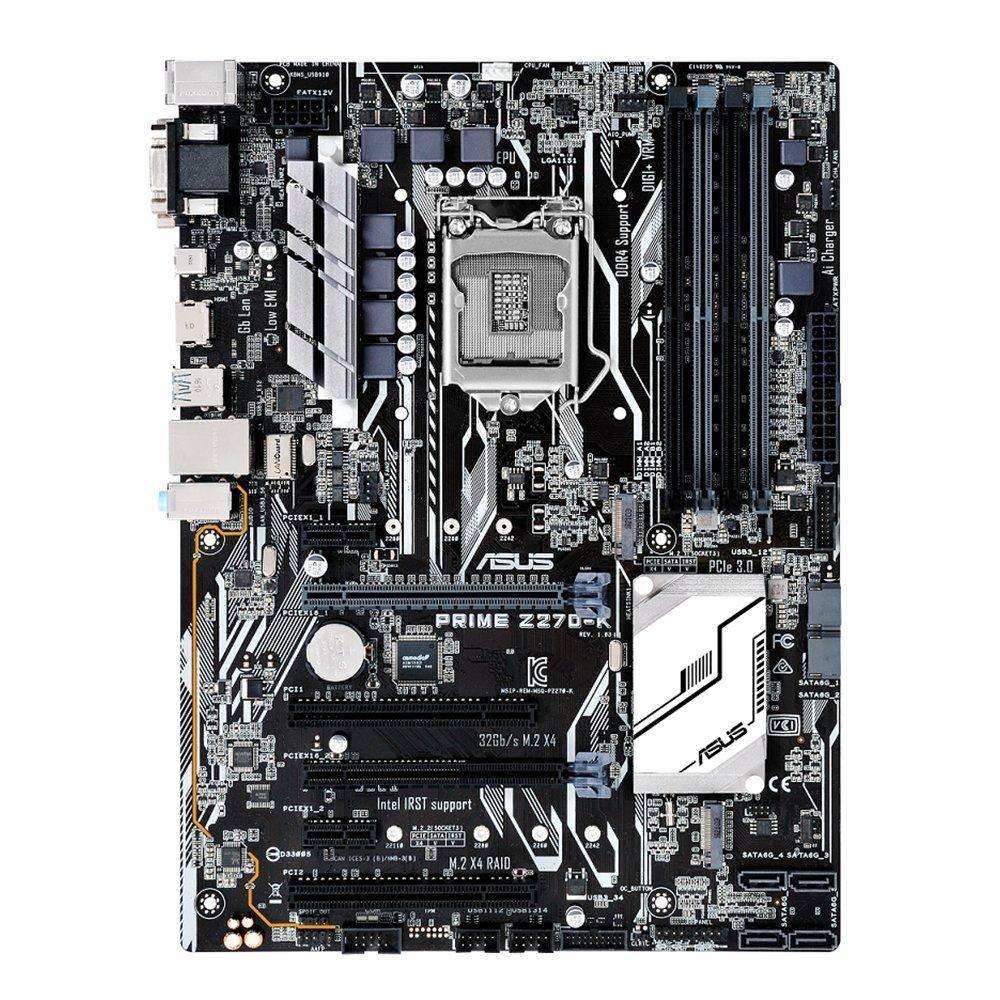

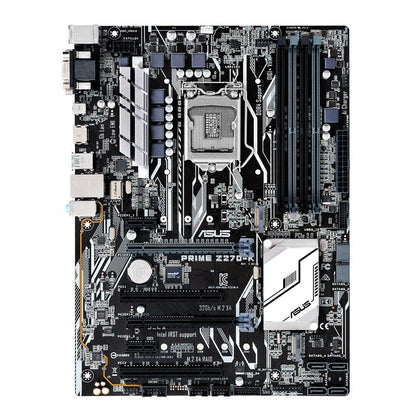

ASUS PRIME Z270-K Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME Z270-K Intel Compatible Motherboard for Desktop Computer/PC

Rs. 13,118.00
Rs. 13,118.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME Z270-K Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • ASUS
  • PRIMEZ270K

TECHNICAL DETAILS:

Motherboard

ASUS PRIME Z270-K

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z270

Form Factor

ATX Form Factor
12.0 cm x 8.9 cm ( 30.5 cm x 22.6 cm )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor.
4 x DIMM, Max. 64GB, DDR4

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Available Expansion Slots

2 x PCIe 3.0/2.0 x1
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCI

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)

Audio

Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking

Available USB Ports

Intel® Z270 Chipset :
6 x USB 3.0 port(s) (2 at back panel, +blue)
Intel® Z270 Chipset :
1 x USB 5Gb/s port(s) port(s)
Intel® Z270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 port(s) (Type-A, 2 at back panel, +teal blue)

Special Features

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS DIGI+ VRM: 7 Phase digital power design
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EPU :
- EPU
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Shield

Back I/O Ports

1 x DVI-D
1 x D-Sub
2 x USB 3.1 Gen 1 (blue) Type-A
1 x HDMI
1 x 8-channel Audio I/O
2 x USB 3.1 Gen 2 (teal blue)
2 x USB 2.0
1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )
1 x LAN (RJ45) port(s)
1 x PS/2 keyboard/mouse combo port(s)

Internal I/O

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x COM port header
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Clear CMOS jumper(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x S/PDIF out header(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x Front panel audio connector(s) (AAFP)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x System panel connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x AIO PUMP Header
1 x CPU Fan connector(s) (1 x 4 -pin)

WARRANTY

3 YEARS
