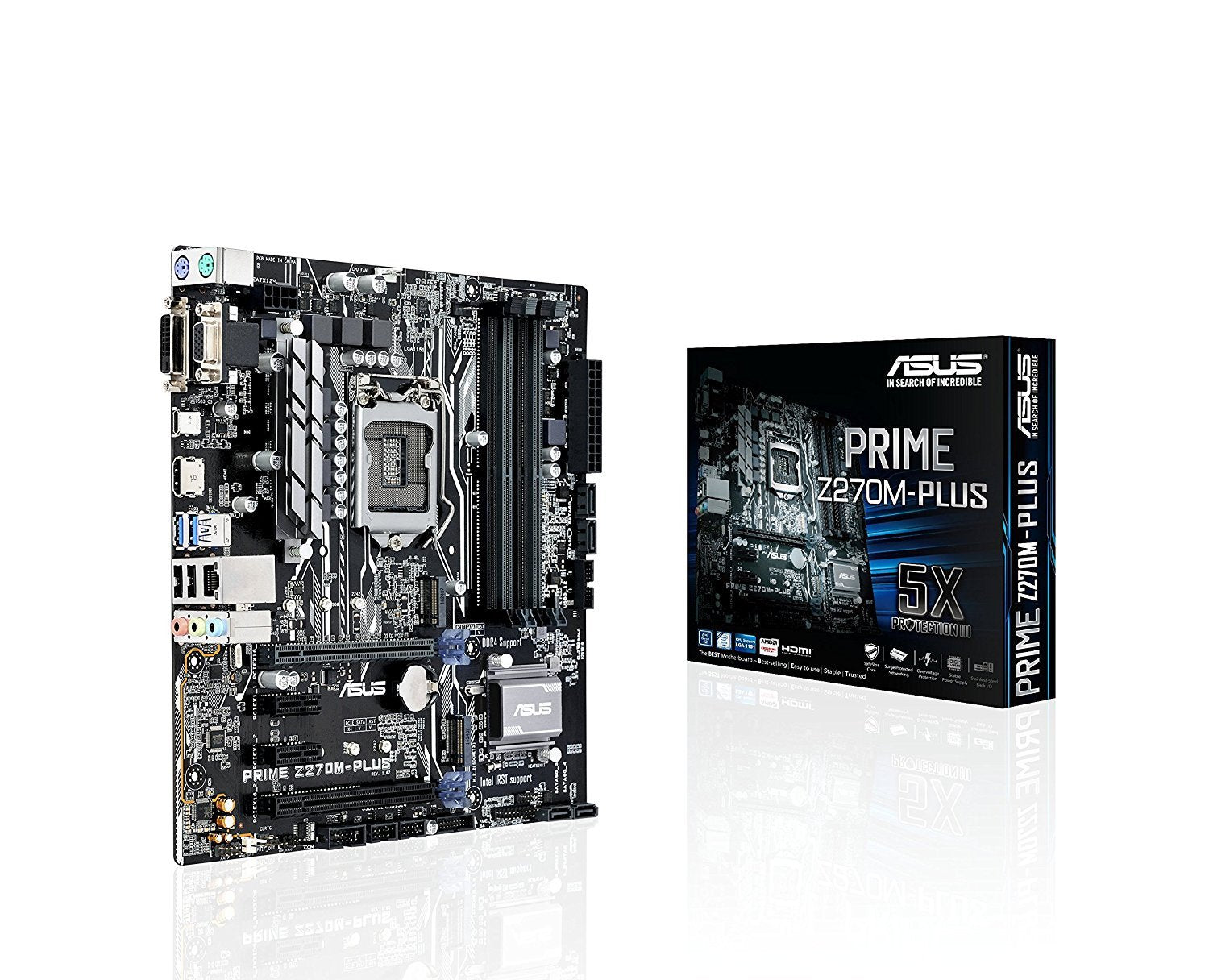

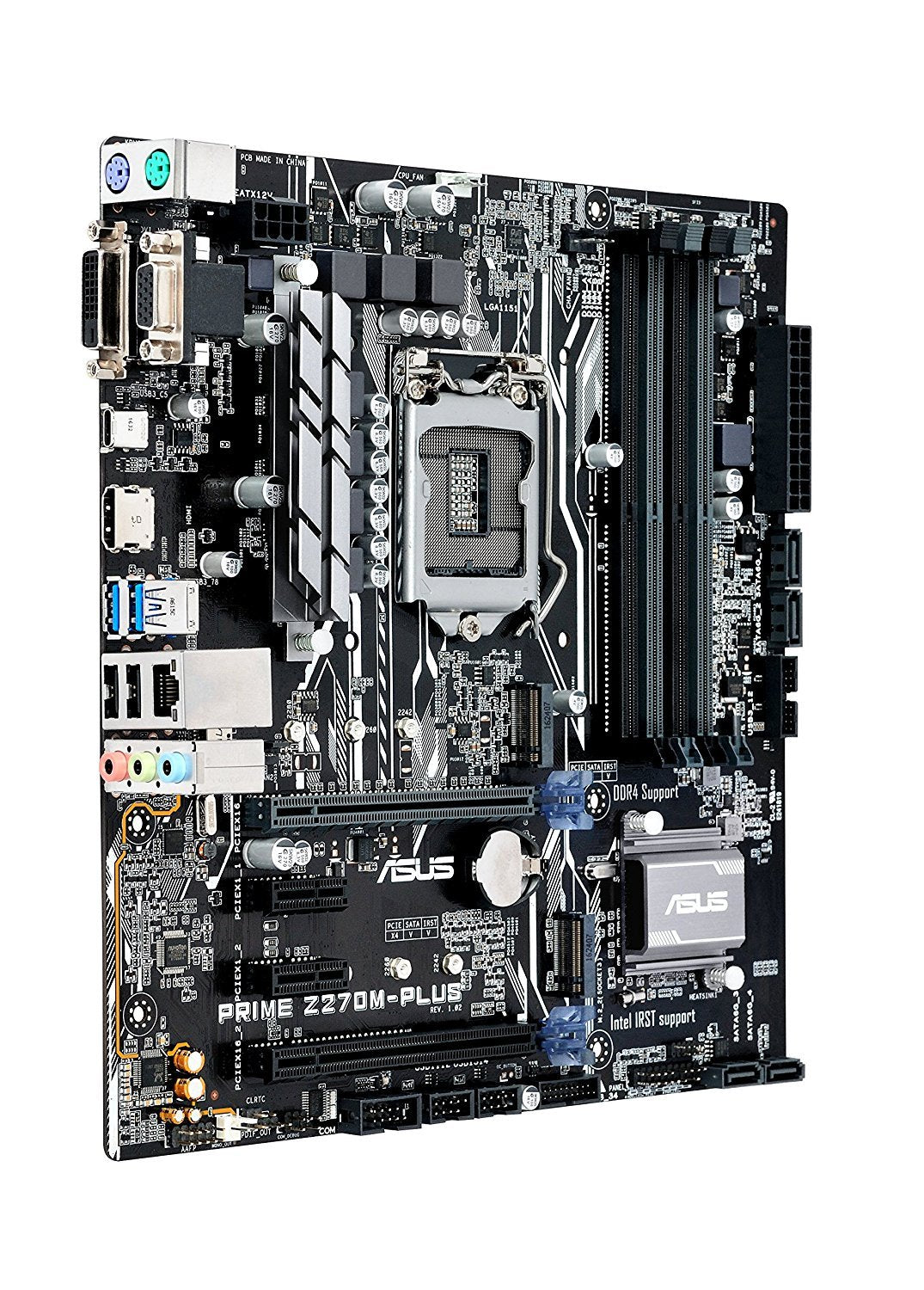

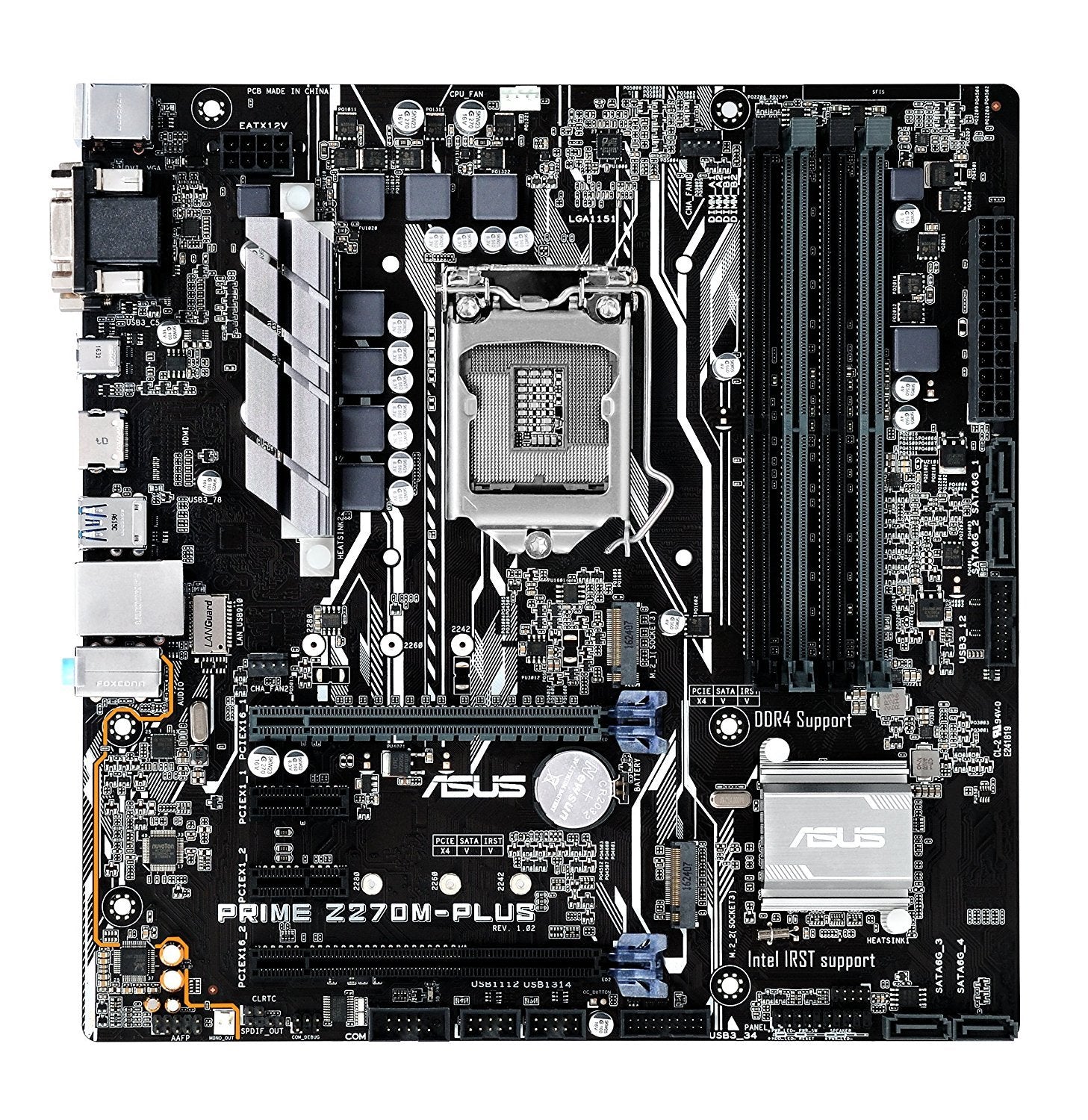

ASUS PRIME Z270M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME Z270M-PLUS Intel Compatible Motherboard for Desktop Computer/PC

Rs. 13,257.00
Rs. 13,257.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME Z270-M PLUS Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Maximize your connectivity and speed with integrated Dual M.2 slots, Intel Optane Memory compatibility and a rear USB 3.1 Type C connection
  • 5X Protection III Hardware-level safeguards provide component longevity and reliability
  • FanXpert 4 Core delivers advanced fan control for dynamic cooling
  • Dual Patent-pending Safe Slot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
  • On-board 3D-printing mounts for creating unique designs on your customized build. Please Note: Kindly refer the User Manual before use.

TECHNICAL DETAILS:

Motherboard

ASUS PRIME Z270M-PLUS

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z270

Form Factor

9.6 cm x 9.4 cm ( 24.38 cm x 23.88 cm )
mATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3300(O.C.)/2666(O.C.)/3333(O.C.)/2133/3866(O.C.)/3733(O.C.)/2400(O.C.)/3000(O.C.)/3200(O.C.)/3600(O.C.)/2800(O.C.)/3400(O.C.) MHz Non-ECC, Un-buffered Memory
* The maximum memory frequency supported varies by processor.
Supports Intel® Extreme Memory Profile (XMP)
Dual Channel Memory Architecture

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Available Expansion Slots

2 x PCIe 3.0/2.0 x1
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x16 (x16 mode)

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)

Audio

8-Channel High Definition Audio CODEC Realtek® ALC887
Audio Feature :
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Supports : Jack-detection, Front Panel Jack-retasking

Available USB Ports

Intel® Z270 Chipset :
1 x USB 5Gb/s port(s) port(s) (USB Type-CTM, Support 3A power output)
Intel® Z270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
Intel® Z270 Chipset :
6 x USB 3.0 port(s) (2 at back panel, blue+)

Special Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
ASUS EPU :
- EPU
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS UEFI BIOS EZ Mode
- ASUS O.C. Tuner
- ASUS EZ Flash 3
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS 5X Protection III :
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS DIGI+ VRM: 7 Phase digital power design

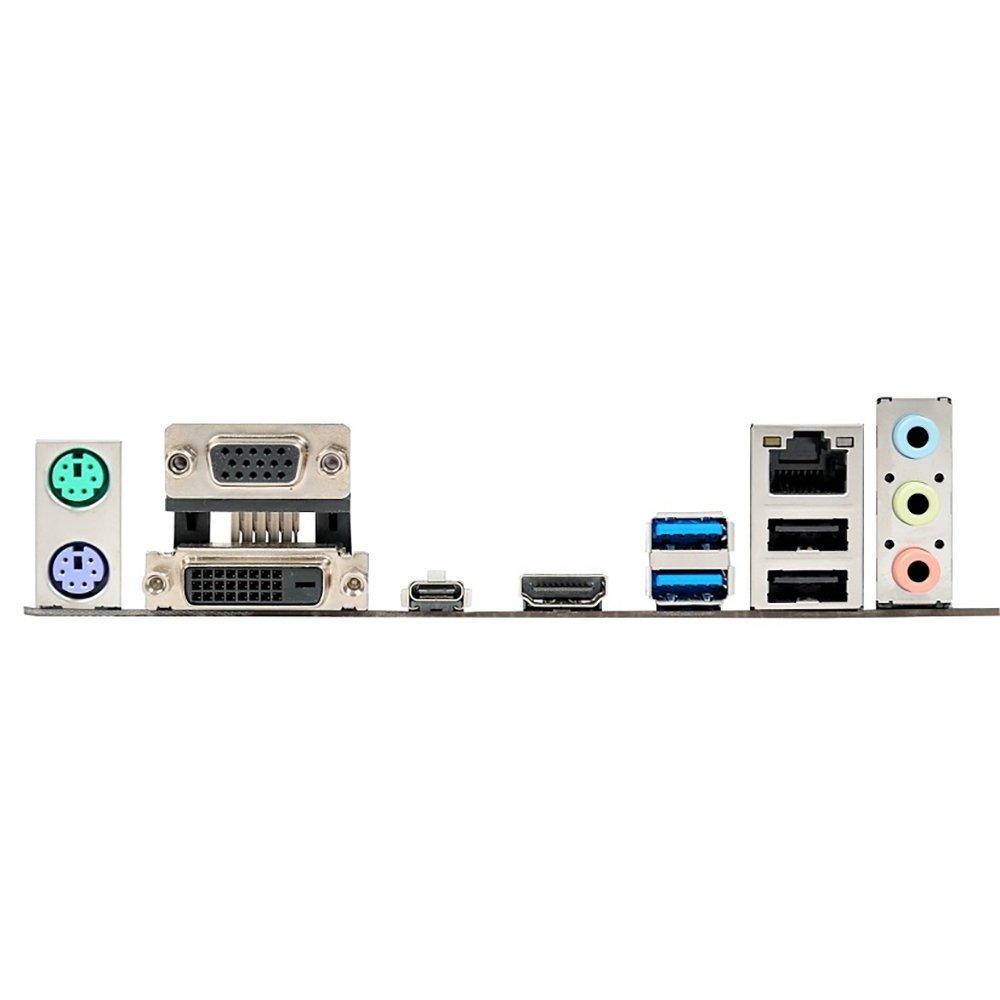

Back I/O Ports

2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x D-Sub
1 x LAN (RJ45) port(s)
1 x DVI-D
1 x PS/2 mouse (green)
1 x PS/2 keyboard (purple)
1 x HDMI
1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output )

Internal I/O

2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Clear CMOS jumper(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x COM port header
4 x SATA 6Gb/s connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel connector
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x MONO out header *5
1 x S/PDIF out header(s)
1 x CPU Fan connector(s) (1 x 4 -pin)

WARRANTY

3 YEARS
