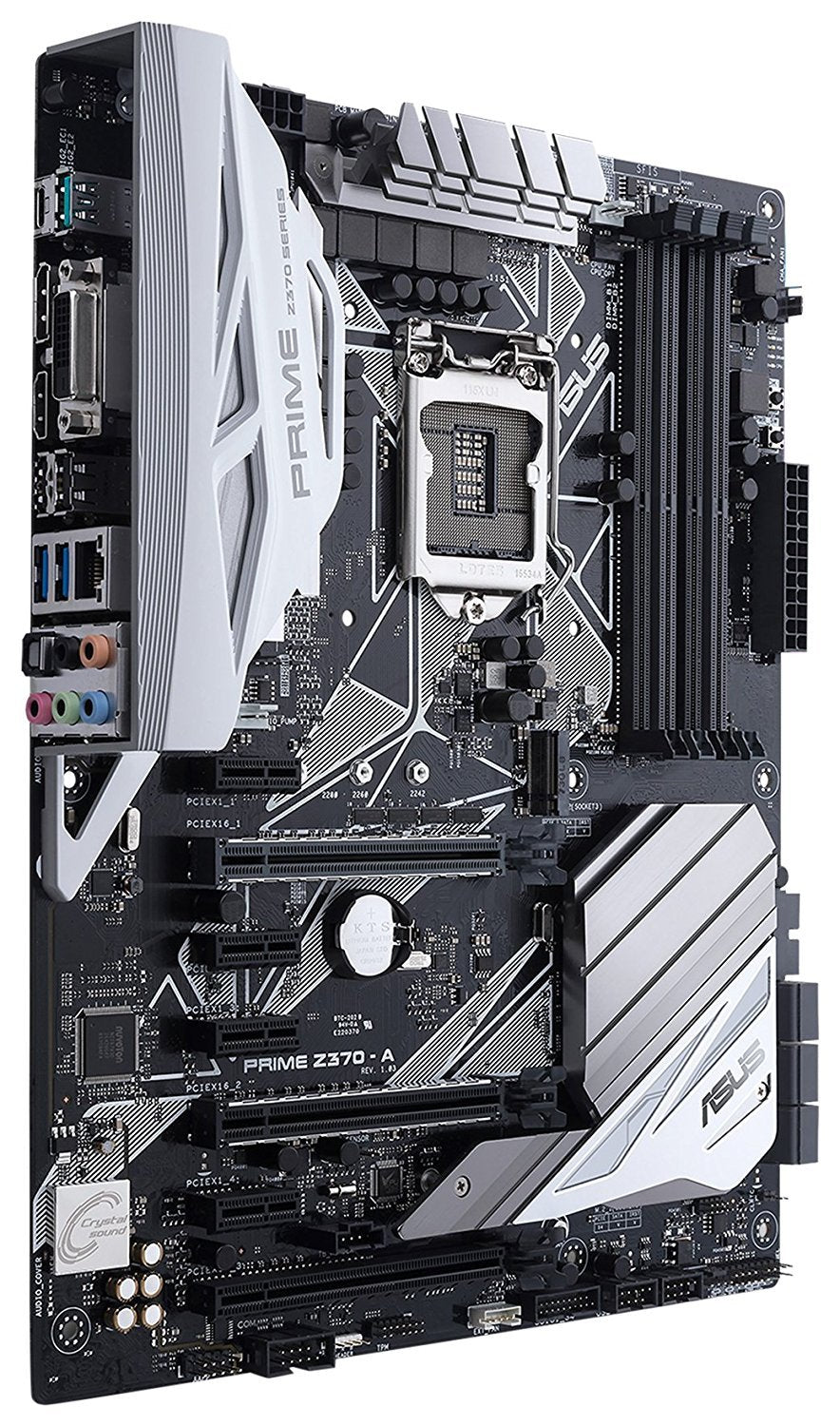

ASUS PRIME Z370-A LGA1151 Intel Compatible Motherboard for Desktop Computer/PC

ASUS PRIME Z370-A LGA1151 Intel Compatible Motherboard for Desktop Computer/PC

Rs. 17,664.00
Rs. 17,664.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS PRIME Z370-A LGA1151 Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

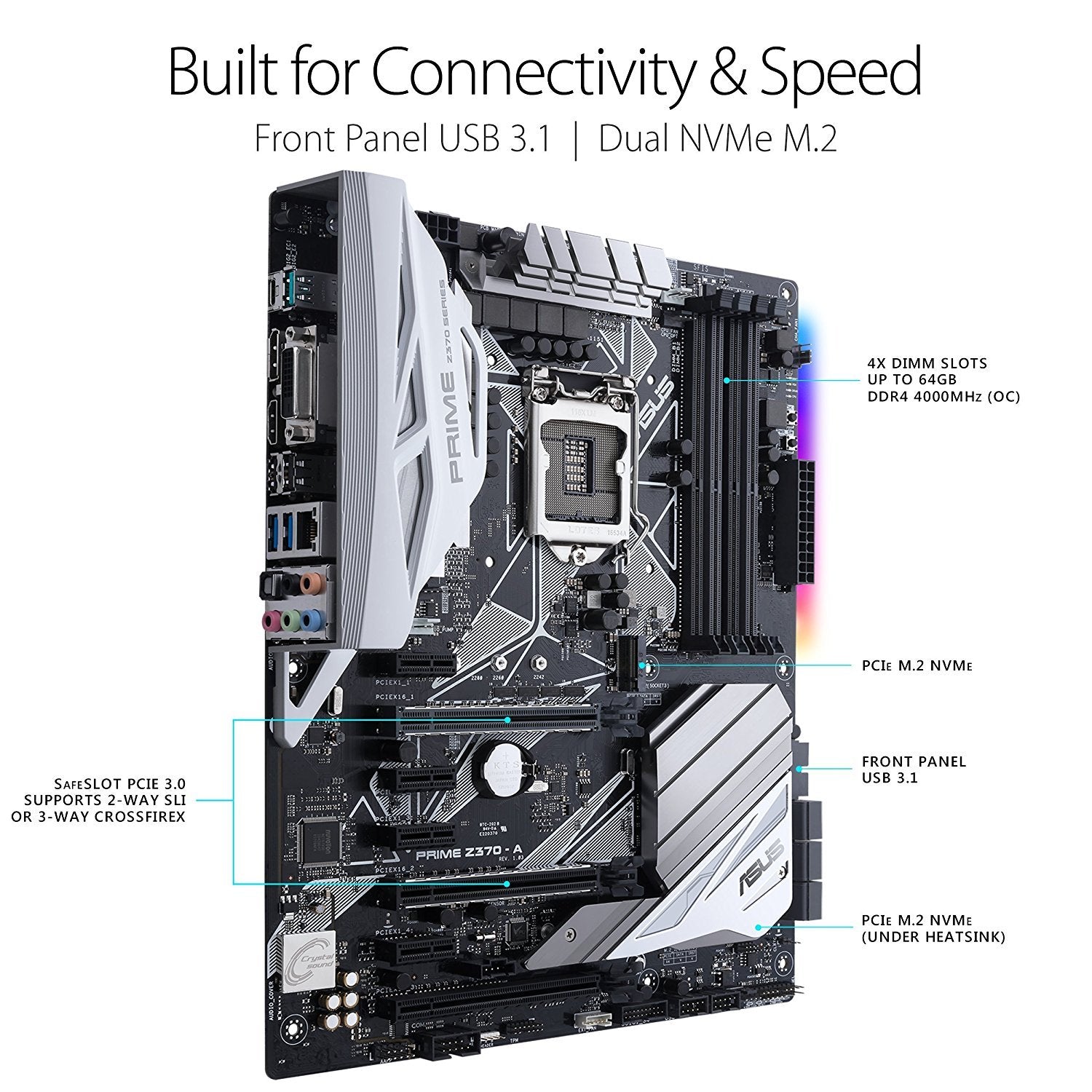

  • Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, USB 3.1 Gen2, Intel Thunderbolt 3 support and Intel Optane Memory compatibility

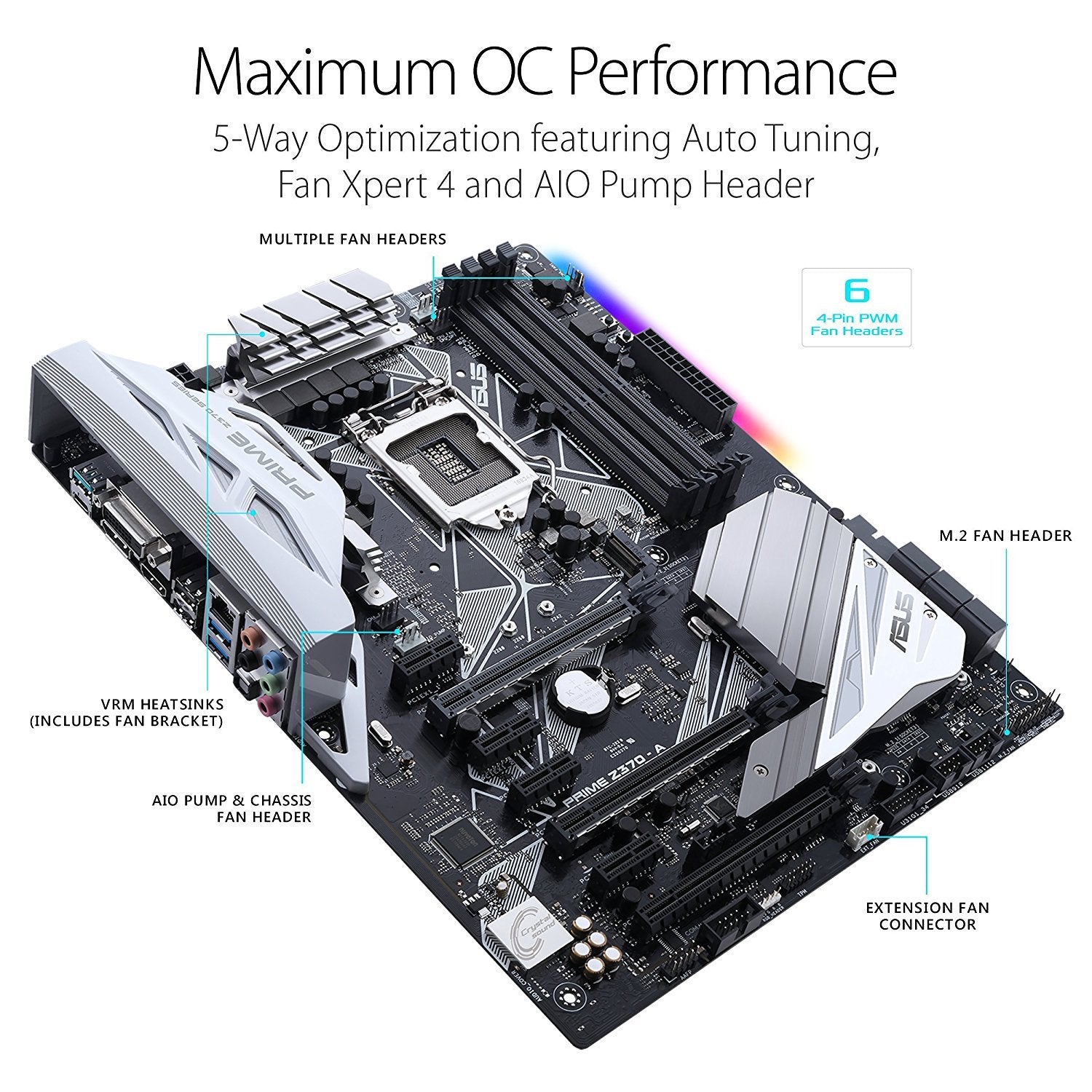

  • 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

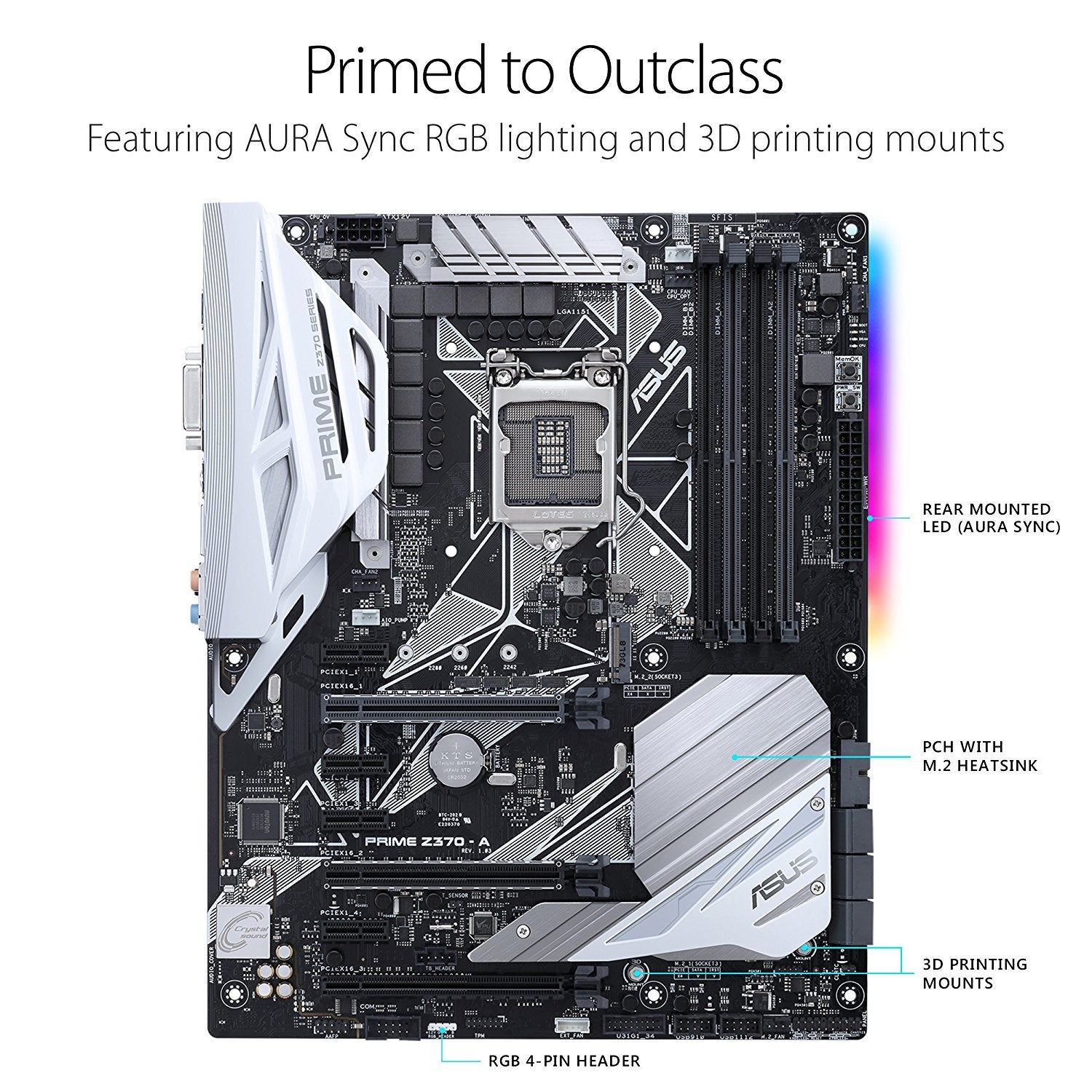

  • Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, additional RGB header and 3D-printing mounts
  • Two Patent-pending Safe Slots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
  • Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3 and driven by Japanese capacitors for warm, immersive sound

TECHNICAL DETAILS:

Motherboard

ASUS PRIME Z370-A

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z370

Form Factor

12.0 cm x 9.6 cm ( 30.5 cm x 24.4 cm )
ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor.
4 x DIMM, Max. 64GB, DDR4

Multi-GPU Support

Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Available Expansion Slots

** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
4 x PCIe 3.0/2.0 x1
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard

Audio

Separate layer for left and right track, ensuring both sound deliver equal quality
Audio Feature :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Power pre-regulator: Reduces power input noise to ensure consistent performance
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- DTS Headphone:X
- DTS Connect
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Supports : Jack-detection, Front Panel MIC Jack-retasking, Multi-streaming
Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
SNR recording input - High quality (Line-in) 120 dB SNR stereo playback output and 113 dB
- Supports up to 32-Bit/192kHz playback *3
- Front panel audio connector (AAFP)

Available USB Ports

Intel® Z370 Chipset :
6 x USB 2.0 port(s) (4 at mid-board, 2 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (USB Type-CTM, Support 3A power output, 1 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (Type-A, 1 at back panel, teal blue, Support 3A power output)
Intel® Z370 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at mid-board, 2 at back panel, )

Special Features

ASUS TPU :
- Auto Tuning
- GPU Boost
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo APP

Special Memory O.C. Design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
CPU Installation Tool
- Three-step simplicity and safety
- ASUS UEFI BIOS EZ Mode
- Precision Tweaker 2
- Multi-language BIOS
ASUS EPU :
- EPU
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 8 Phase digital power design
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura RGB Strip Headers
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Connector
- ASUS Q-Slot
- ASUS Q-Shield
- ASUS Q-LED (Boot Device LED, VGA, DRAM, CPU)
ASUS Exclusive Features :
- Turbo LAN
- AI Suite 3
- Ai Charger
- EZ XMP ASUS Exclusive Features
- PC Cleaner
- MemOK!
File Transfer
- Cloud GO!
- File Transfer
- Crystal Sound 3
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

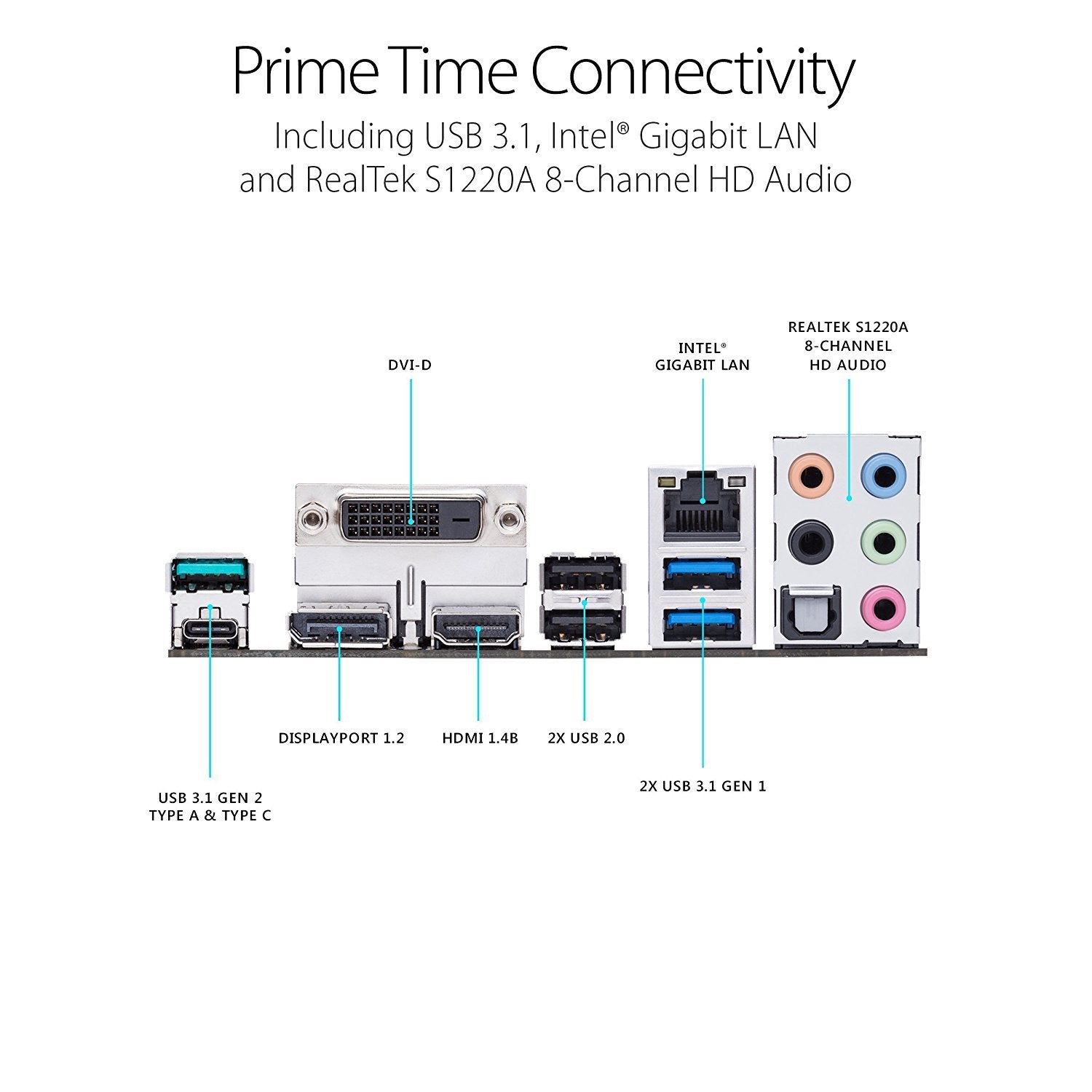

Back I/O Ports

1 x USB 3.1 Gen 2 USB Type-CTM
2 x USB 2.0
1 x Optical S/PDIF out
2 x USB 3.1 Gen 1
1 x USB 3.1 Gen 2 Type-A
1 x LAN (RJ45) port(s)
5 x Audio jack(s)
1 x DisplayPort
1 x DVI-D
1 x HDMI

Internal I/O

1 x AIO PUMP Header
1 x EZ XMP switch
1 x M.2 Fan Header
1 x 8-pin ATX 12V Power connector(s)
1 x 24-pin EATX Power connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x COM port header
1 x T_Sensor Connector
1 x 14-1 pin TPM connector
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
1 x Thunderbolt header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x 3D Mount screw port(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! button(s)
1 x Aura RGB Strip Header
1 x Power-on button(s)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x CPU OV
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x Clear CMOS jumper(s)

WARRANTY

3 YEARS
