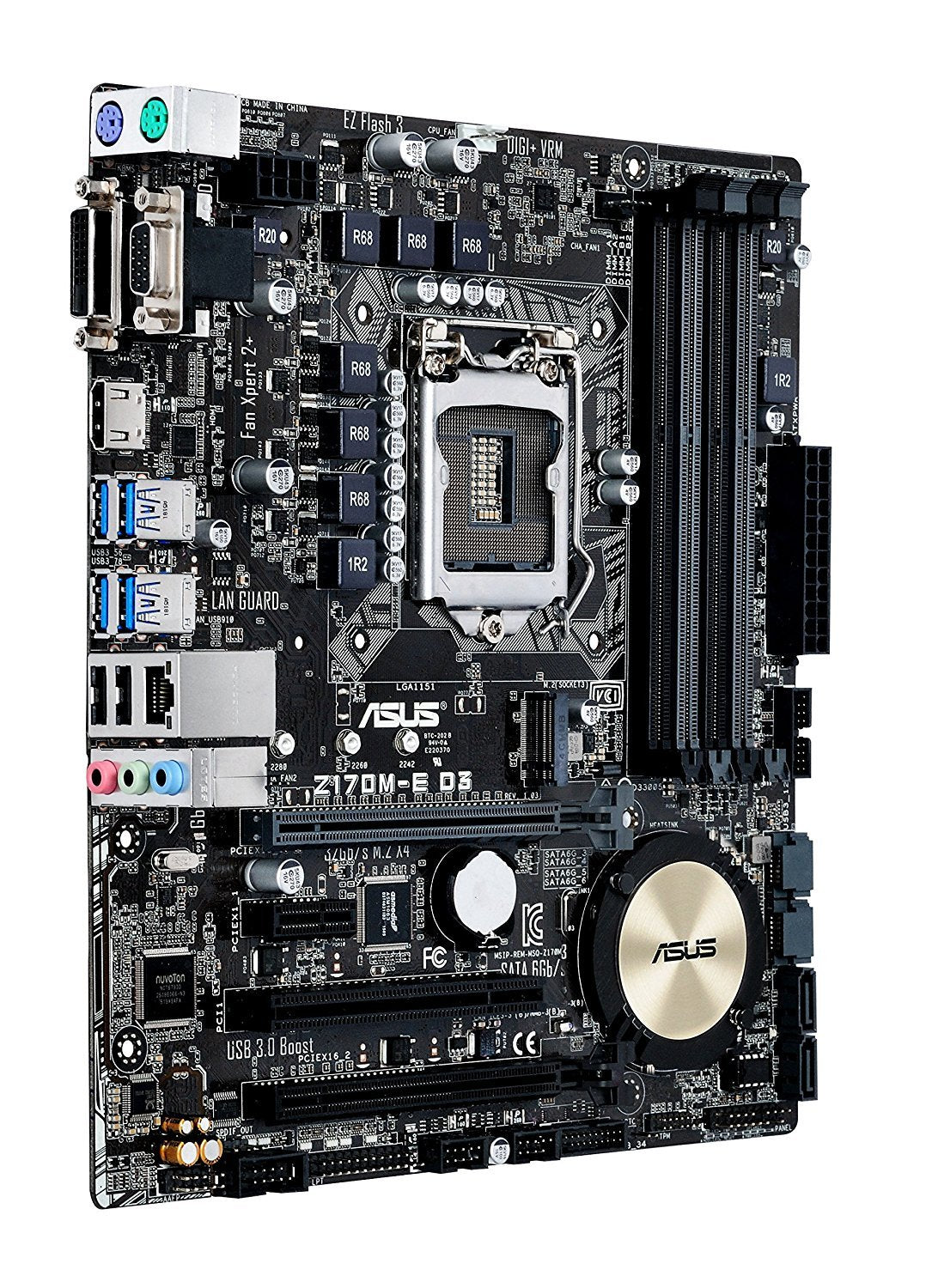

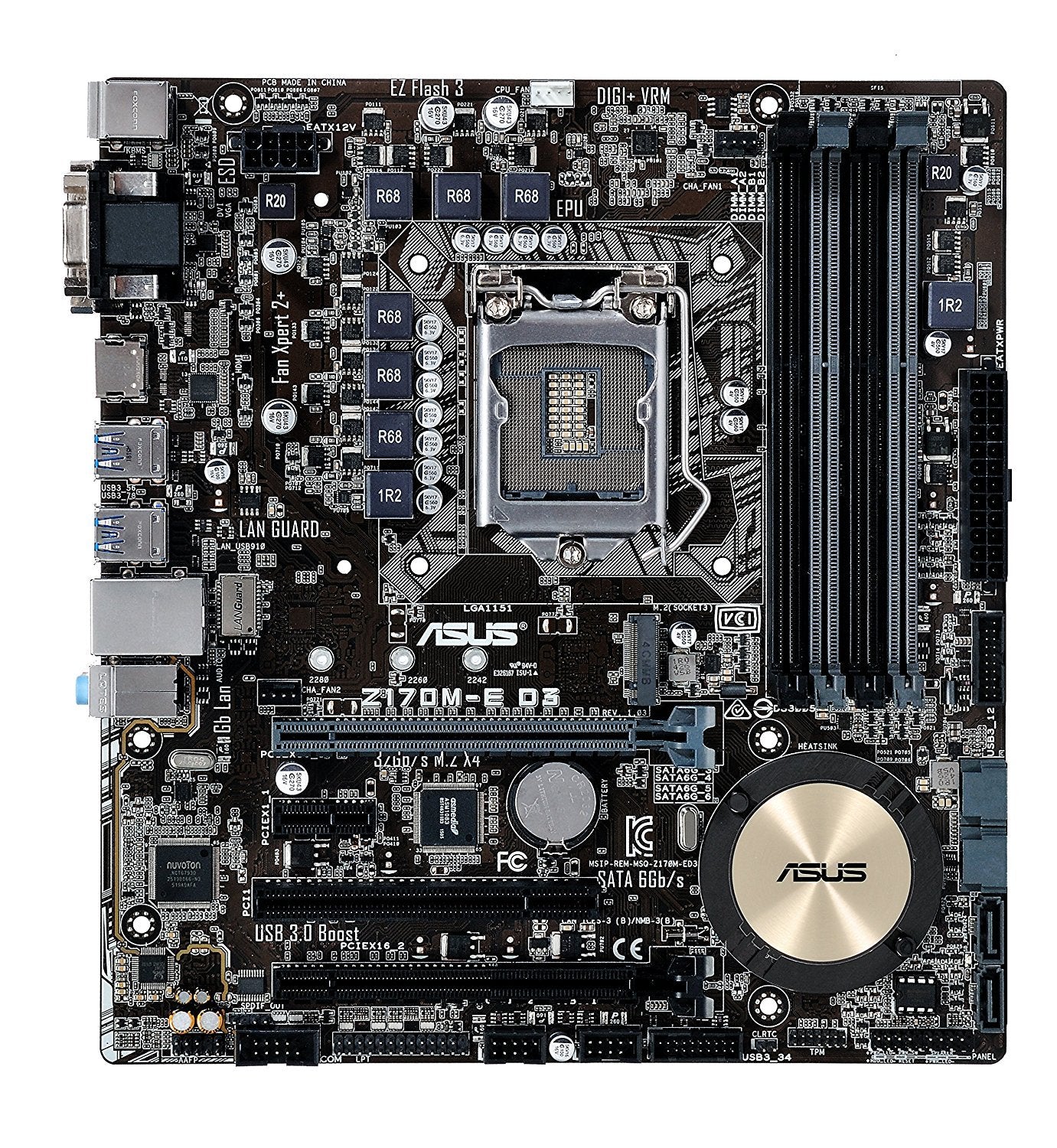

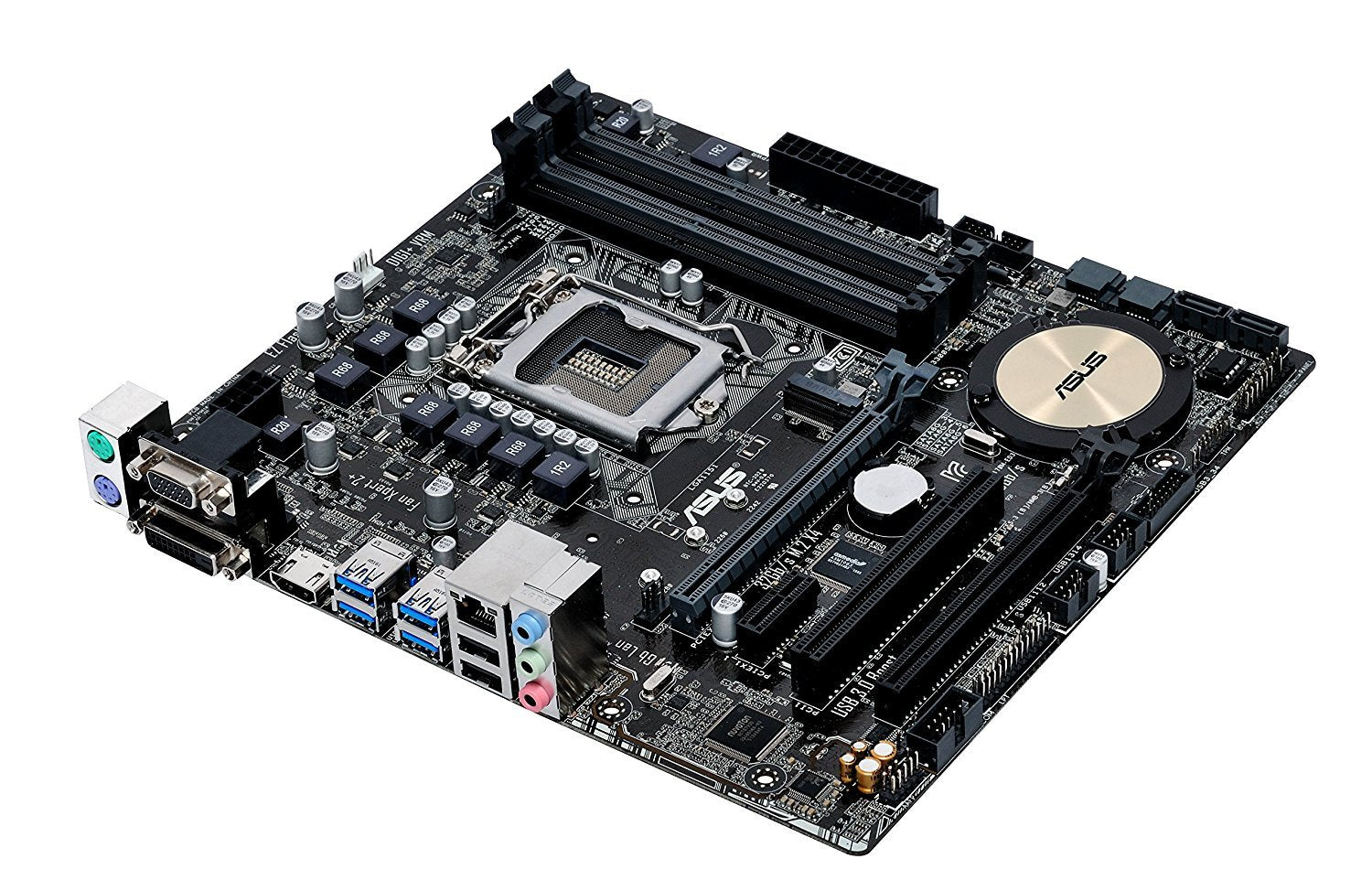

ASUS Z170M-E D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

ASUS Z170M-E D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

Rs. 9,087.00
Rs. 9,087.00
Sale Sold out
Taxes included.

ITEM DETAILS: ASUS Z170M-E D3 (1151) Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • 5X Protection II - Advanced hardware safeguards for all-around protection
  • DDR3/DDR3L memory compatibility
  • Lightning-fast M.2 with PCIe 3.0 x4 interface
  • Epic gaming audio with noise-isolation design
  • Media-acclaimed UEFI BIOS with EZ Flash 3
  • Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance

TECHNICAL DETAILS:

Motherboard

ASUS Z170M-E D3

Brand

ASUS

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z170

Form Factor

uATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x DIMM, Max. 64GB, DDR3 3100(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Available Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
1 x PCIe 3.0/2.0 x1
1 x PCI

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Available USB Ports

Intel® Z170 chipset :
8 x USB 3.1 Gen 1 port(s)
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s)

Special Features

ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

WARRANTY

3 YEARS
