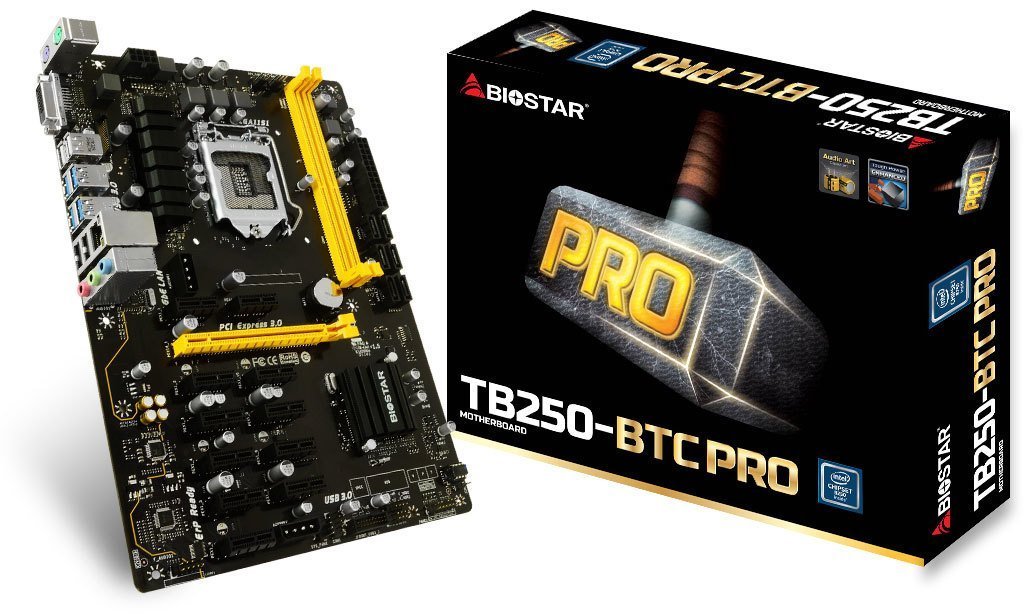

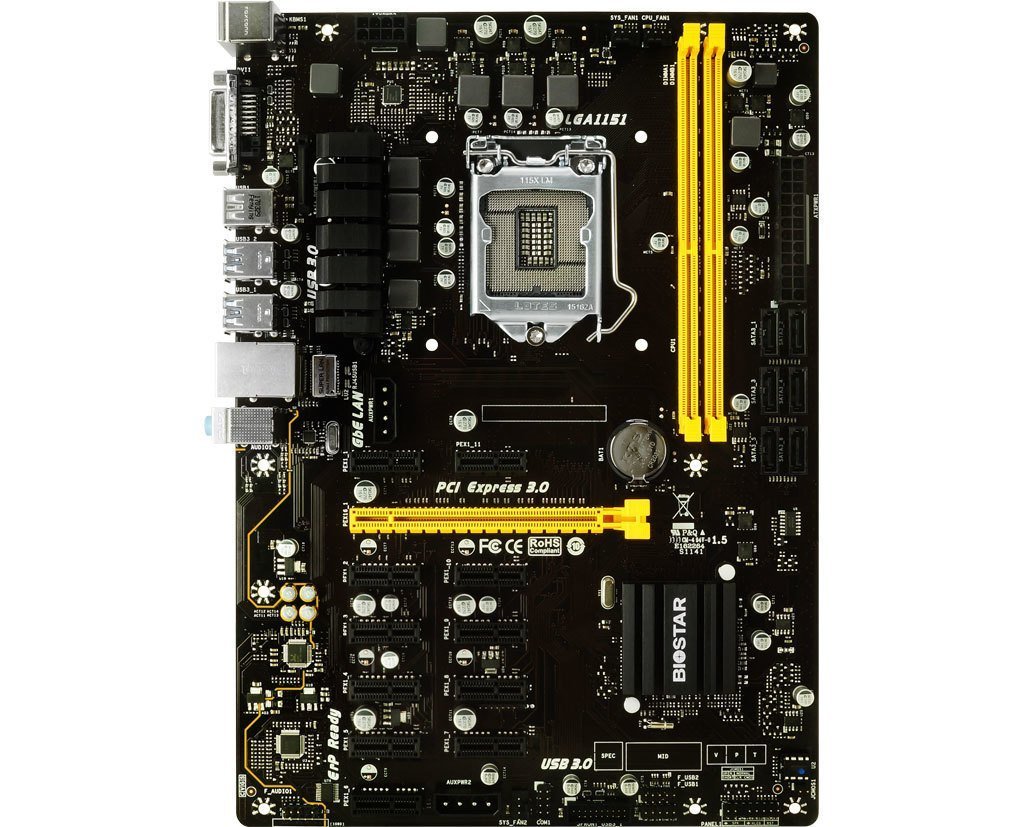

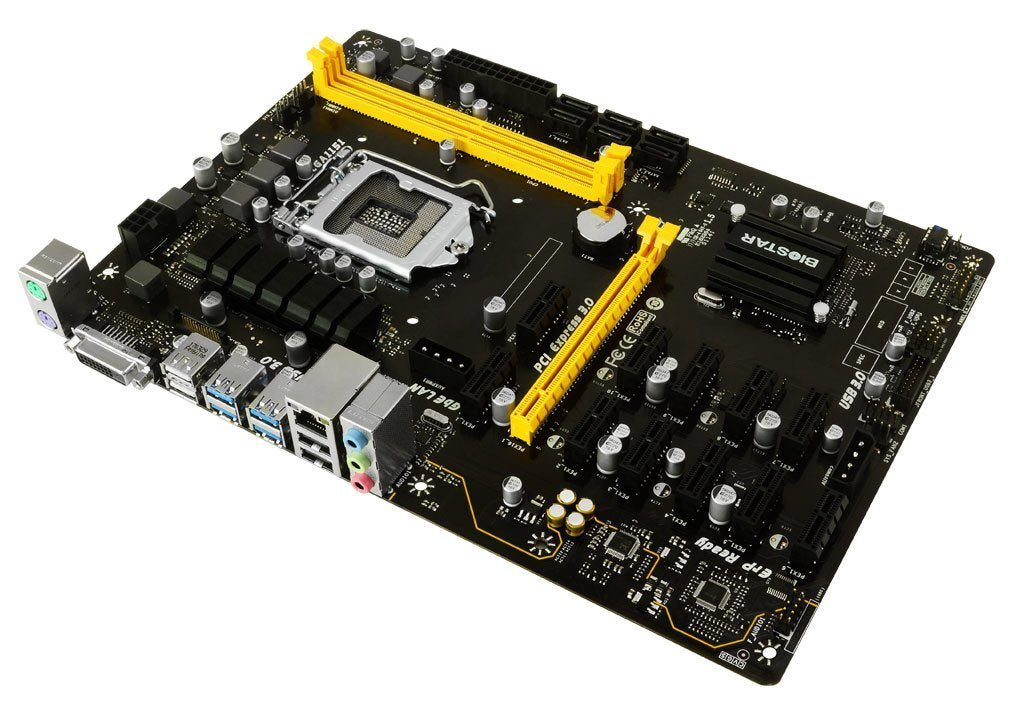

BIOSTAR TB250-BTC PRO Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

BIOSTAR TB250-BTC PRO

Brand

BIOSTAR

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel B250

Form Factor

ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2400 for 7th Generation Intel® Core™ Processor Family

Multi-GPU Support

Available

Available Expansion Slots

1 x PCI-E x16 3.0 Slot
11 x PCI-E x1 3.0 Slot(Note: PEX1_6/7/8/9/10/11 slot are not compatible w/ ATX standard, users need extra coonecting kit to install VGA card for crypto mining.)

LAN

Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection

Audio

Realtek ALC887 8-Channel HD Audio
Support HD Audio

3 x Audio Connector

Available USB Ports

4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header

Special Features

Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update

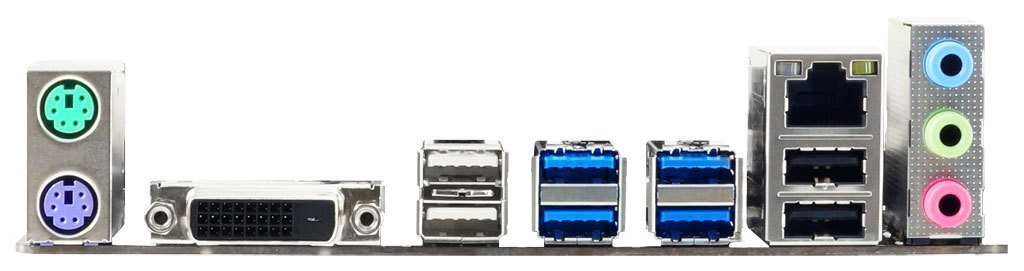

Back I/O Ports

1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector

Internal I/O

1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)

WARRANTY

3 YEARS
