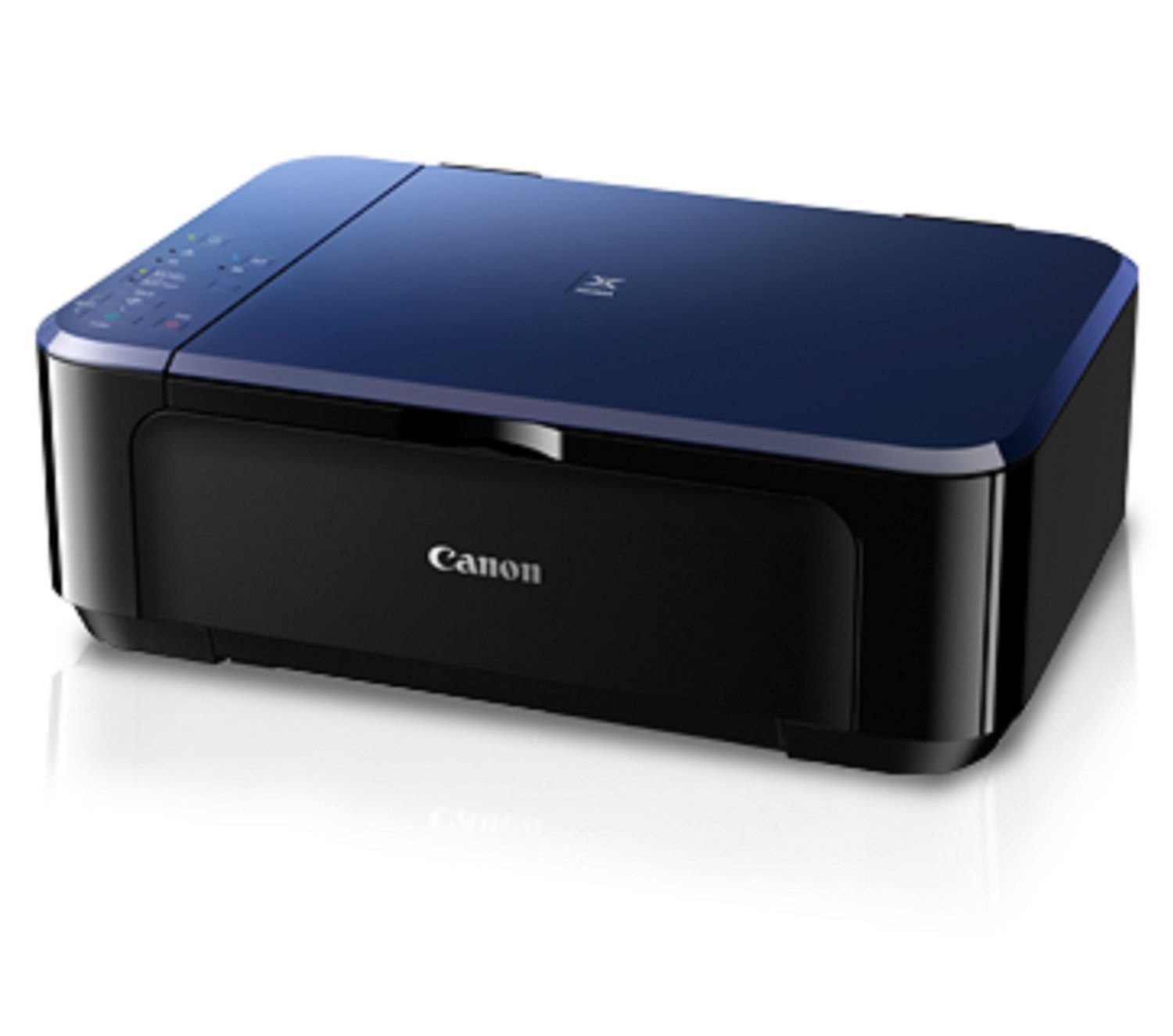

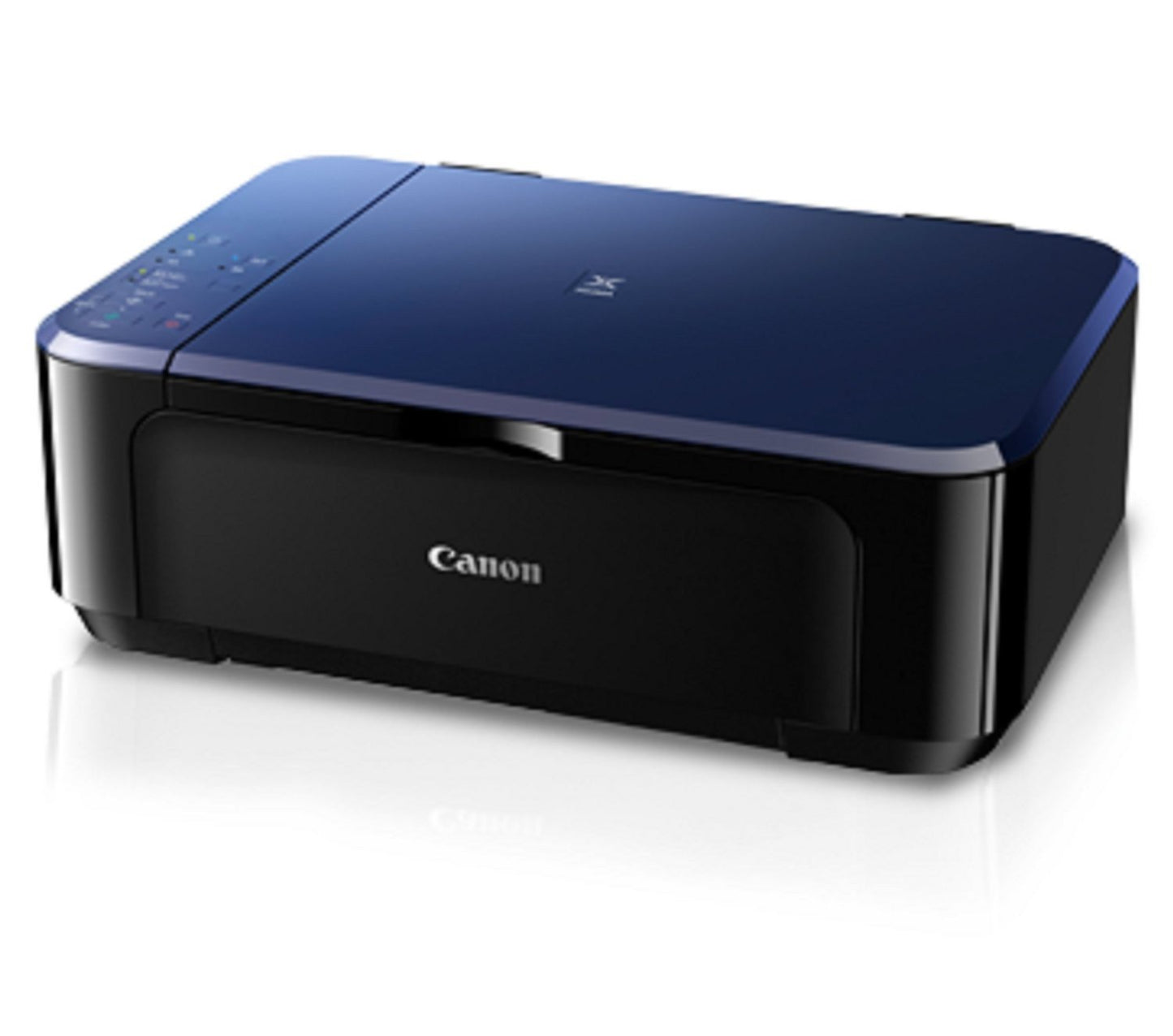

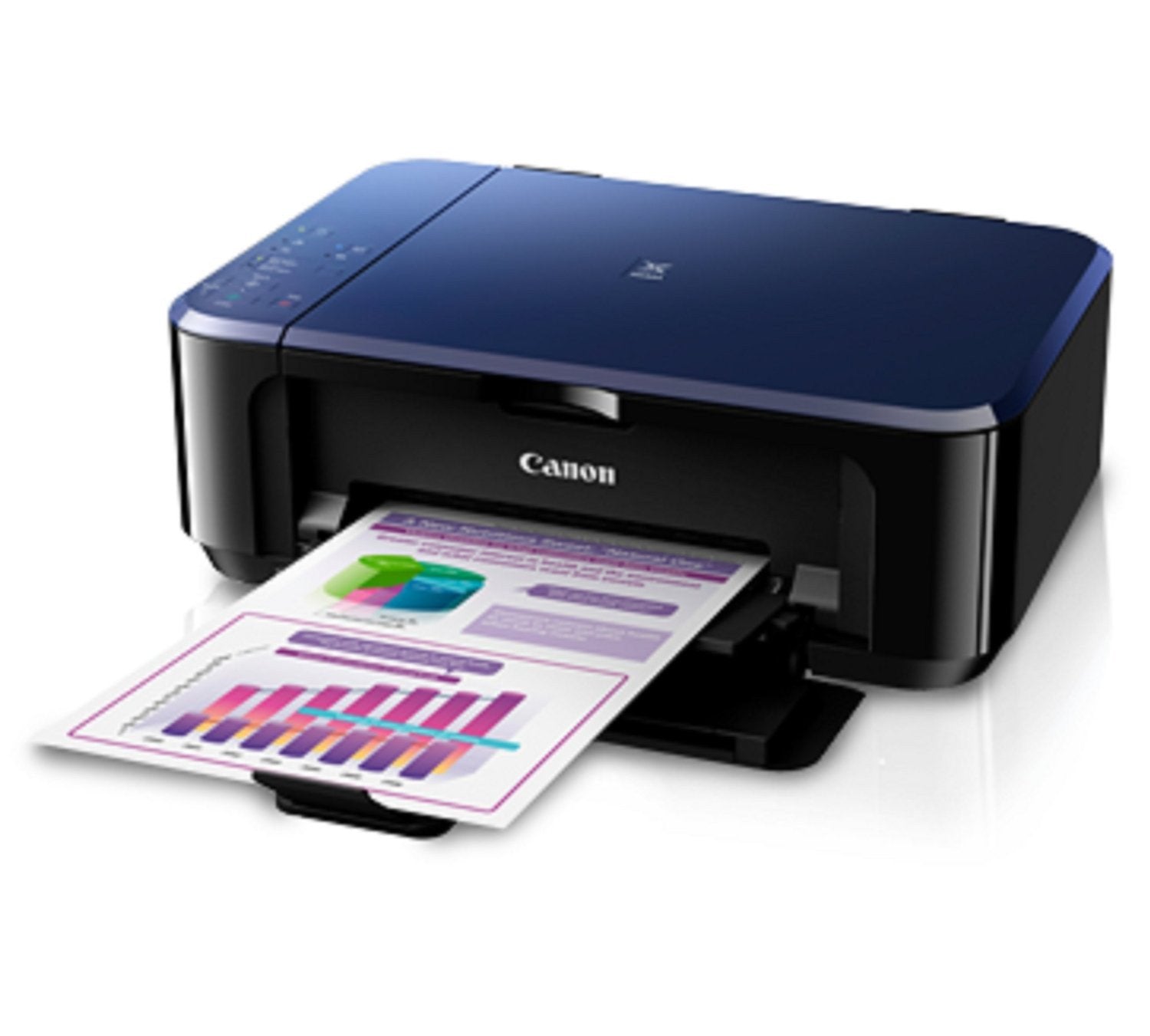

CANON E560 All-In-One InkJet Printer

Maximum Printing Resolution

4800 (horizontal) x 600 (vertical) dpi

Print Head / Ink

Type: FINE Cartridge

Number of Nozzles: Total 1,792 nozzles

Ink Droplet Size: 2pl

Ink Tank: PG-89, CL-99

Print Speed

Document(Col): approx. 5.7ipm

Document (B / W): approx. 9.9ipm

Photo (4 x 6Inches): approx. 44secs.

Printable Width

Up to 203.2mm (8inch), Borderless: Up to 216mm (8.5inch)

Printable Area

Borderless Printing: Top / Bottom / Right / Left margin: each 0mm (Supported Paper Size: A4, LTR, 4 x 6Inches ,5 x 7Inches ,8 x 10Inches)

Bordered Printing: Top margin: 3mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (LTR / LGL: Left: 6.4mm, Right: 6.3mm)

Bordered Auto 2-sided printing: Top margin: 5mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (LTR / LGL: Left: 6.4mm, Right: 6.3mm)

Recommended Printing Area

Top margin: 32.5 mm / Bottom margin: 33.5 mm

Paper Size

A4, A5, B5, LTR, LGL, 4 x 6Inches, 5 x 7Inches, 8 x 10Inches, Envelopes (DL, COM10), Custom size (width 89mm - 215.9mm, length 127mm - 676mm)

Paper Handling- Front Tray

Plain Paper: A4, A5, B5, LTR=100, LGL=10

High Resolution Paper (HR-101N): A4=80

Photo Paper Pro Platinum (PT-101): 4 x 6Inches=20, A4=10

Photo Paper Plus Glossy II (PP-201): 4 x 6Inches=20, A4=10

Photo Paper Pro Luster (LU-101): A4=10

Photo Paper Plus Semi-Gloss (SG-201): 4 x 6Inches=20, A4, 8 x 10Inches=10

Glossy Photo Paper InchesEveryday UseInches (GP-601): 4 x 6Inches=20, A4=10

Matte Photo Paper (MP-101): 4 x 6Inches=20, A4=10

Paper Weight

Front Tray: Plain Paper: 64-105 g/m², Canon specialty paper: max paper weight: approx. 300 g/m²(Photo Paper Pro Platinum PT-101)

Ink End Sensor

Dot count

Print Head Alignment

Manual

Scanner Type

Flatbed

Scanning Method

CIS (Contact Image Sensor)

Optical Resolution

1200 x 2400dpi

Selectable Resolution

25 - 19200dpi

Scanning Bit Depth (Input / Output)

Grayscale: 16bits / 8bits

Colour: 48bits / 24bits (RGB each 16bits / 8bits )

Line Scanning Speed

Grayscale: 1.2ms/line (300dpi)

Colour: 3.5ms/line (300dpi)

Scanning Speed

Reflective(A4 Colour / 300dpi): Approx. 14Secs.

Maximum Document Size

Flatbed: A4 / LTR (216 x 297mm)

Maximum Document Size

A4 / LTR (216 x 297mm)

Compatible Media

Size: A4, LTR, 4 x 6Inches (PP-201)

Type: Plain Paper, Photo Paper Plus Glossy II (PP-201) ( 4Inches x 6Inches)

Image Quality

Plain Paper: Fast, Standard

Copy Speed

Document(Colour) sFCOT / Simplex: approx. 25secs.

Document(Colour) sESAT / Simplex: Approx. 2.5ipm

Multiple Copy

Black / Colour: 1 - 21 pages

Protocol

TCP/IP

Wireless LAN

Network Type: IEEE802.11n / IEEE802.11g / IEEE802.11b

Frequency Band: 2.4GHz

Channel: 1-13

Range: indoor 50m (depends on the transmission speed and conditions)

Security: WEP64 / 128bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Windows

Windows 8 / Windows 7 / Windows XP / Windows Vista

Macintosh

Mac OS X v10.6.8 and later

Interface

Wireless LAN IEEE 802.11 b / g / n, USB 2.0 Hi-Speed

Google Cloud Print

Available

PIXMA Printing Solutions

Available

Operating Environment

Temperature: 15 - 30 deg C; Humidity: 10 - 80% RH (no dew condensation)

Storage Environment

Temperature: 0 - 40 deg C; Humidity: 5 - 95% RH (no dew condensation)

Acoustic Noise (PC Print)

Photo (4Inches x 6Inches): approx. 42.5dB(A)

Power

AC 100 - 240V, 50 / 60Hz

Power Consumption

Standby (scanning lamp is off) USB connection to PC: Approx. 1.7W

OFF: Approx. 0.3W

Copying: Approx. 16W

Width

426 mm

Depth

306 mm

Height

145 mm

Weight

3.5 kg

Warranty

1 Year
