Brand
|
CORSAIR
|
MTBF
|
100,000 hours
|
80 PLUS Certification Level
|
Gold
|
Total Power
|
850 W
|
Type
|
Fully Modular
|

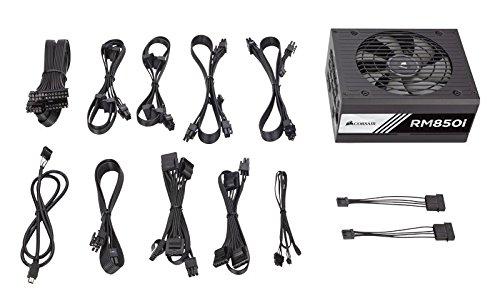

Cable Type
|
Sleeved and flat black cables
|

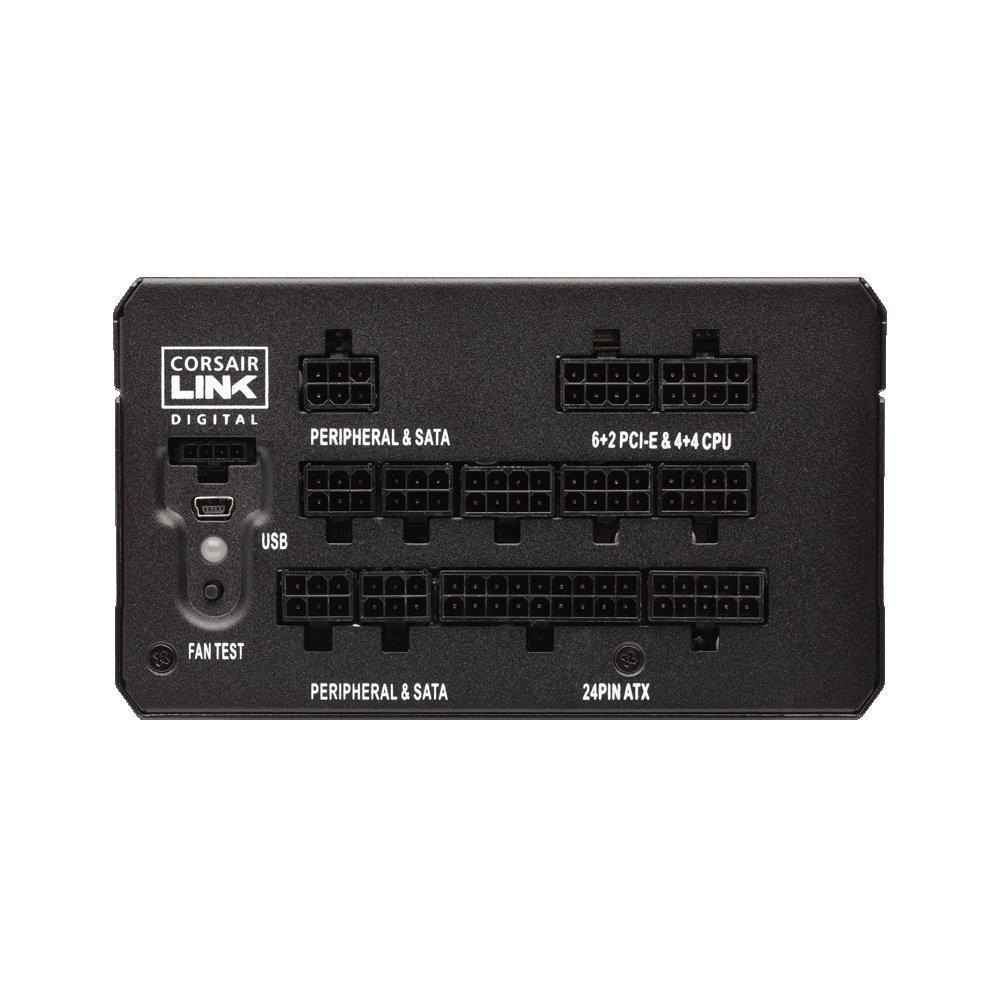

Connectors
|
1 x ATX
2 x EPS
2 x Floppy
8 x 4-pin Peripheral
6 x PCI-E
10 x SATA
|

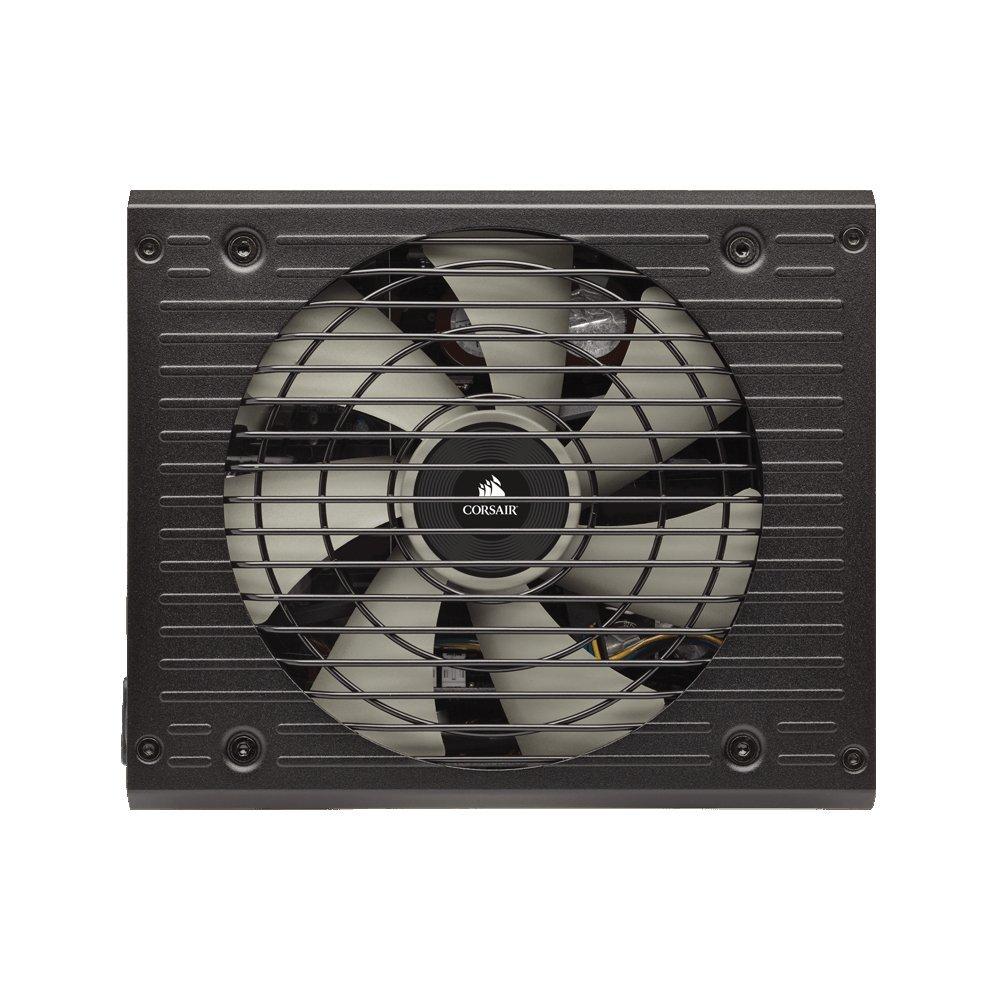

Fan
|
5.3" / 135.0 mm fluid dynamic bearing fan
Zero RPM Fan Mode
|
Corsair Link Support
|
Yes
|
Continuous Output Rated Temperature
|
122°F / 50°C
|

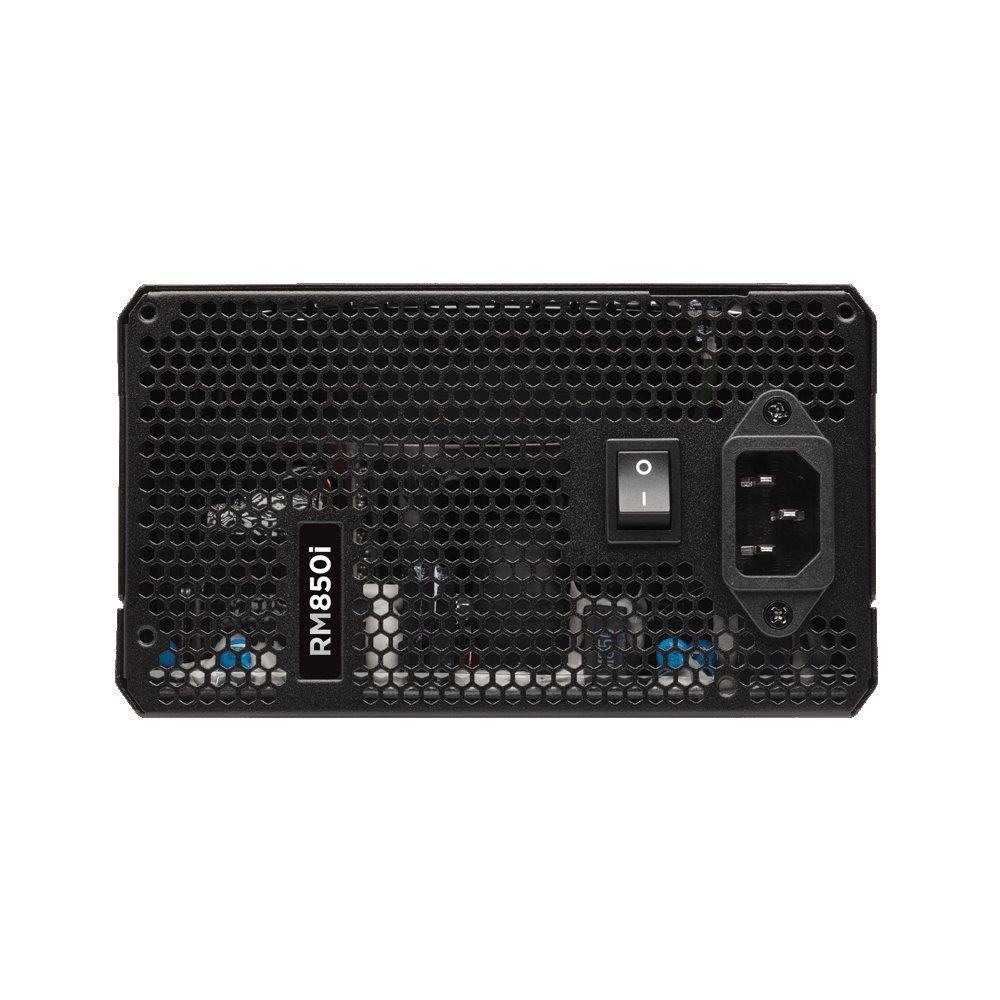

Power Input
|
AC Input: 100 to 240 V
Frequency: 47 to 63 Hz
Current: 6 to 12 A
|
Power Output
|
+3.3 V, 25 A, 150 W
+5 V, 25 A, 150 W
+12 V, 70.8 A, 850 W
-12 V, 0.8 A, 9.6 W
+5 Vsb, 3 A, 15 W
|
Compatibility
|
4th generation Intel Core processor Ready (Intel Haswell and Z87 motherboards)
|
Protection
|
Over-voltage protection
Under-voltage protection
Short circuit protection
Over power protection
Over temperature protection
|
Standards
|
ATX12 V v2.4 (backward compatible with ATX12 V 2.2, 2.31, and ATX12 V 2.01 systems)
EPS 2.92
|
Safety Agency Approvals
|
FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
|
Dimensions
|
5.9 x 3.4 x 7.1" / 150.0 x 86.0 x 180.0 mm
|
Weight
|
4.37 lb / 1.98 kg
|
Warranty
|
7 years
|
