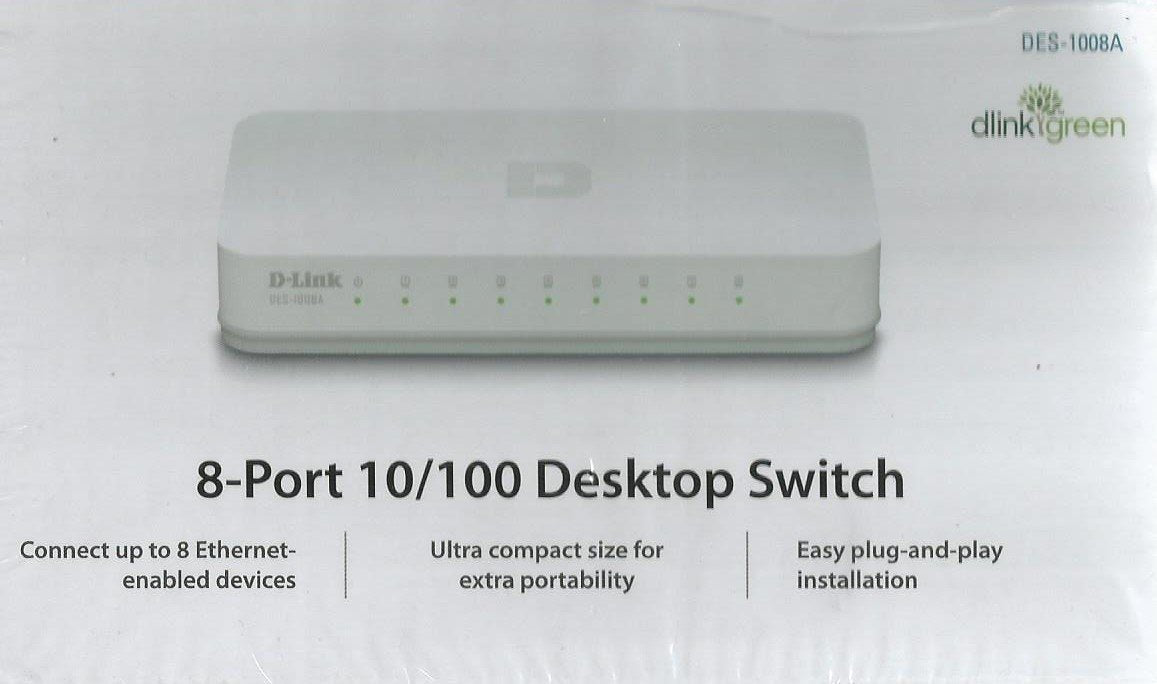

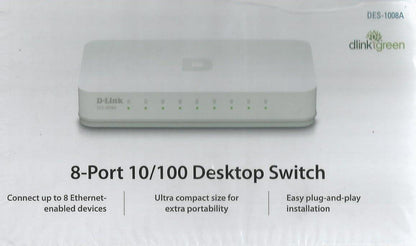

D-LINK SWITCH 8 PORT
D-LINK SWITCH 8 PORT
Regular price
Rs. 738.00
Regular price
Sale price
Rs. 738.00
Unit price
/
per
Taxes included.
ITEM DETAILS: D-LINK SWITCH 8 PORT
FEATURES:
- router
- wireless router
TECHNICAL DETAILS:
Dimensions
Length |
68.5 mm |
Width |
128 mm |
Features
Key Features |
Inexpensive Fast Ethernet solution for Home/SOHO, 8 10/100 Mbps Fast Ethernet ports, Auto MDI/MDIX crossover for all ports, Store-and-forward switching scheme, Full/half-duplex for Ethernet/Fast, Ethernet speeds, IEEE 802.3x Flow Control, Plug-and-play installation, RoHS compliant |
Switching Fabric |
1.6 Gbps switching fabric |
Protocol |
CSMA/CD |
Data Transfer Rates |
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) |
Topology |
Star |
Media Interface Exchange |
Auto MDI/MDIX adjustment for all ports |
Network Cables |
10BASE-T: UTP CAT 3/4/5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.), 100BASE-TX: UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.) |
Transmission Method |
Store-and-forward |
Mac Address Table |
1K entries per device |
Mac Address Learning |
Automatic update |
Packet Filt Ering/Forwarding Rates |
Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port |
Ram Buffer |
57 KBytes per device |
Standards |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper), IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper), ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x flow control |
Certifications |
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, cUL, LV D |
Power
Dc Input |
External 5V/1A power adapter |
Power Consumption |
Power On (Standby): DC input: 0.3 watts, AC input: 0.5 watts, Maximum: DC input: 1.6 watts, AC input: 2.5 watts |
Heat Dissipation |
Power On (Standby): AC input: 1.706 BTU/h, Maximum: AC input: 8.53 BTU/h |
Operating Temperature |
0 to 40 C (32 to 104 F) |
Storage Temperature |
-10 to 70 C (14 to 158 F) |
Operating Humidity |
10% to 90% RH non-condensing |
Storage Humidity |
5% to 90% RH non-condensing |
Led Indicators |
Per port: Link/Activity, Per device: Power |
Warranty |
1 Year |
