Display
|
Diagonally Viewable Size
|
60.5 cm
23.8 Inches (23.8-inch wide viewable image size)
|
Aspect Ratio
|
Widescreen (16:9)
|
Panel Type, Surface
|
In-plane switching, anti glare with hard coat 3H
|
Optimal resolution
|
1920 x 1080 at 60Hz
|
Active Display Area (H x V)
|
20.75" x 11.67" (527.04 mm x 296.46 mm)
|
Contrast Ratio
|
1000: 1 (typical), Dynamic Contrast Ratio : 8 Million :1
|
Brightness
|
250 cd/m2 (typical)
|
Response Time
|
6ms (gray to gray)
|
Viewing Angle
|
178° vertical / 178° horizontal
|
Adjustability
|

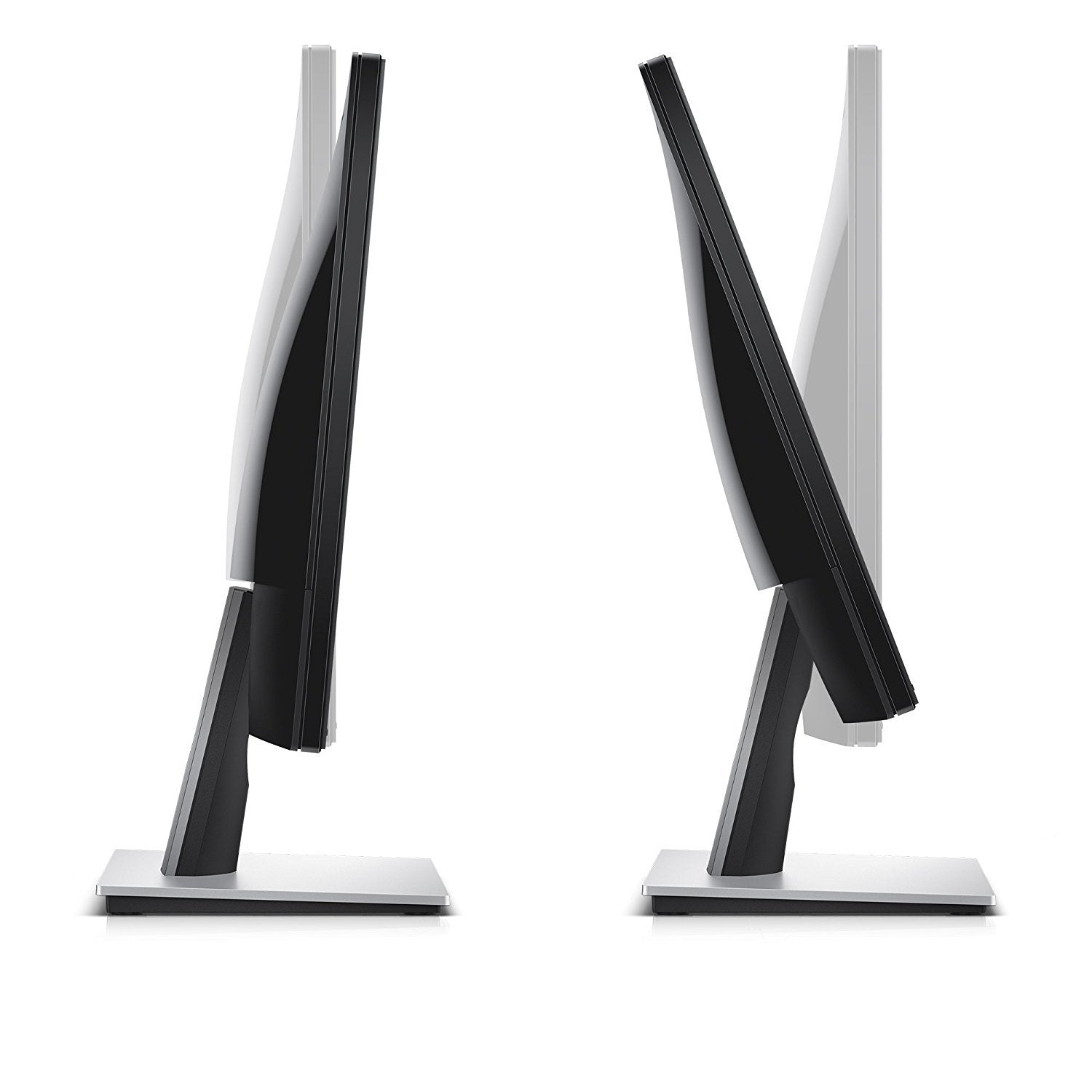

Tilt
|
Color Support
|
Color Gamut (typical): 84% (CIE1976). 72% (CIE 1931)3
16.7 Million colors
|
Pixel Pitch
|
0.2745 mm
|
Backlight Technology
|
LED
|
Display Type
|
Widescreen Flat Panel Display
|
Display Screen Coating
|
Antiglare with hard-coating 3H
|
Audio Output
|
NA
|

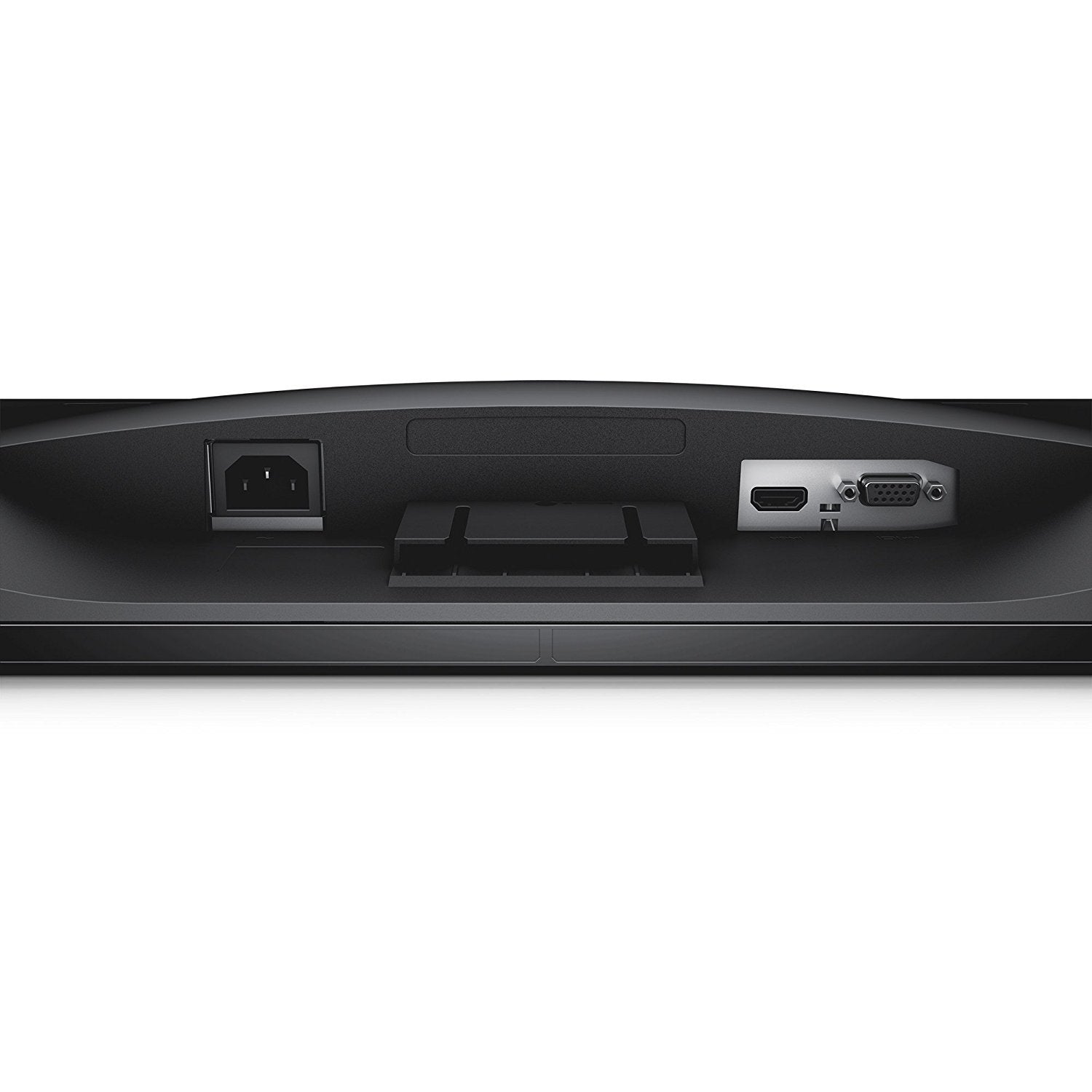

Connectivity
|
1 HDMI connector
1 VGA connector
|
Features
|
Security
|
Security lock slot (cable lock sold separately)
|
Flat Panel Mount Interface
|
NA
|
Built-in Devices
|
NA
|
Size and Weight
|
Dimensions (With Stand)
|
Height: 16.66" (423.10mm)
Width: 21.91" (556.60mm)
Depth: 7.08" (179.90mm)
|
Dimensions (Without Stand)
|
Height: 13.00" (330.10mm)
Width: 21.91" (556.60mm)
Depth: 2.17" (55mm)
|
Weight (panel only - for VESA mount)
|
NA
|
Weight (with packaging)
|
6.20kg (13.66lb)
|
Environmental and Regulatory
|
Electrical
|
Voltage Required
|
100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.5 A (typical)
|
Power Consumption (Operational)
|
20W (Energy Star)
20W (typical) - 25W (maximum)
|
Power Consumption Stand by / Sleep
|
Less than 0.3W
|
What's in the box
|
· Monitor with stand
· Power cable
· VGA
· Drivers and documentation media
· Quick setup guide
· Safety Information
|
Warranty
|
3 Years
|
