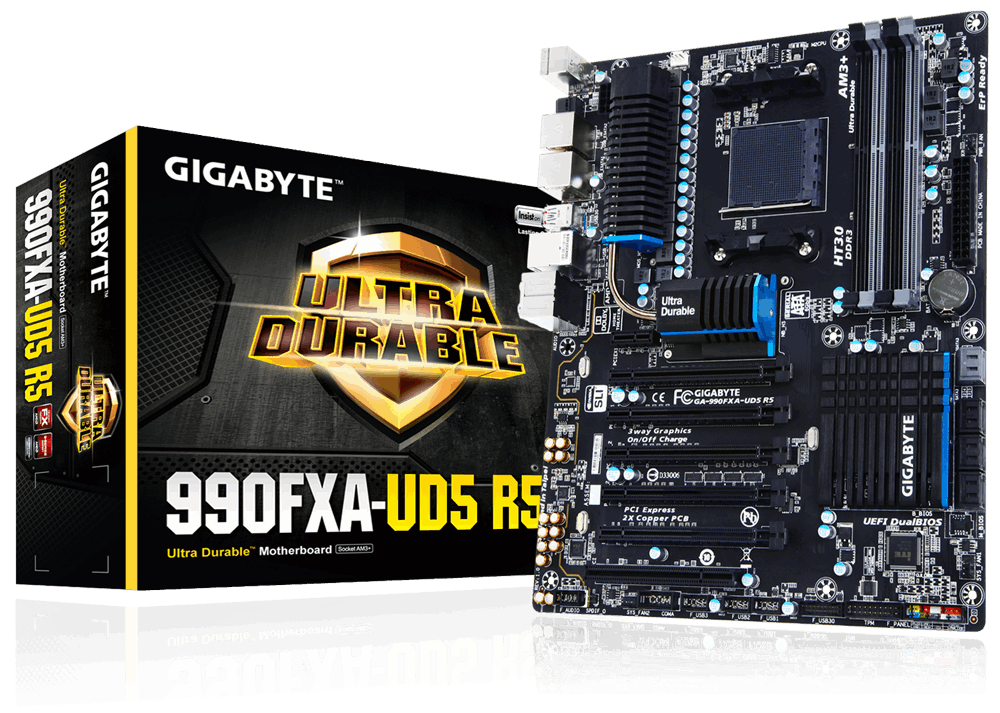

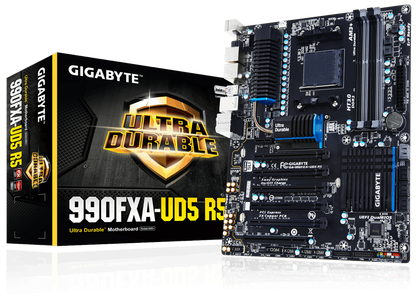

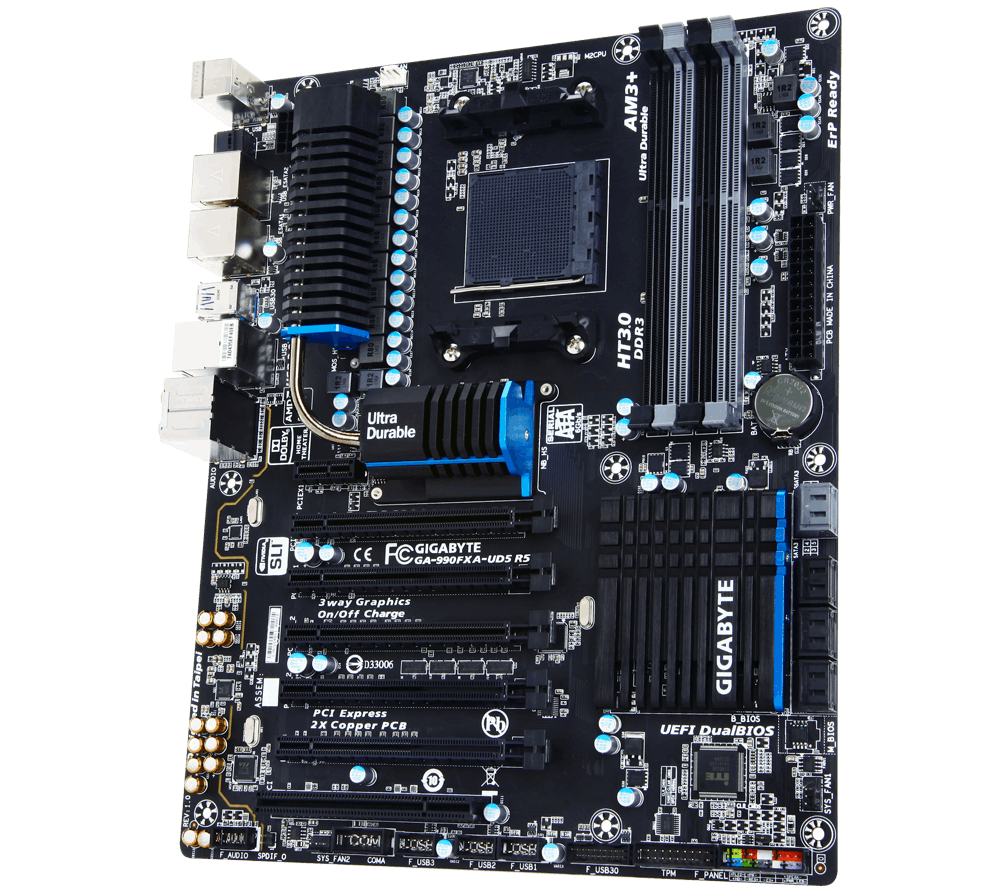

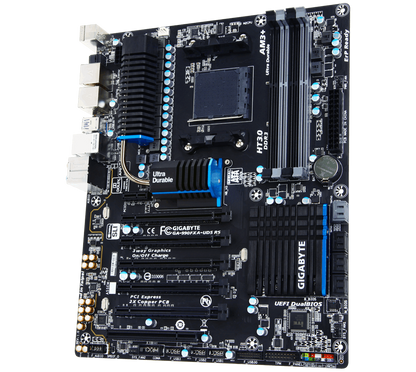

GIGABYTE 990 FXA- UD5 R5 Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE 990 FXA- UD5 R5

Brand

GIGABYTE

Compatible with

AMD

Socket Type

AMD AM3+

Chipset

North Bridge: AMD 990FX

South Bridge: AMD SB950

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules

* To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.

Support for Extreme Memory Profile (XMP) memory modules Dual Channel Memory Architecture

Multi-GPU Support

Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ Technologies

Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ Technologies

Available Expansion Slots

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. When PCIEX8 is populated with a PCI Express expansion card, the PCIEX16_2 slot will operate at up to x8 mode.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

1 x PCI Express x1 slot

(All PCI Express slots conform to the PCI Express 2.0 standard.)

1 x PCI slot

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC1150 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby® Home Theater

Support for S/PDIF Out

Available USB Ports

South Bridge:

14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

VIA® VL805 chip:

4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

* Be sure to connect your USB device(s) to the USB 2.0/1.1 ports before the USB 3.0 driver is installed.

Special Features

Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2

Support for ON/OFF Charge

Back I/O Ports

1 x PS/2 keyboard/mouse port

1 x optical S/PDIF Out connector

2 x eSATA 6Gb/s connectors

8 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

8 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x USB 3.0/2.0 header

1 x serial port header

1 x Clear CMOS jumper

1 x Trusted Platform Module (TPM) header

Warranty

3 Years
