Motherboard

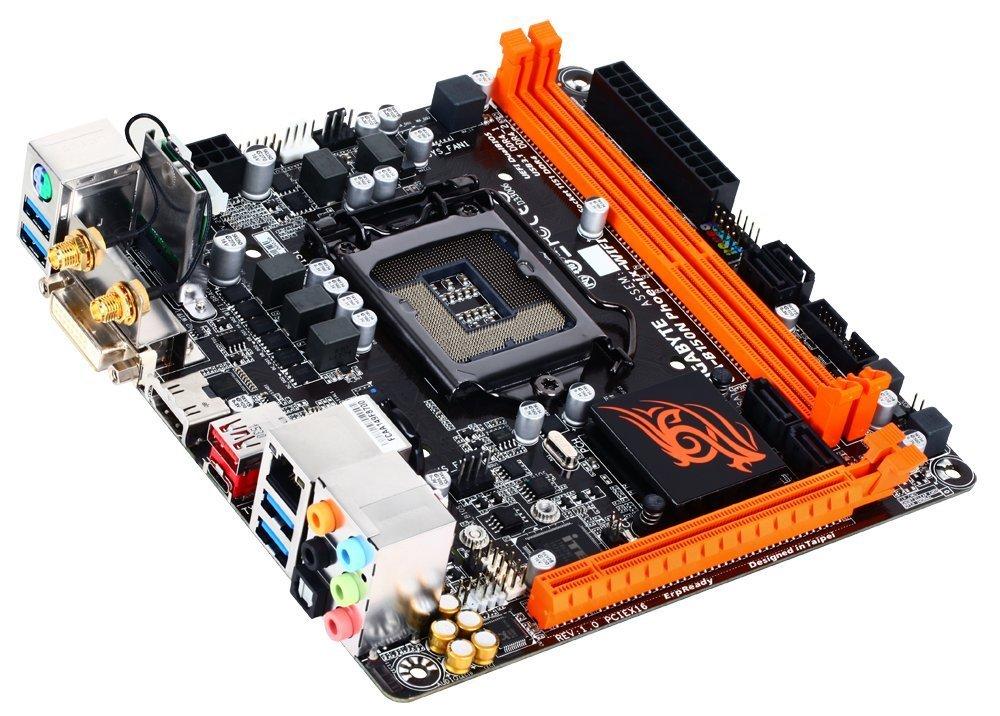

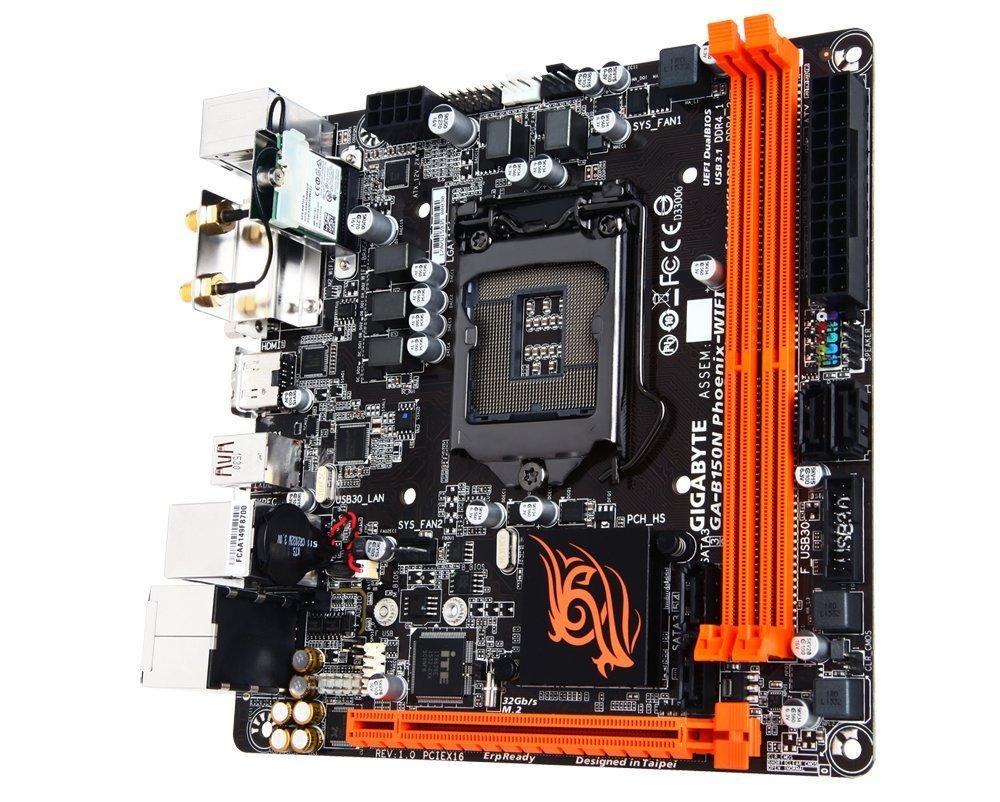

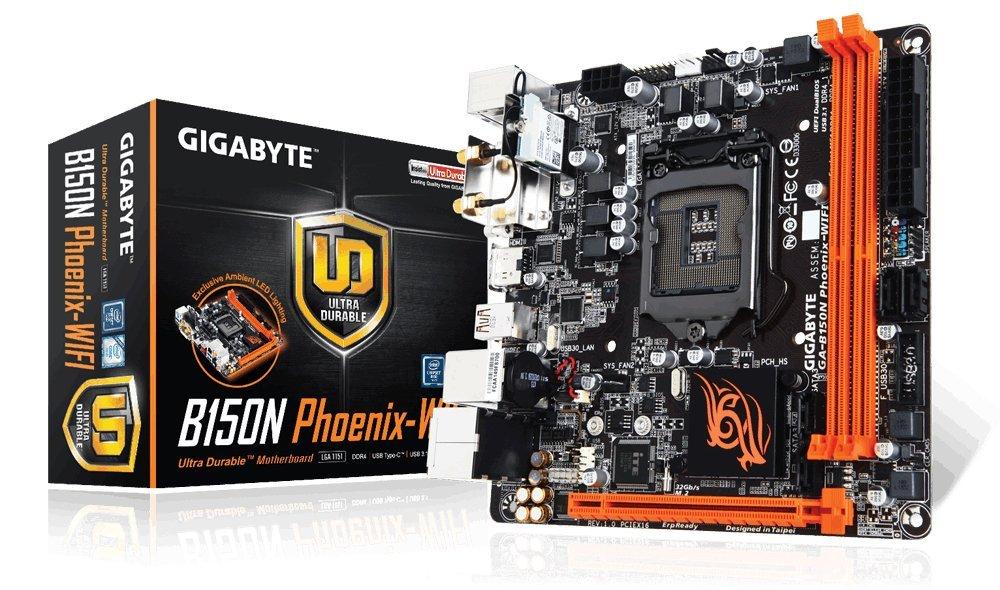

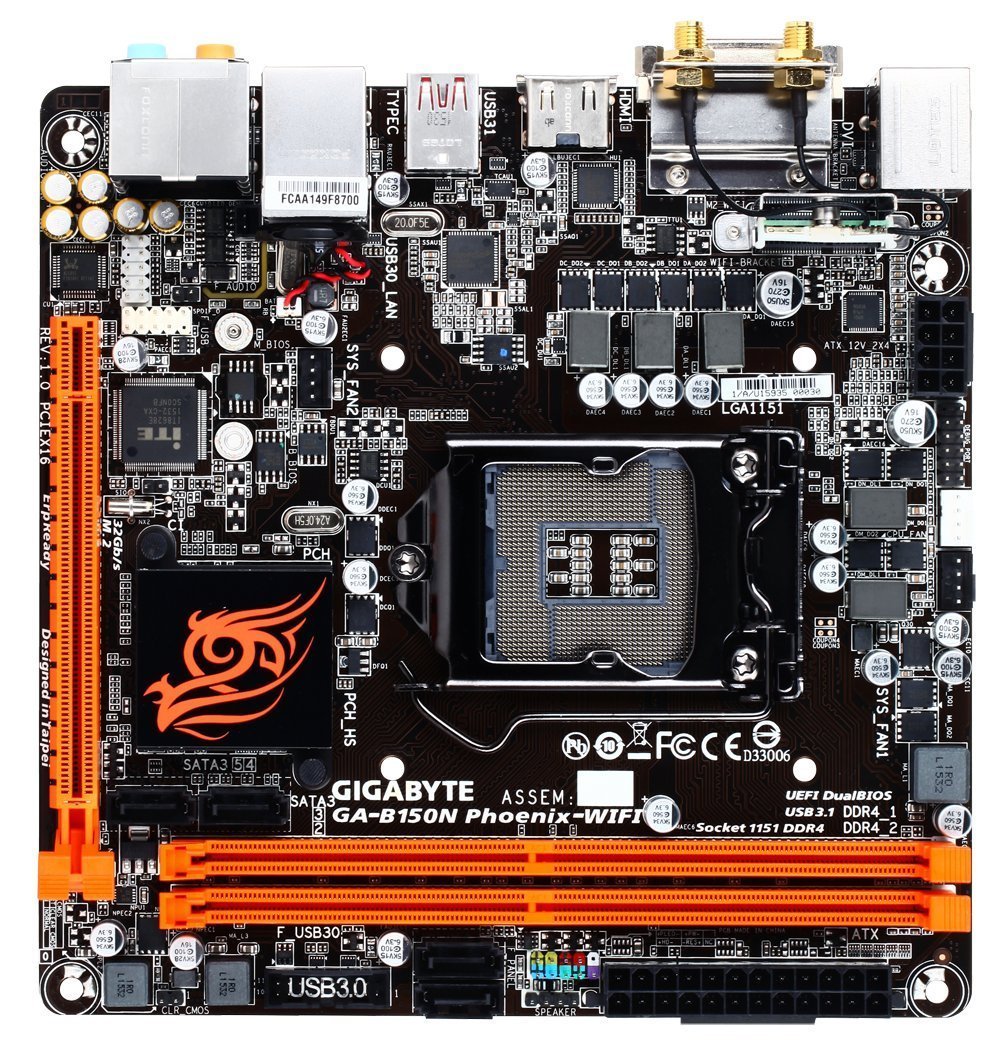

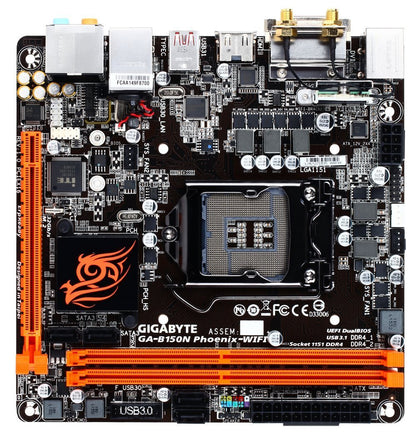

GIGABYTE B150N PHOENIX WIFI

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel^® B150

Form Factor

1.       Mini-ITX Form Factor; 17.0cm x 17.0cm

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

1.       2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.       Dual channel memory architecture

3.       Support for DDR4 2133 MHz memory modules

4.       Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.       Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Multi-GPU Support

1.       1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

2.       1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

Available Expansion Slots

1.       1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2.       1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

LAN

1.       Intel^® GbE LAN chip (10/100/1000 Mbit)

Audio

1.       Realtek^® ALC892 codec

2.       High Definition Audio

3.       2/4/5.1/7.1-channel

4.       Support for S/PDIF Out

Available USB Ports

Chipset:

1.       6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2.       2 x USB 2.0/1.1 ports (available through the internal USB header)

Chipset+ASMedia^® USB 3.1 Controller:

1.       1 x USB Type-C™ port on the back panel, with USB 3.1 support

2.       1 x USB 3.1 Type-A port (red) on the back panel

Special Features

1.       Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker

2.       Support for Q-Flash

3.       Support for Smart Switch

4.       Support for Xpress Install

Back I/O Ports

1.       1 x PS/2 keyboard/mouse port

2.       2 x SMA antenna connectors (2T2R)

3.       1 x DVI-D port

4.       1 x HDMI port

5.       1 x USB Type-C™ port, with USB 3.1 support

6.       1 x USB 3.1 Type-A port (red)

7.       4 x USB 3.0/2.0 ports

8.       1 x RJ-45 port

9.       1 x optical S/PDIF Out connector

10.   5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O

1.       1 x 24-pin ATX main power connector

2.       1 x 8-pin ATX 12V power connector

3.       4 x SATA 6Gb/s connectors

4.       1 x CPU fan header

5.       2 x system fan headers

6.       1 x front panel header

7.       1 x front panel audio header

8.       1 x S/PDIF Out header

9.       1 x USB 3.0/2.0 header

10.   1 x USB 2.0/1.1 header

11.   1 x speaker header

12.   1 x Clear CMOS jumper

13.   1 x chassis intrusion header

WARRANTY

3 YEARS
