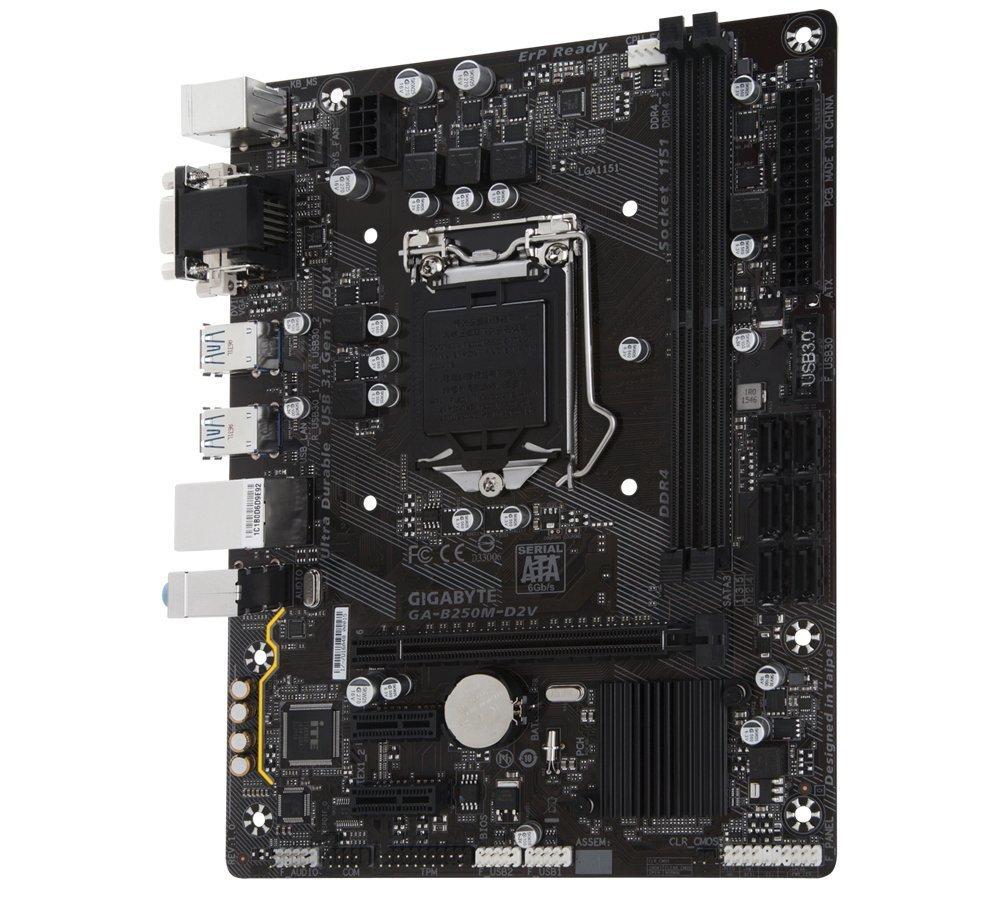

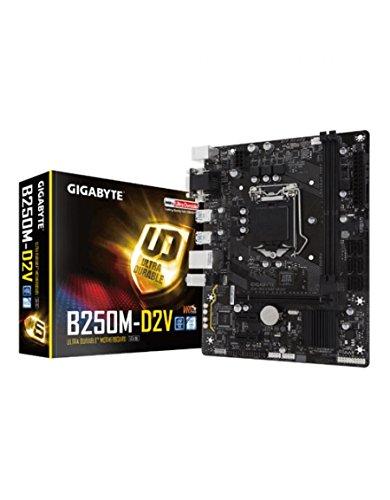

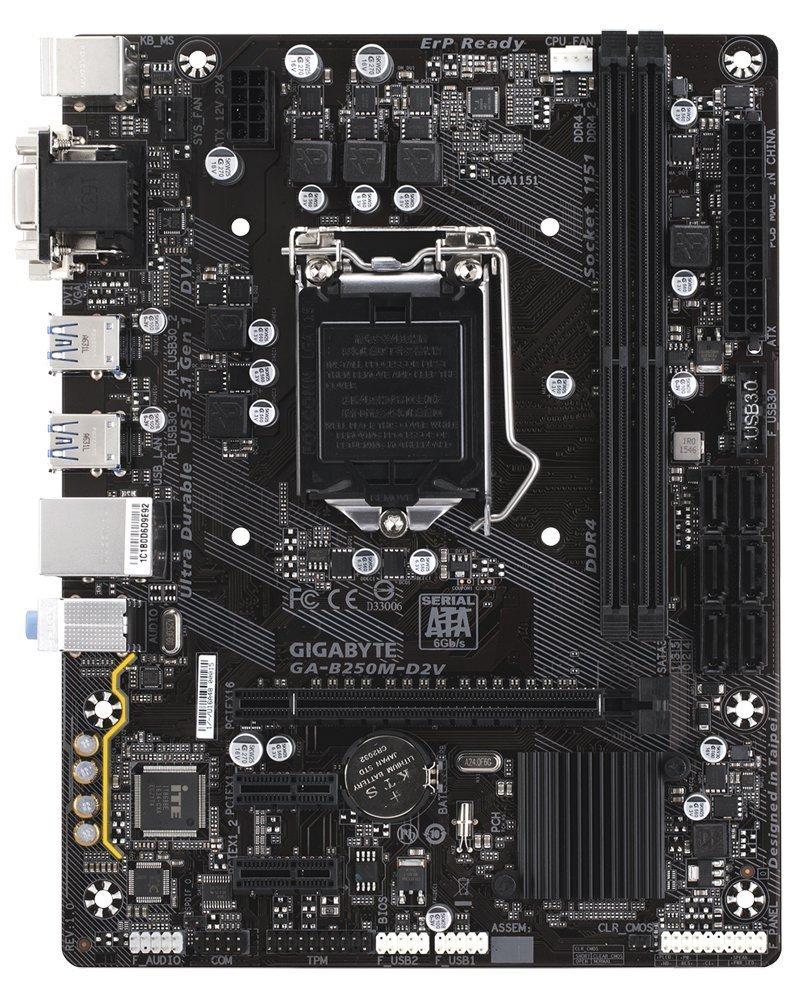

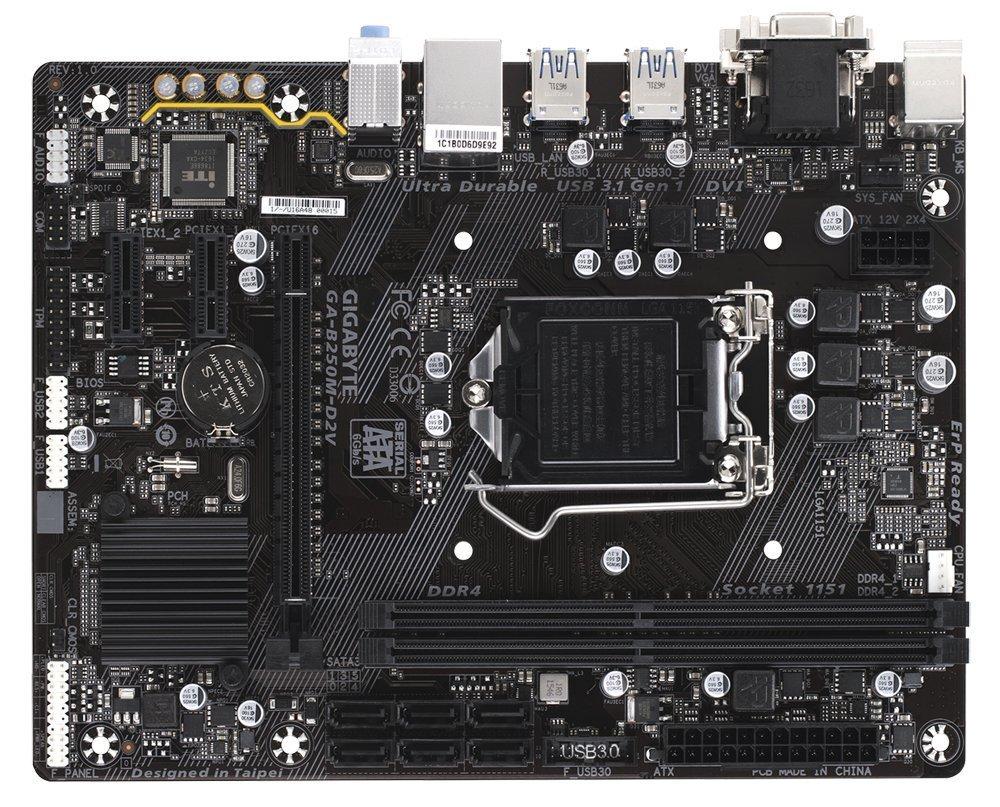

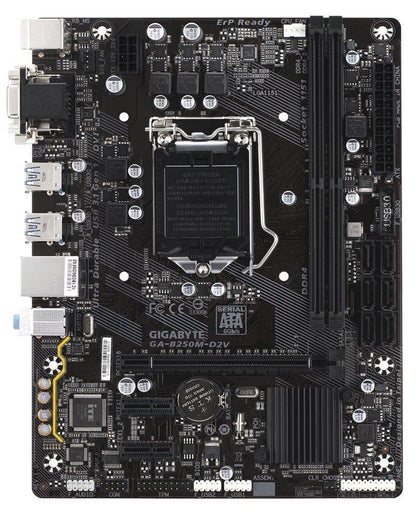

GIGABYTE B250M-D2V Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE B250M-D2V

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel^® B250

Form Factor

1.      Micro ATX Form Factor; 22.6cm x 17.4cm

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

1.      x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.      Dual channel memory architecture

3.      Support for DDR4 2400* / 2133 MHz memory modules
* To support 2400 MHz or XMP memory, you must install a 7^th generation processor.

4.      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.      Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7^th generation processor.

Multi-GPU Support

1.      1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

2.      1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

Available Expansion Slots

1.      1 x PCI Express x16 slot, running at x16

2.      2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

LAN

1.      Realtek^® GbE LAN chip (10/100/1000 Mbit)

Audio

1.      Realtek^® ALC887 codec

2.      High Definition Audio

3.      2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

4.      Support for S/PDIF Out

Available USB Ports

1.      6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2.      6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

1.      Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner

2.      Support for 3TB+ Unlock

3.      Support for Q-Flash

4.      Support for Xpress Install

Back I/O Ports

1.      1 x PS/2 keyboard port

2.      1 x PS/2 mouse port

3.      1 x D-Sub port

4.      1 x DVI-D port

5.      4 x USB 3.1 Gen 1 ports

6.      2 x USB 2.0/1.1 ports

7.      1 x RJ-45 port

8.      3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O

1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      1 x CPU fan header

4.      1 x system fan header

5.      6 x SATA 6Gb/s connectors

6.      1 x front panel header

7.      1 x front panel audio header

8.      1 x S/PDIF Out header

9.      1 x USB 3.1 Gen 1 header

10.  2 x USB 2.0/1.1 headers

11.  1 x Trusted Platform Module (TPM) header

12.  1 x serial port header

13.  1 x Clear CMOS jumper

WARRANTY

3 YEARS
