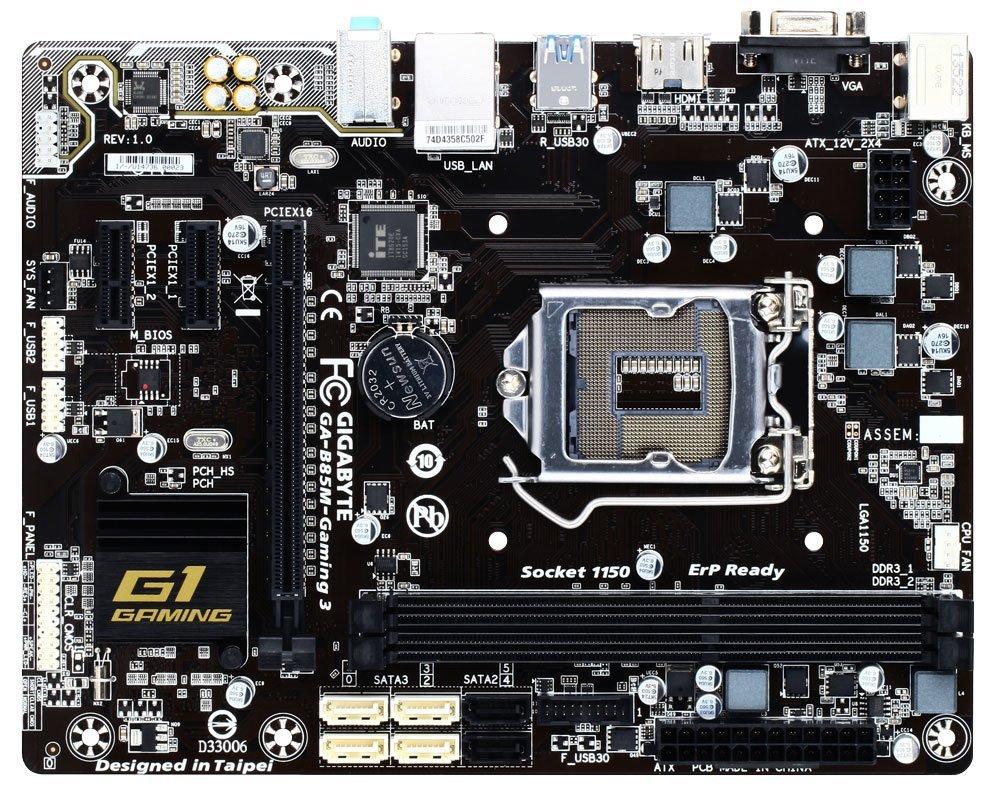

GIGABYTE B85M- GAMING 3 (1150) Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE B85M- GAMING 3

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1150

Chipset

Intel^® B85

Form Factor

1.      Micro ATX Form Factor; 22.6cm x 17.4cm

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

1.      2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.      Dual channel memory architecture

3.      Support for DDR3 1600/1333 MHz memory modules

4.      Support for non-ECC memory modules

5.      Support for Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

1.      1 x D-Sub port, supporting a maximum resolution of 1920x1200

2.      1 x HDMI port, supporting a maximum resolution of 4096x2160
* Support for HDMI 1.4a version.

3.      Maximum shared memory of 1 GB

Available Expansion Slots

1.      1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2.      2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

LAN

1.      Intel^® GbE LAN chip (10/100/1000 Mbit)

Audio

1.      Realtek^® ALC892 codec

2.      High Definition Audio

3.      2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Available USB Ports

1.      4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

2.      6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

1.      Support for Q-Flash

2.      Support for Xpress Install

3.      Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2

4.      Support for ON/OFF Charge

Back I/O Ports

1.      1 x PS/2 keyboard port

2.      1 x PS/2 mouse port

3.      1 x D-Sub port

4.      1 x HDMI port

5.      2 x USB 3.0/2.0 ports

6.      2 x USB 2.0/1.1 ports

7.      1 x RJ-45 port

8.      3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O

1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      4 x SATA 6Gb/s connectors

4.      2 x SATA 3Gb/s connectors

5.      1 x CPU fan header

6.      1 x system fan header

7.      1 x front panel header

8.      1 x front panel audio header

9.      1 x USB 3.0/2.0 header

10.  2 x USB 2.0/1.1 headers

WARRANTY

3 YEARS
