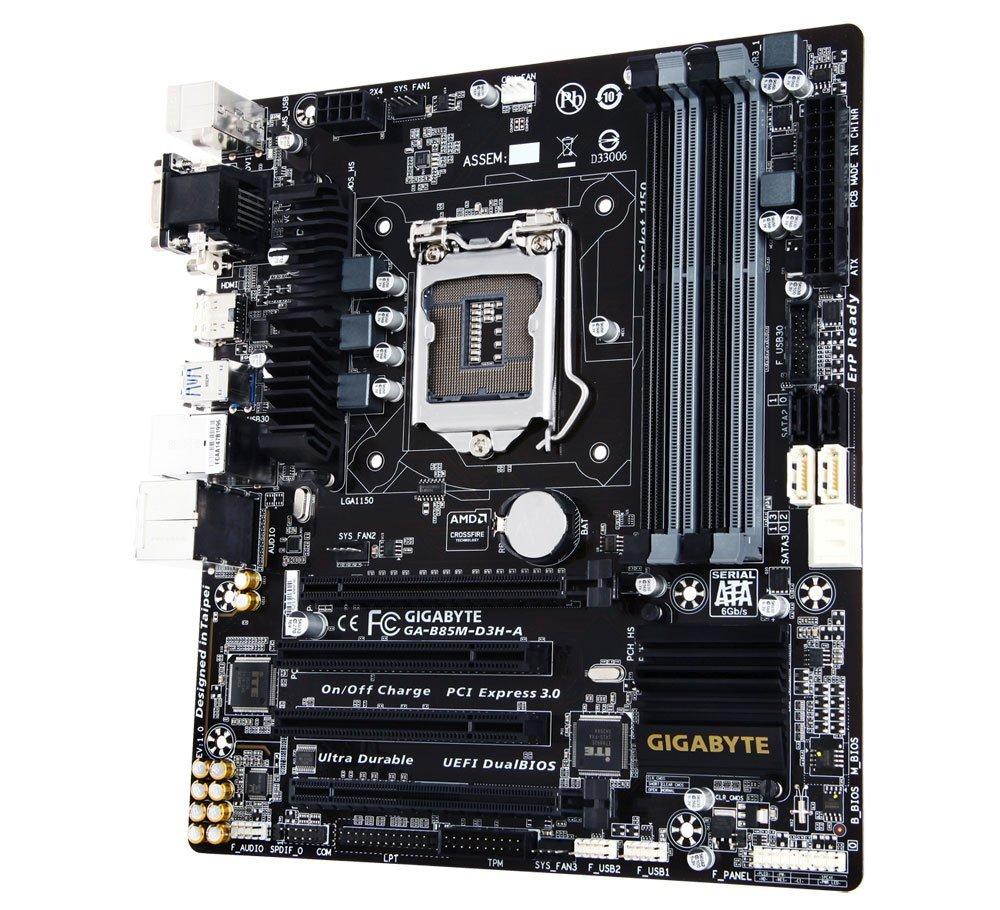

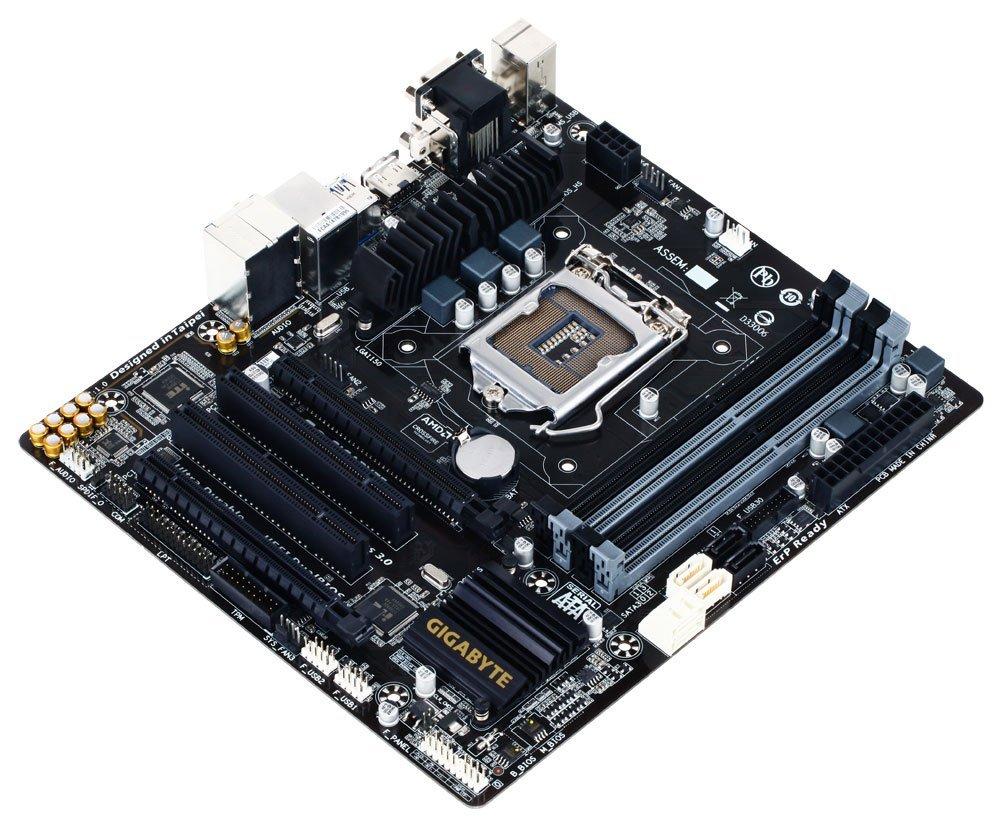

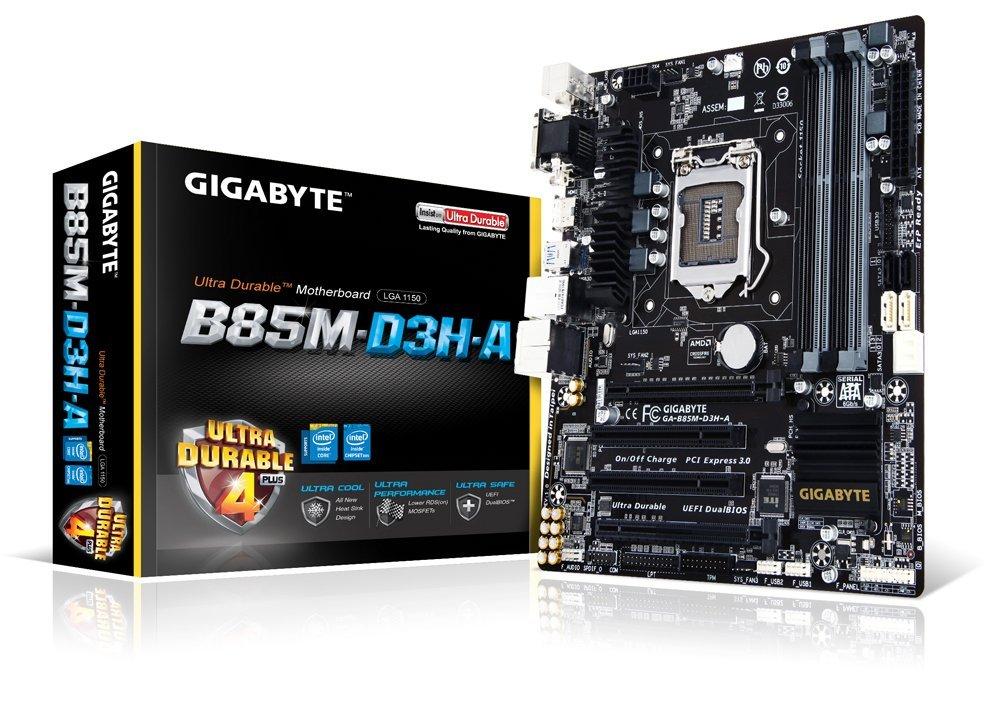

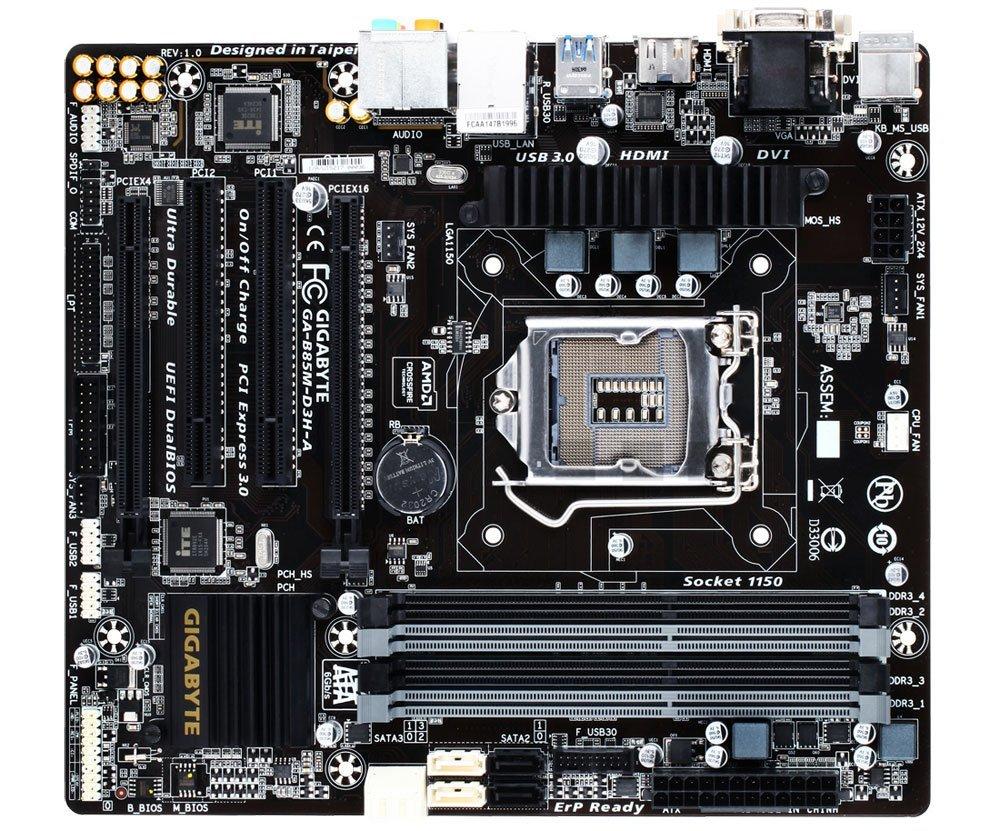

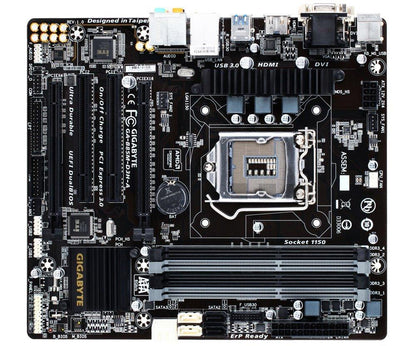

GIGABYTE B85M-D3H-A (1150) Intel Compatible Motherboard for Desktop Computer/PC

Rs. 7,150.00

Sale Sold out

Taxes included.

ITEM DETAILS: GIGABYTE B85M-D3H-A (1150) Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

CPU Support : 4th Generation Intel Core Processors; GIGABYTE Ultra Durable 4 Plus Technology
GIGABYTE Hybrid digital power engine; Audio Noise Guard with High Quality Audio Capacitors
GIGABYTE UEFI DualBIOS; Multi-GPU Support; GIGABYTE On/Off Charge for USB devices
LAN with high ESD Protection; HDMI 1.4, DVI, D-SUB;
Long lifespan Durable Solid capacitors; GIGABYTE LAN Optimizer; Intel B85 Chipset; Display Interface; HDMI, DVI-D, D-SUB, 4 x DDR3 DIMM supporting up to 32 GB RAM, Dual Memory Architecture, Expansion Slots : 1xPCI-E x4 + 2xPCI Slots, SATA Connectors : 4xSATA3 + 2xSATA2; USB : 4xUSB 3.0 + 8xUSB2.0; AUDIO?LAN- 8-Channel HD/GbE LAN, FOrm Factor : mATX

TECHNICAL DETAILS:

Motherboard	GIGABYTE B85M-D3H-A
Brand	GIGABYTE
Compatible with	Intel
Socket Type	LGA1150
Chipset	Intel^® B85
Form Factor	1. Micro ATX Form Factor; 24.4cm x 21.5cm
Supported Memory (Ram) Type	DDR3
No. of RAM Slots	1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. 2. Dual channel memory architecture 3. Support for DDR3 1600/1333 MHz memory modules 4. Support for non-ECC memory modules 5. Support for Extreme Memory Profile (XMP) memory modules
Multi-GPU Support	1. Support for AMD CrossFire™ technology
Available Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 3. 2 x PCI slots
LAN	1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Audio	1. Realtek^® ALC892 codec 2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out
Available USB Ports	1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Special Features	1. Support for Q-Flash 2. Support for Xpress Install 3. Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker 4. Support for ON/OFF Charge
Back I/O Ports	1. 1 x PS/2 keyboard/mouse port 2. 1 x D-Sub port 3. 1 x DVI-D port 4. 1 x HDMI port 5. 2 x USB 3.0/2.0 ports 6. 4 x USB 2.0/1.1 ports 7. 1 x RJ-45 port 8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Internal I/O	1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 4 x SATA 6Gb/s connectors 4. 2 x SATA 3Gb/s connectors 5. 1 x CPU fan header 6. 3 x system fan headers 7. 1 x front panel header 8. 1 x front panel audio header 9. 1 x S/PDIF Out header 10. 1 x USB 3.0/2.0 header 11. 2 x USB 2.0/1.1 headers 12. 1 x serial port header 13. 1 x parallel port header 14. 1 x Trusted Platform Module (TPM) header 15. 1 x Clear CMOS jumper

WARRANTY

3 YEARS
