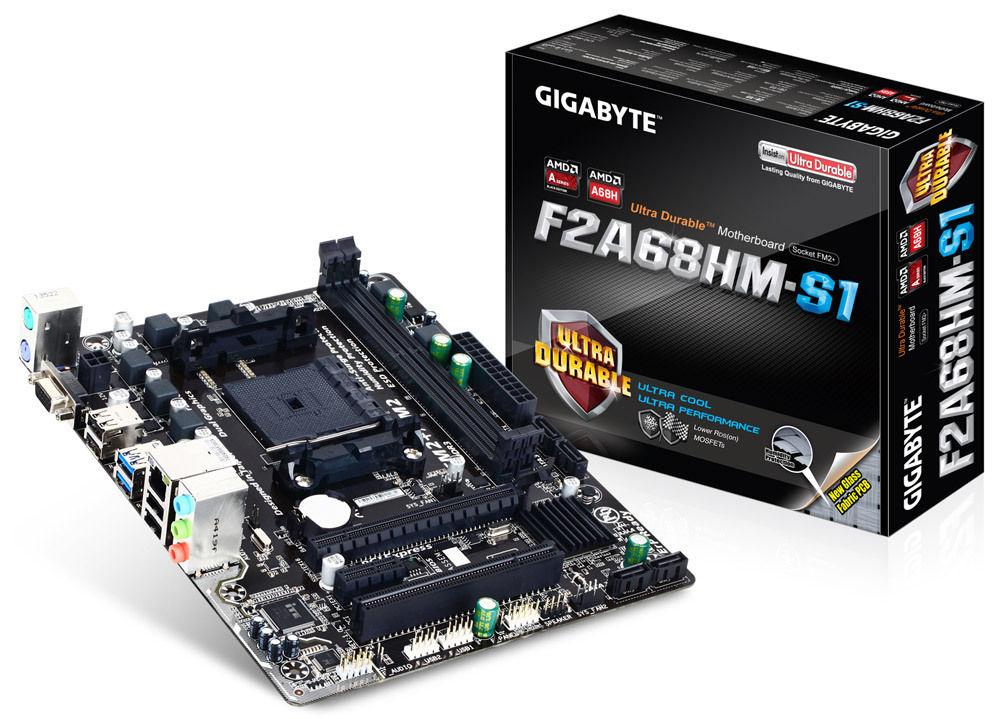

GIGABYTE F2A68HM-S1 AMD Compatible Motherboard for Desktop Computer/PC
GIGABYTE F2A68HM-S1 AMD Compatible Motherboard for Desktop Computer/PC
Regular price
Rs. 4,092.00
Regular price
Sale price
Rs. 4,092.00
Unit price
/
per
Taxes included.
ITEM DETAILS: GIGABYTE F2A68HM-S1 AMD Compatible Motherboard for Desktop Computer/PC
FEATURES:
- Socket FM2+ supports AMD FM2+/FM2 A-series APU
- Dedicated audio hardware zone with Audio Noise Guard design
- Native USB 3.0 and SATA3 ports with RAID support
- GIGABYTE UEFI BIOS
- GIGABYTE On/Off ChargeTM for USB devices
TECHNICAL DETAILS:
Motherboard |
GIGABYTE F2A68HM-S-1 |
Brand |
GIGABYTE |
Compatible with |
AMD |
Socket Type |
FM2+ Socket |
Chipset |
AMD A68H |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Supported Memory (Ram) Type |
DDR3 |
No. of RAM Slots |
2 x DDR3 DIMM sockets supporting up to 64 GB of system memory * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules |
Multi-GPU Support |
Support for AMD Dual Graphics technology |
Available Expansion Slots |
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 1 x PCI slot |
LAN |
Realtek® GbE LAN chip (10/100/1000 Mbit) |
Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
Available USB Ports |
Chipset: 2 x USB 3.0/2.0 ports on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Special Features |
Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Smart Recovery 2 Support for ON/OFF Charge |
Back I/O Ports |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
Internal I/O |
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
Warranty |
3 Years |
