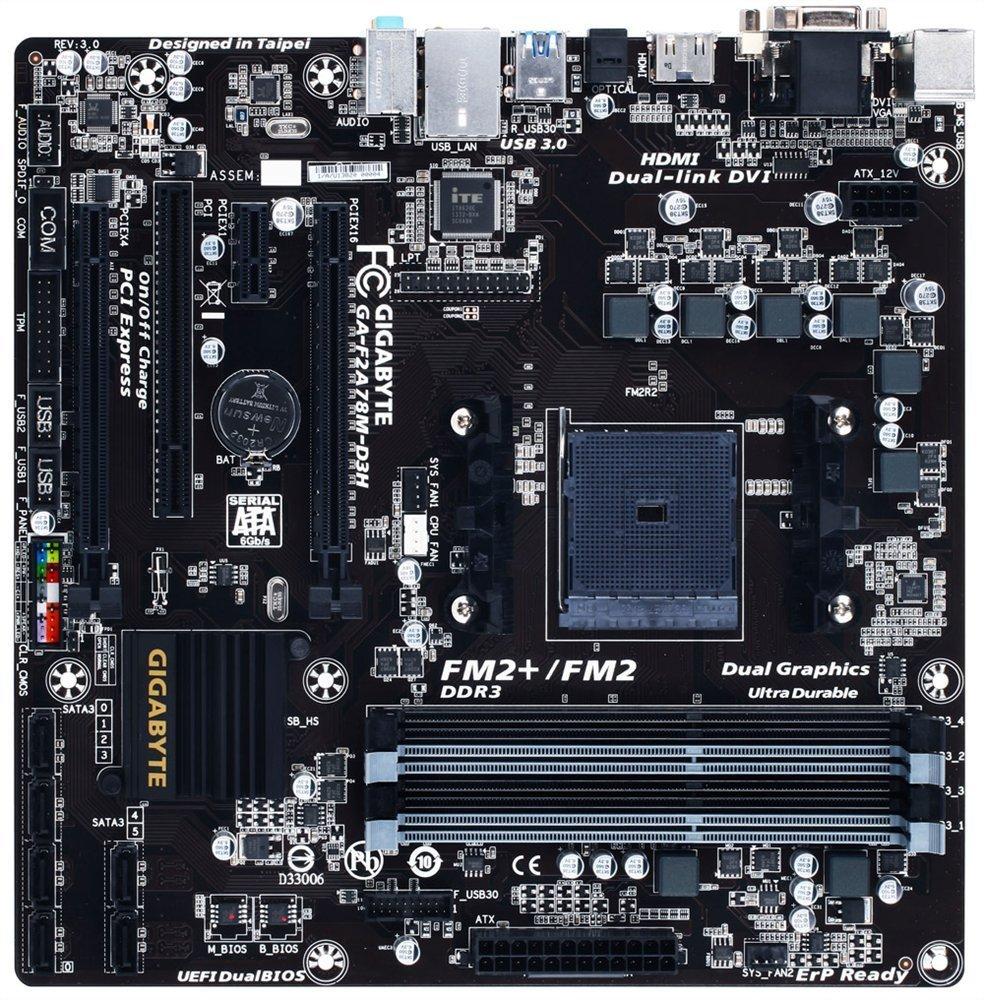

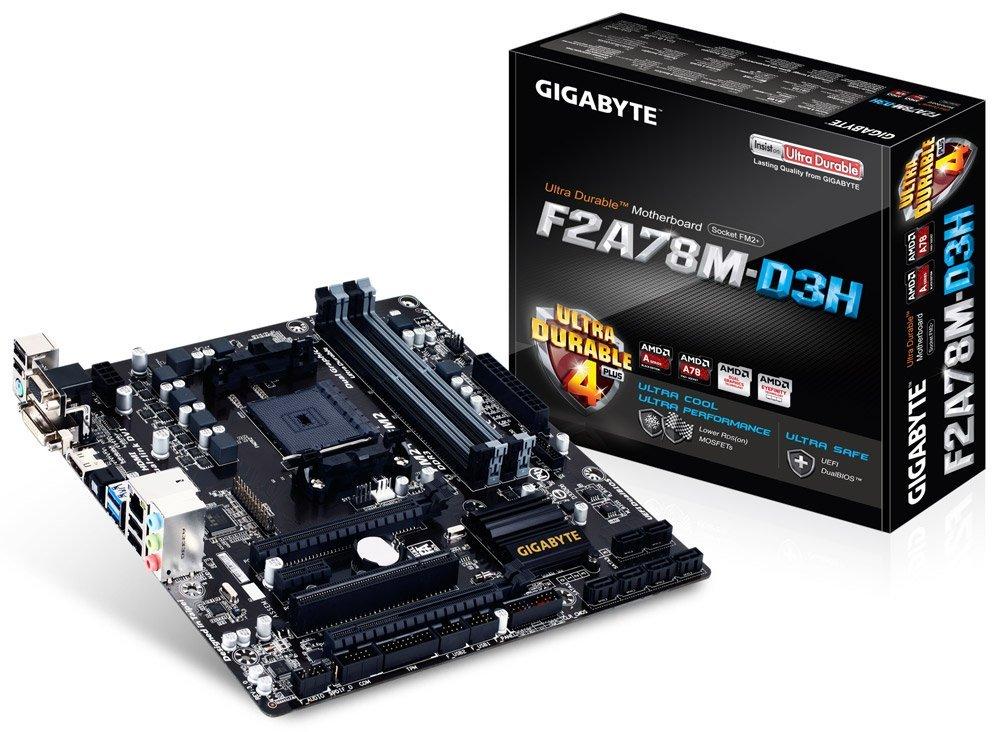

GIGABYTE F2A78M-D3H AMD Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE F2A78M-D3H

Brand

GIGABYTE

Compatible with

AMD

Socket Type

FM2+ Socket

Chipset

AMD A78

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules

Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

Support for AMD Dual Graphics technology

Support for AMD Eyefinity technology

Available Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

* To support PCI Express 3.0, you must install an FM2+ APU.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

1 x PCI slot

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Available USB Ports

               Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2

Support for ON/OFF Charge

Back I/O Ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x optical S/PDIF Out connector

1 x HDMI port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x APU fan header

2 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

1 x Trusted Platform Module (TPM) header

Warranty

3 Years
