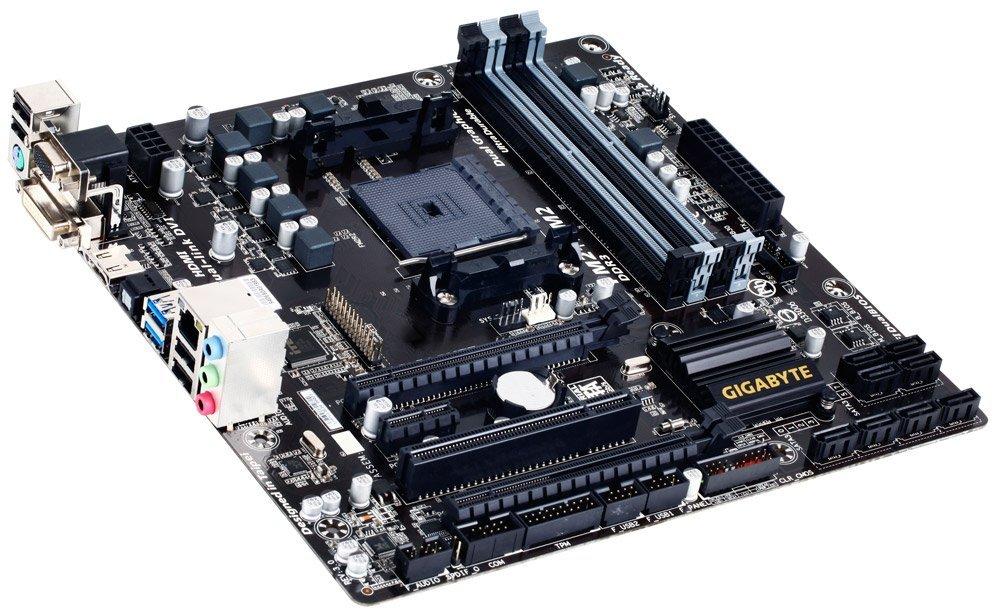

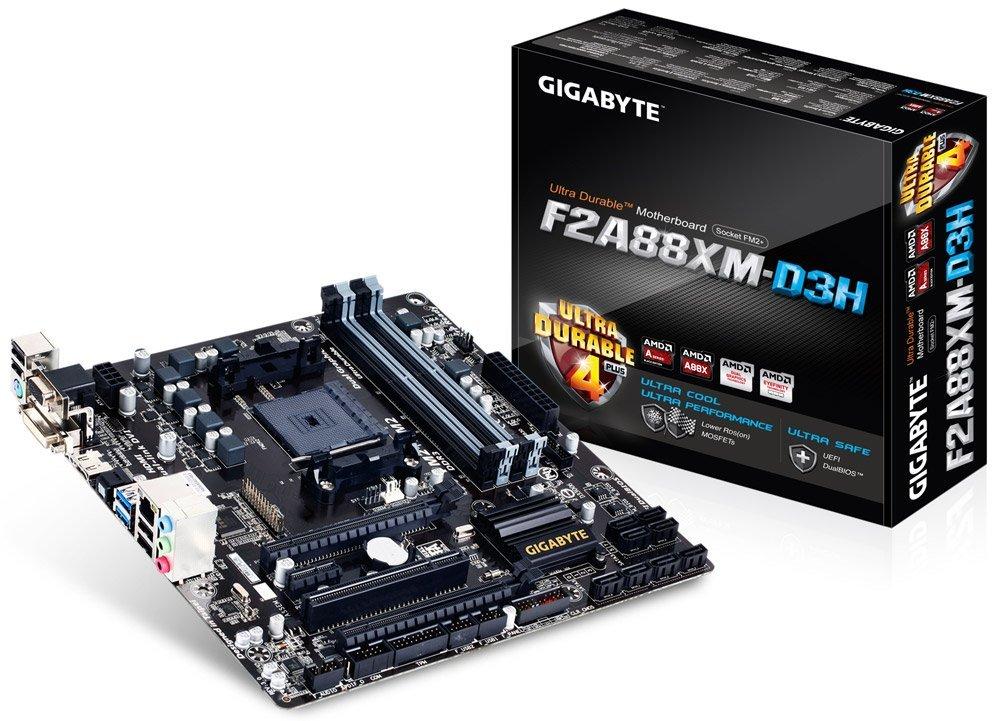

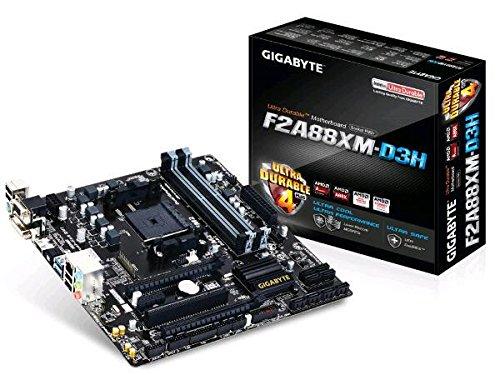

GIGABYTE F2A88XM D3H AMD Compatible Motherboard for Desktop Computer/PC
GIGABYTE F2A88XM D3H AMD Compatible Motherboard for Desktop Computer/PC
Regular price
Rs. 7,397.00
Regular price
Sale price
Rs. 7,397.00
Unit price
/
per
Taxes included.
ITEM DETAILS : GIGABYTE F2A88XM D3H AMD Compatible Motherboard for Desktop Computer/PC
FEATURES:
- Socket FM2+ supports AMD FM2+/FM2 A-series APU | GIGABYTE Ultra Durable 4 Plus Technology
- GIGABYTE UEFI DualBIOS | 2-way CrossFire Support
- GIGABYTE On/Off Charge for USB devices | 4 USB 3.0 ports with GIGABYTE 3x USB power
- HDMI, Dual-link DVI, D-sub ports for Triple-Monitor support | High ESD Protection on GbE LAN and USB ports
- All solid capacitors design
TECHNICAL DETAILS:
Motherboard |
GIGABYTE F2A88XM D3H |
Brand |
GIGABYTE |
Compatible with |
AMD |
Socket Type |
FM2+ Socket |
Chipset |
AMD A88X |
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
Supported Memory (Ram) Type |
DDR3 |
No. of RAM Slots |
4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Dual channel memory architecture Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules |
Multi-GPU Support |
Support for AMD CrossFire™ technology Support for AMD Dual Graphics technology |
Available Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) 1 x PCI slot |
LAN |
Realtek® GbE LAN chip (10/100/1000 Mbit) |
Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Available USB Ports |
Chipset: 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Special Features |
Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Smart Recovery 2 Support for ON/OFF Charge |
Back I/O Ports |
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 3 x audio jacks (Line In, Line Out, Mic In) |
Internal I/O |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header |
Warranty |
3 Years |
