Motherboard
|

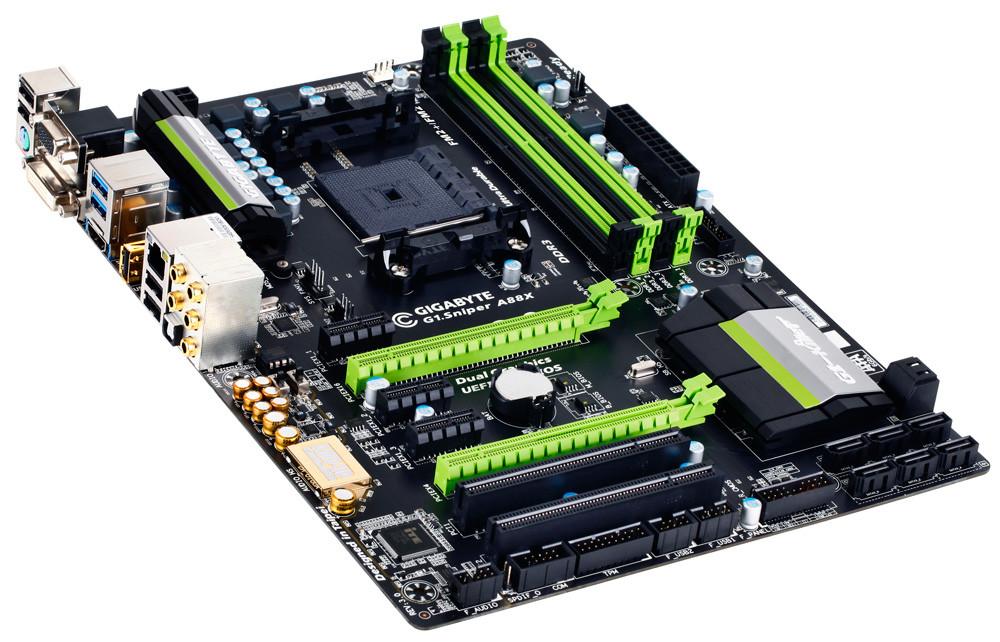

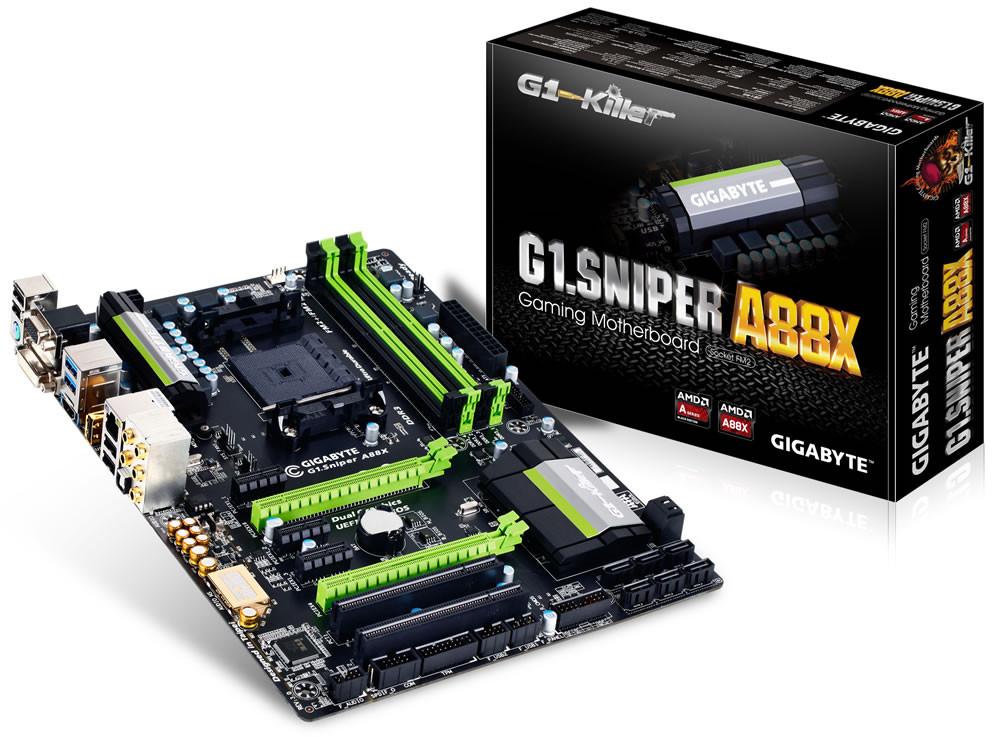

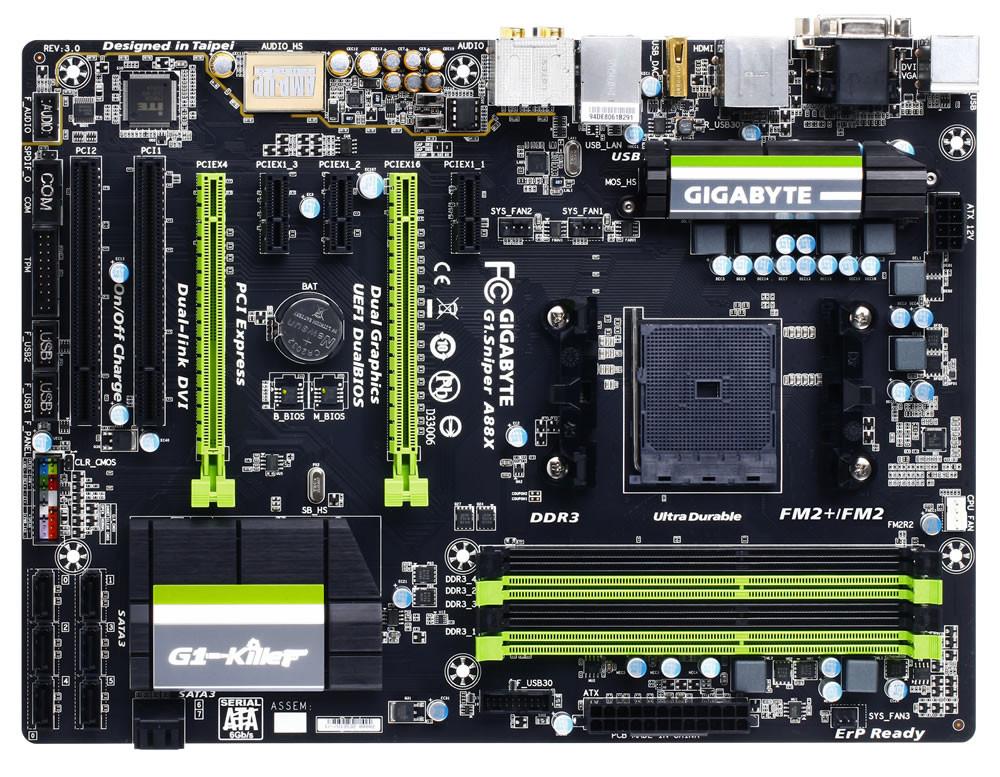

GIGABYTE G1. SNIPER A88X
|
Brand
|
GIGABYTE
|
Compatible with
|
AMD
|
Socket Type
|
FM2+ Socket
|
Chipset
|
AMD A88X
|
Form Factor
|
Micro ATX Form Factor; 24.4cm x 24.4cm
|
Supported Memory (Ram) Type
|
DDR3
|
No. of RAM Slots
|
4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
|
Multi-GPU Support
|
Support for AMD CrossFire™ technology
Support for AMD Dual Graphics technology
|
Available Expansion Slots
|
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* To support PCI Express 3.0, you must install an FM2+ APU.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
2 x PCI slots
|
LAN
|
Realtek® GbE LAN chip (10/100/1000 Mbit)
|
Audio
|
Realtek® ALC898 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
|
Available USB Ports
|
Chipset:
4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
9 USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)
|
Special Features
|
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge
|
Back I/O Ports
|
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
5 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
Internal I/O
|
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA 6Gb/s connectors
1 x APU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
2 x gain control switches
|
Warranty
|
3 Years
|
