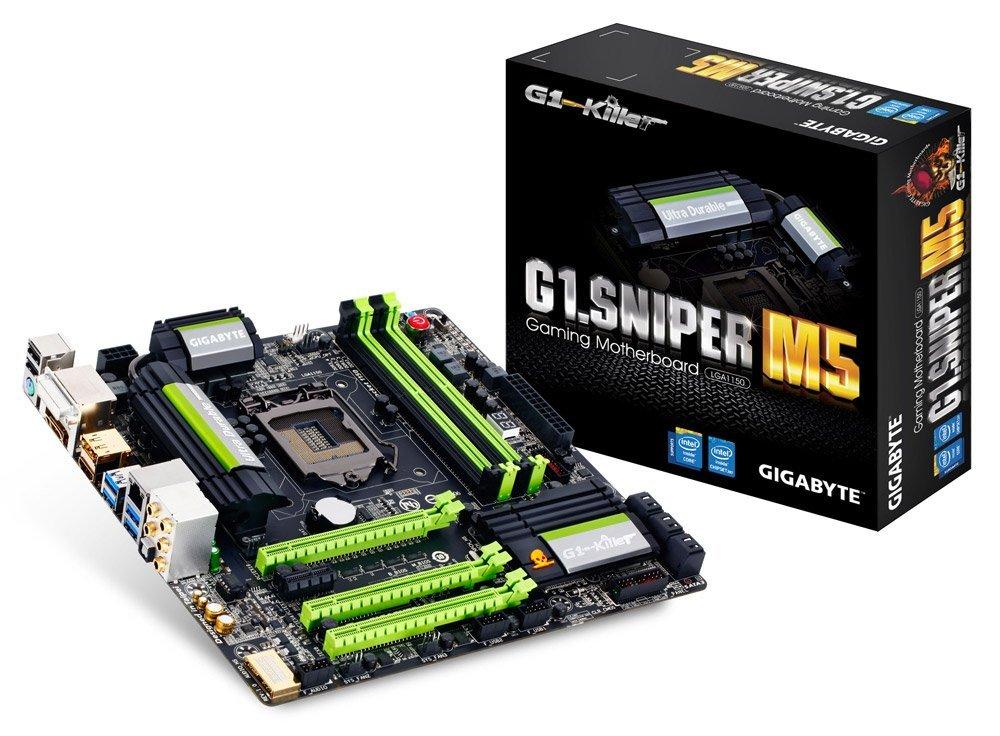

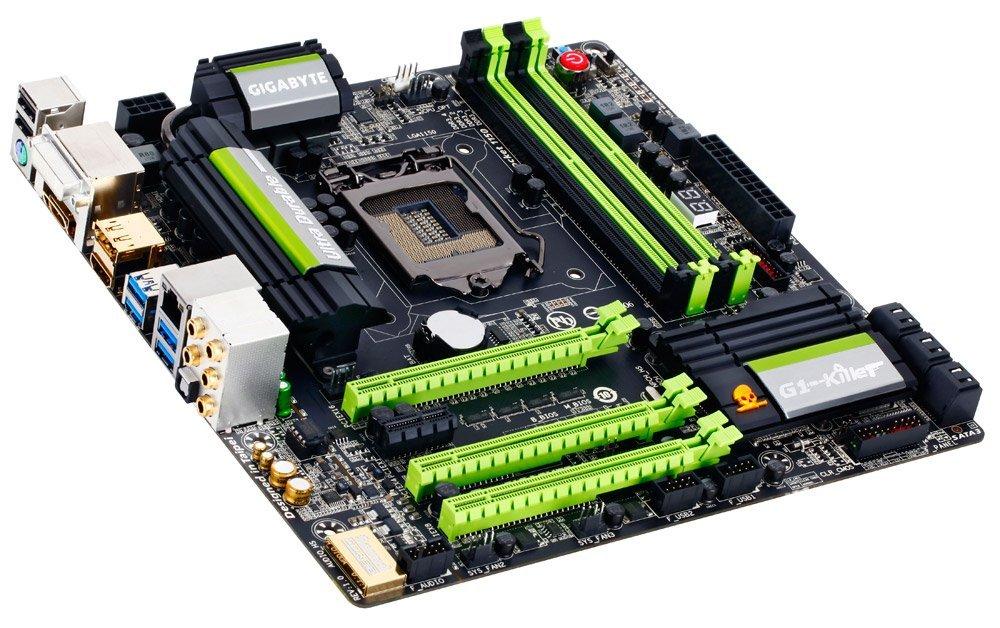

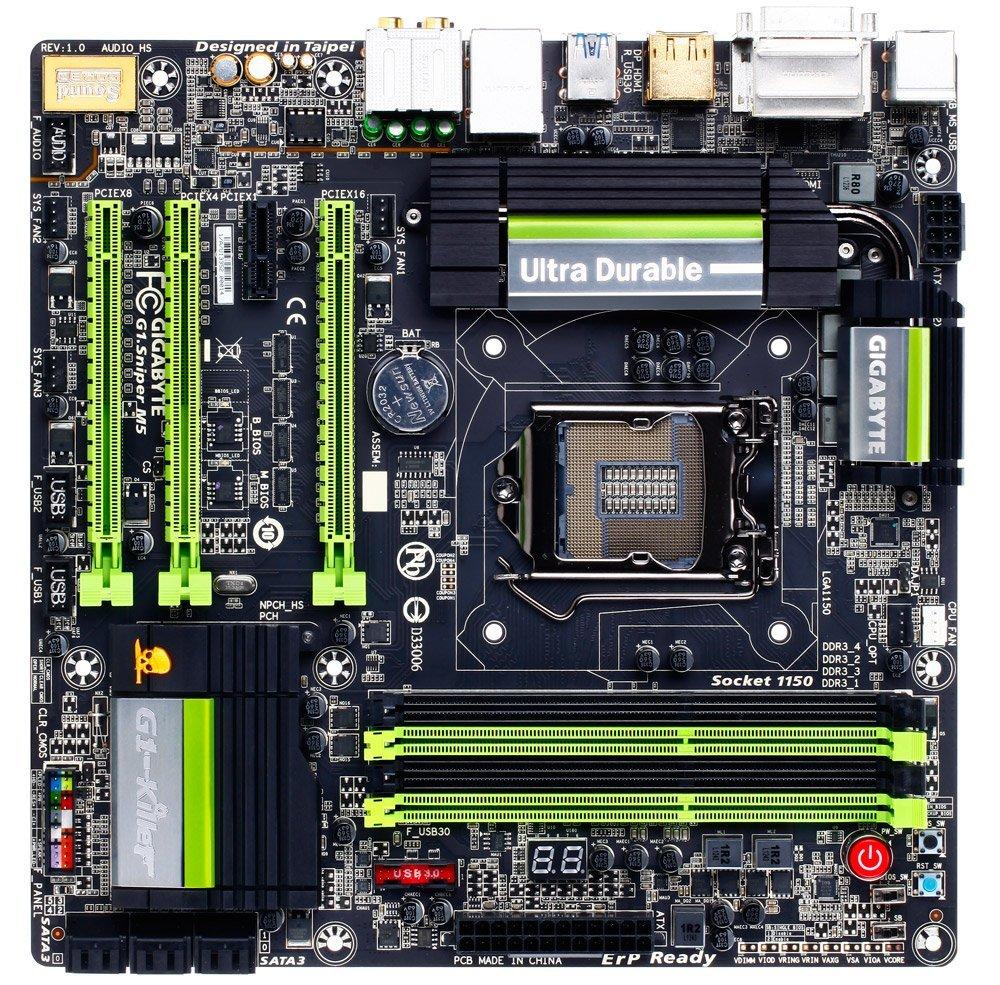

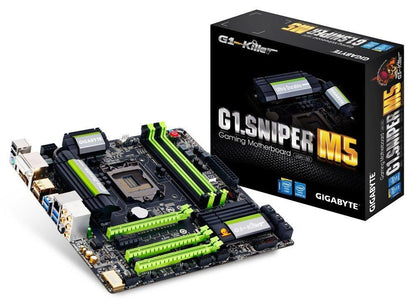

GIGABYTE G1 SNIPER M5 Z87 Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE G1 SNIPER M5 Z87

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1150

Chipset

Intel^® Z87

Form Factor

1.      Micro ATX Form Factor; 24.4cm x 24.4cm

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

1.      4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.      Dual channel memory architecture

3.      Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules

4.      Support for non-ECC memory modules

5.      Support for Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

1.      Support for 2-Way AMD CrossFire™/2-Way NVIDIA^® SLI™ technology (PCIEX16 and PCIEX8 slots)

Available Expansion Slots

1.      1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.      1 x PCI Express x16 slot, running at x4 (PCIEX4)

3.      1 x PCI Express x16 slot, running at x8 (PCIEX8)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

4.      1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

LAN

1.      1 x Qualcomm^® Atheros Killer E2201 chip (10/100/1000 Mbit)

Audio

1.      Creative^® Sound Core 3D chip

2.      Support for Sound Blaster Recon3Di

3.      High Definition Audio

4.      2/5.1-channel

5.      Support for S/PDIF Out

Available USB Ports

1.      Up to 6 USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2.      Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

1.      Support for Q-Flash

2.      Support for Xpress Install

3.      Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker

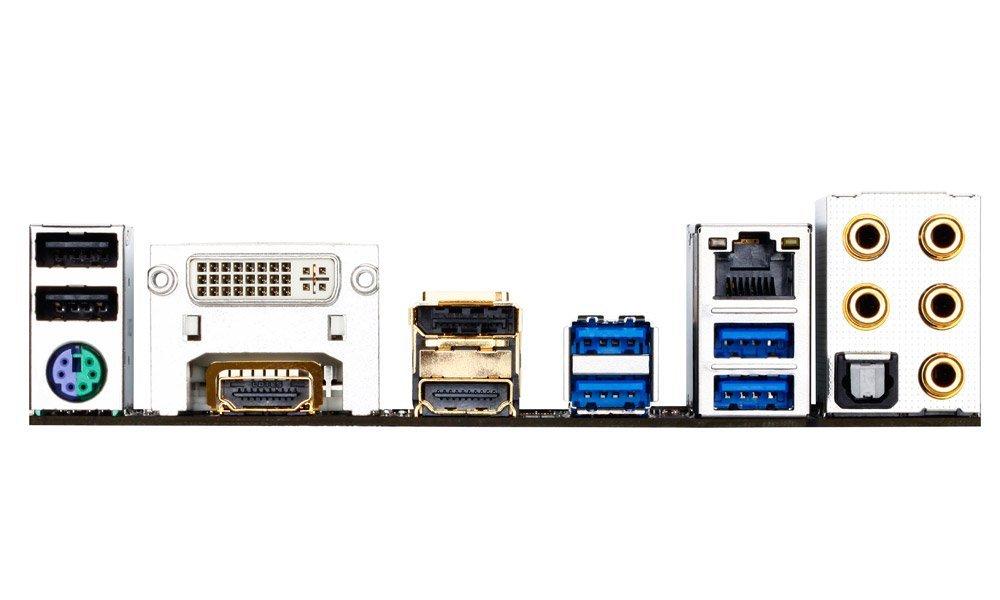

Back I/O Ports

1.      1 x PS/2 keyboard/mouse port

2.      1 x DVI-I port

3.      2 x HDMI ports

4.      1 x DisplayPort

5.      4 x USB 3.0/2.0 ports

6.      2 x USB 2.0/1.1 ports

7.      1 x RJ-45 port

8.      1 x optical S/PDIF Out connector

9.      5 x audio jacks(Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone/Speaker Out)

Internal I/O

1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      6 x SATA 6Gb/s connectors

4.      1 x CPU fan header

5.      3 x system fan headers

6.      1 x water cooling fan header (CPU_OPT)

7.      1 x front panel header

8.      1 x front panel audio header

9.      1 x USB 3.0/2.0 header

10.  2 x USB 2.0/1.1 headers

11.  1 x Clear CMOS jumper

12.  1 x power button

13.  1 x reset button

14.  1 x Clear CMOS button

15.  2 x BIOS switches

16.  Voltage measurement points

WARRANTY

3 YEARS
