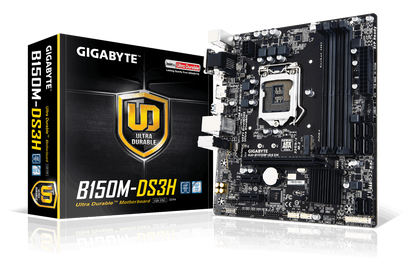

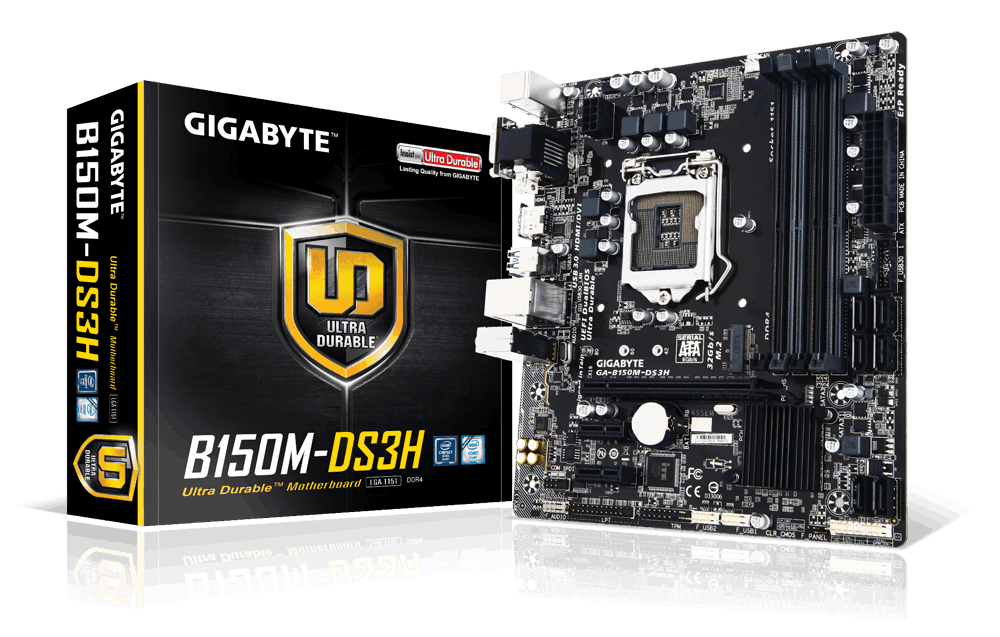

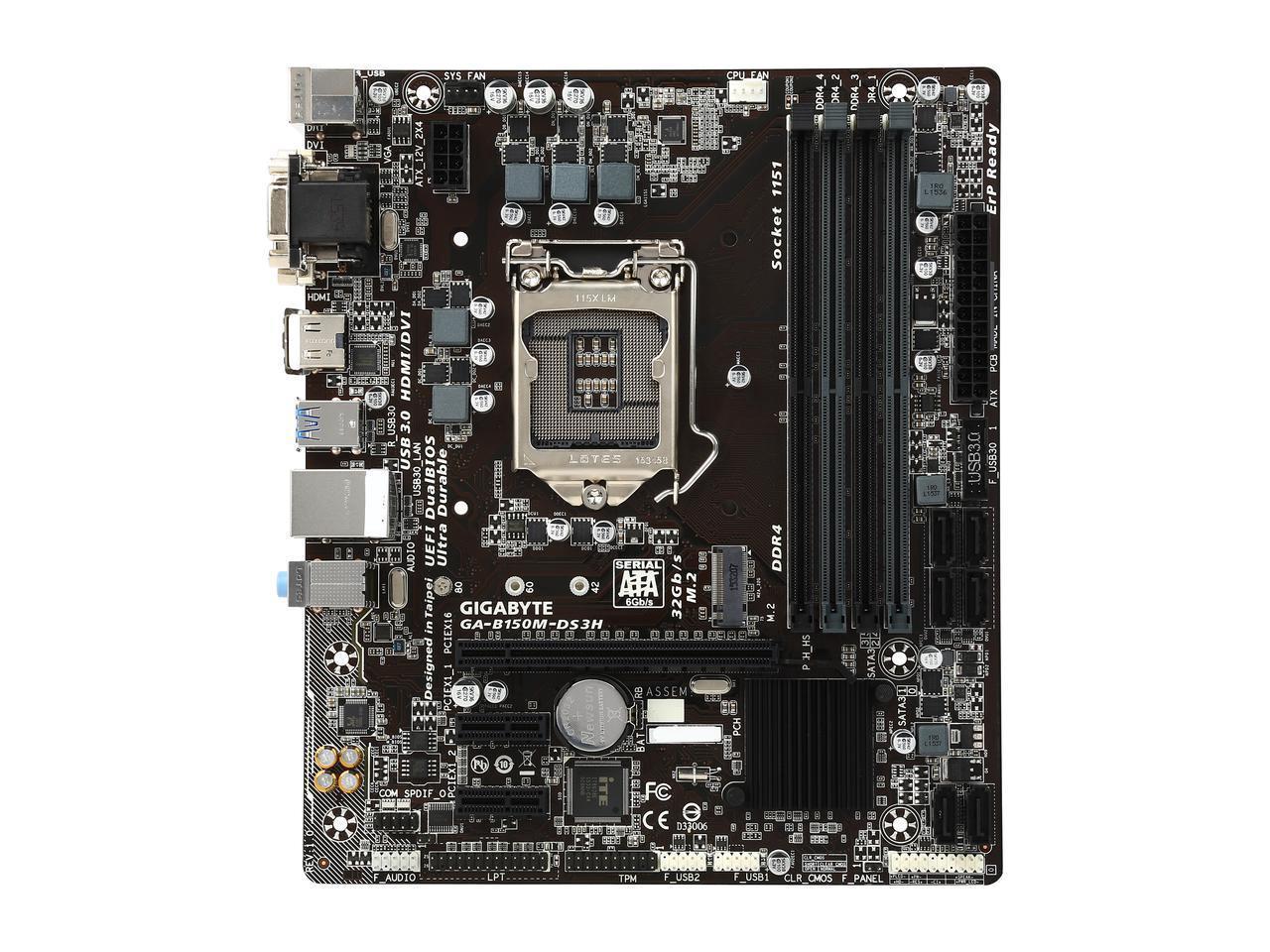

GIGABYTE GA-B150M-DS3H Intel Compatible Motherboard for Desktop Computer/PC

Rs. 8,263.00

Sale Sold out

Taxes included.

ITEM DETAILS: GIGABYTE GA-B150M-DS3H Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

Supports 7^th / 6^th Generation Intel^® Core™ Processors
Dual Channel DDR4, 4 DIMMs
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
Realtek^® Green GbE LAN with cFosSpeed Internet Accelerator Software
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology
Support Intel^® Small Business Basics

TECHNICAL DETAILS:

CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset	Intel® B150 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Graphic	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage	Chipset: 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support) 6 x SATA 6Gb/s connectors
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
USB Ports	Chipset: 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal US
Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Form Factor	A Micro ATX Form Factor; 22.6cm x 19.3cm
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	3 Years

Product features

Materials and care

Merchandising tips

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
TECHNOTRONIC	TECHNOTRONIC Rs. 8,263.00/ea	Rs. 0.00	Quantity Sold out	Rs. 8,263.00/ea	Rs. 0.00

AJK Traders	AJK Traders Rs. 8,765.00/ea	Rs. 0.00	Quantity Sold out	Rs. 8,765.00/ea	Rs. 0.00

Sunrise Infomedia	Sunrise Infomedia Rs. 8,952.00/ea	Rs. 0.00	Quantity Sold out	Rs. 8,952.00/ea	Rs. 0.00

View cart

Total items

Rs. 0.00

Product subtotal

Taxes included. Discounts and shipping calculated at checkout.

View cart

Country/region

GIGABYTE GA-B150M-DS3H Intel Compatible Motherboard for Desktop Computer/PC

GIGABYTE GA-B150M-DS3H Intel Compatible Motherboard for Desktop Computer/PC

ITEM DETAILS: GIGABYTE GA-B150M-DS3H Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

TECHNICAL DETAILS:

CPU

Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.

L3 cache varies with CPU

Chipset

Intel® B150 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Graphic

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage

Chipset:

1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)

6 x SATA 6Gb/s connectors

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

USB Ports

Chipset:

6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal US

Back I/O Ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

Form Factor

A Micro ATX Form Factor; 22.6cm x 19.3cm

BIOS

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Warranty

3 Years
