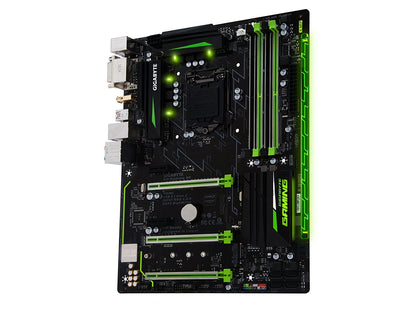

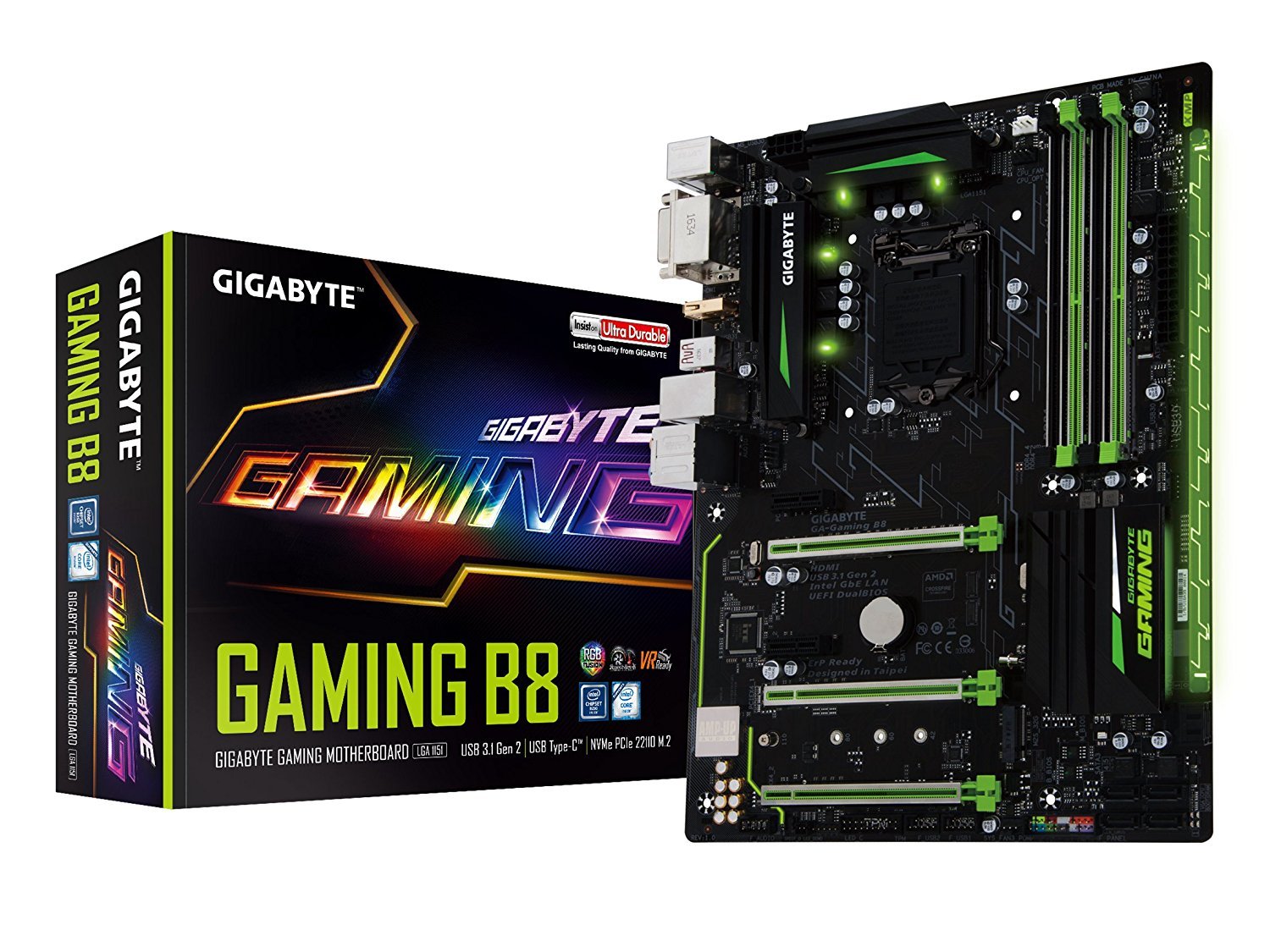

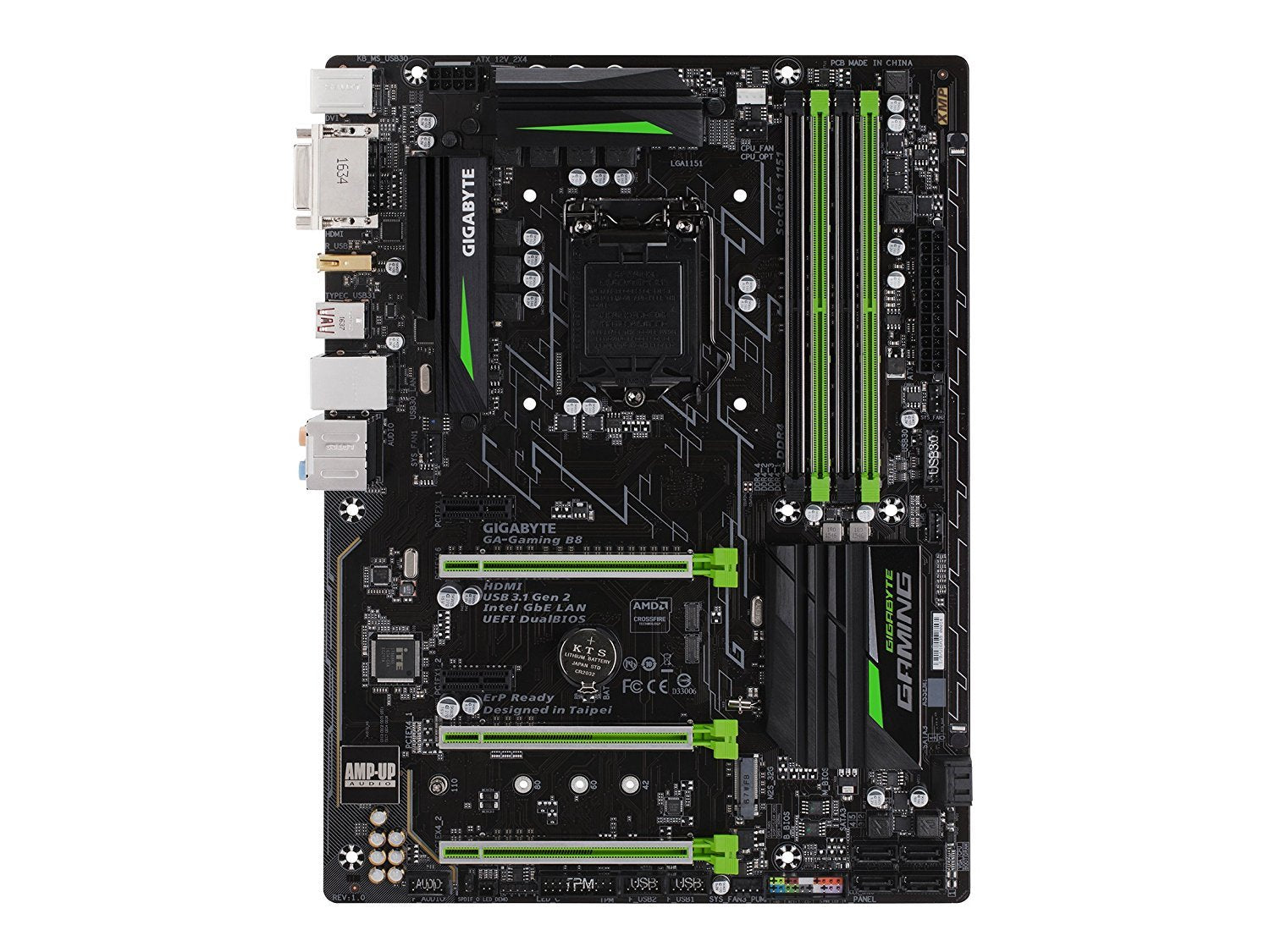

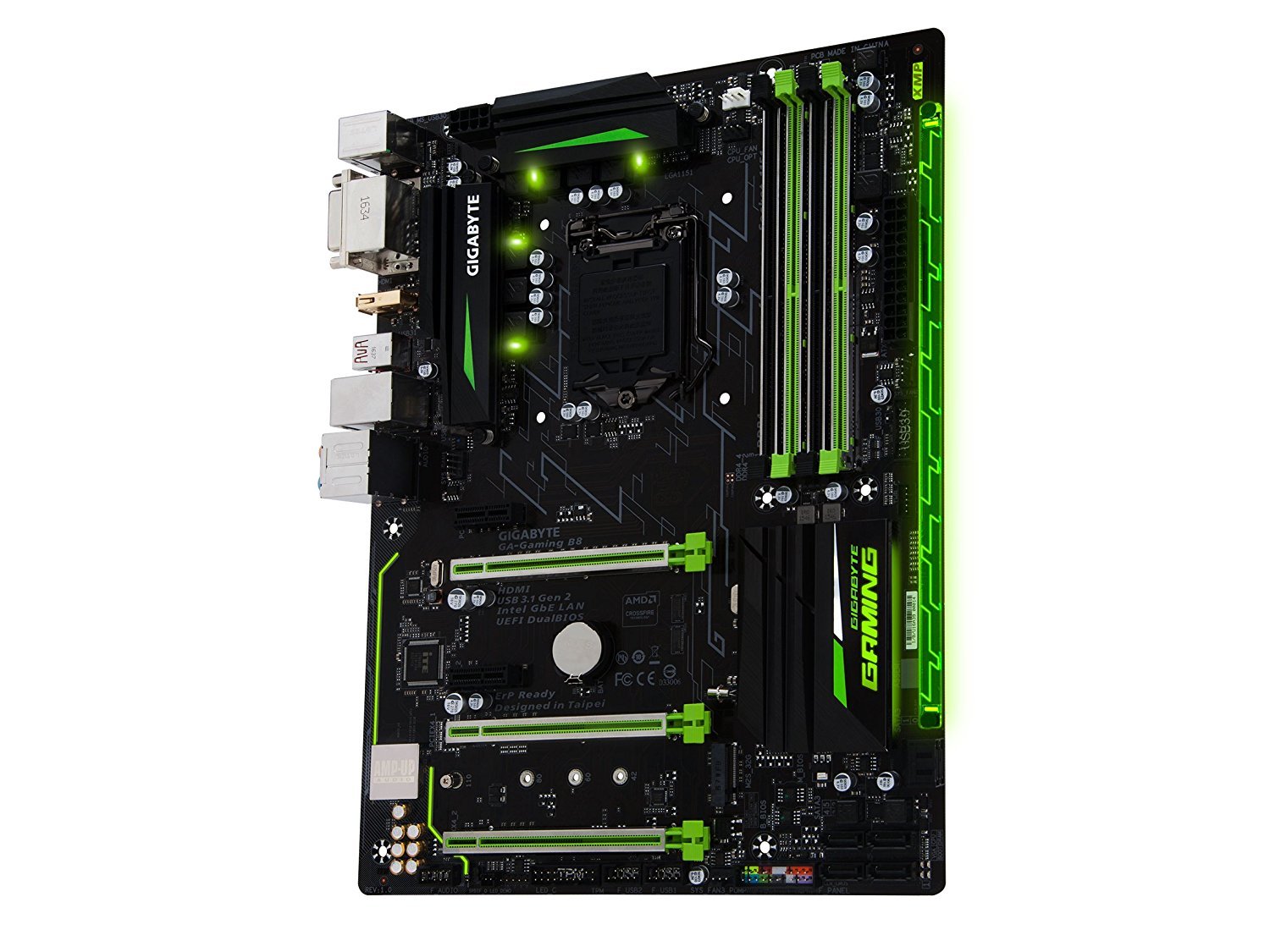

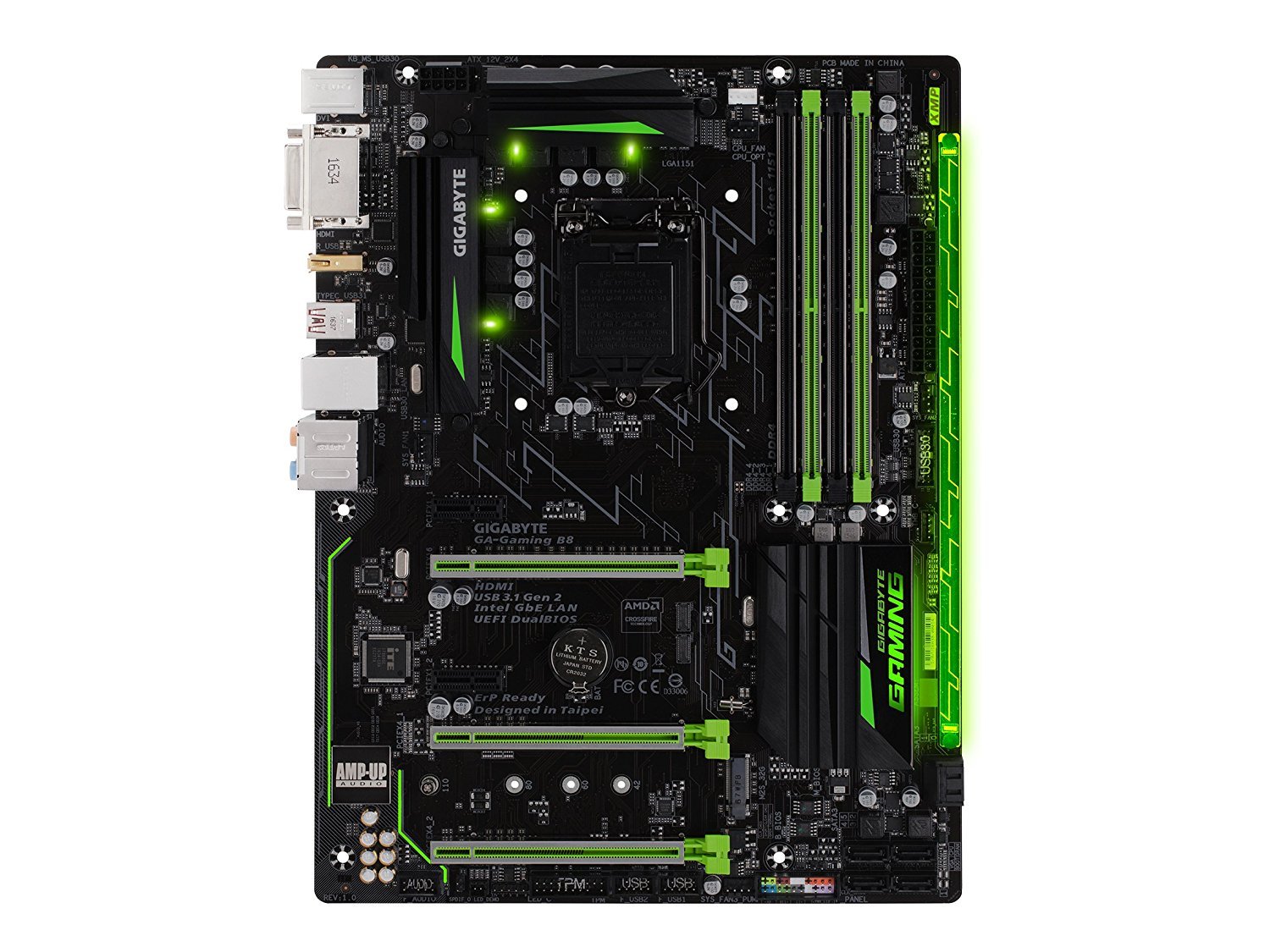

GIGABYTE GA- GAMING B8 Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE GA- GAMING B8

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel^® B250

Form Factor

1.      ATX Form Factor; 30.5cm x 23.0cm

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

1.      4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.      Dual channel memory architecture

3.      Support for DDR4 2400* / 2133 MHz memory modules
* To support 2400 MHz or XMP memory, you must install a 7^th generation processor.

4.      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.      Support for Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

1.      Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies

Available Expansion Slots

1.      1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.      2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
* The PCIEX4_1 slot shares bandwidth with the M.2 connector. When the PCIEX4_1 slot is installed with a x4 or above card, the M.2 connector becomes unavailable.

3.      2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

LAN

1.      Intel^® GbE LAN chip (10/100/1000 Mbit)

Audio

1.      Realtek^® ALC1220 codec

2.      High Definition Audio

3.      2/4/5.1/7.1-channel

4.      Support for S/PDIF Out

Available USB Ports

Chipset+ASMedia^® ASM2142 USB 3.1 Gen 2 Controller:

1.      1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

2.      1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

1.      6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2.      5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Special Features

1.      Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner

2.      Support for 3TB+ Unlock

3.      Support for Q-Flash

4.      Support for Xpress Install

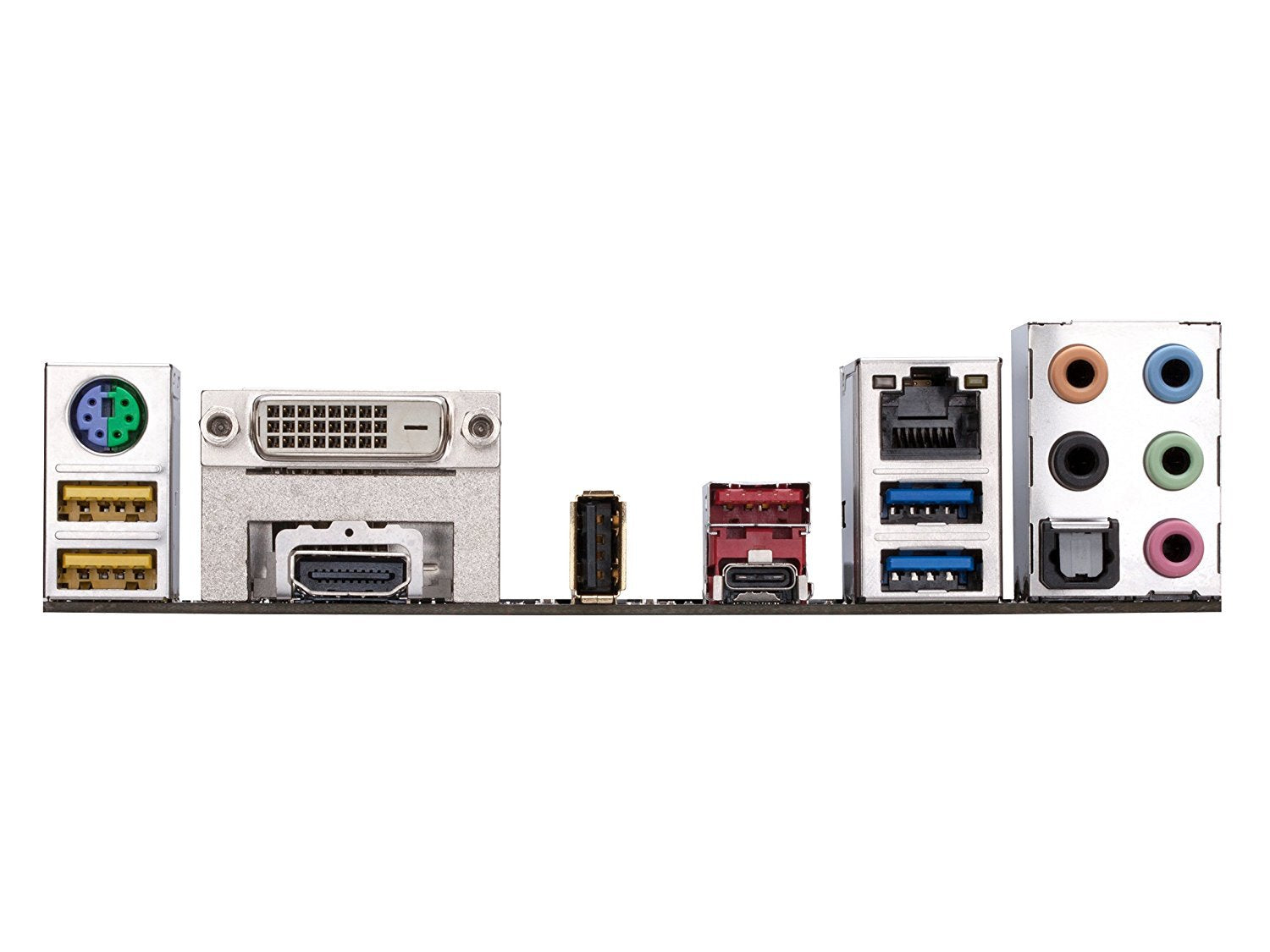

Back I/O Ports

1.      1 x PS/2 keyboard/mouse port

2.      1 x DVI-D port

3.      1 x HDMI port

4.      1 x USB Type-C™ port, with USB 3.1 Gen 2 support

5.      1 x USB 3.1 Gen 2 Type-A port (red)

6.      4 x USB 3.1 Gen 1 ports

7.      1 x USB 2.0/1.1 port

8.      1 x RJ-45 port

9.      1 x optical S/PDIF Out connector

10.  5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O

1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      1 x M.2 Socket 3 connector

4.      6 x SATA 6Gb/s connectors

5.      1 x CPU fan header

6.      1 x water cooling CPU fan header

7.      2 x system fan headers

8.      1 x system fan/water cooling pump header

9.      1 x front panel header

10.  1 x front panel audio header

11.  1 x USB 3.1 Gen 1 header

12.  2 x USB 2.0/1.1 headers

13.  1 x S/PDIF Out header

14.  1 x Trusted Platform Module (TPM) header

15.  1 x RGB(RGBW) LED strip extension cable header

16.  1 x Thunderbolt™ add-in card connector

17.  1 x Clear CMOS jumper

WARRANTY

3 YEARS
