Motherboard
|

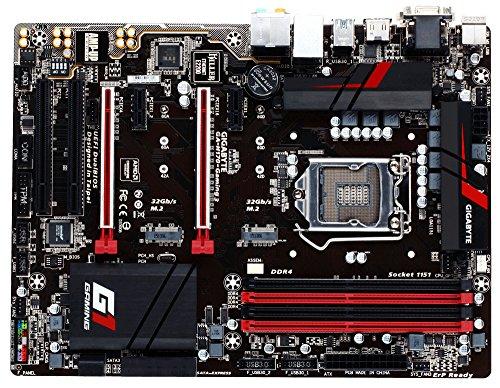

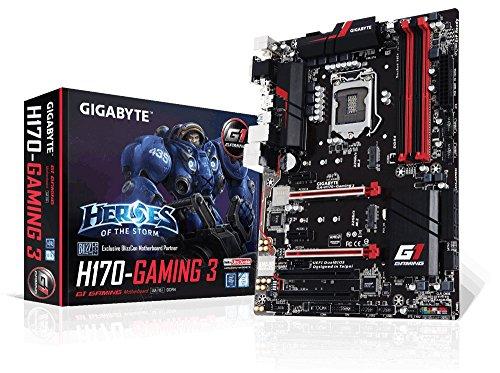

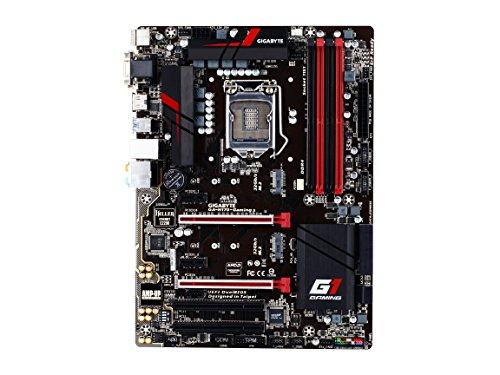

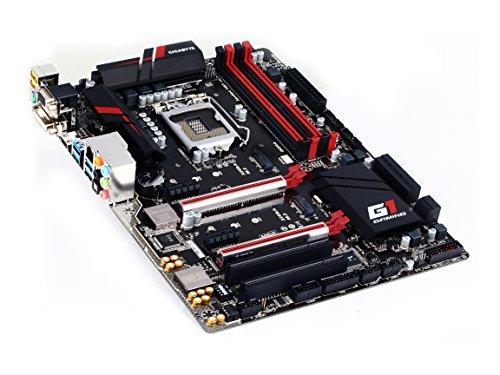

GIGABYTE H170- GAMING 3
|
Brand
|
GIGABYTE
|
Compatible with
|
Intel
|
Socket Type
|
LGA1151
|
Chipset
|
Intel® H170 Express Chipset
|
Form Factor
|
ATX Form Factor; 30.5cm x 22.5cm
|
Supported Memory (Ram) Type
|
DDR4
|
No. of RAM Slots
|
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
|
Multi-GPU Support
|
-
Support for 2-Way AMD CrossFire™ technology
|
Available Expansion Slots
|
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
2 x PCI slots
|
LAN
|
Killer E2201 LAN chip (10/100/1000 Mbit)
|
Audio
|
Realtek® ALC1150 codec
TI NE5532 operational amplifier
Support for Sound Blaster X-Fi MB3
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
|
Available USB Ports
|
8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
Special Features
|
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
|

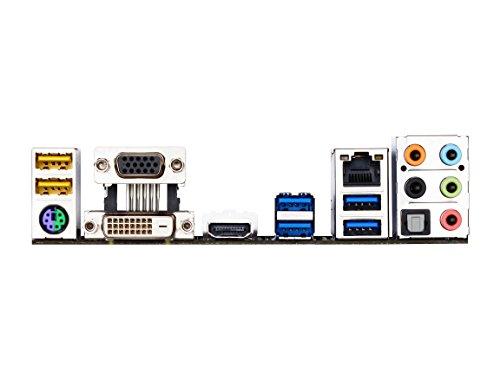

Back I/O Ports
|
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
Internal I/O
|
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
2 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper
1 x audio gain control switch
|
