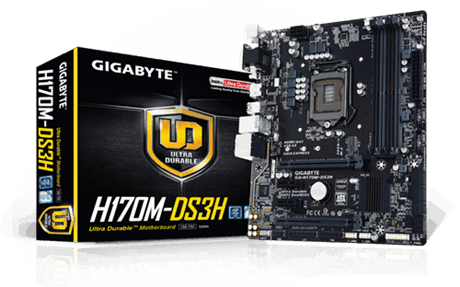

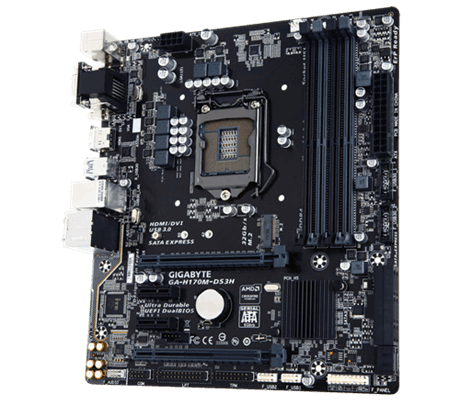

GIGABYTE H170M-DS3H (1151) Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE H170M-DS3H

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H170 Express Chipset

Form Factor

Micro ATX Form Factor; 24.4cm x 21.5cm

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Multi-GPU Support

1. Support for 2-Way AMD CrossFire™ technology

Available Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

3. 2 x PCI Express x1 slots

   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Available USB Ports

8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

AutoGreen

Cloud Station

EasyTune

Easy RAID

Fast Boot

Smart TimeLock

Smart Keyboard

Smart Backup

System Information Viewer

USB Blocker

Support for Q-Flash

Support for Smart Switch

Support for Xpress Install

Back I/O Ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

2 x SATA Express connectors

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.0/2.0 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Thunderbolt™ add-in card connector

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

WARRANTY

3 YEARS
