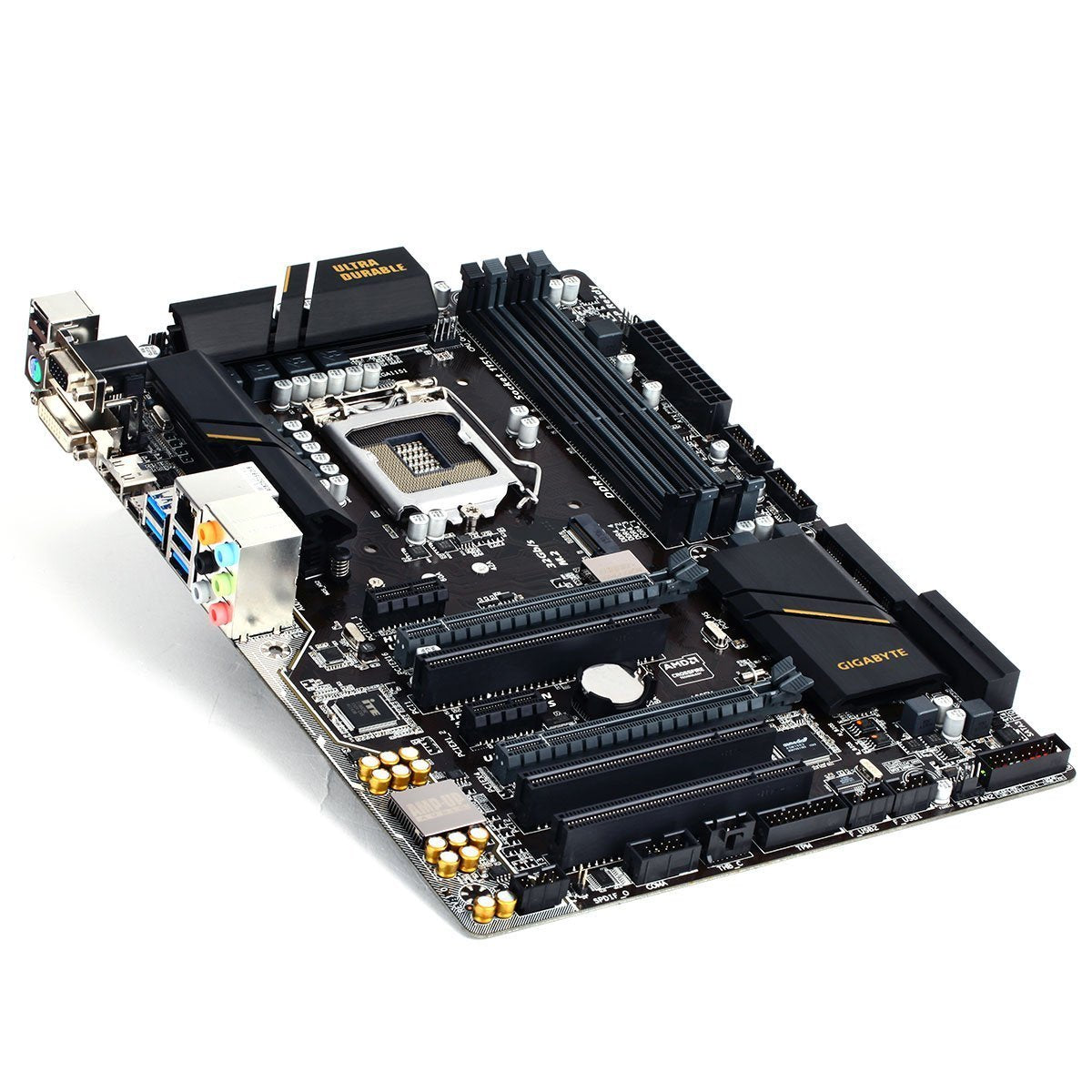

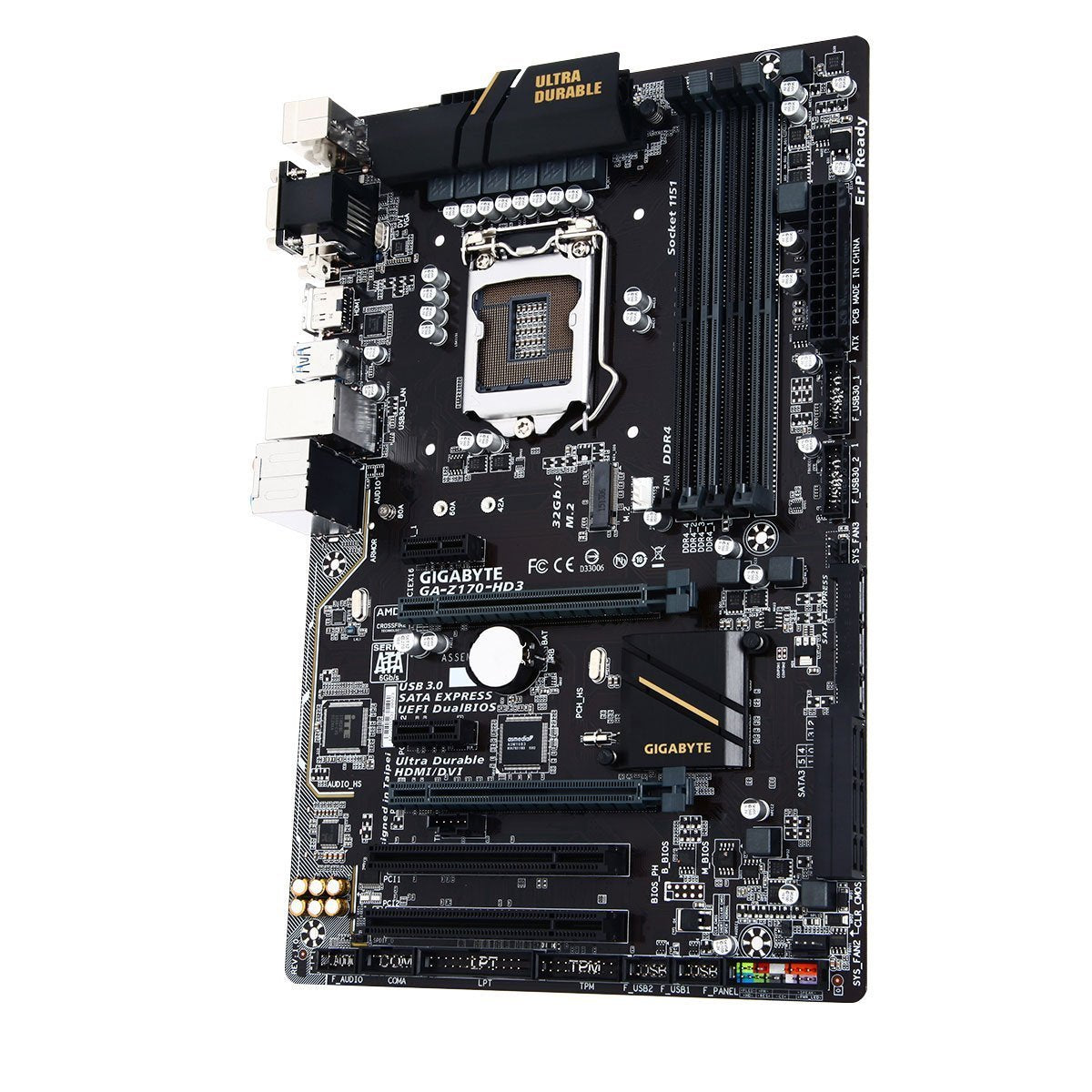

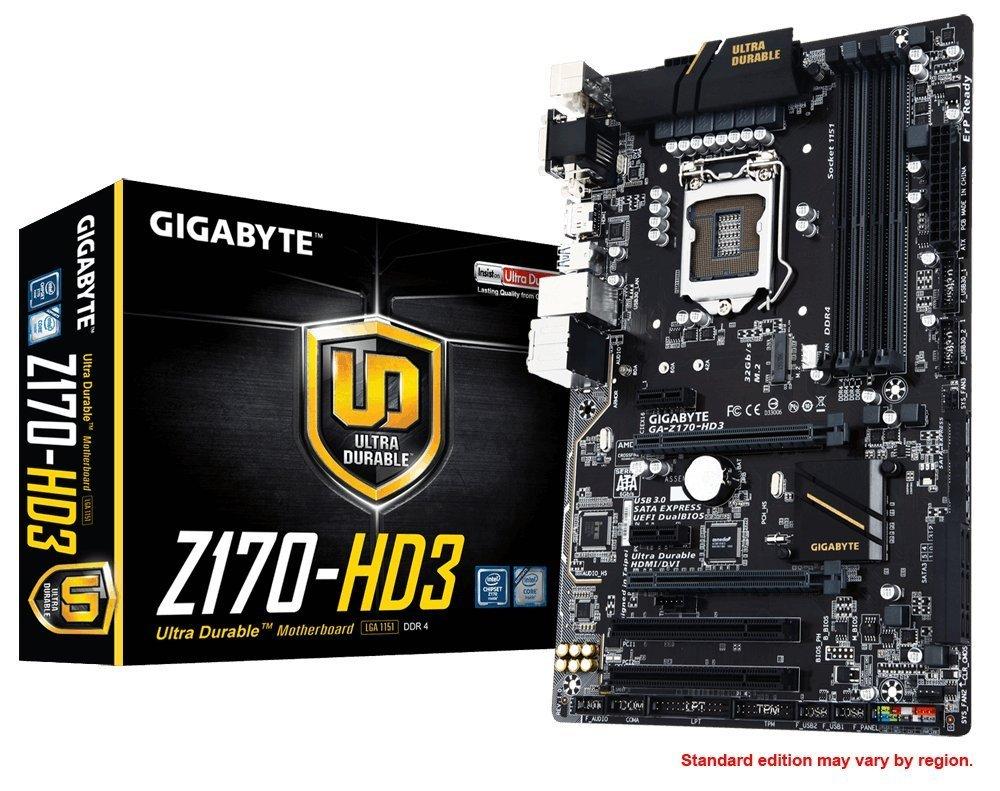

GIGABYTE Z170-HD3 Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE Z170-HD3

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® Z170 Express Chipset

Form Factor

ATX Form Factor; 30.5cm x 19.9cm

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

Support for 2-Way AMD CrossFire™ technology

Available Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

2 x PCI slots

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Available USB Ports

8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Special Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

AutoGreen

Cloud Station

EasyTune

Easy RAID

Fast Boot

Smart TimeLock

Smart Keyboard

Smart Backup

System Information Viewer

USB Blocker

Support for Q-Flash

Support for Smart Switch

Support for Xpress Install

Back I/O Ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

3 x SATA Express connectors

6 x SATA 6Gb/s connectors

1 x CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.0/2.0 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Thunderbolt™ add-in card connector

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper
