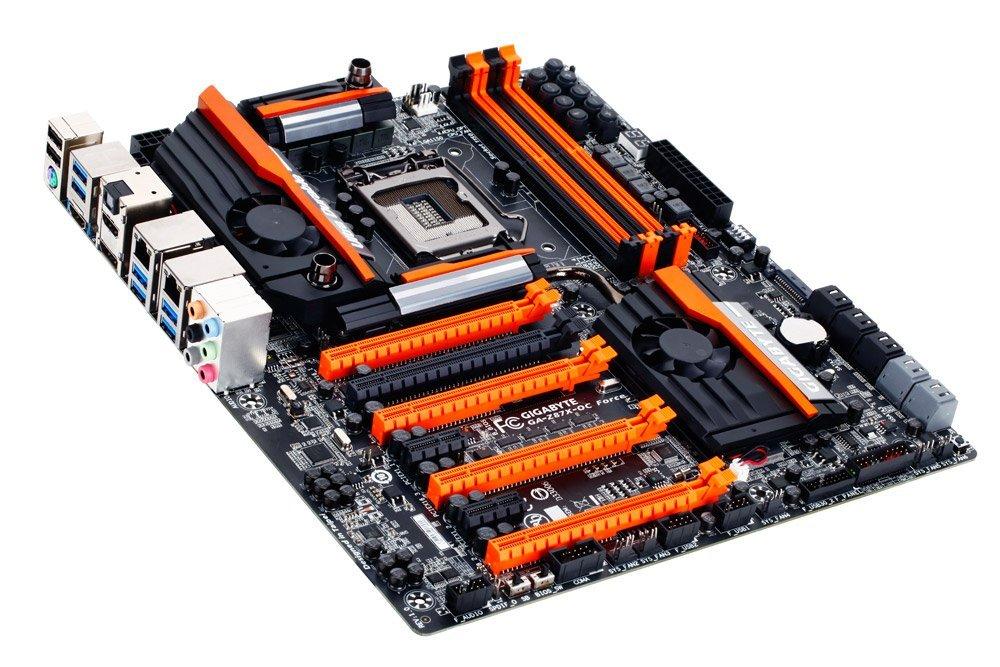

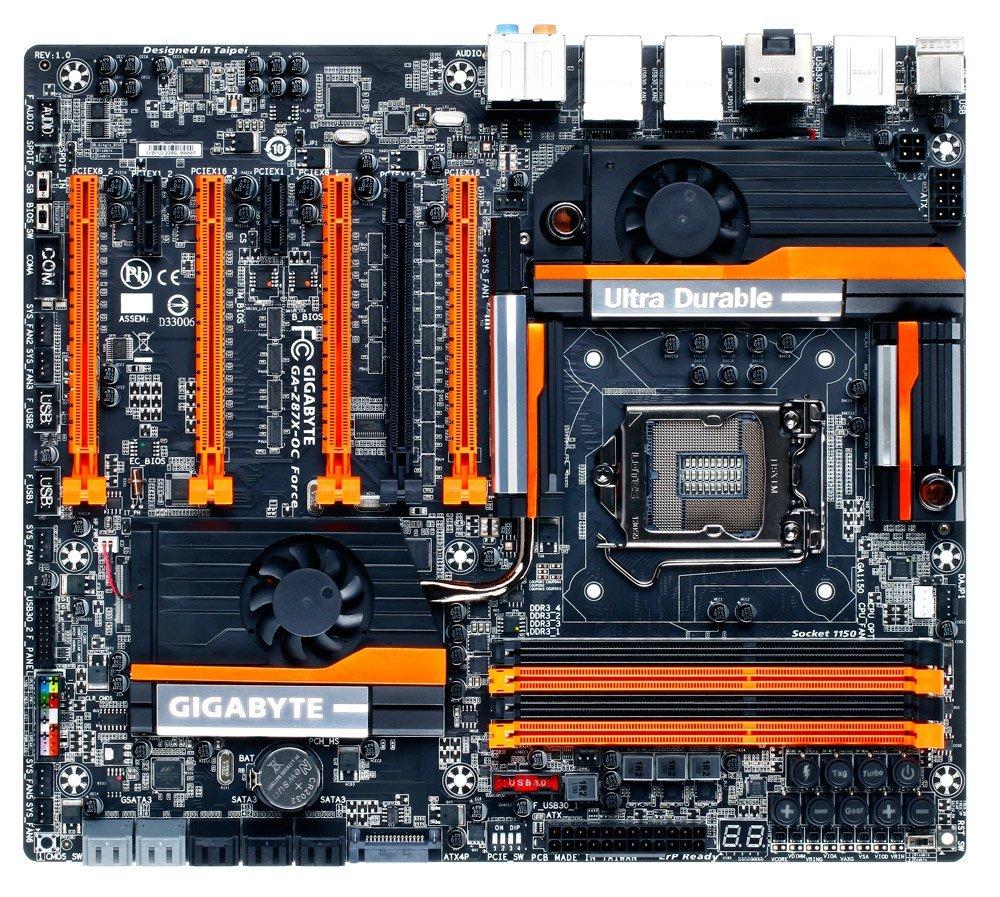

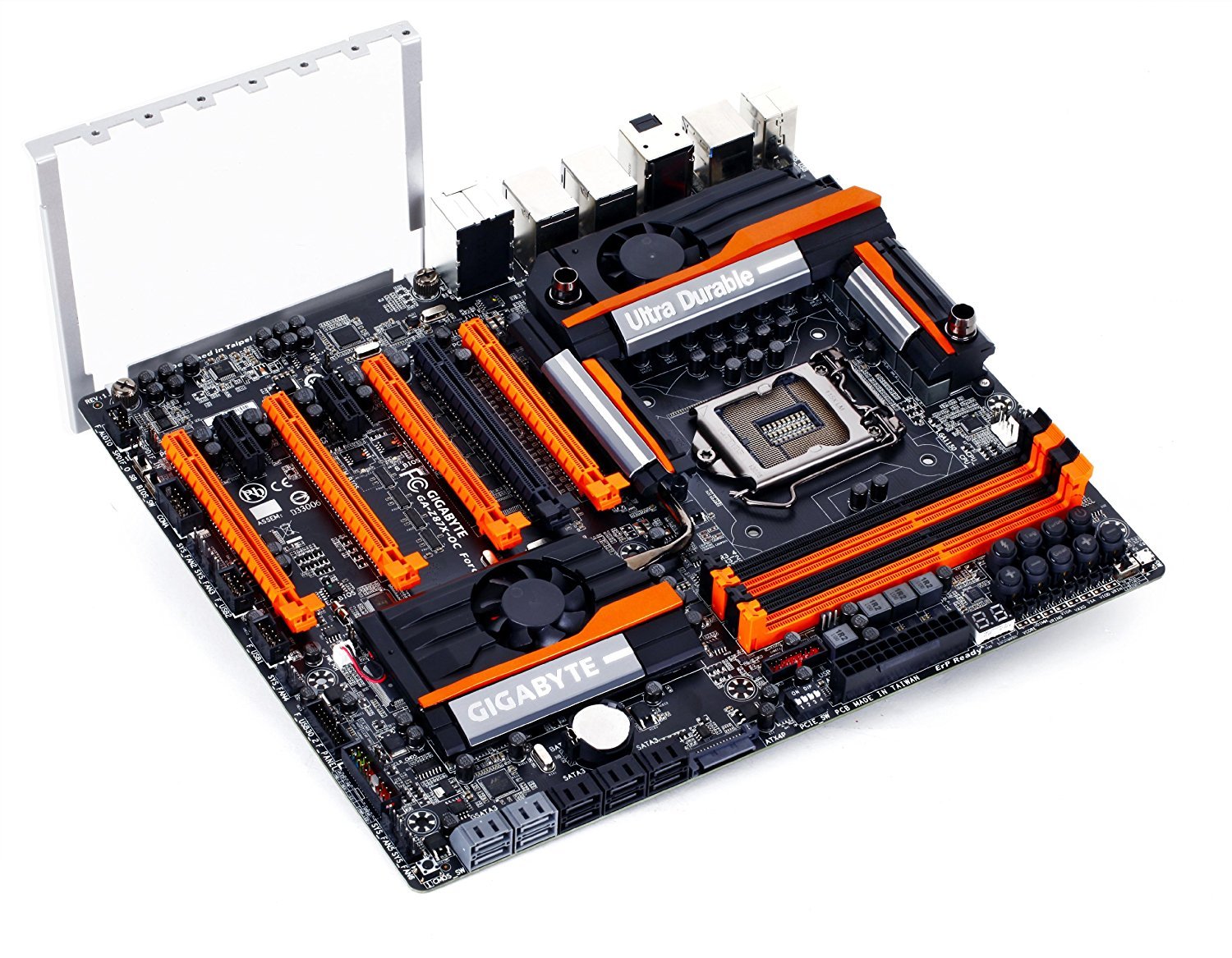

GIGABYTE Z87X-OC (1150) Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

GIGABYTE Z87X-OC

Brand

GIGABYTE

Compatible with

Intel

Socket Type

LGA1150

Chipset

Intel® Z87 Express Chipset

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

4 x DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Multi-GPU Support

Support for 4-Way/3-Way/2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ Technology

Available Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one expansion card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. It will operate at up to x8 mode when the PCIEX16 is populated.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

* The PCIEX4_1 slot shares bandwidth with the PCIEX16 and PCIEX8 slots. When it is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 slot will operate at up to x4 mode.

* When installing a x8 or above card in the PCIEX4_1 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)

(The PCIEX16, PCIEX8, and PCIEX4_1 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x1 slot

(The PCIEX4_2 and PCIEX1_1 slots conform to PCI Express 2.0 standard.)

2 x PCI slots

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC892 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In

Support for S/PDIF Out

Available USB Ports

               Chipset:

Up to 2 USB 3.0/2.0 ports (available through the internal USB header)

Up to 8 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports onboard, 4 ports available through the internal USB headers)

Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:

Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)

Special Features

Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

@BIOS

EasyTune

EZ Setup

ON/OFF Charge2

USB Blocker

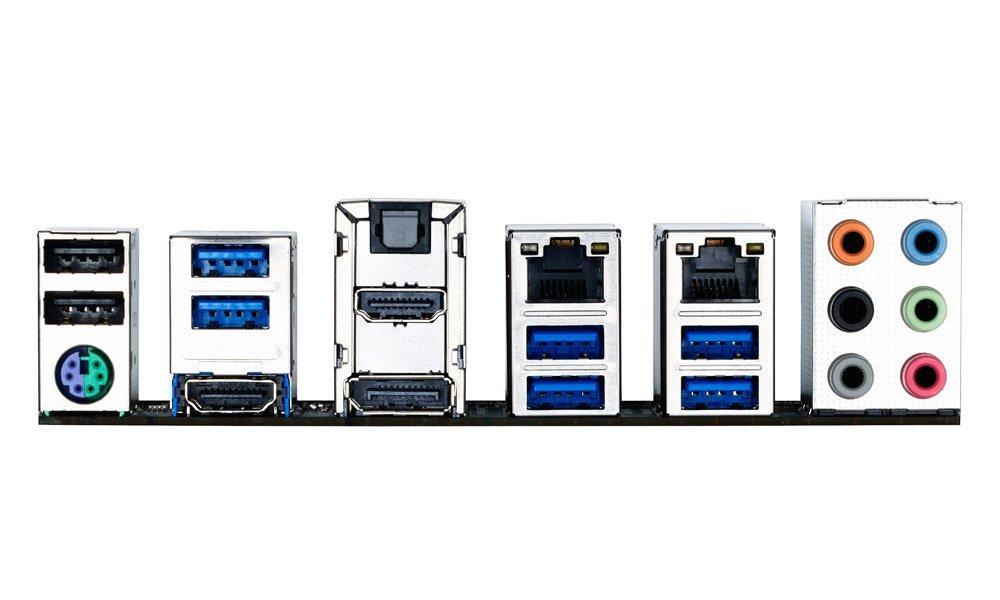

Back I/O Ports

2 x USB 2.0/1.1 ports

1 x OC Ignition button

6 x USB 3.0/2.0 ports

1 x optical S/PDIF Out connector

2 x HDMI ports

1 x DisplayPort

1 x PS/2 keyboard/mouse port

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Internal I/O

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x OC PEG power connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling fan header (CPU_OPT)

6 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x S/PDIF In header

2 x USB 3.0/2.0 headers

2 x USB 2.0/1.1 headers

2 x USB 2.0/1.1 ports

1 x serial port header

1 x Clear CMOS jumper

1 x power button

1 x reset button

1 x Clear CMOS button

1 x Gear button

1 x OC Turbo button

1 x OC Tag button

1 x CPU BCLK Down button

1 x CPU BCLK Up button

1 x CPU Ratio Down button

1 x CPU Ratio Up button

1 x Memory Safe button

1 x Settings Lock button

1 x Direct to BIOS button

1 x OC Trigger switch

1 x OC PCIe switch

1 x Clear Battery button

2 x BIOS switches

1 x onboard voltage measurement module

WARRANTY

3 YEARS
