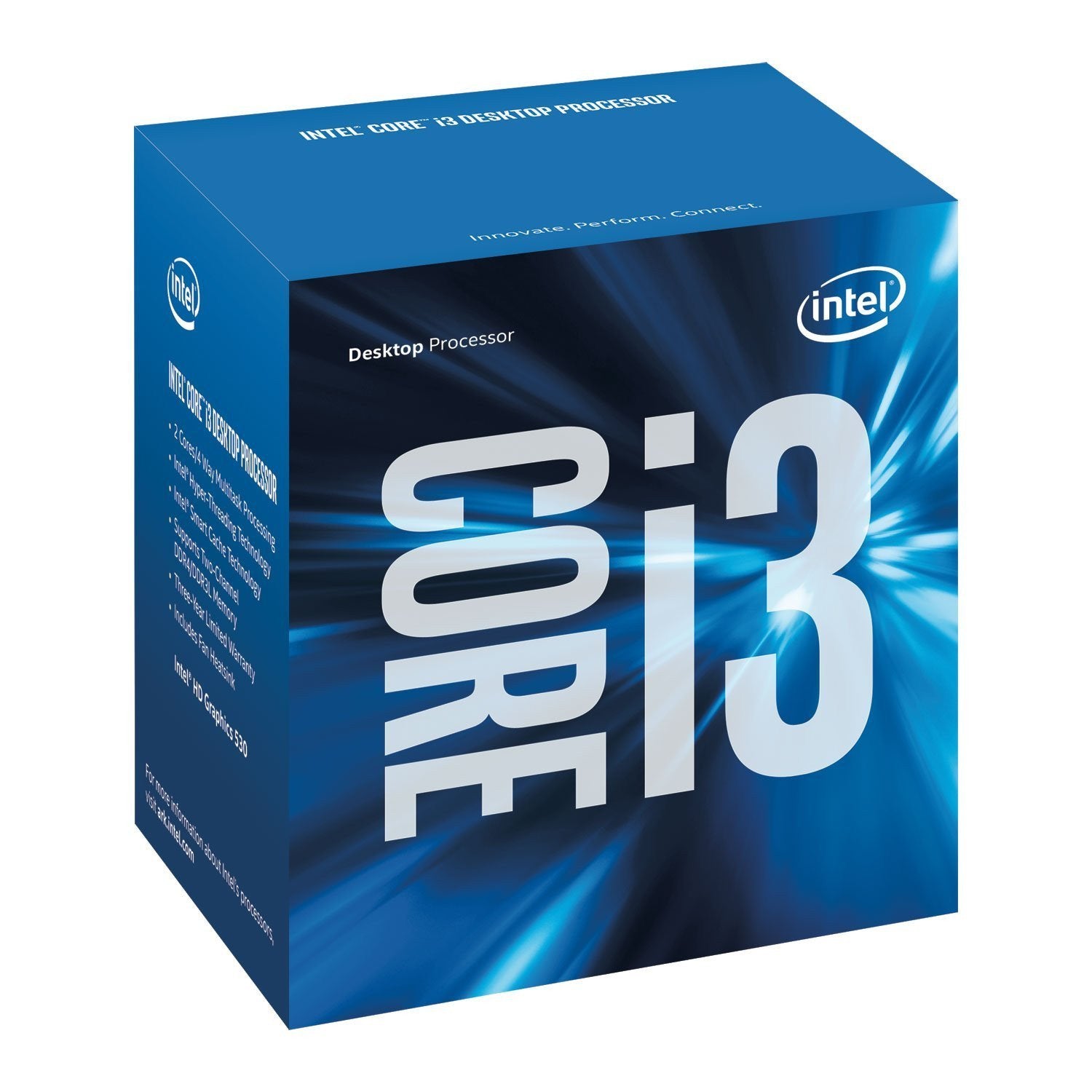

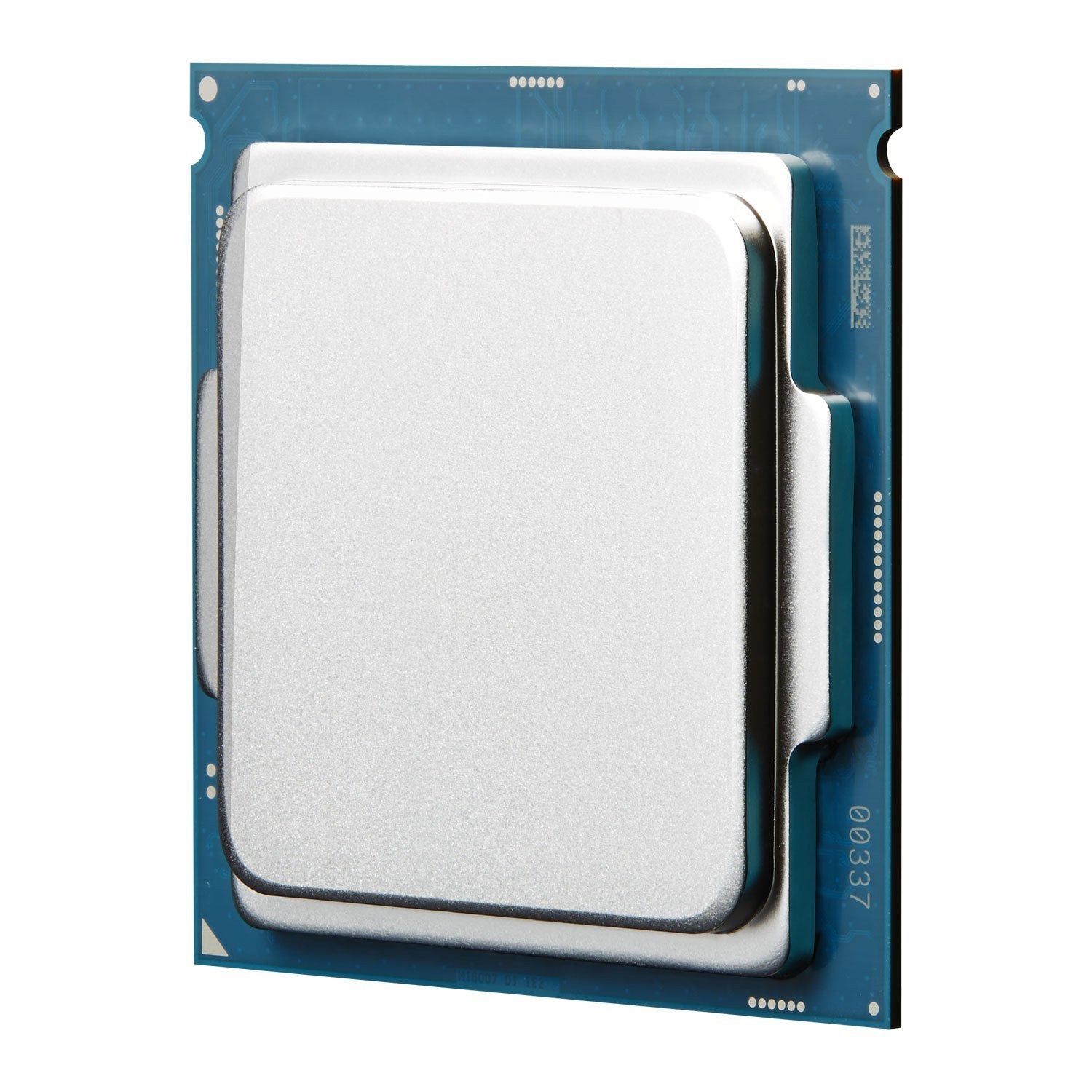

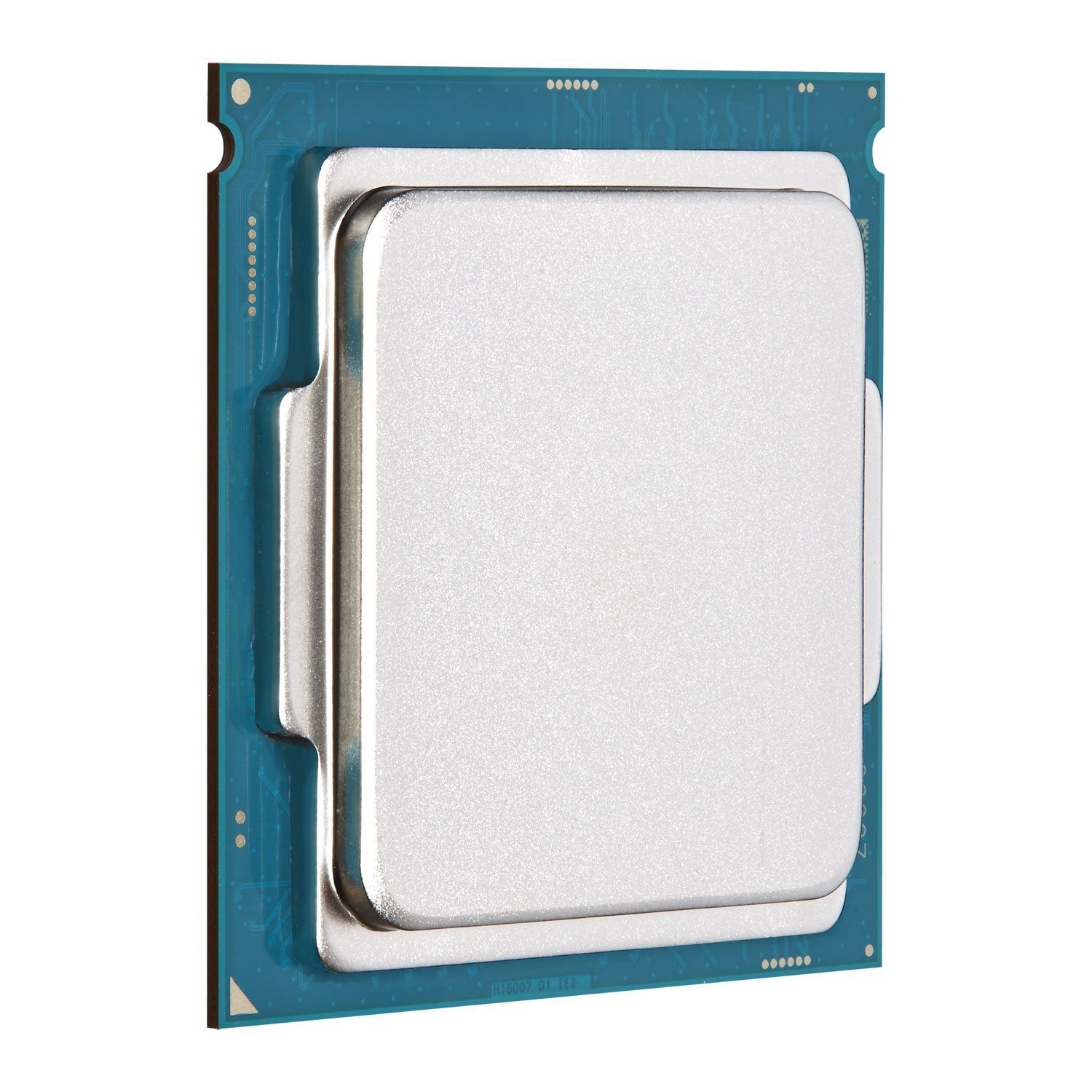

Intel Core i3 - 6100 (1151) Desktop Computer Processor
Intel Core i3 - 6100 (1151) Desktop Computer Processor
Regular price
Rs. 11,419.00
Regular price
Sale price
Rs. 11,419.00
Unit price
/
per
Taxes included.
ITEM DETAILS: Intel Core i3 - 6100 (1151) Desktop Computer Processor
FEATURES:
- Compatible Chipsets
- Intel H170 Chipset (Intel GL82H170 PCH)
- Intel H110 Chipset (Intel GL82H110 PCH
- Intel Z170 Chipset (Intel GL82Z170 PCH)
- Intel Q170 Chipset (Intel GL82Q170 PCH), Intel Q150 Chipset (Intel GL82Q150 PCH), Intel B150 Chipset (Intel GL82B150 PCH)
TECHNICAL DETAILS:
Code Name |
Skylake |
Essentials |
|
Vertical Segment |
Desktop |
Processor Number |
i3-6100 |
Status |
Launched |
Launch Date |
Q3'15 |
Lithography |
14 nm |
Included Items |
Thermal Solution - E97379 |
Performance |
|
# of Cores |
2 |
# of Threads |
4 |
Processor Base Frequency |
3.70 GHz |
Cache |
3 MB SmartCache |
Bus Speed |
8 GT/s DMI3 |
TDP |
51 W |
Supplemental Information |
|
Embedded Options Available |
Yes |
Conflict Free |
Yes |
Memory Specifications |
|
Max Memory Size (dependent on memory type) |
64 GB |
Memory Types |
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
Max # of Memory Channels |
2 |
Max Memory Bandwidth |
34.1 GB/s |
ECC Memory Supported ‡ |
Yes |
Graphics Specifications |
|
Processor Graphics <sup><small>‡</small></sup> |
Intel® HD Graphics 530 |
Graphics Base Frequency |
350 MHz |
Graphics Max Dynamic Frequency |
1.05 GHz |
Graphics Video Max Memory |
64 GB |
Graphics Output |
eDP/DP/HDMI/DVI |
4K Support |
Yes, at 60Hz |
Max Resolution (HDMI 1.4)‡ |
4096x2304@24Hz |
Max Resolution (DP)‡ |
4096x2304@60Hz |
Max Resolution (eDP - Integrated Flat Panel)‡ |
4096x2304@60Hz |
Max Resolution (VGA)‡ |
N/A |
DirectX* Support |
12 |
OpenGL* Support |
4.4 |
Intel® Quick Sync Video |
Yes |
Intel® InTru™ 3D Technology |
Yes |
Intel® Clear Video HD Technology |
Yes |
Intel® Clear Video Technology |
Yes |
# of Displays Supported ‡ |
3 |
Device ID |
0x1912 |
Expansion Options |
|
Scalability |
1S Only |
PCI Express Revision |
3.0 |
PCI Express Configurations ‡ |
Up to 1x16, 2x8, 1x8+2x4 |
Max # of PCI Express Lanes |
16 |
Package Specifications |
|
Sockets Supported |
FCLGA1151 |
Max CPU Configuration |
1 |
Thermal Solution Specification |
PCG 2015C (65W) |
T<sub>CASE</sub> |
65°C |
Package Size |
37.5mm x 37.5mm |
Low Halogen Options Available |
See MDDS |
Advanced Technologies |
|
Intel® Optane™ Memory Supported ‡ |
No |
Intel® Turbo Boost Technology |
No |
Intel® vPro™ Technology ‡ |
No |
Intel® Hyper-Threading Technology ‡ |
Yes |
Intel® Virtualization Technology (VT-x) ‡ |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
Intel® TSX-NI |
No |
Intel® 64 ‡ |
Yes |
Instruction Set |
64-bit |
Instruction Set Extensions |
SSE4.1/4.2, AVX2 |
Idle States |
Yes |
Enhanced Intel SpeedStep® Technology |
Yes |
Thermal Monitoring Technologies |
Yes |
Intel® Identity Protection Technology ‡ |
Yes |
Intel® Stable Image Platform Program (SIPP) |
No |
Security & Reliability |
|
Intel® AES New Instructions |
Yes |
Secure Key |
Yes |
Intel® Software Guard Extensions (Intel® SGX) |
Yes |
Intel® Memory Protection Extensions (Intel® MPX) |
Yes |
Intel® OS Guard |
Yes |
Intel® Trusted Execution Technology ‡ |
No |
Execute Disable Bit ‡ |
Yes |
Intel® Boot Guard |
Yes |
Warranty |
3 Years |
