Essentials
|
Vertical Segment
|
Desktop
|
Processor Number
|

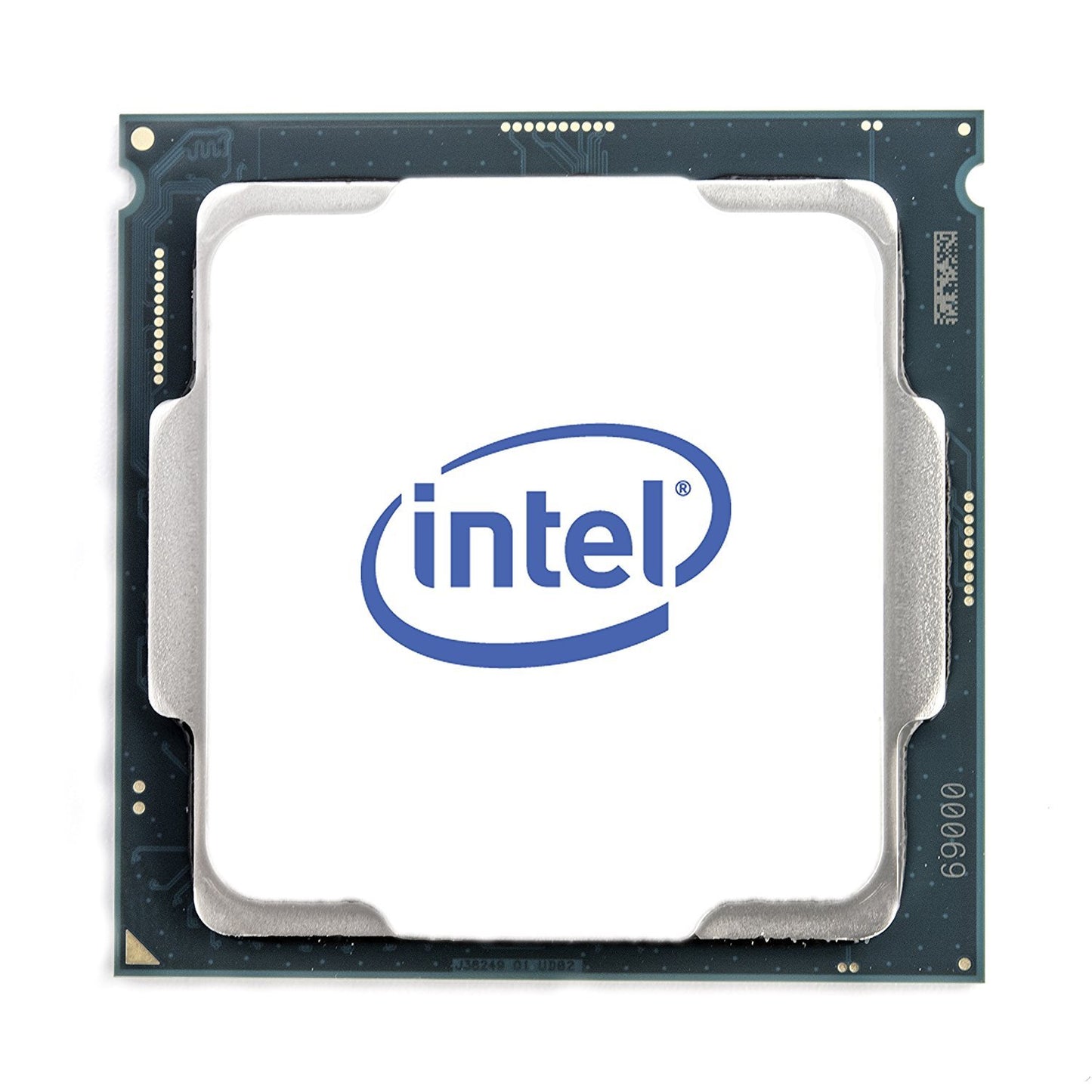

i7-8700
|
Status
|
Announced
|
Launch Date
|
Q4'17
|
Lithography
|
14 nm
|
Performance
|
of Cores
|
6
|
of Threads
|
12
|
Processor Base Frequency
|
3.20 GHz
|
Max Turbo Frequency
|
4.60 GHz
|
Cache
|
12 MB
|
Bus Speed
|
8 GT/s DMI3
|
TDP
|
65 W
|
Supplemental Information
|
Embedded Options Available
|
No
|
Conflict Free
|
Yes
|
Memory Specifications
|
|
Max Memory Size (dependent on memory type)
|
64 GB
|
Memory Types
|
DDR4-2666
|
Max # of Memory Channels
|
2
|
ECC Memory Supported
|
No
|
Graphics Specifications
|
Processor Graphics
|
Intel® UHD Graphics 630
|
Graphics Base Frequency
|
350 MHz
|
Graphics Max Dynamic Frequency
|
1.20 GHz
|
Graphics Video Max Memory
|
64 GB
|
Execution Units
|
24
|
4K Support
|
Yes, at 60Hz
|
Max Resolution (HDMI 1.4)
|
4096x2304@24Hz
|
Max Resolution (DP)
|
4096x2304@60Hz
|
Max Resolution (eDP - Integrated Flat Panel)
|
4096x2304@60Hz
|
DirectX* Support
|
12
|
OpenGL* Support
|
4.5
|
Intel® Quick Sync Video
|
Yes
|
Intel® InTru™ 3D Technology
|
Yes
|
Intel® Clear Video HD Technology
|
Yes
|
Intel® Clear Video Technology
|
Yes
|
of Displays Supported
|
3
|
Device ID
|
0x3E92
|
Expansion Options
|
Scalability
|
1S Only
|
PCI Express Revision
|
3.0
|
PCI Express Configurations
|
Up to 1x16 or 2x8 or 1x8+2x4
|
Max # of PCI Express Lanes
|
16
|
Package Specifications
|
Max CPU Configuration
|
1
|
Thermal Solution Specification
|
PCG 2015C (65W)
|
TJUNCTION
|
100°C
|

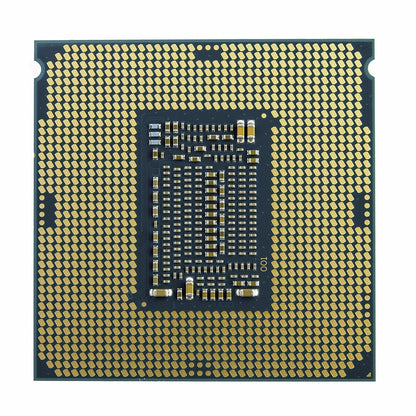

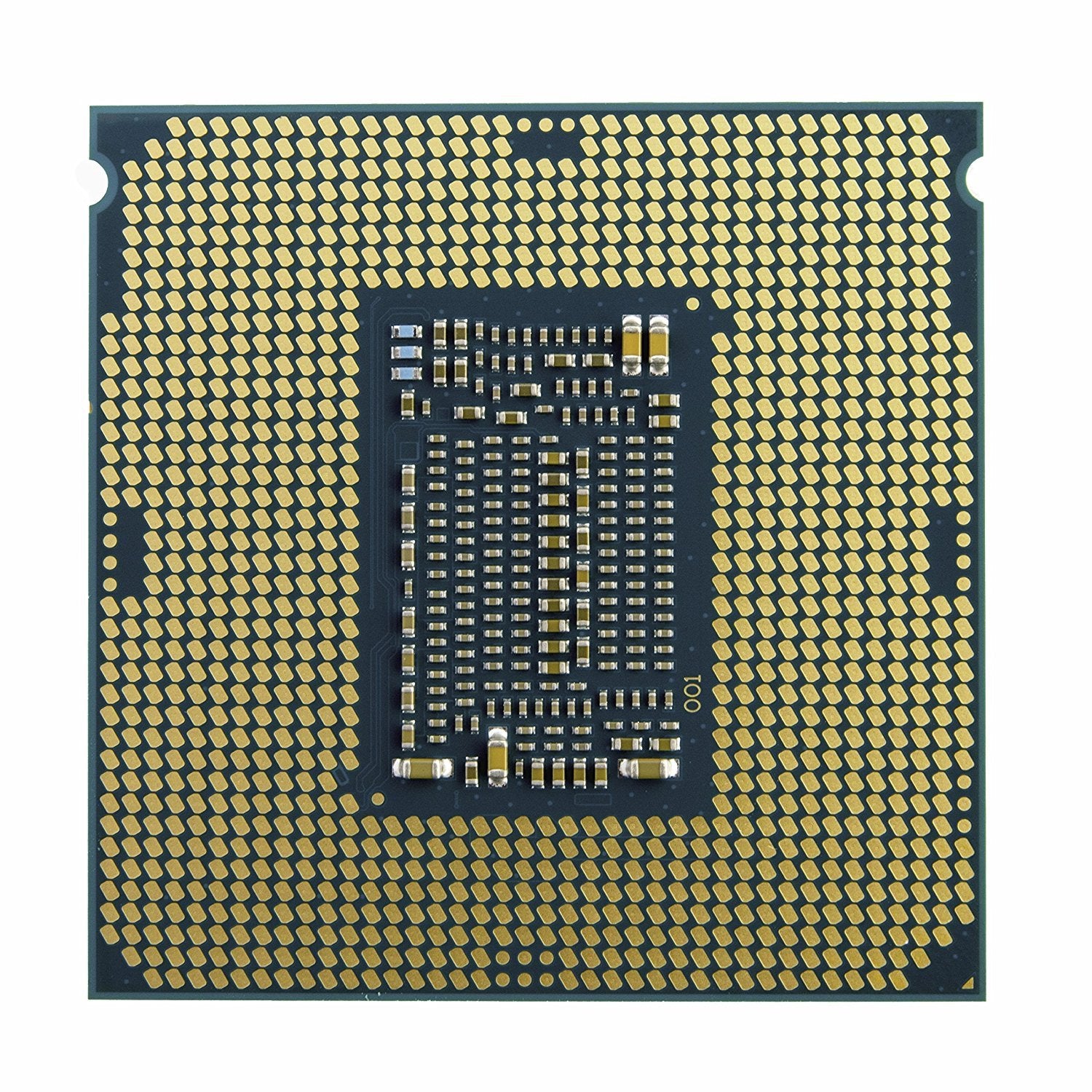

Package Size
|
37.5mm x 37.5mm
|
Low Halogen Options Available
|
See MDDS
|
Advanced Technologies
|
Intel® Optane™ Memory Supported
|
Yes
|
Intel® Turbo Boost Technology
|
2.0
|
Intel® vPro™ Technology
|
Yes
|
Intel® Hyper-Threading Technology
|
Yes
|
Intel® Virtualization Technology
|
Yes
|
Intel® Virtualization Technology for Directed I/O (VT-d)
|
Yes
|
Intel® VT-x with Extended Page Tables (EPT)
|
Yes
|
Intel® TSX-NI
|
Yes
|
Intel® 64
|
Yes
|
Instruction Set
|
64-bit
|
Instruction Set Extensions
|
SSE4.1/4.2, AVX2
|
Idle States
|
Yes
|
Enhanced Intel SpeedStep® Technology
|
Yes
|
Thermal Monitoring Technologies
|
Yes
|
Intel® Identity Protection Technology
|
Yes
|
Intel® Stable Image Platform Program (SIPP)
|
Yes
|
Security & Reliability
|
Intel® AES New Instructions
|
Yes
|
Secure Key
|
Yes
|
Intel® Software Guard Extensions (Intel® SGX)
|
Yes
|
Intel® Memory Protection Extensions (Intel® MPX)
|
Yes
|
Intel® OS Guard
|
Yes
|
Intel® Trusted Execution Technology
|
Yes
|
Execute Disable Bit
|
Yes
|
Intel® Boot Guard
|
Yes
|
Warranty
|
3 years
|
