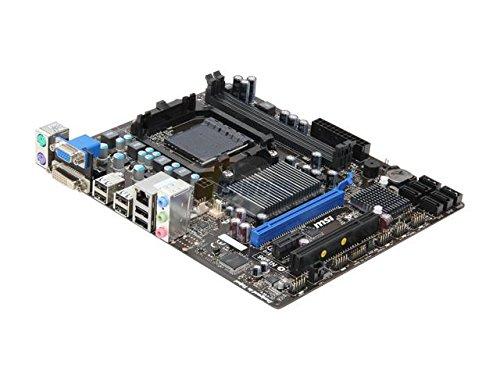

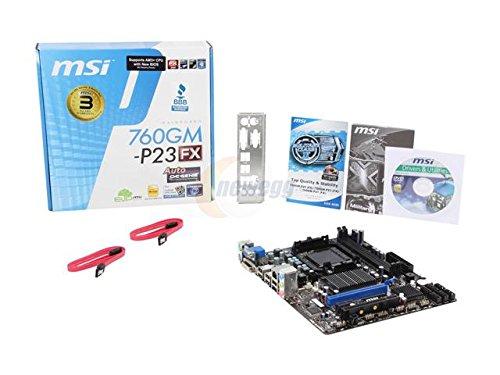

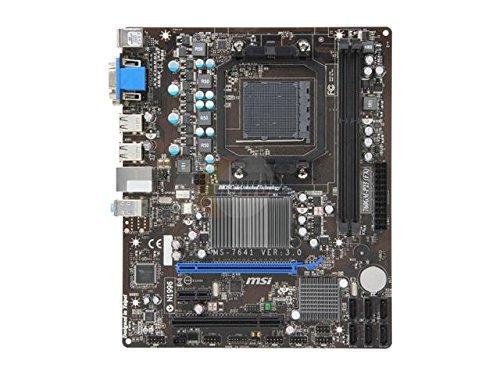

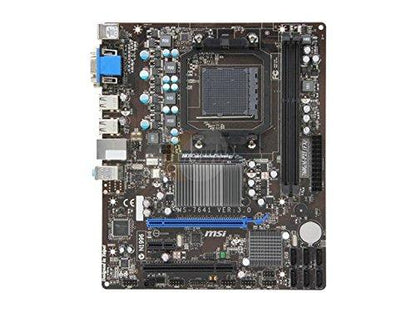

MSI 760GM-P23 FX AMD Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI 760GM-P23 FX

Brand

MSI

Compatible with

AMD

Socket Type

AM3+

Chipset

AMD® 760G and SB710 Chipset

Form Factor

M-ATX

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 DRAM, 16GB Max

Multi-GPU Support

Available

Available Expansion Slots

1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)

• 1 PCI EXpress x1 slot

• 1 PCI slot, support 3.3V/ 5V PCI bus Interface.

LAN

Realtek PCI-E GbLAN controller RTL8111E

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

Audio

Chipset integrated by Realtek® ALC887

- Flexible 7.1-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

Available USB Ports

USB 2.0 PORTS (REAR)

Special Features

CPU: Socket AM3+ Support 64 bit AMD FX/ Phenom II X6/X4/X3/X2/ Athlon II X4/X3/X2/ Sempron Series Processor; Support HyperTransport 3.0; FSB upto 5200MT/s

Chipset: AMD 760G + SB710 Chipset

Memory: 2x DDR3-1333/1066/ 800 DIMMs, Dual Channel, Unbuffered, Max capacity up to 16GB

Slots: 1x PCI-Express 2.0 x16 Slot(support Hybrid CrossFire); 1x PCI-Express x1 Slot; 1x 3.3V/5V PCI Slot

OC Genie: Easy Overclocking Technology; • Unlock CPU Core: Unlock hidden CPU core and potential

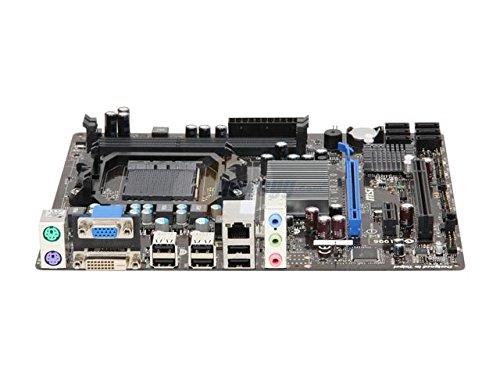

Back I/O Ports

1 x PS/2 mouse port

- 1 x PS/2 keyboard port

- 6 x USB 2.0 ports

- 1 x Graphic Card port

- 1 x DVI-D port

- 1 x RJ45 LAN jack

- 1 x 3 in 1 audio jack

Internal I/O

1 x ATX 24-pin power connector

- 1 x ATX 4-pin 12V CPU power connector

- CPU x 1 / System x 1 FAN connectors

- 1 x Front panel audio connector

- 1 x Front panel connector

- 1 x Chassis intrusion switch connector

- 2 x USB 2.0 connectors

- 6 x Serial ATA II connectors

- 1 x Serial port connector

- 1 x Clear CMOS jumper

- 1 x SPDIF-out  connector

- 1 x TPM module connector

Warranty

3 Years
