MSI A320M GRENADE Compatible Motherboard for Desktop Computer/PC

Motherboard

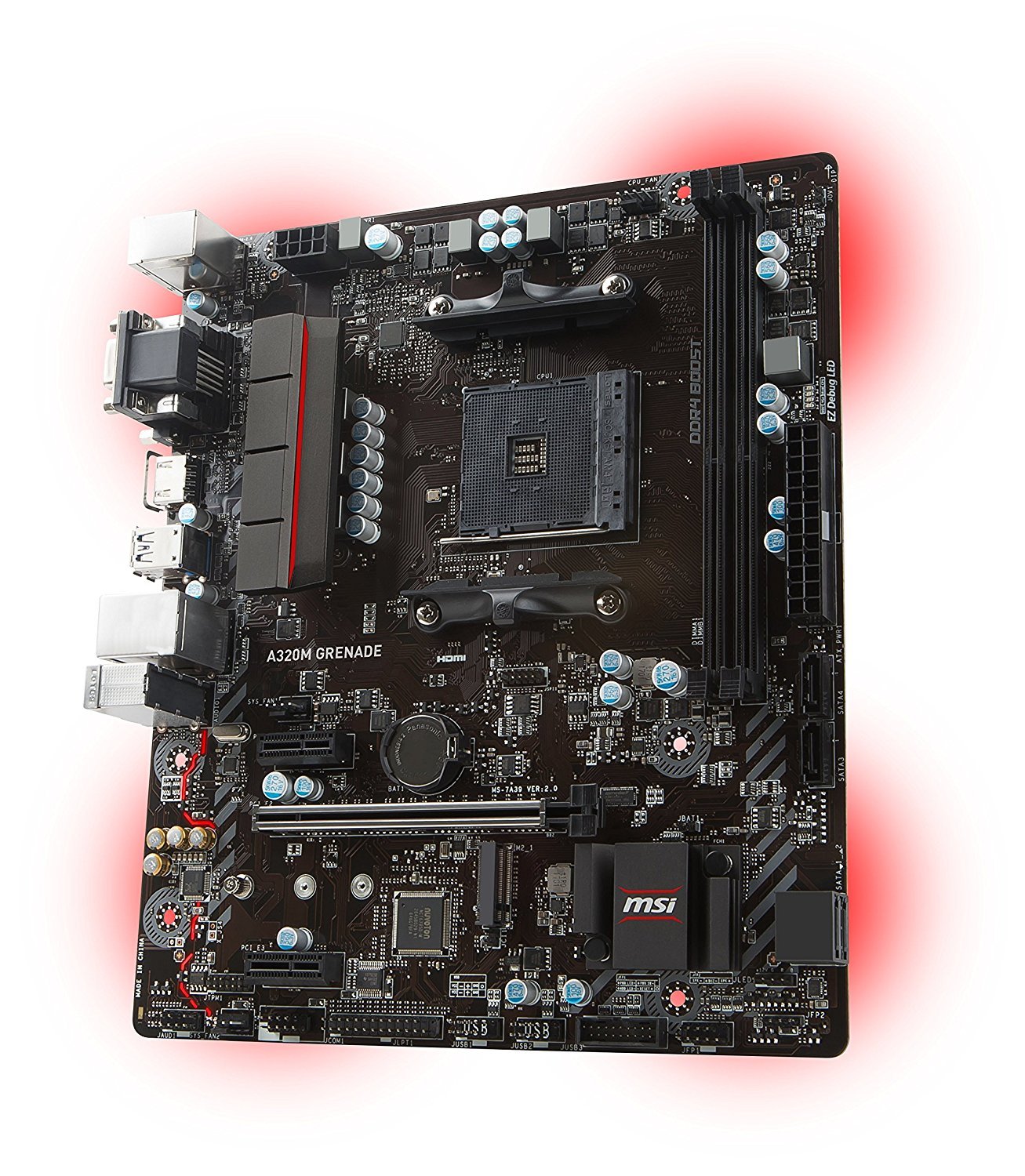

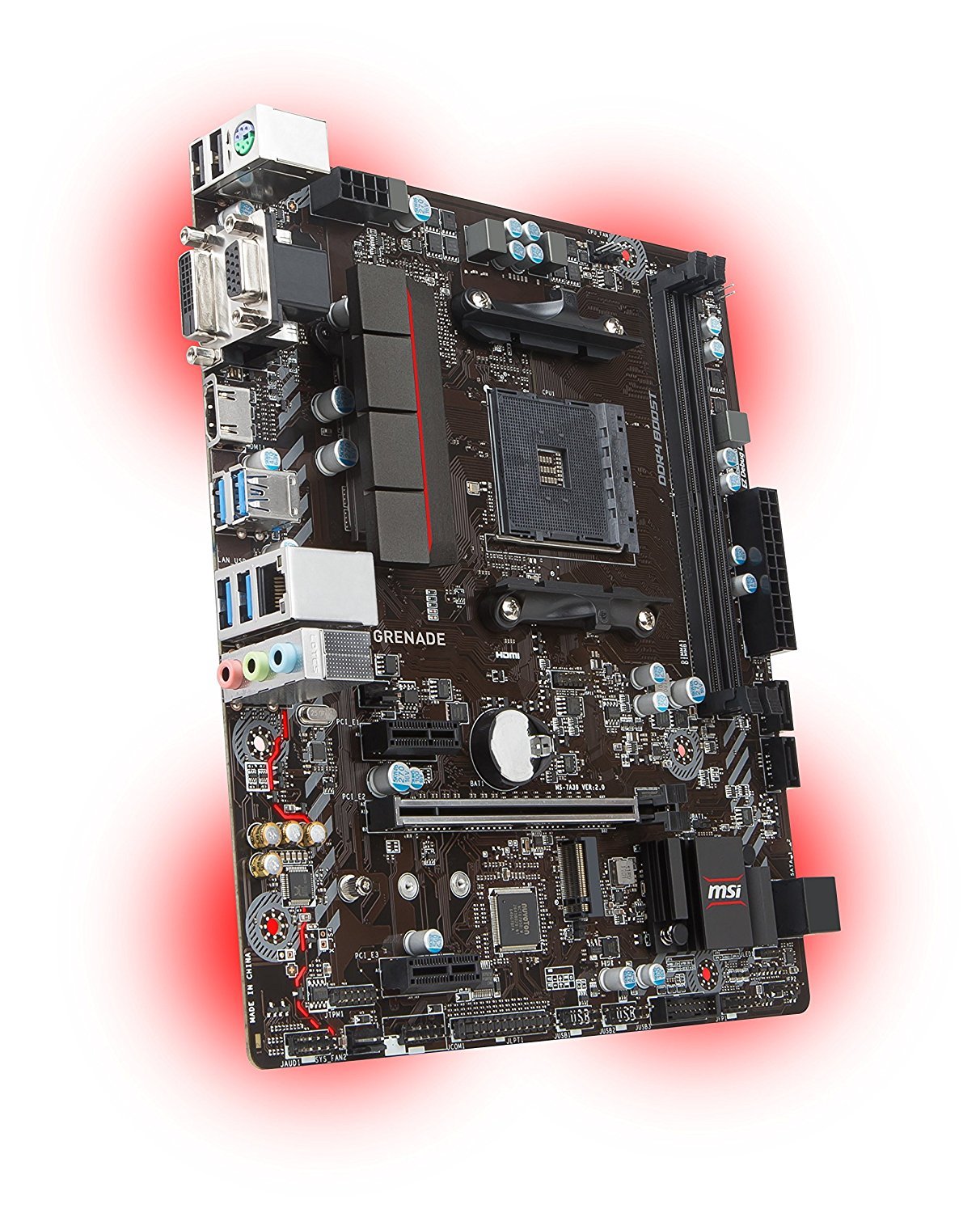

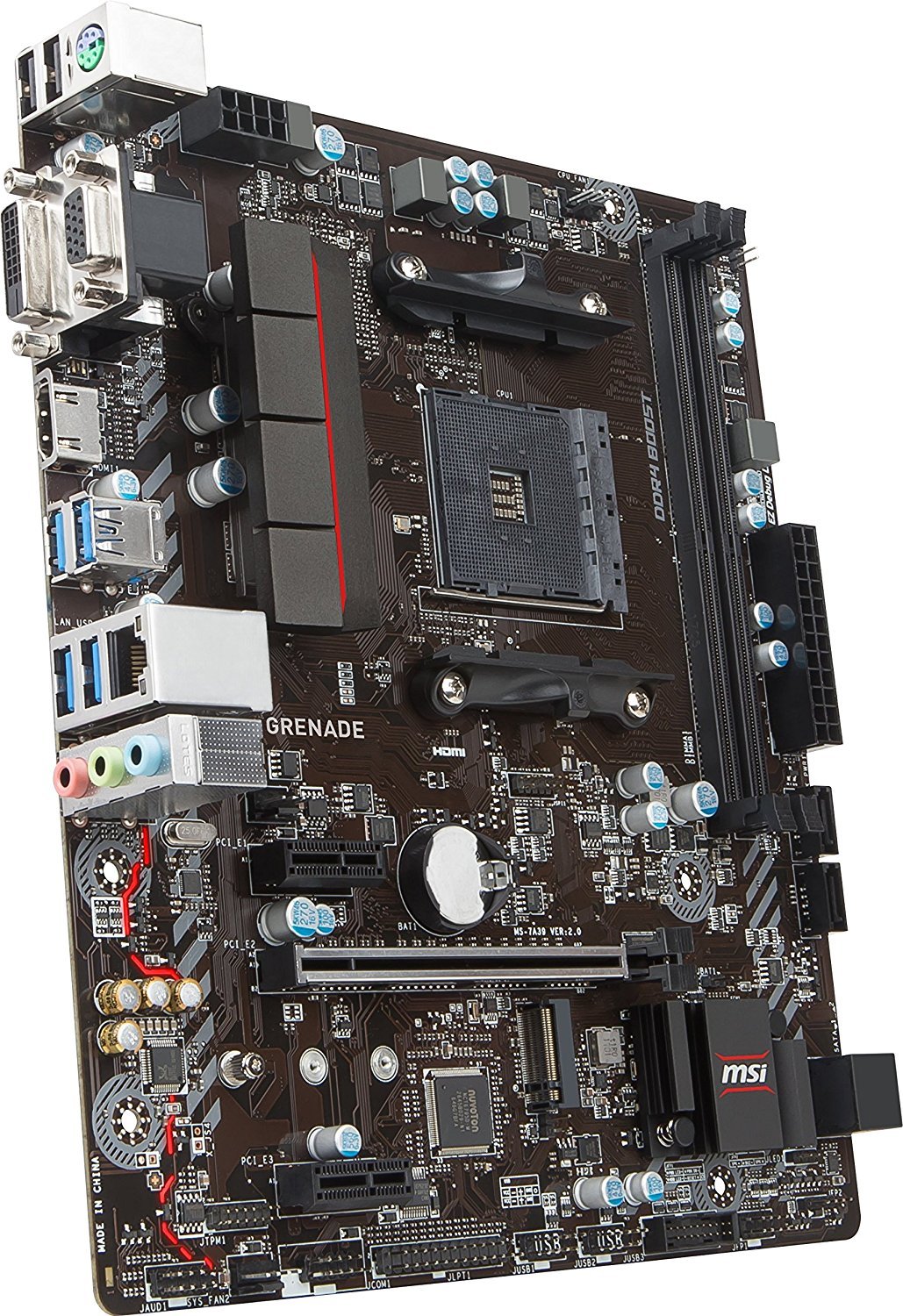

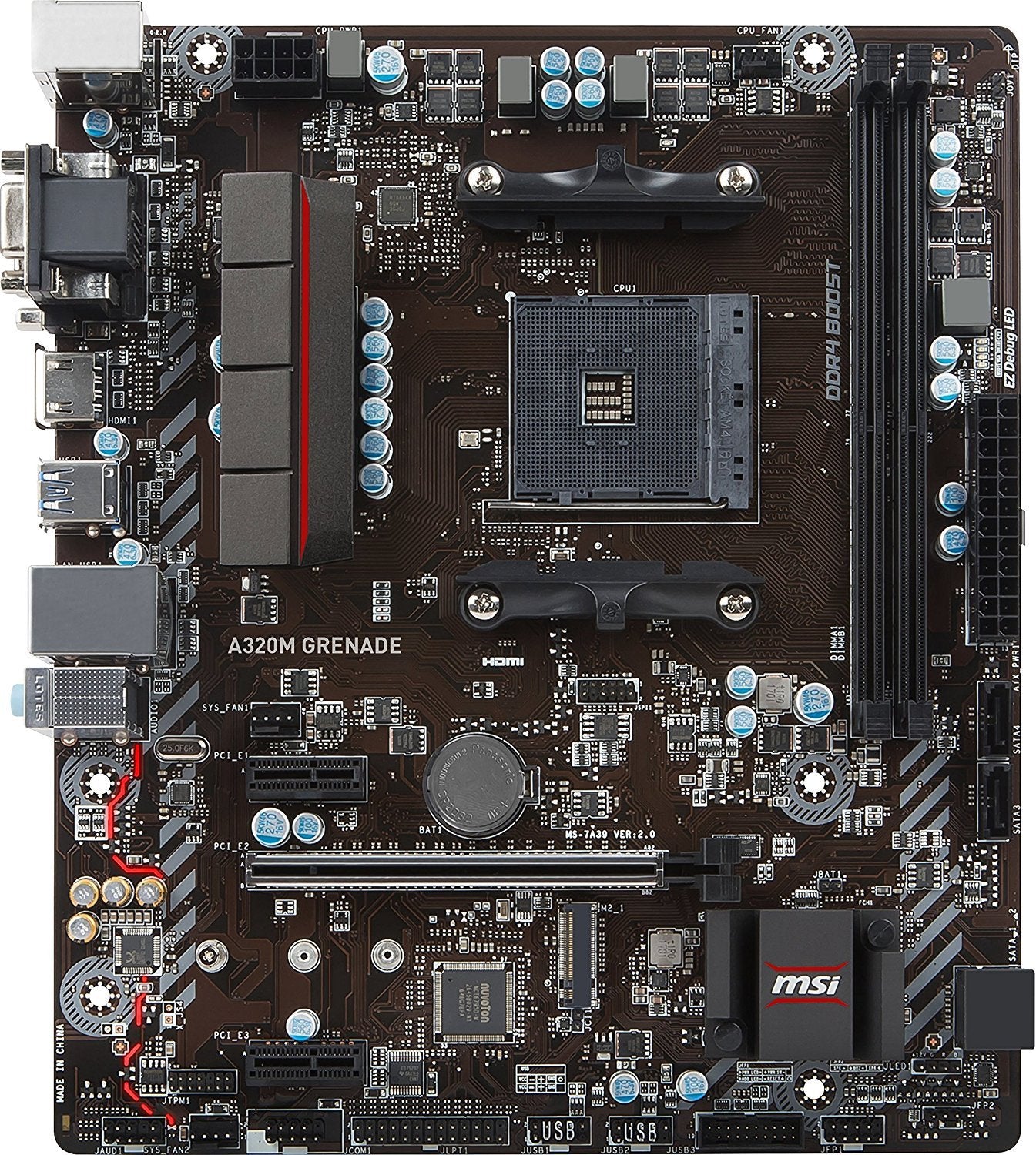

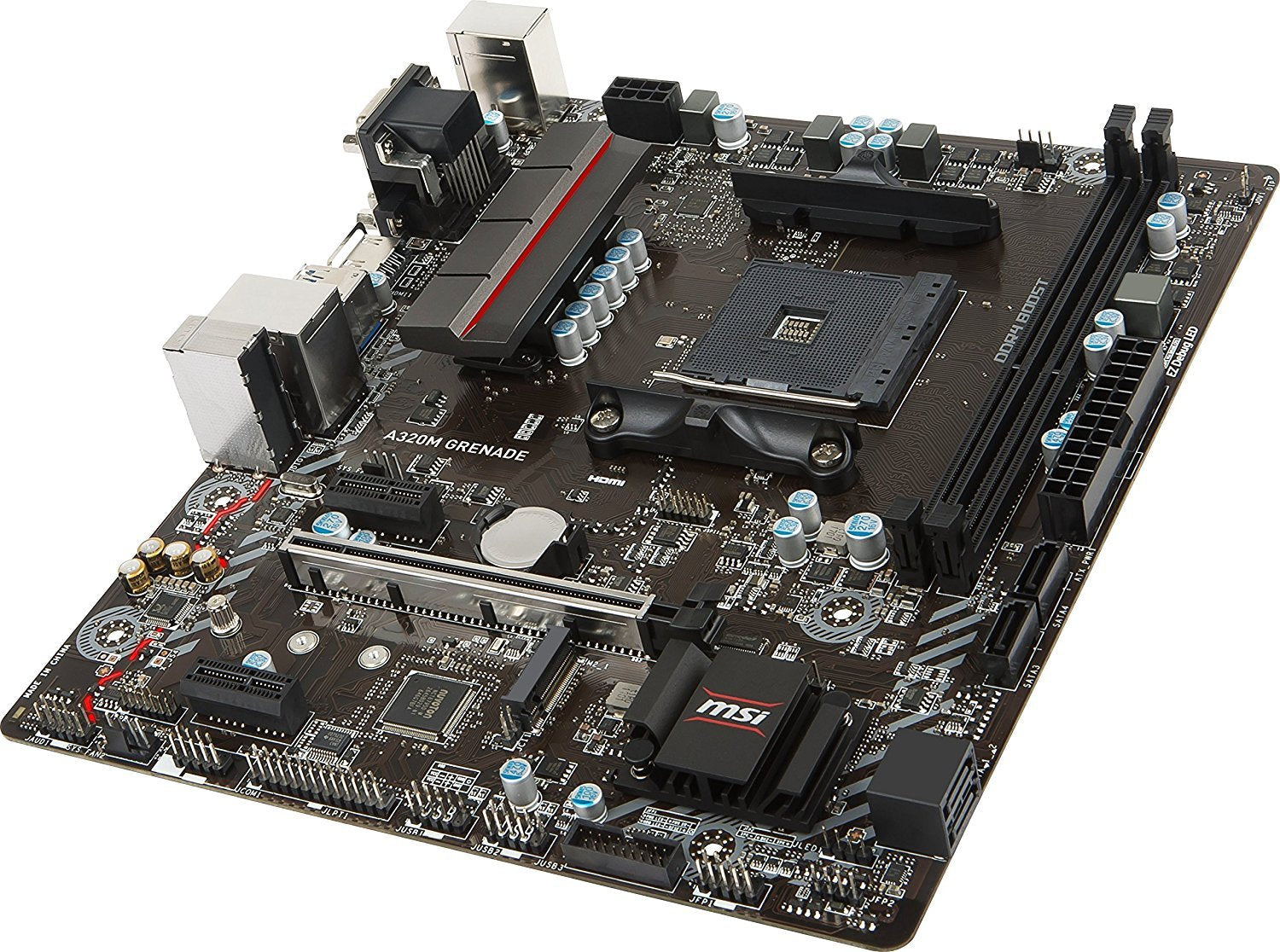

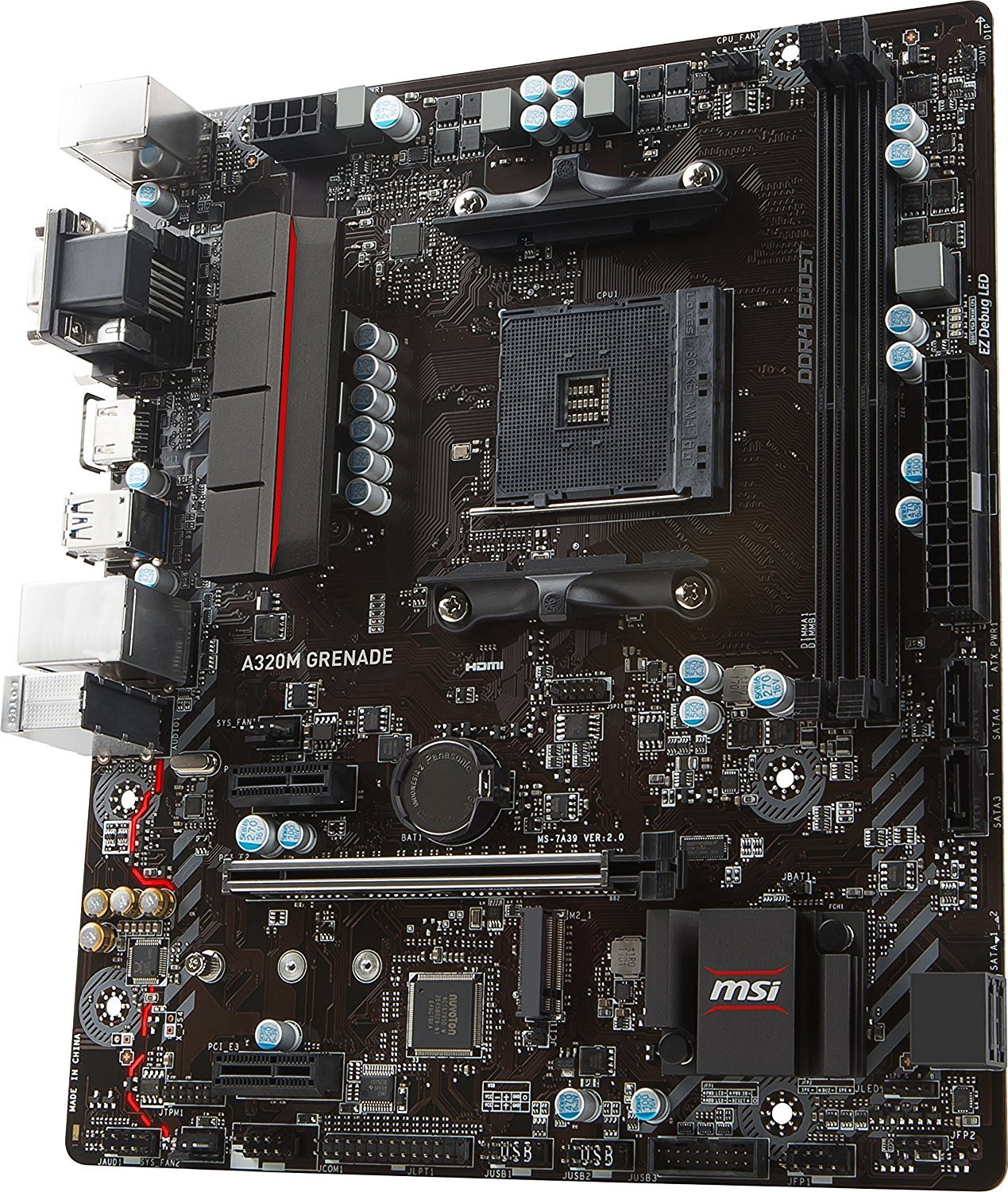

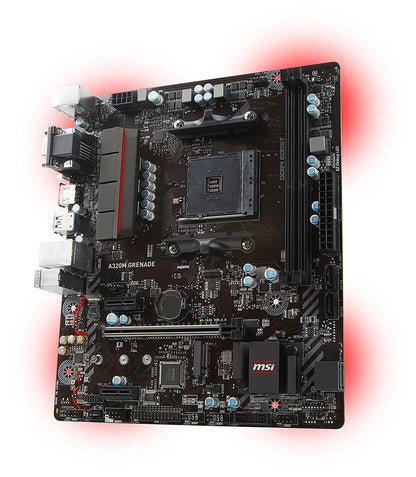

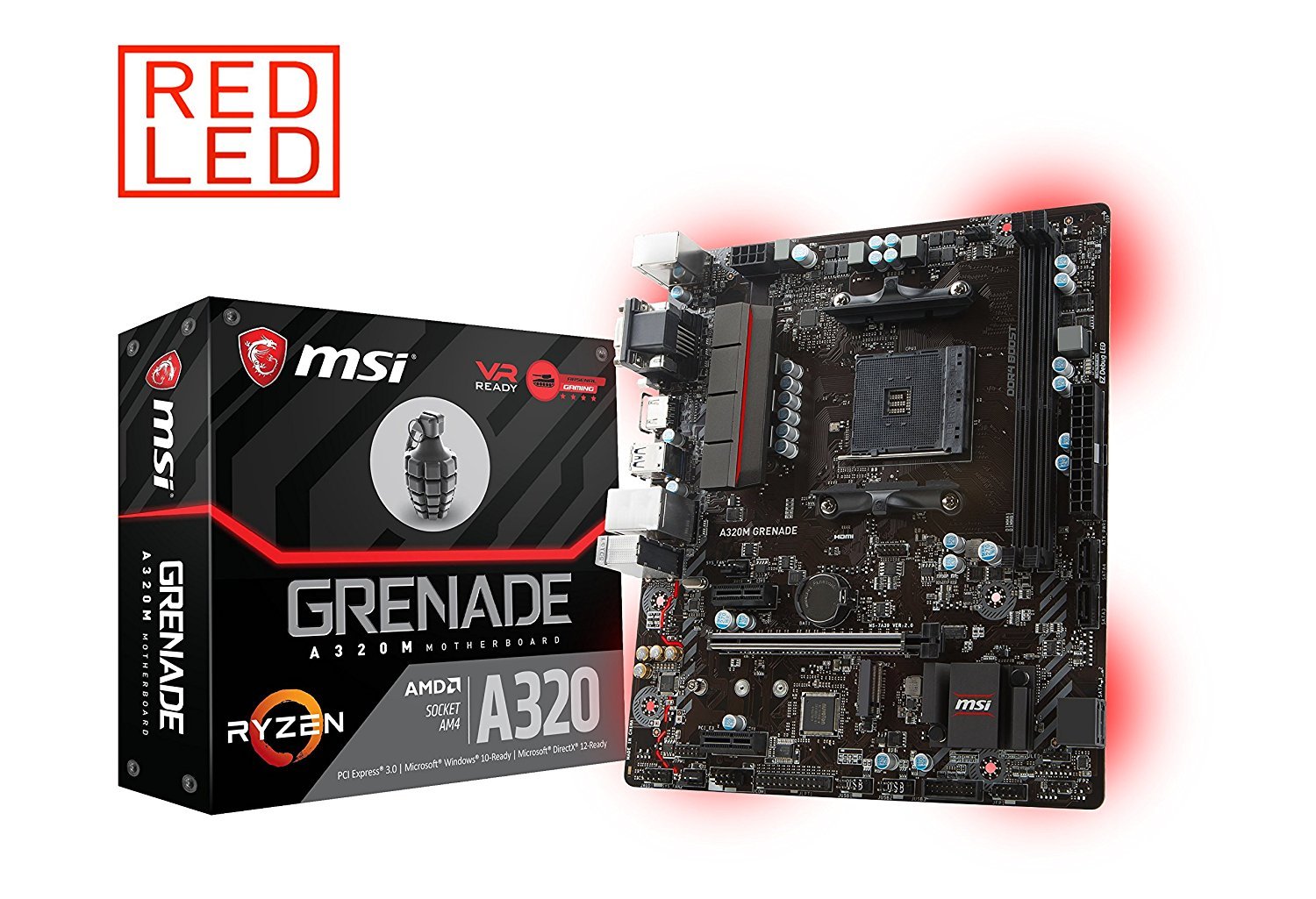

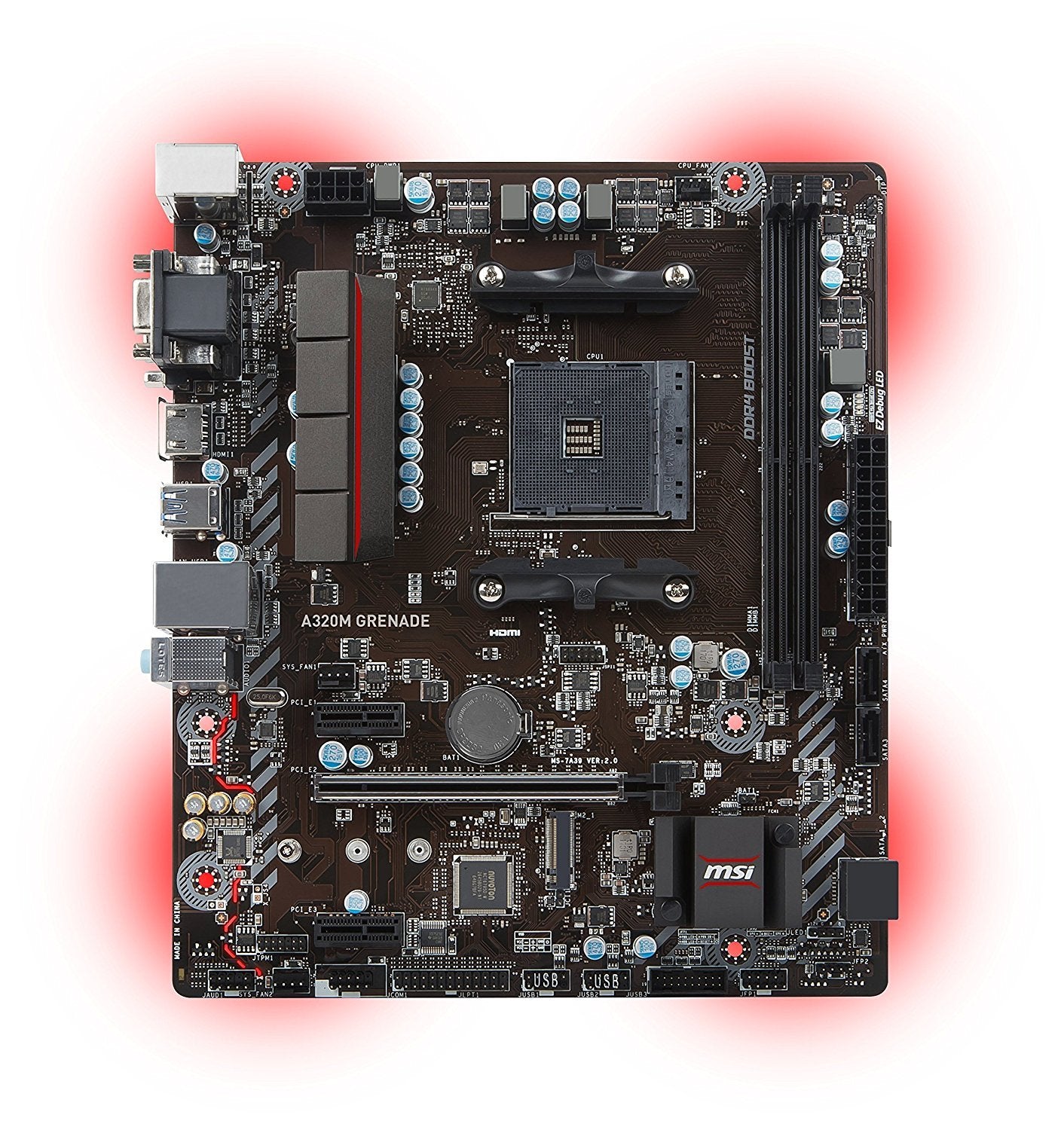

MSI A320M GRENADE

Brand

MSI

Compatible with

AMD

Socket Type

AM4

Chipset

AMD® A320 Chipset

Form Factor

M-ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

2 x DDR4 memory slots, support up to 32GB

- Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz*

• Dual channel memory architecture

• Support ECC UDIMM memory (non-ECC mode)

• Support non-ECC UDIMM memory

Multi-GPU Support

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*

Available Expansion Slots

1 x PCIe 3.0 x16 slot

- RYZEN series processors support x16 mode

- 7th Gen A-series/ Athlon™ processors support x8 mode

• 2 x PCIe 2.0 x1 slots

LAN

1 x Realtek® 8111H Gigabit LAN controller

Audio

Realtek® ALC887 Codec

- 7.1-Channel High Definition Audio

Available USB Ports

AMD® A320 Chipset

- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

• AMD® processor

- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

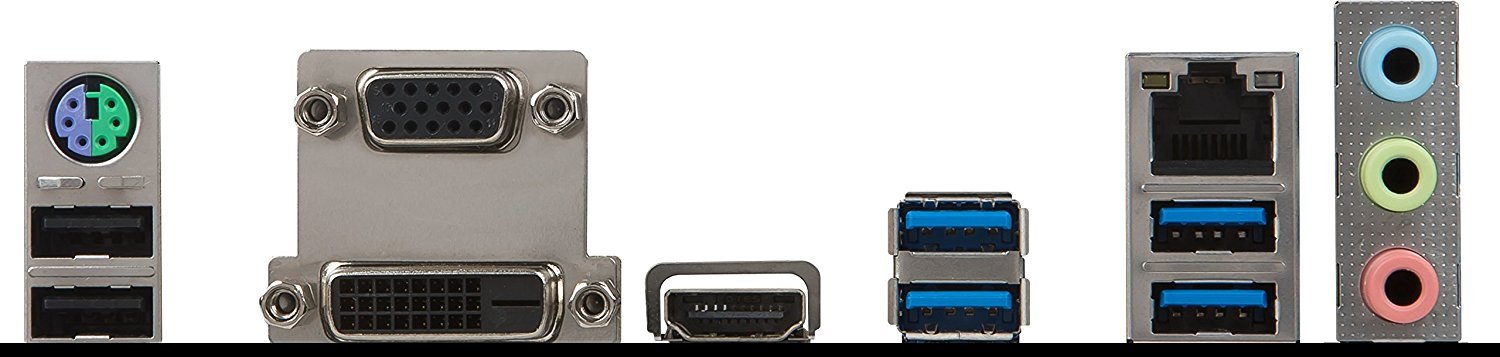

Back I/O Ports

1 x PS/2 keyboard/ mouse combo port

- 2 x USB 2.0 Type-A ports

- 1 x VGA port

- 1 x DVI-D port

- 1 x HDMI™ port

- 4 x USB 3.1 Gen1 Type-A ports

- 1 x LAN (RJ45) port

- 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 1 x 4-pin CPU fan connector

- 2 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Serial port connector

- 1 x Parallel port connector

- 1 x RGB LED strip connector

- 1 x Clear CMOS jumper

Warranty

3 Years
