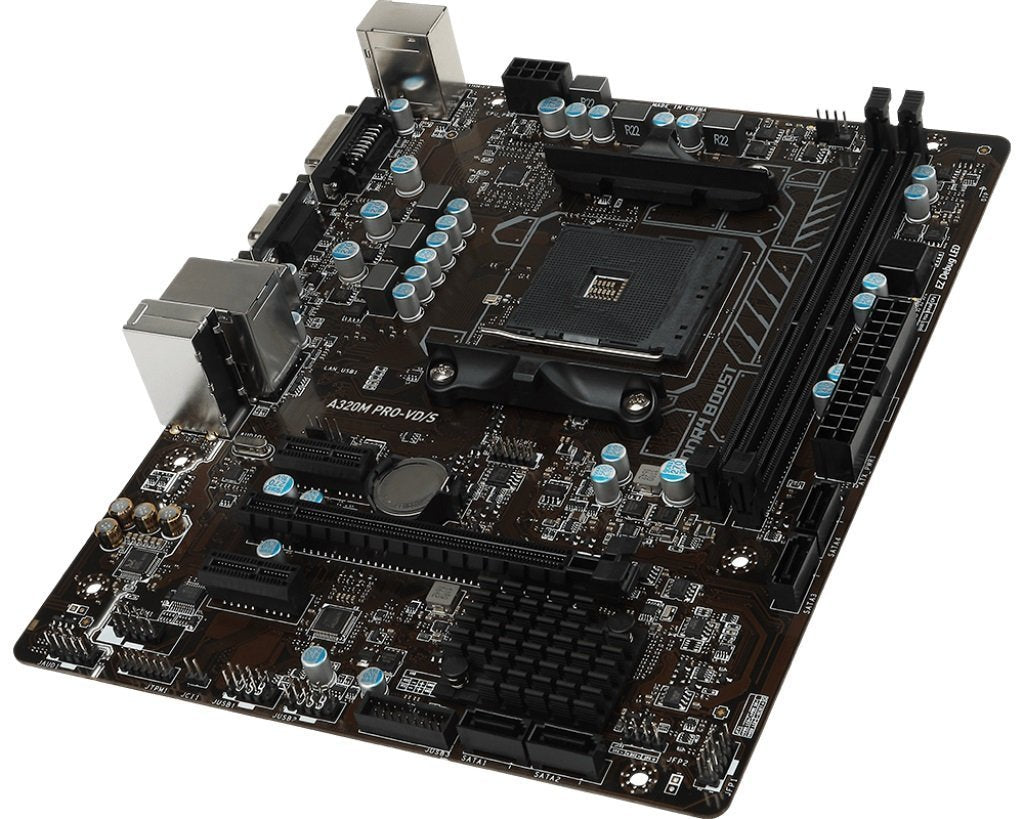

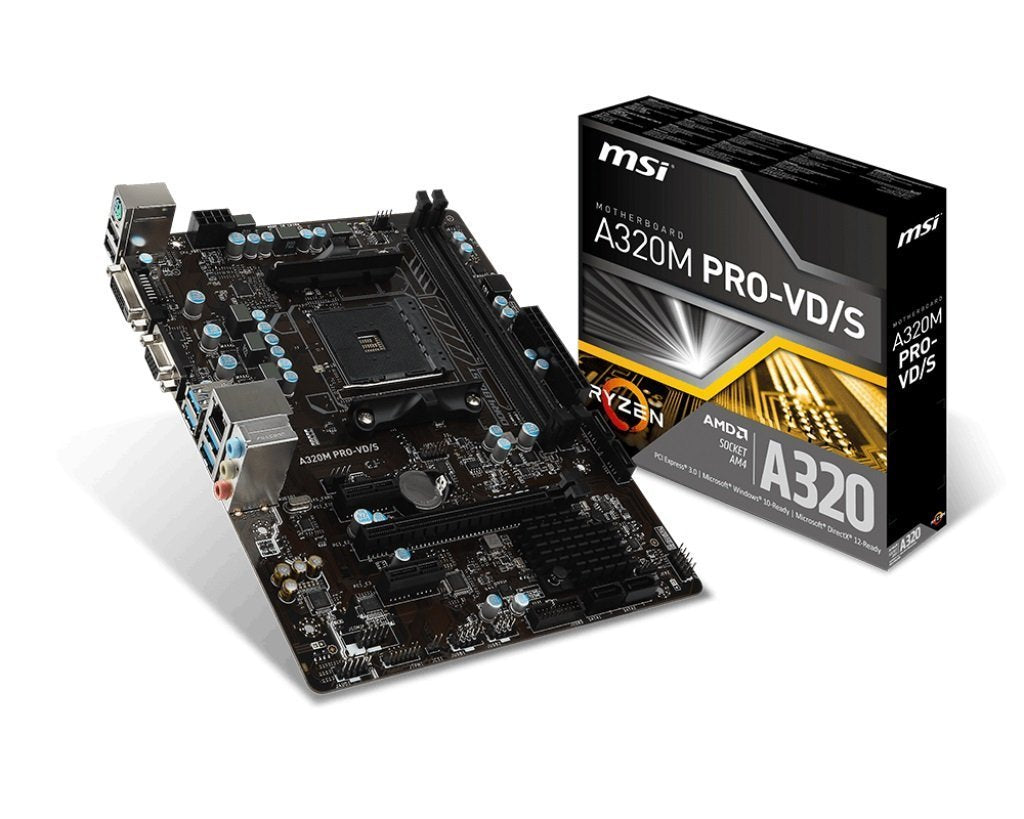

MSI A320M PRO-VD/S Compatible Motherboard for Desktop Computer/PC

Rs. 4,659.00

Sale Sold out

Taxes included.

ITEM DETAILS: MSI A320M PRO-VD/S Compatible Motherboard for Desktop Computer/PC

FEATURES:

Supports AMD® RYZEN series processors and 7th Gen A-series / AthlonTM Processors for socket AM4
Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency
Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience EZ Debug LED: Easiest way to troubleshoot X-Boost: Great tool to boost your USB & Storage performance

TECHNICAL DETAILS:

Motherboard	MSI A320M PRO-VD PLUS
Brand	MSI
Compatible with	AMD
Socket Type	AM4
Chipset	AMD® A320 Chipset
Form Factor	M-ATX
Supported Memory (Ram) Type	DDR4
No. of RAM Slots	2 x DDR4 memory slots, support up to 32GB • Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz* • Dual channel memory architecture • Supports ECC UDIMM memory (non-ECC mode) • Support non-ECC UDIMM memory
Multi-GPU Support	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
Available Expansion Slots	1 x PCIe 3.0 x16 slots - RYZEN series processors support x16 mode - 7th Gen A-series/ Athlon™ processors support x8 mode • 2 x PCIe 3.0 x1 slots
LAN	1 x Realtek® 8111H Gigabit LAN controller
Audio	Realtek® ALC887 Codec - 7.1-Channel High Definition Audio
Available USB Ports	AMD® A320 Chipset - 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

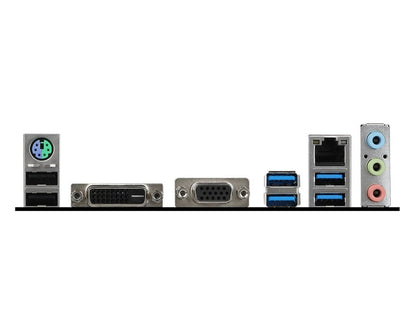

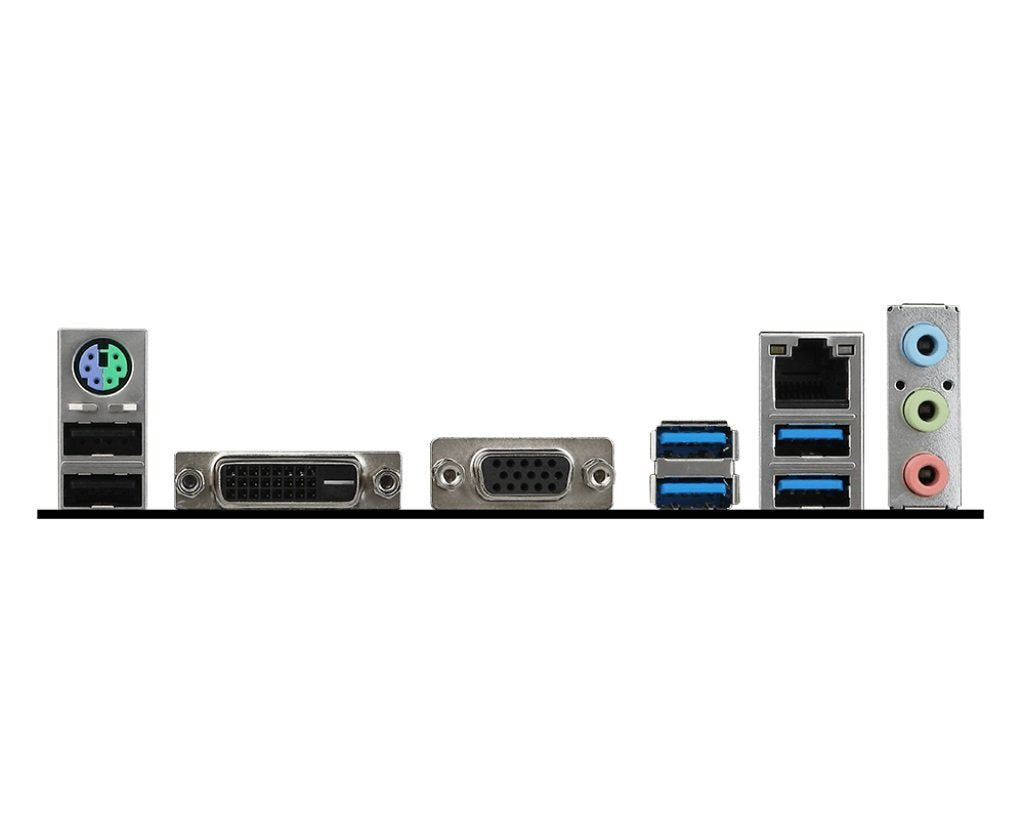

Back I/O Ports	1 x PS/2 keyborard/ mouse combo port - 2 x USB 2.0 Type-A ports - 1 x DVI-D port - 1 x VGA port - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 Type-A ports - 3 x audio jacks
Internal I/O	1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 4 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin system fan connector - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Clear CMOS jumper
Warranty	3 Years
