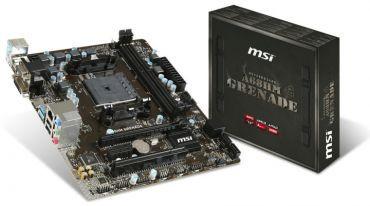

MSI A68HM GRENADE Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI A68HM GRENADE

Brand

MSI

Compatible with

AMD

Socket Type

FM2+

Chipset

AMD® A68H

Form Factor

M-ATX

Supported Memory (Ram) Type

DDR3

No. of RAM Slots

2 x DDR3 memory slots supporting up to 32GB

• Supports DDR3 2133(OC)/ 1866/ 1600/ 1333 MHz

• Dual channel memory architecture

• Supports non-ECC, un-buffered memory

• Supports AMD Memory Profile (AMP)

• Supports Extreme Memory Profile (XMP)

Multi-GPU Support

1 x VGA port, supporting a maximum resolution of 1920x1200@ 60Hz, 24bpp

• 1x DVI-D port, supporting a maximum resolution of 2560x1600@60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp

• 1x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp

Available Expansion Slots

1 x PCIe 3.0 x16 slot

• 1 x PCIe 2.0 x1 slot

• 1 x PCI slot

LAN

Realtek® RTL8111G Gigabit LAN

Audio

Realtek® ALC887 Codec

Available USB Ports

AMD® A68H Chipset

- 2 x USB 3.0 ports on the back panel

- 8x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

• VIA VL806 Chipset

- 2x USB 3.0 ports through the internal USB 3.0 connector*

*These USB 3.0 ports do not support M-Flash recovery function.

Back I/O Ports

1 x PS/2keyboardport

- 1 x PS/2mouseport

- 1 x VGAport

- 1 x DVI-D port

- 2 x USB3.0ports

- 1 x HDMIport

- 1 x LAN(RJ45)port

- 4 x USB2.0ports

- 3 x audiojacks

Internal I/O

1x 24-pin ATX main power connector

- 1 x 4-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)

- 1 x 4-pin CPU fan connector

- 1 x 4-pin system fan connector

- 1 x Front panel audio connector

- 2 x System panel connectors

- 1 x Chassis Intrusion connector

- 1 x TPM module connector

- 1 x Serial port connector

- 1 x Clear CMOS jumper

Warranty

3 Years
