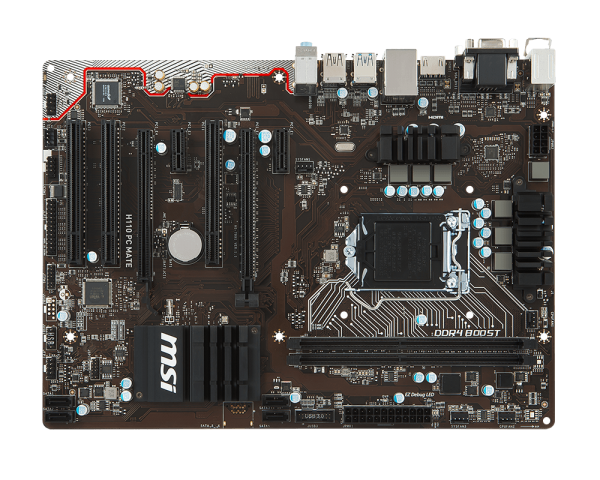

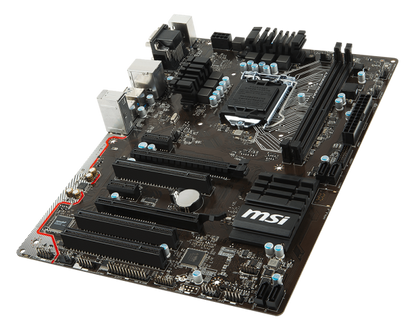

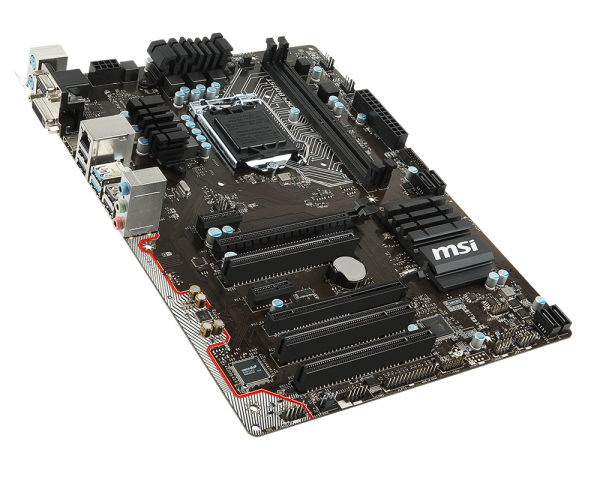

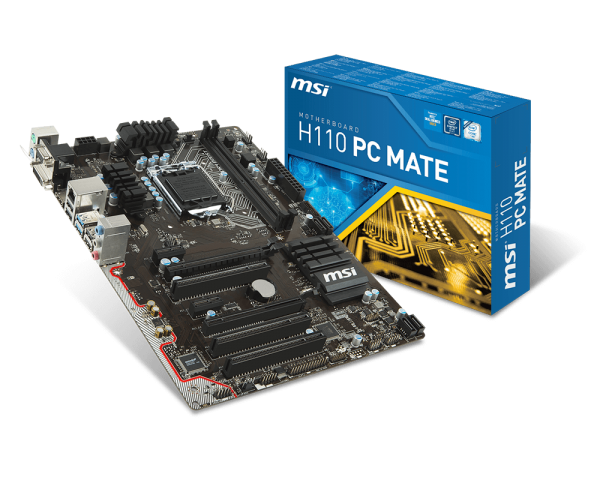

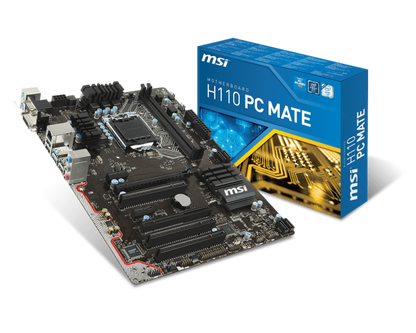

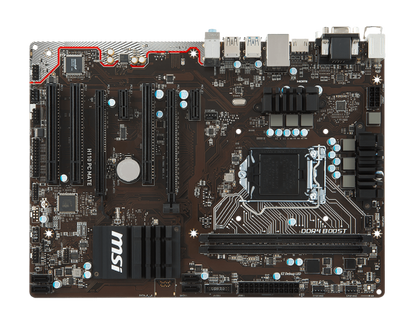

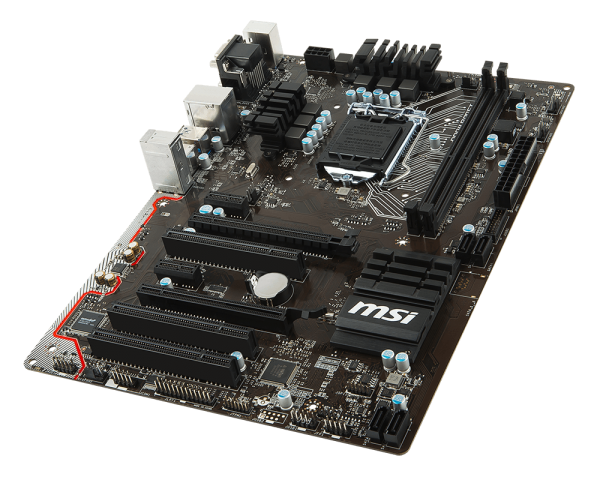

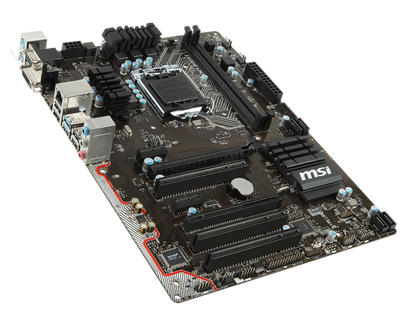

MSI H110 PC MATE Intel Compatible Motherboard for Desktop Computer/PC

MSI H110 PC MATE Intel Compatible Motherboard for Desktop Computer/PC

Rs. 7,160.00
Rs. 7,160.00
Sale Sold out
Taxes included.

ITEM DETAILS: MSI H110 PC MATE Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
  • Supports DDR4-2133 Memory
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • USB3.1 Gen1 + SATA 6Gb/s
  • MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire™
  • Click BIOS: Secure and Reliable UEFI BIOS solution
  • Audio Boost: Reward your ears with studio grade sound quality
  • Military Class 4: Top Quality & Stability
  • Guard-Pro: Improved Protection and Power Efficiency
  • EZ Debug LED: Easiest way to troubleshoot
  • Overvoltage Protection:Prevent Unforeseen Damage
  • 4K UHD Support: Ultra-high Definition Visual Experience
  • Intel® SBB Support: Improves Productiviyty, Management and Serurity
  • Windows 10 Ready: 100% Compatibility, Performance, Trusted and Certified.

TECHNICAL DETAILS:

Motherboard

MSI H110 PC MATE

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H110 Chipset

Form Factor

12 in. x 8.7 in. (30.5 cm x 22.0 cm) ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

2x DDR4 memory slots, support up to 32GB

- Supports DDR4 2133 MHz

• Dual channel memory architecture

• Supports ECC, un-buffered memory

- ECC UDIMM memory (non-ECC mode)

• Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

Supports 2-Way AMD® CrossFire™ Technology

Available Expansion Slots

1 x PCIe 3.0 x16 slot (supports X16 mode)

• 1 x PCIe 2.0 x16 slot (supports X4 mode)

• 2 x PCIe 2.0 x1 slots

• 3 x PCI slots

LAN

1 x Realtek RTL8111H Gigabit LAN controller

Audio

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

Available USB Ports

Intel® H110 Chipset

- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)

- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Back I/O Ports

1 x PS/2 keyboard port

- 1 x PS/2 mouse port

- 1 x HDMI™ port

- 1 x DVI-D port

- 1 x VGA port

- 2 x USB 3.1 Gen1 ports

- 4 x USB 2.0 ports

- 1 x LAN (RJ45) port

- 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 2 x 4-pin CPU fan connectors

- 3 x 4-pin system fan connectors

- 1 x Clear CMOS jumper

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Serial port connector

- 1 x Parallel port connector

WARRANTY

3 YEARS
