MSI H110M PRO-VDIntel Compatible Motherboard for Desktop Computer/PC

Motherboard

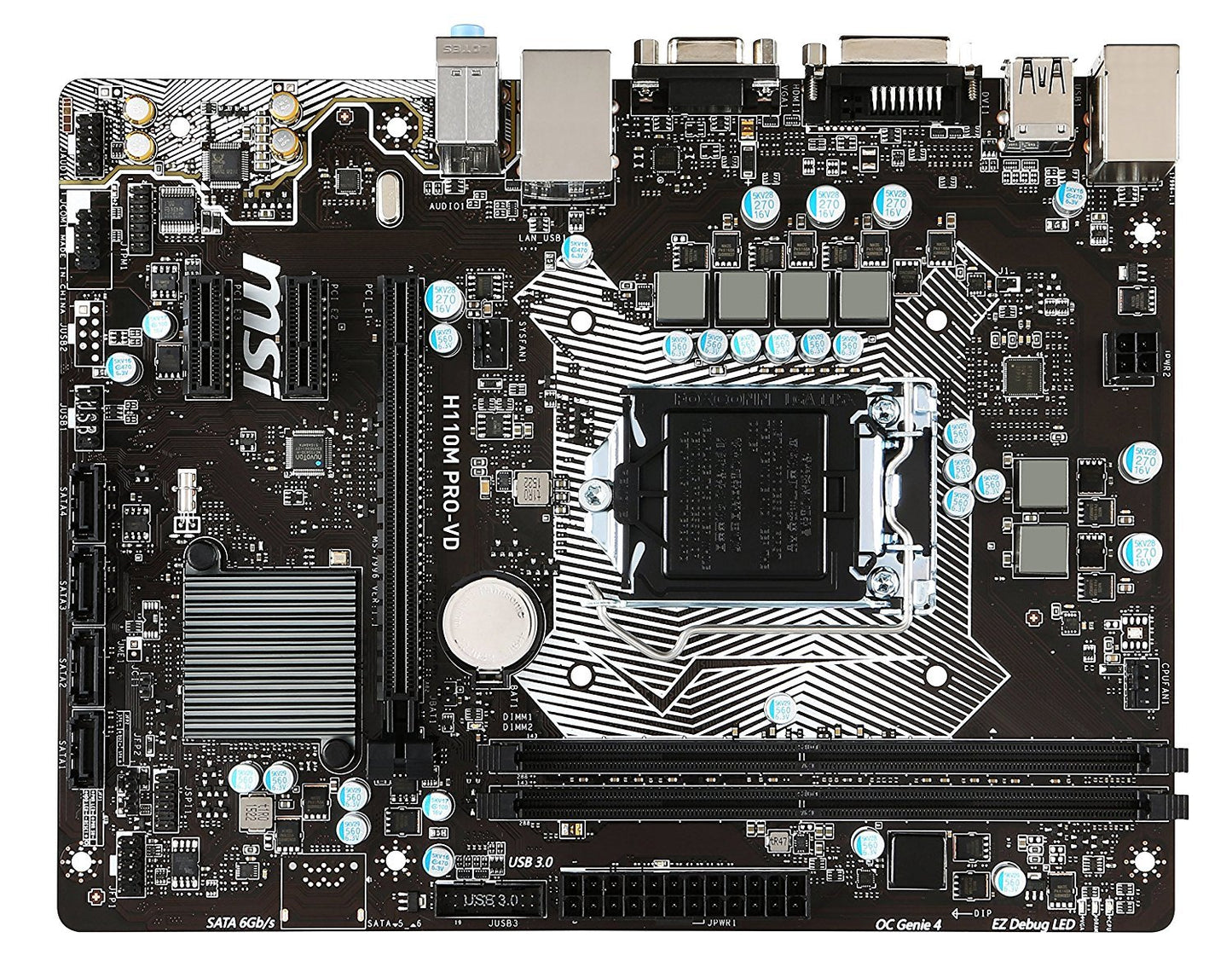

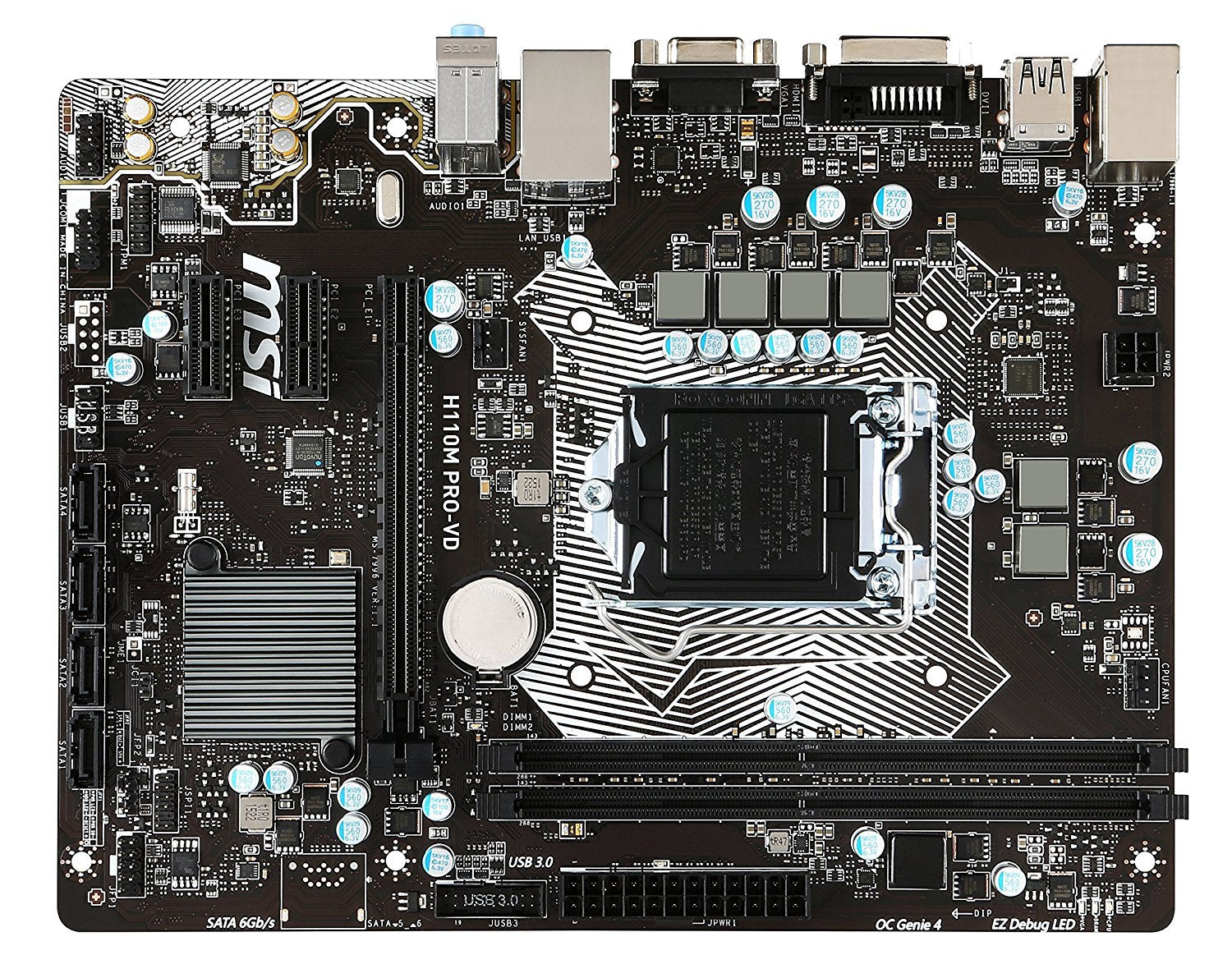

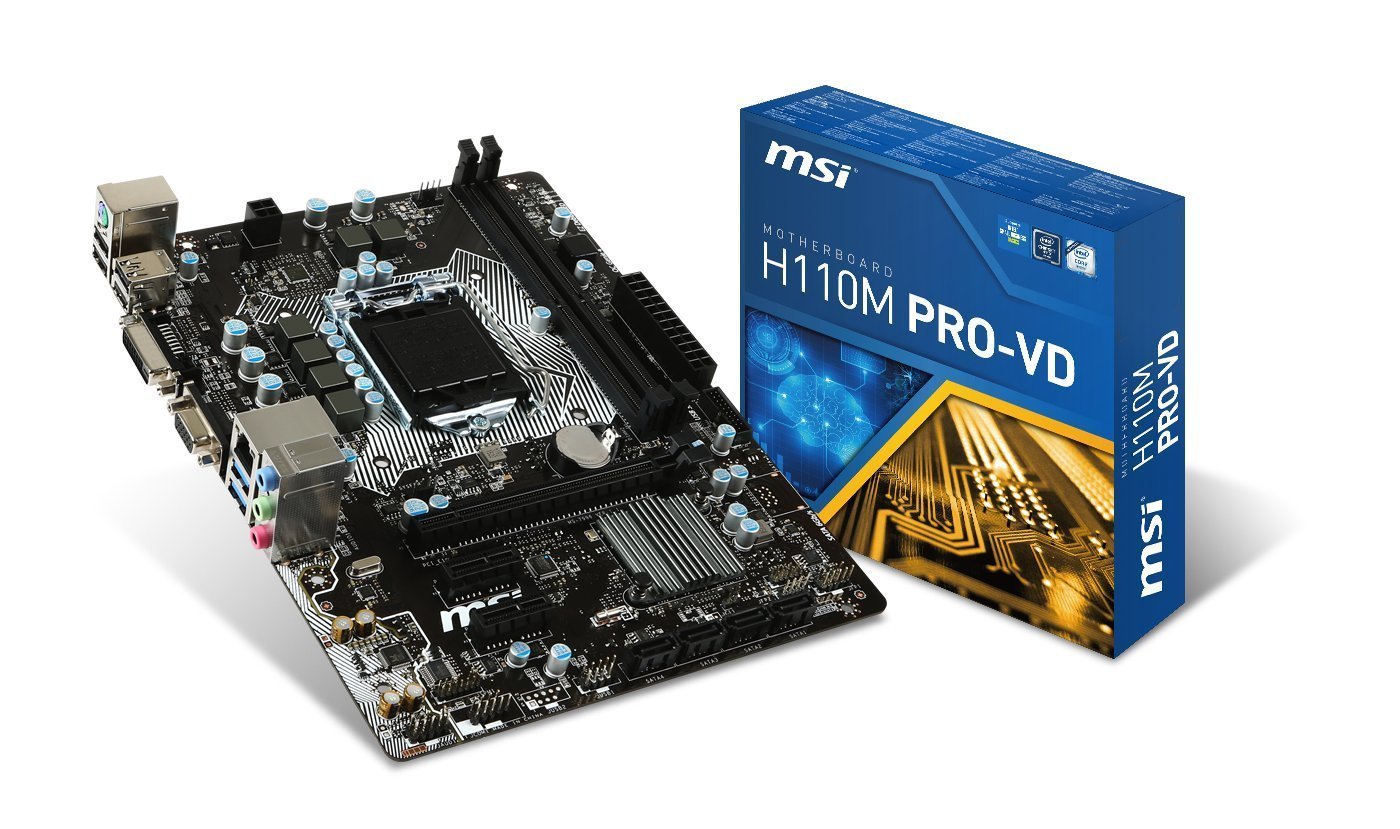

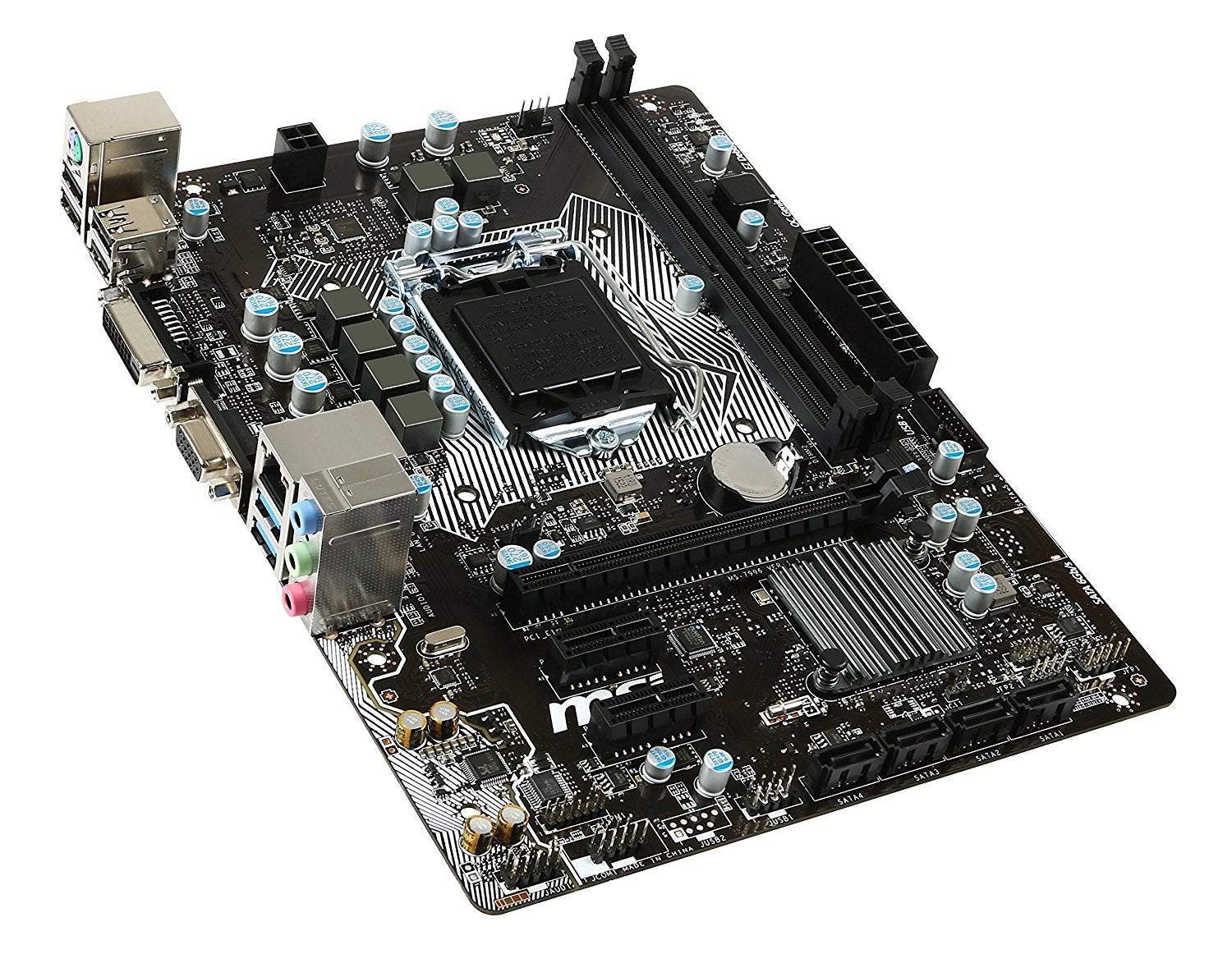

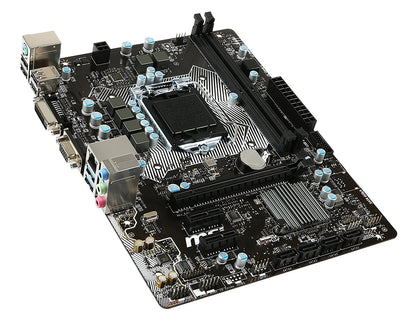

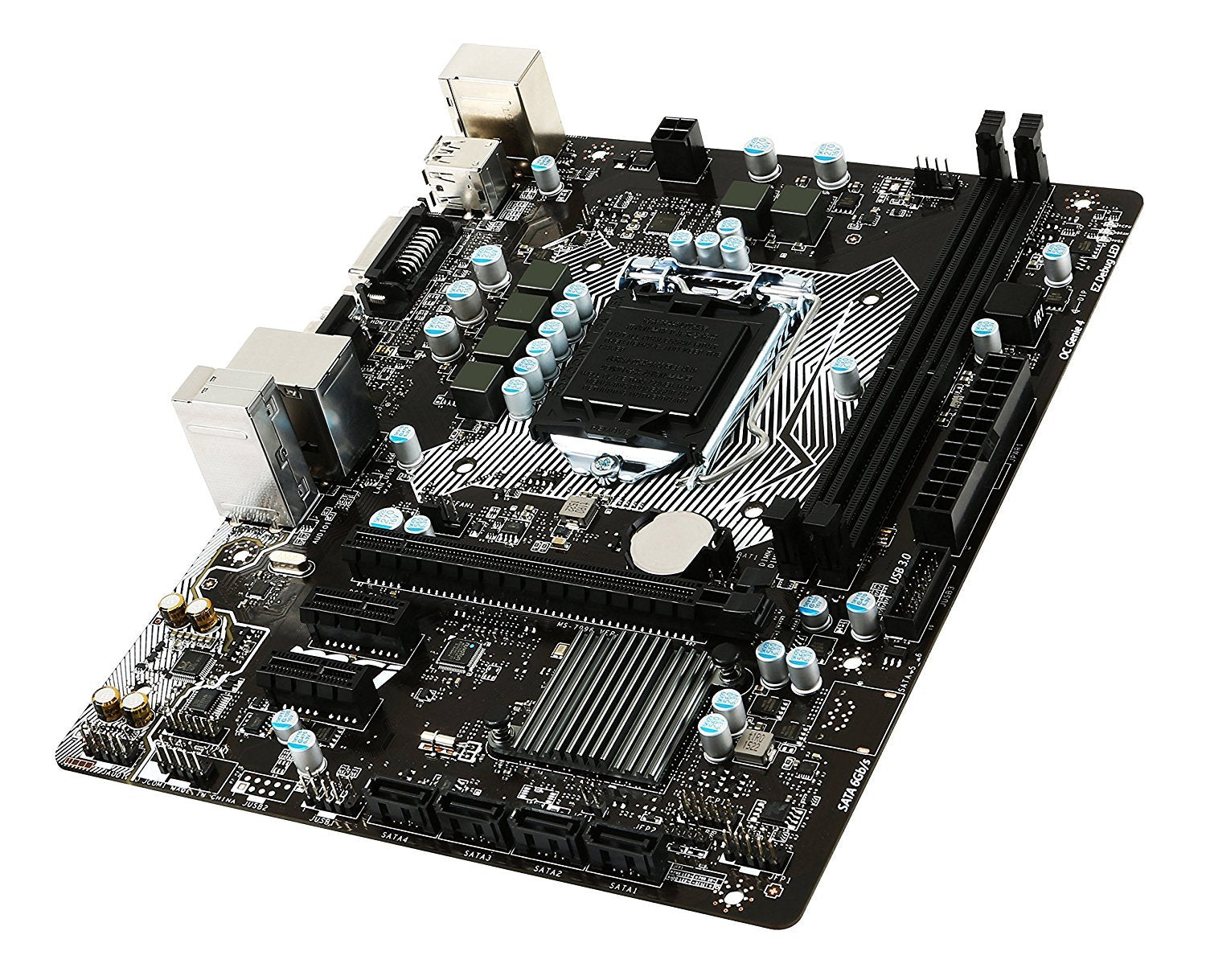

MSI H110M PRO-VD

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H110 Chipset

Form Factor

9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

2 x DDR4 memory slots, support up to 32GB

- Supports DDR4 2133 MHz

• Dual channel memory architecture

• Supports Non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs

* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation

* Please refer to Compatibility reports for more information of compatible memory.

Multi-GPU Support

Available

Available Expansion Slots

1 x PCIe 3.0 x16 slot

• 2 x PCIe 2.0 x1 slots

LAN

1 x Realtek RTL8111H Gigabit LAN controller

Audio

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

Available USB Ports

Intel® H110 Chipset

- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)

- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Back I/O Ports

1 x PS/2 keyboard/ mouse port

- 4 x USB 2.0 ports

- 2 x USB 3.1 Gen1 ports

- 1 x DVI-D port

- 1 x VGA port

- 1 x LAN (RJ45) port

- 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector

- 1 x 4-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 1 x 4-pin CPU fan connector

- 1 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Serial Port connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
