MSI H110M Pro-VH Plus Intel Compatible Motherboard for Desktop Computer/PC

MSI H110M Pro-VH Plus Intel Compatible Motherboard for Desktop Computer/PC

Rs. 3,950.00
Rs. 3,950.00
Sale Sold out
Taxes included.

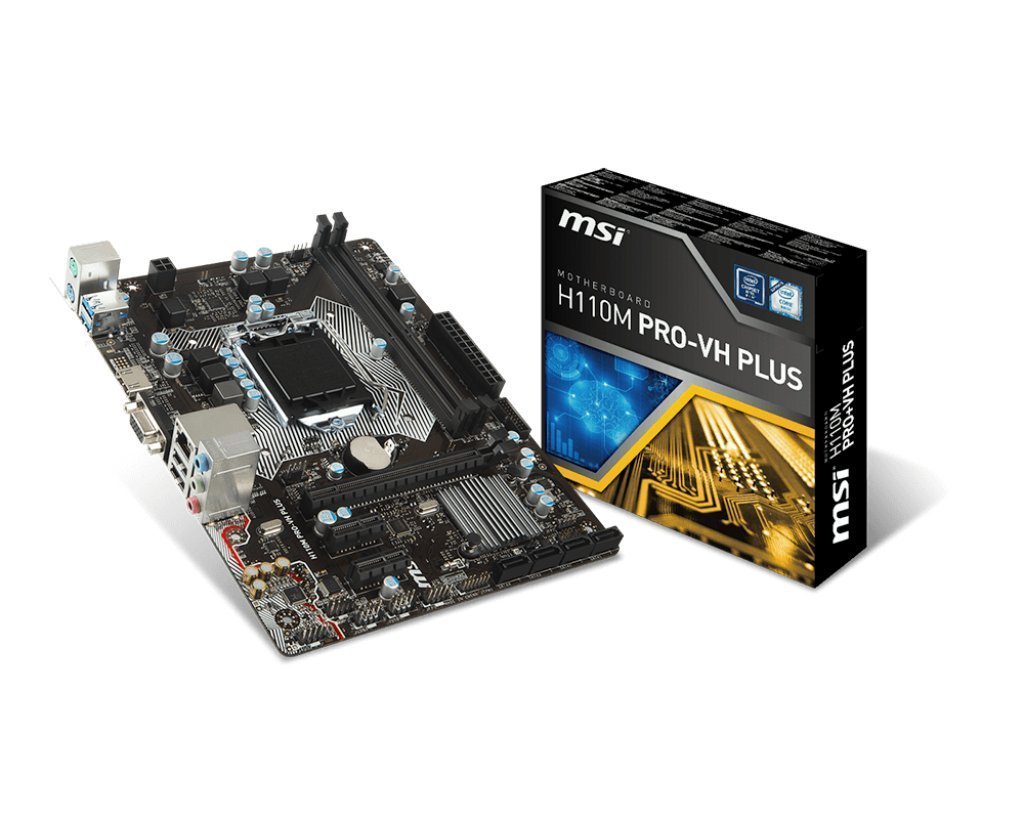

ITEM DETAILS: MSI H110M Pro-VH Plus Intel Compatible Motherboard for Desktop Computer/PC

FEATURES:

  • LGA1151 supports 6th generation Intel Core i7/i5/i3/Pentium/Celeron processors
  • Chipset: Intel H110
  • Memory: 2x DDR4-2133 DIMM slots, dual-channel, non-ECC, unbuffered, max capacity of 32GB
  • Slots: 1x PCI-express 3.0 x16 slot, 2x PCI-express 2.0 x1 slots
  • SATA: 4x SATA3 ports
  • Form Factor: MicroATX, 9.3 x 7.1 inch/23.5 x 18.0 cm

TECHNICAL DETAILS:

General

Brand

MSI

Model

H110M Pro VH plus

Form Factor

M-ATX

I/O CONNECTORS

Audio output

Realtek ALC887 Codec • 7.1-Channel High Definition Audio

USB

Intel H110 Chipset - 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Hardware Features

Memory

2 x DDR4 memory slots, support up to 32GB - Supports DDR4 2133 MHz • Dual channel memory architecture • Supports Non-ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs * DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel chipset limitation * Please refer to Compatibility reports for more information of compatible memory. 32Gb

Hard Drive

CPU

Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 * Please refer to CPU Support for compatible CPU; the above description is for reference only.

3D API

DirectX

DX12

Connectivity

LAN

1 x Realtek RTL8111H Gigabit LAN controller 10/100/1000*1

Audio ports

3

Slots

1 x PCIe 3.0 x16 slot • 2 x PCIe 2.0 x1 slots

Motherboard Features

Back Panel Connectors

- 1 x PS/2 mouse port - 1 x PS/2 keyboard port - 2 x USB 2.0 ports - 2 x USB 3.1 Gen1 ports - 1 x HDMI port - 1 x VGA port - 1 x LAN (RJ45) port - 3 x audio jacks

Internal I/O Connectors

- 1 x 24-pin ATX main power connector - 1 x 4-pin ATX 12V power connector - 4 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Serial Port connector - 1 x Chassis Intrusion connector - 1 x Clear CMOS jumper

Onboard Graphics

1 x HDMI ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - Support for HDMI 1.4 version. • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Chipset

Intel® H110 Chipset

PCI-E Gen

Gen3

SATAII

Intel H110 Chipset • 4 x SATA 6Gb/s ports

Memory

Memory Channel

Dual

Dimensions

Weight

998 g

Dimensions (W x D x H)

8.9 in. x 6.8 in. (22.6 cm x 17.3 cm)

In The Box

In The Box

MSI H110M Pro-VH Plus Motherboard

Warranty

Warranty

3 Year Manufacturer Warranty
