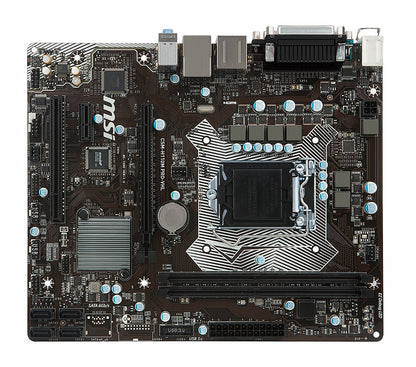

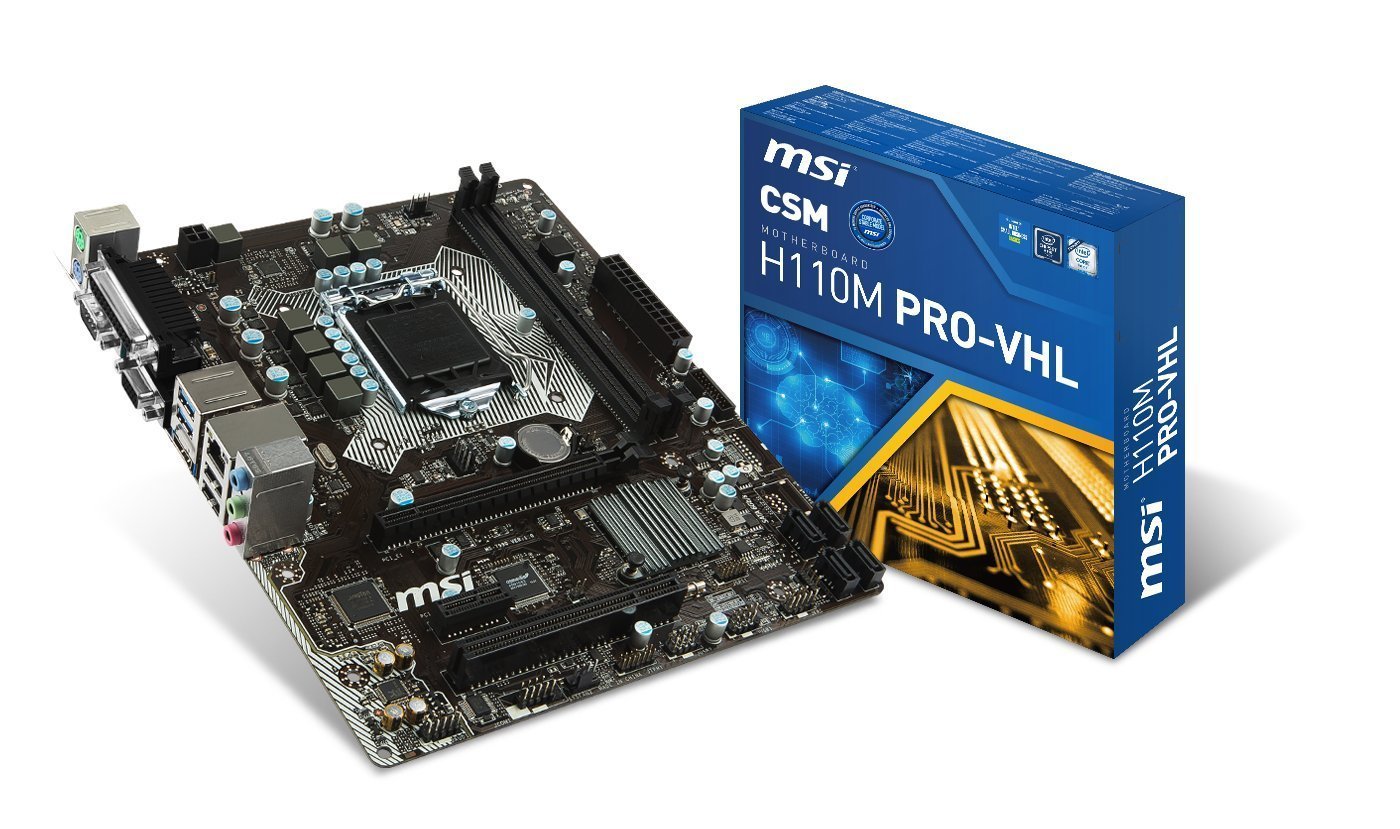

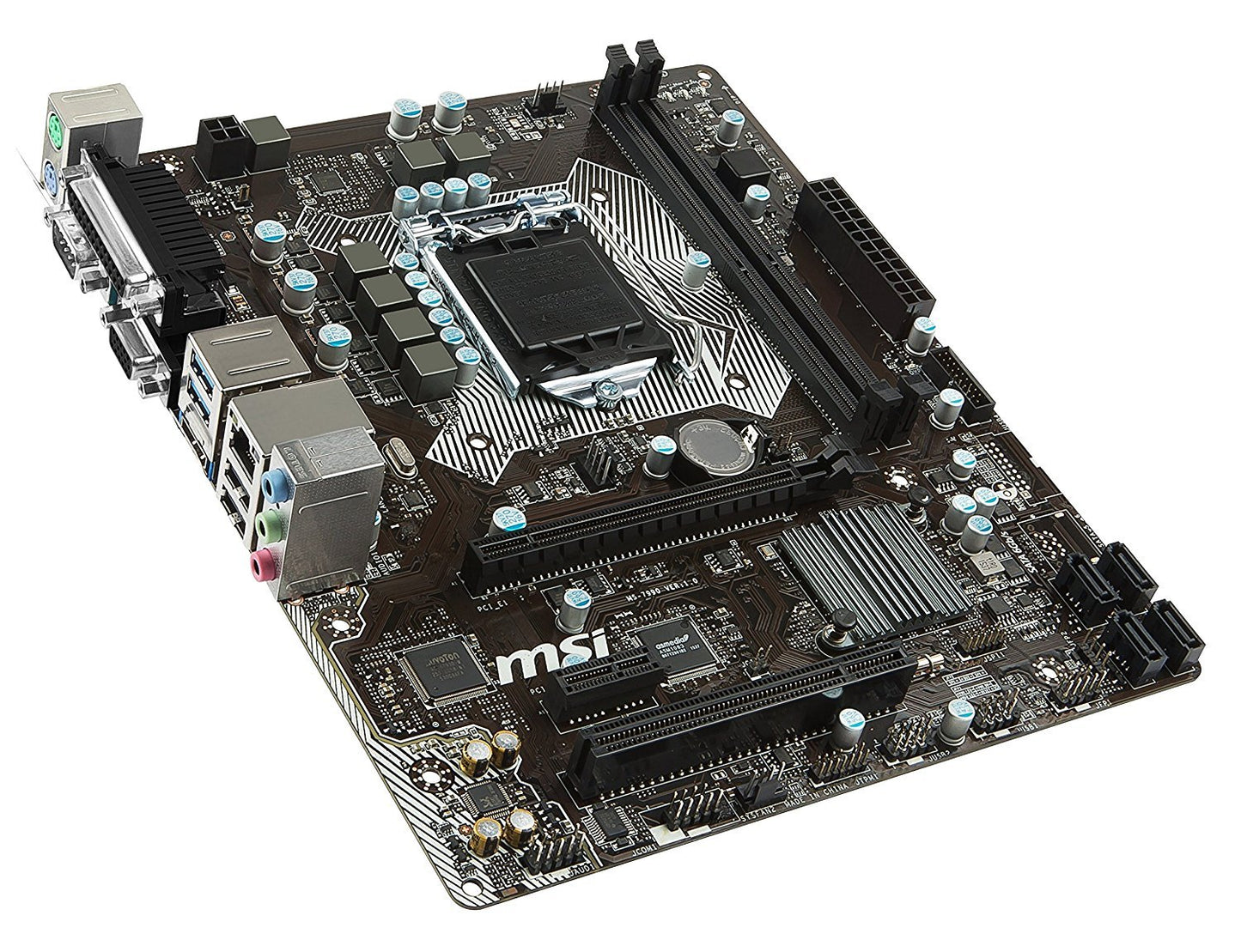

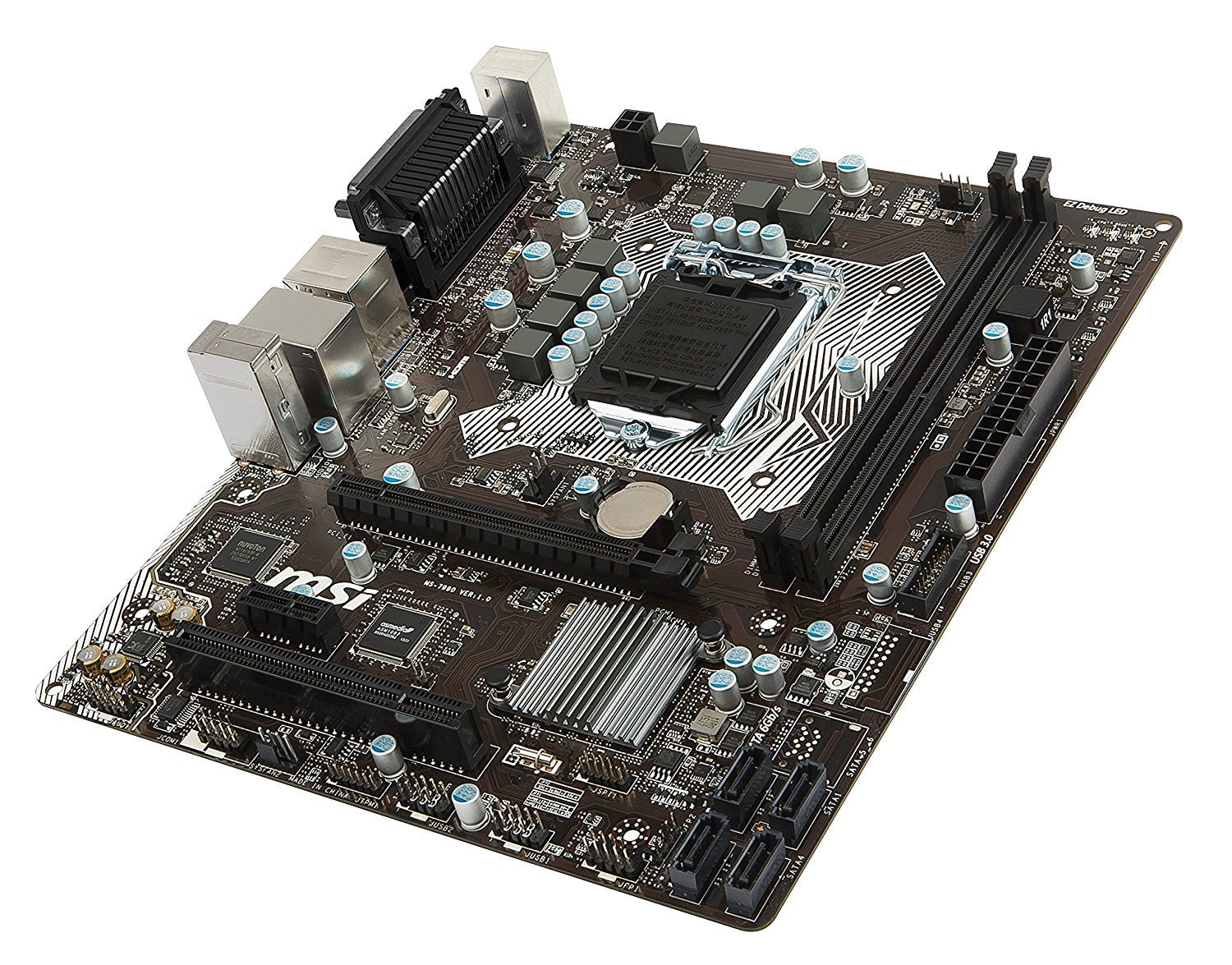

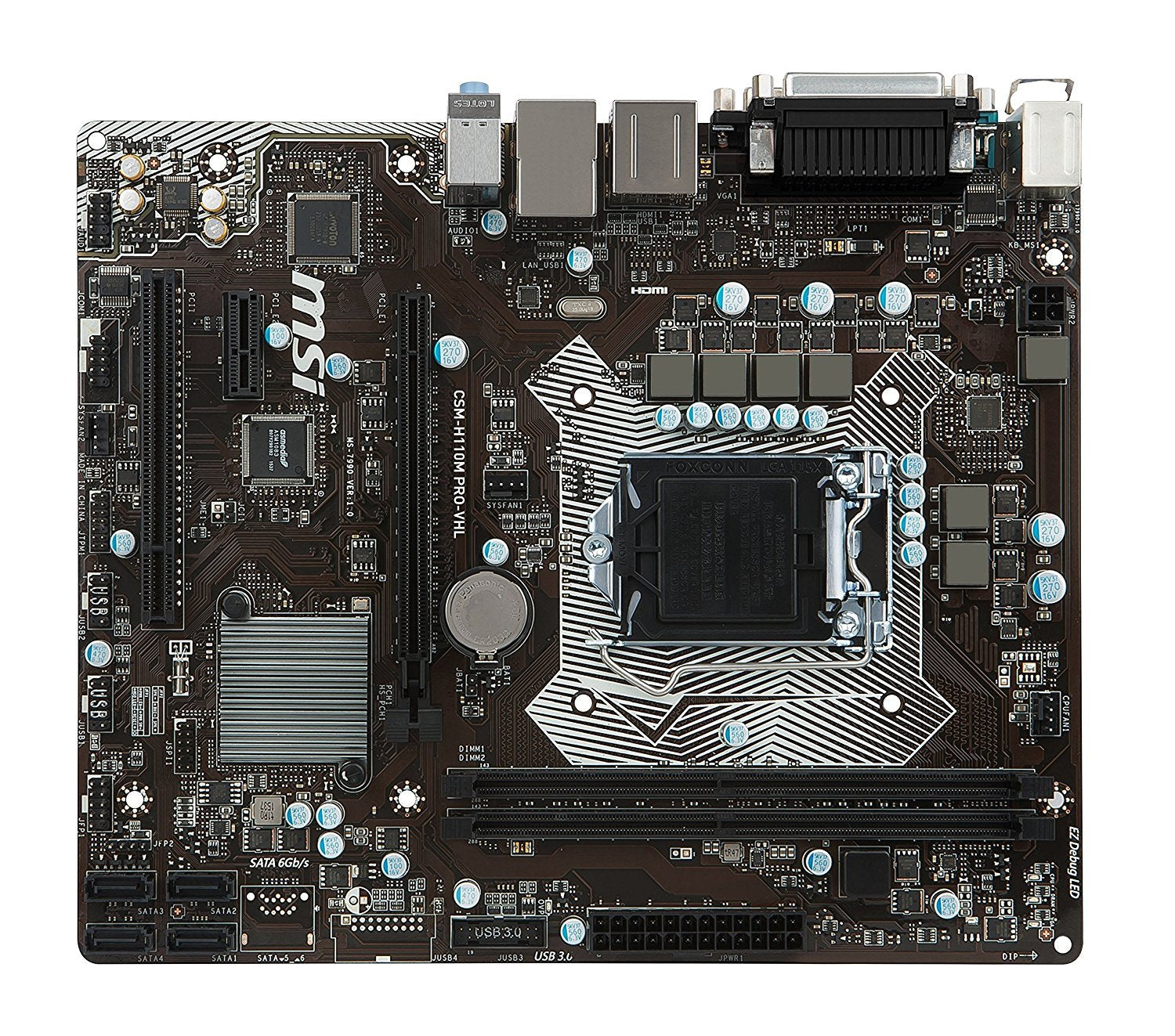

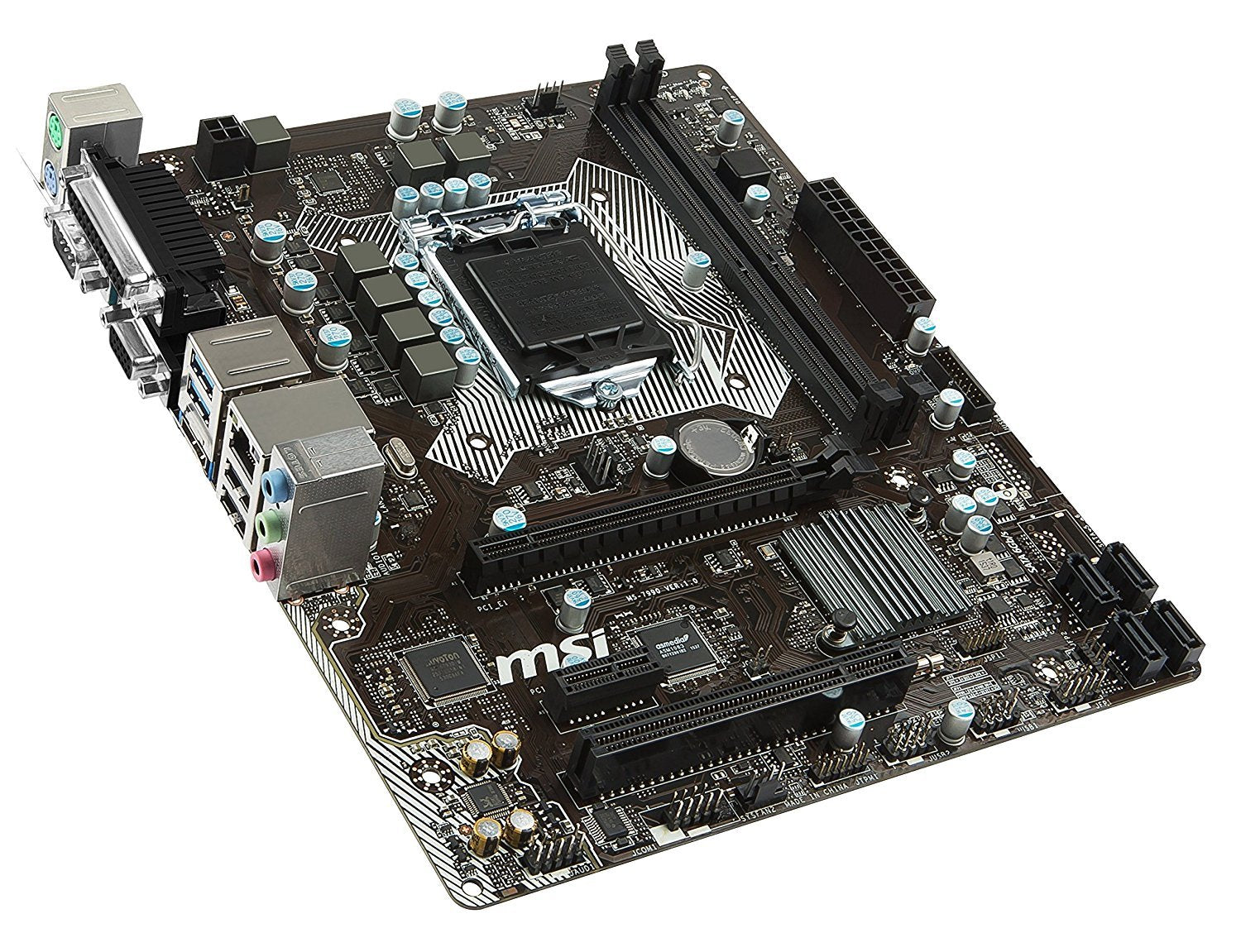

MSI H110M Pro-VHL LGA1151 Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI H110M Pro-VHL

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel® H110 Chipset

Form Factor

9.6 in. x 8.1 in. (24.3 cm x 20.5 cm) m-ATX Form Factor

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

2 x DDR4 memory slots, support up to 32GB

- Supports DDR4 2133 MHz

• Dual channel memory architecture

• Supports Non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

Available

Available Expansion Slots

1 x PCIe 3.0 x16 slot

• 1 x PCIe 3.0 x1 slot

• 1 x PCI slot

LAN

1 x Realtek RTL8111H Gigabit LAN controller

Audio

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

Available USB Ports

Intel® H110 Chipset

- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)(optional)

- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

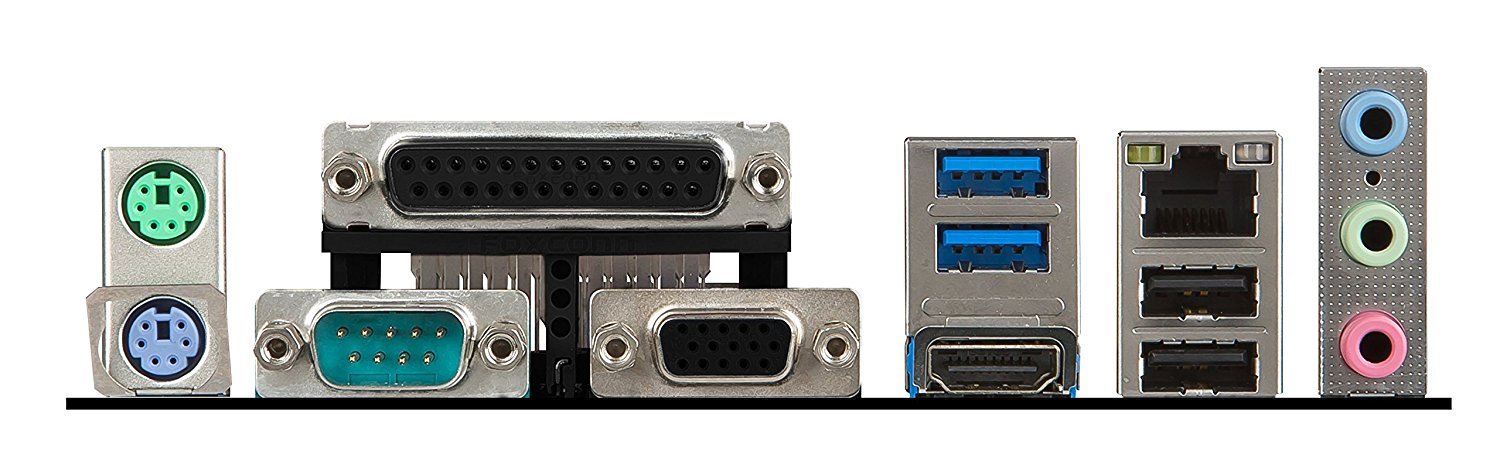

Back I/O Ports

1 x PS/2 keyboard port

- 1 x PS/2 mouse port

- 2 x USB 2.0 ports

- 2 x USB 3.1 Gen1 ports

- 1 x Serial port

- 1 x Parallel port

- 1 x VGA port

- 1 x HDMI™ port

- 1 x LAN (RJ45) port

- 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector

- 1 x 4-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 1 x 4-pin CPU fan connector

- 2 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Serial port connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
