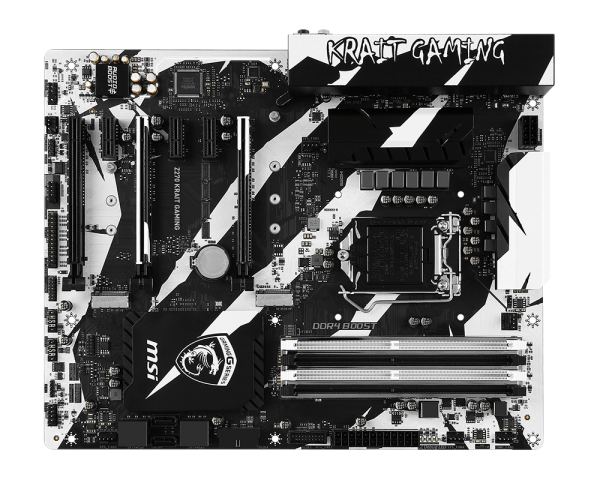

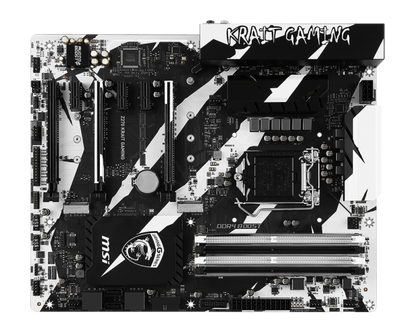

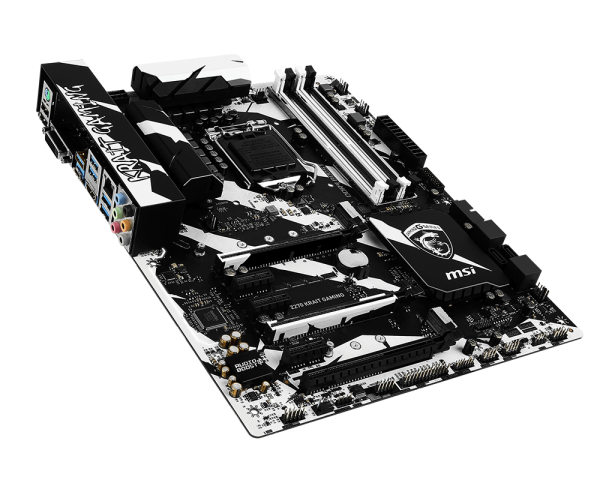

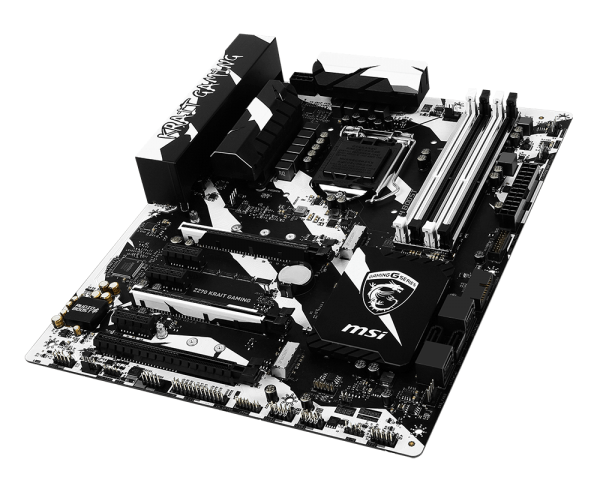

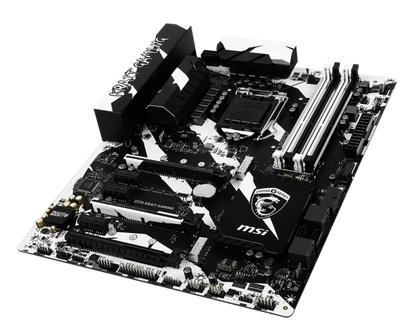

MSI Z270 KRAIT GAMING Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z270 KRAIT GAMING

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z270 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Multi-GPU Support

Available

Available Expansion Slots

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots

LAN

• 1 x Intel® I219-V Gigabit LAN controller

Audio

• Realtek^® ALC1220 Codec
- 7.1-Channel High Definition Audio

Available USB Ports

• ASMedia^® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
ƒ- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• Intel^® Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

• Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron®processors for LGA 1151 socket

• Supports DDR4-3866+(OC) Memory

• DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost

• VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness

• Lightning Fast Game experience: Twin Turbo M.2 with Steel Armor. Intel Optane Memory Ready, Lightning USB 3.1 Gen2

• Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience

• GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency and bandwidth management

• Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

• MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™

• Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click

• In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster

• EZ Debug LED: Easiest way to troubleshoot

• Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

• GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.

Check

Back I/O Ports

- 1 x PS/2 mouse & keyboard combo port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 6 x audio jacks

Internal I/O

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
