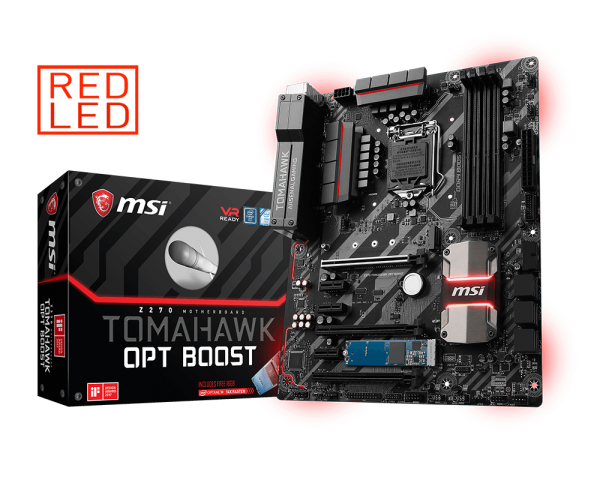

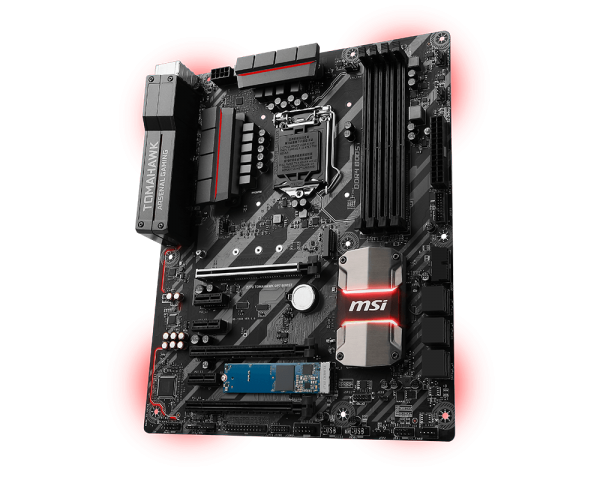

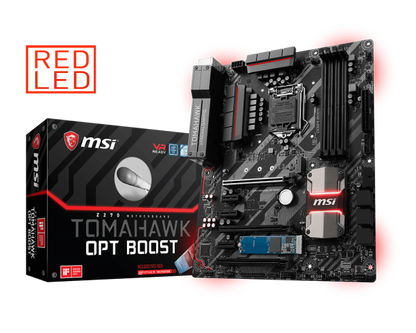

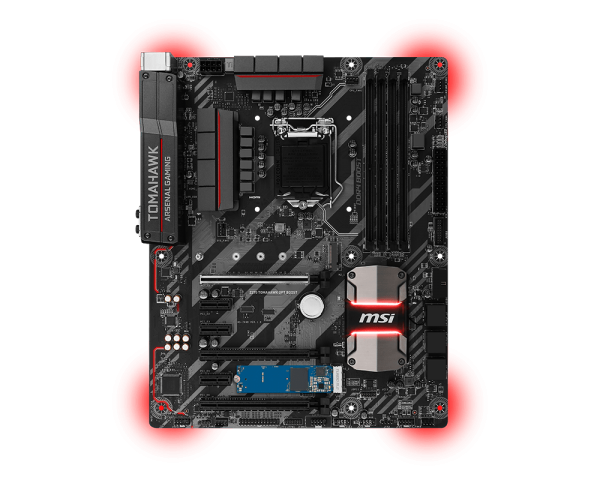

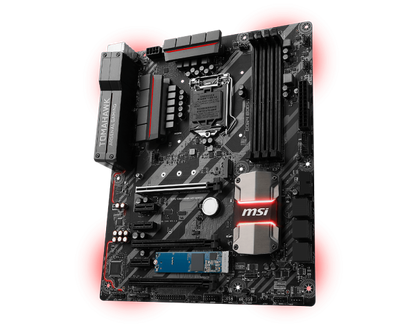

MSI Z270 TOMAHAWK OPT BOOST Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z270 TOMAHAWK OPT BOOST

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z270 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

• 4x DDR4 memory slots, support up to 64GB

- 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*

- 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

• Supports 2-Way AMD® CrossFire™ Technology

Available Expansion Slots

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)

• 3 x PCIe 3.0 x1 slots

* The PCI_E4 slot will be unavailable when an M.2 PCIe SSD module has been installed in the M.2_2 slot.

** The PCI_E2/ PCI_E5 slot will be unavailable when an expansion card has been installed in the PCI_E3/ PCI_E6 slot.

LAN

• 1 x Intel® I219-V Gigabit LAN controller

Audio

• Realtek® ALC892 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

Available USB Ports

• ASMedia® ASM2142 Chipset

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel®Z270 Chipset

- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

Supports 7th / 6th Gen Intel^® Core™ / Pentium^® / Celeron^® processors for LGA 1151 socket

Supports DDR4-3800+(OC) Memory

16GB Intel^® Optane™ memory included: Boost your system up to 14X faster

DDR4 Boost: Give your DDR4 memory a performance boost

VR Ready: Best virtual reality game experience without latency

GAMING LEDs: Ambient LED lights for an awesome look & feel

Twin Turbo M.2 with Steel Armor. Intel Optane Memory Ready, Lightning USB 3.1 Gen2

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

GAMING LAN with LAN Protect, powered by Intel^® : The best online gaming experience with lowest latency and bandwidth management

MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Back I/O Ports

- 1 PS/2 keyboard/ mouse combo port

- 2 x USB 2.0 Type-A ports

- 1 x DVI-D port

- 1 x USB 3.1 Gen2 Type-A port

- 1 x USB 3.1 Gen2 Type-C port

- 4 x USB 3.1 Gen1 Type-A ports

- 1 x HDMI™ port

- 1 x LAN (RJ45) port

- 5 x OFC audio jacks

- 1 x Optical S/PDIF OUT connector

Internal I/O

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 6 x SATA 6Gb/s connectors

- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x 4-pin CPU fan connector

- 1 x 4-pin water pump fan connector

- 4 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x RGB LED connector

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Serial port connector

- 1 x Parallel port connector

- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
