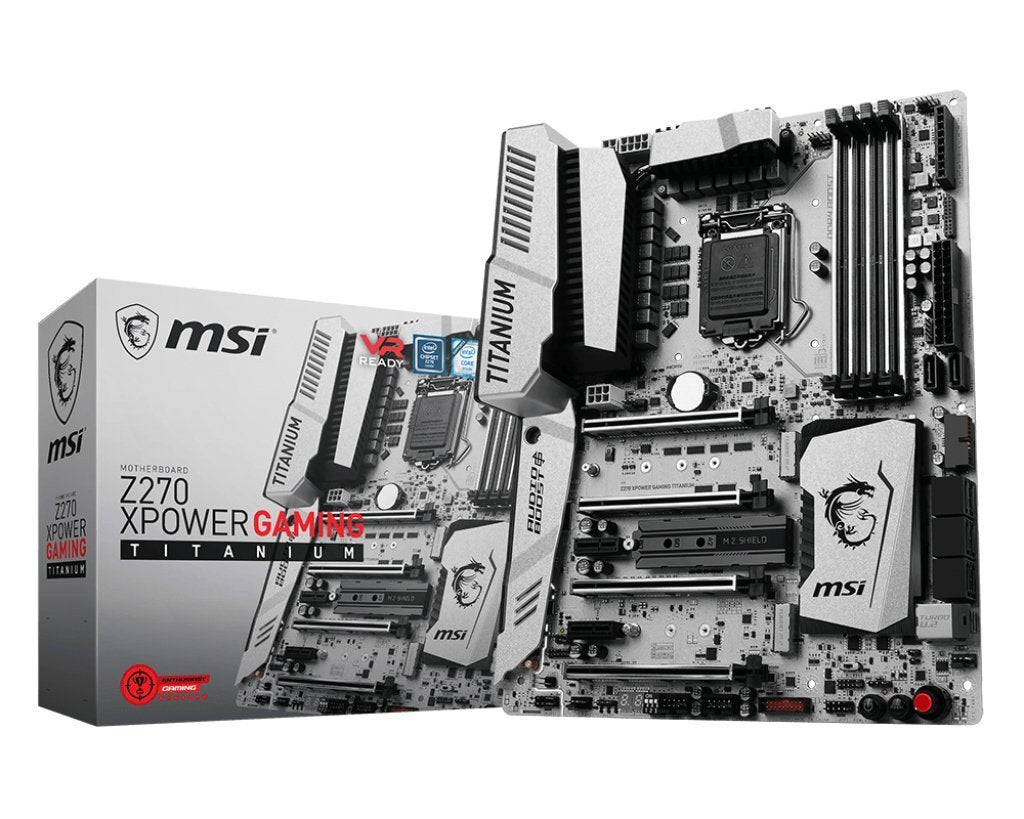

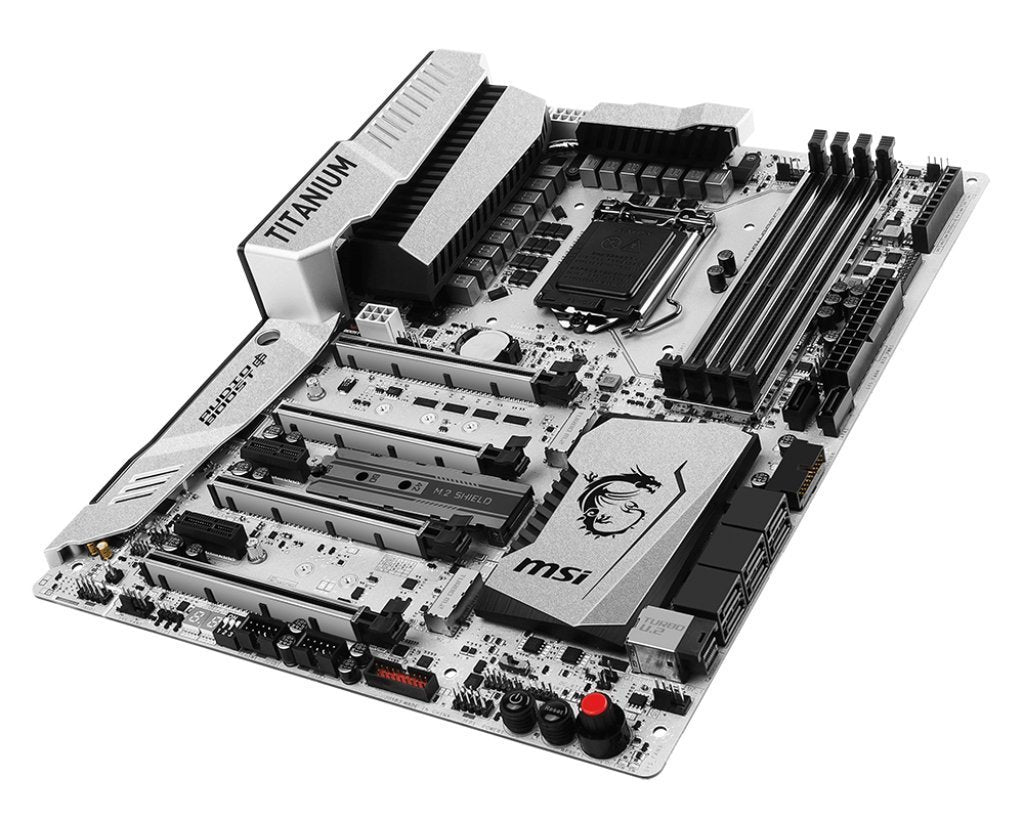

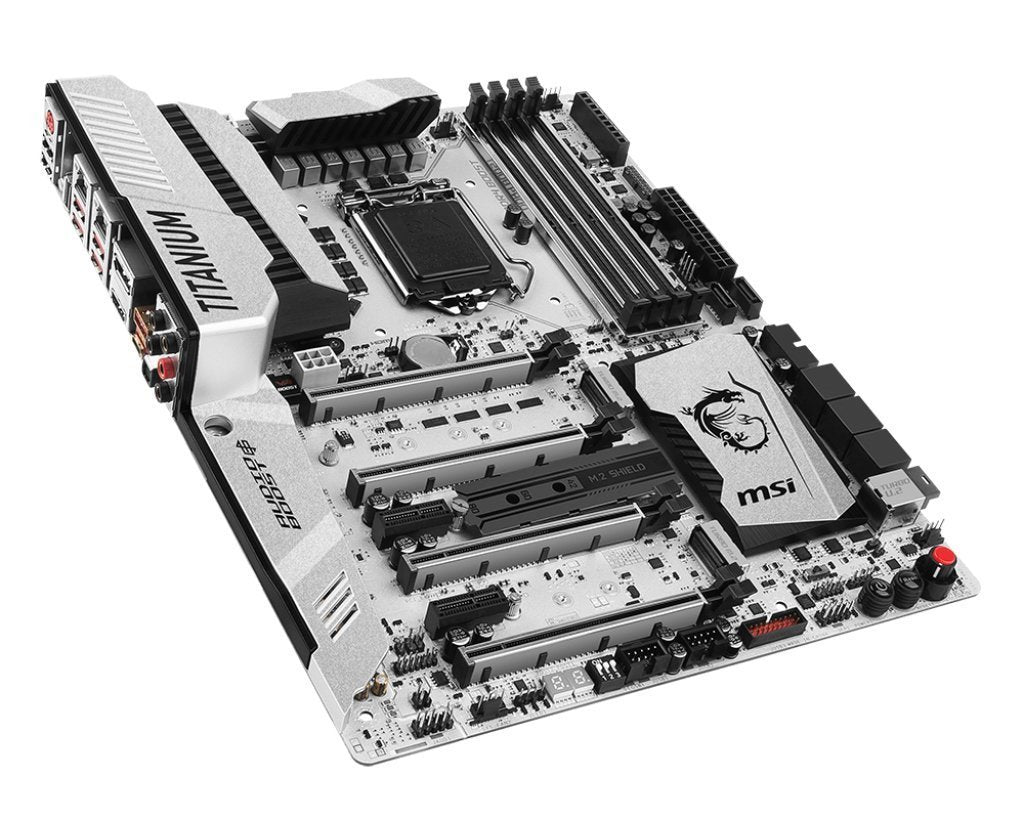

MSI Z270 XPOWER GAMING TITANIUM Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z270 XPOWER GAMING TITANIUM

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z270 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
- 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
• Dual channel memory architecture
• Supports Intel^® Extreme Memory Profile (XMP)

Multi-GPU Support

• Supports 4-Way AMD^® CrossFire™ Technology
• Supports 2-Way NVIDIA^® SLI™ Technology

Available Expansion Slots

• 4 x PCIe 3.0 x16 slots (support x16/x0/x0/x4, x8/x0/x8/x4, x8/x4/x4/x4 modes)
• 2 x PCIe 3.0 x1 slots

LAN

• 1 x Intel® I219-V Gigabit LAN controller
• 1 x Intel® I211AT Gigabit LAN controller
• Support Intel LAN Teaming Technology

Audio

• Realtek^® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

Available USB Ports

• ASMedia^® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
ƒ- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• ASMedia^® ASM1042 Chipset
- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector)

• Intel^® Z270 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron®processors for LGA 1151 socket

Supports DDR4-4133+(OC) Memory

DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost

VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness

OC DASHBOARD: The ultimate overclocking tool to experience easier on-the-fly overclocking

USB Xpander: For more controllable devices and flexible usage with USB 2.0 in-chassis connectors

Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click

Triple Turbo M.2, Steel Armor, M.2 Shield. Intel Optane Memory Ready, Turbo U.2, Lightning USB 3.1 Gen2

Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience

Dual GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency and bandwidth management

BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports player

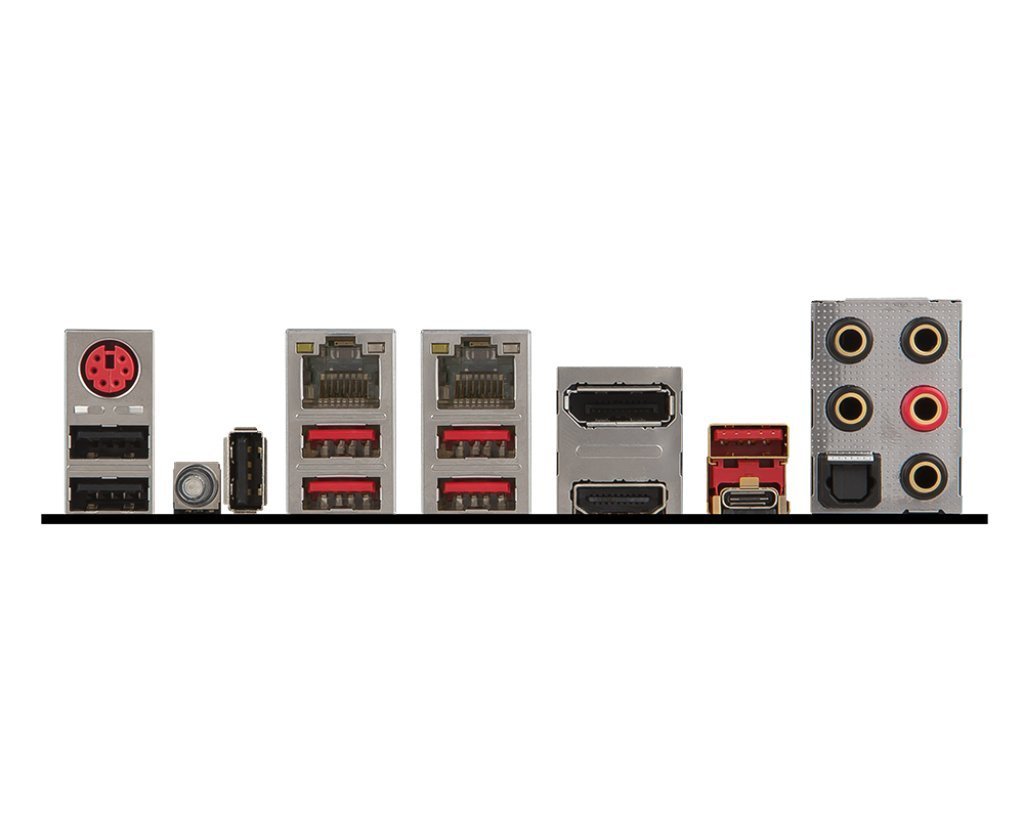

Back I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 1 x Clear CMOS button
- 3 x USB 2.0 Type-A ports
- 2 x LAN (RJ45) ports
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector

Internal I/O

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 6-pin ATX 12V power connector
- 8 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x 4-pin RGB LED connector
- 1 x 2-pin Slow mode connector
- 1 x 2-pin OC retry connector
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector

WARRANTY

3 YEARS
