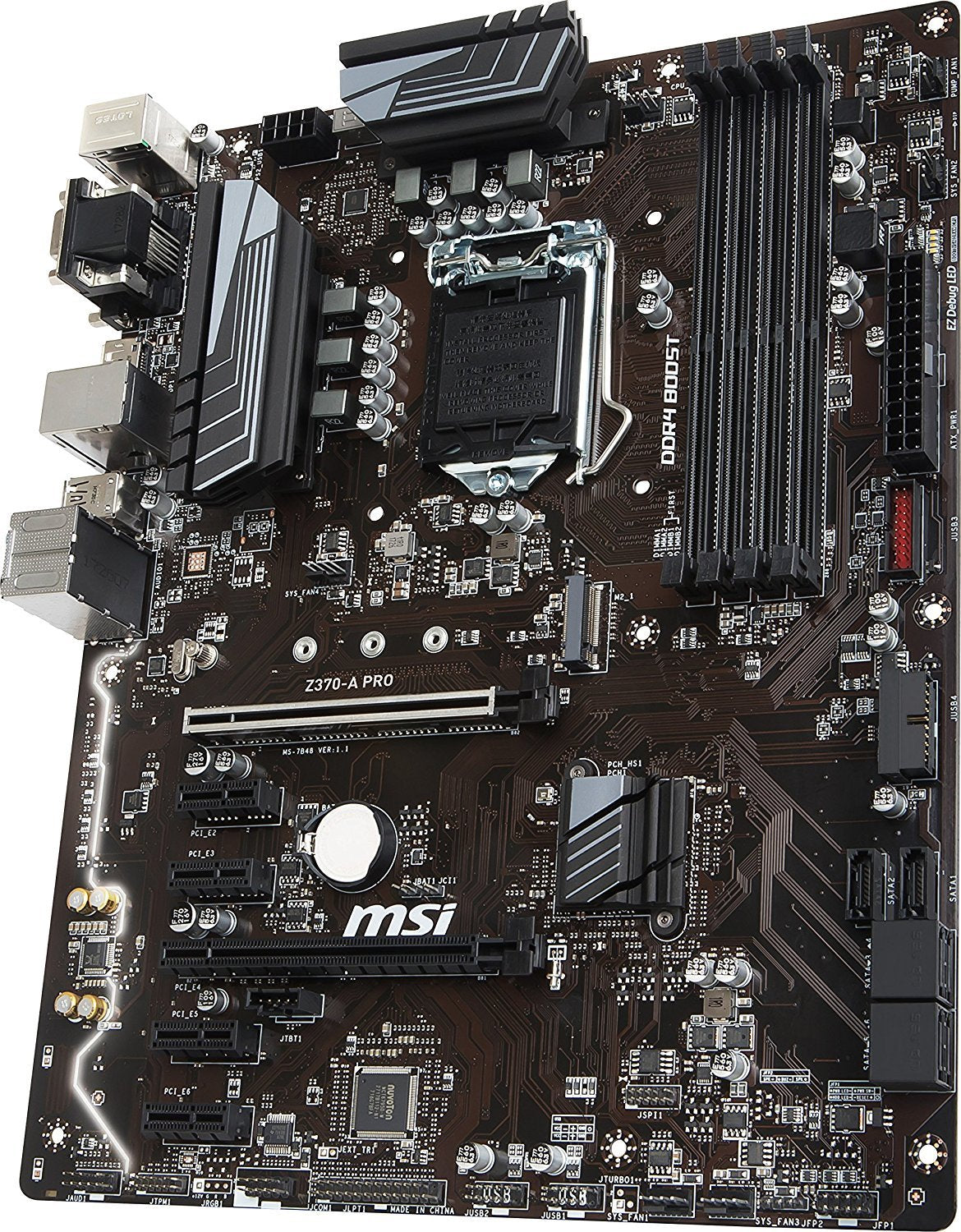

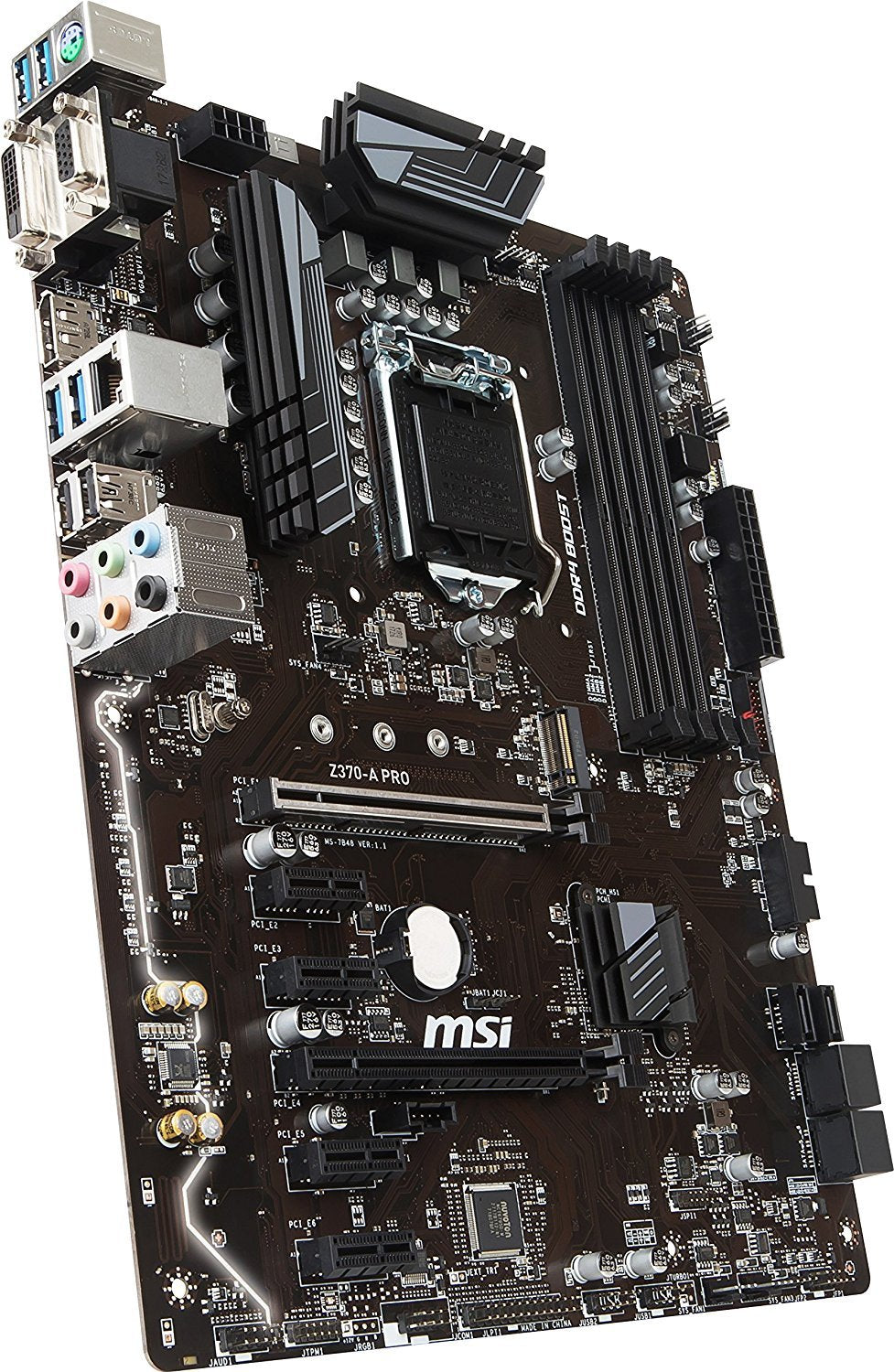

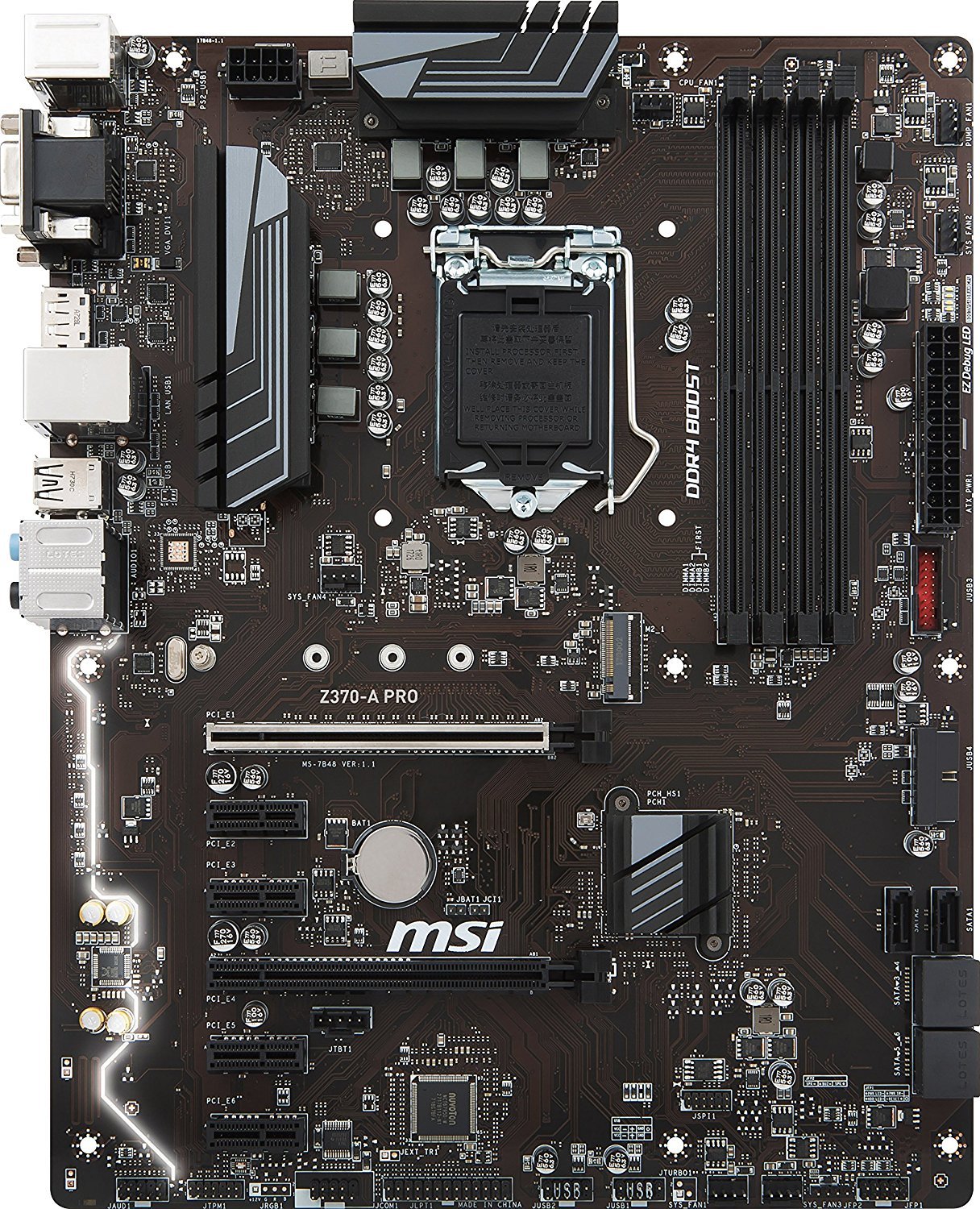

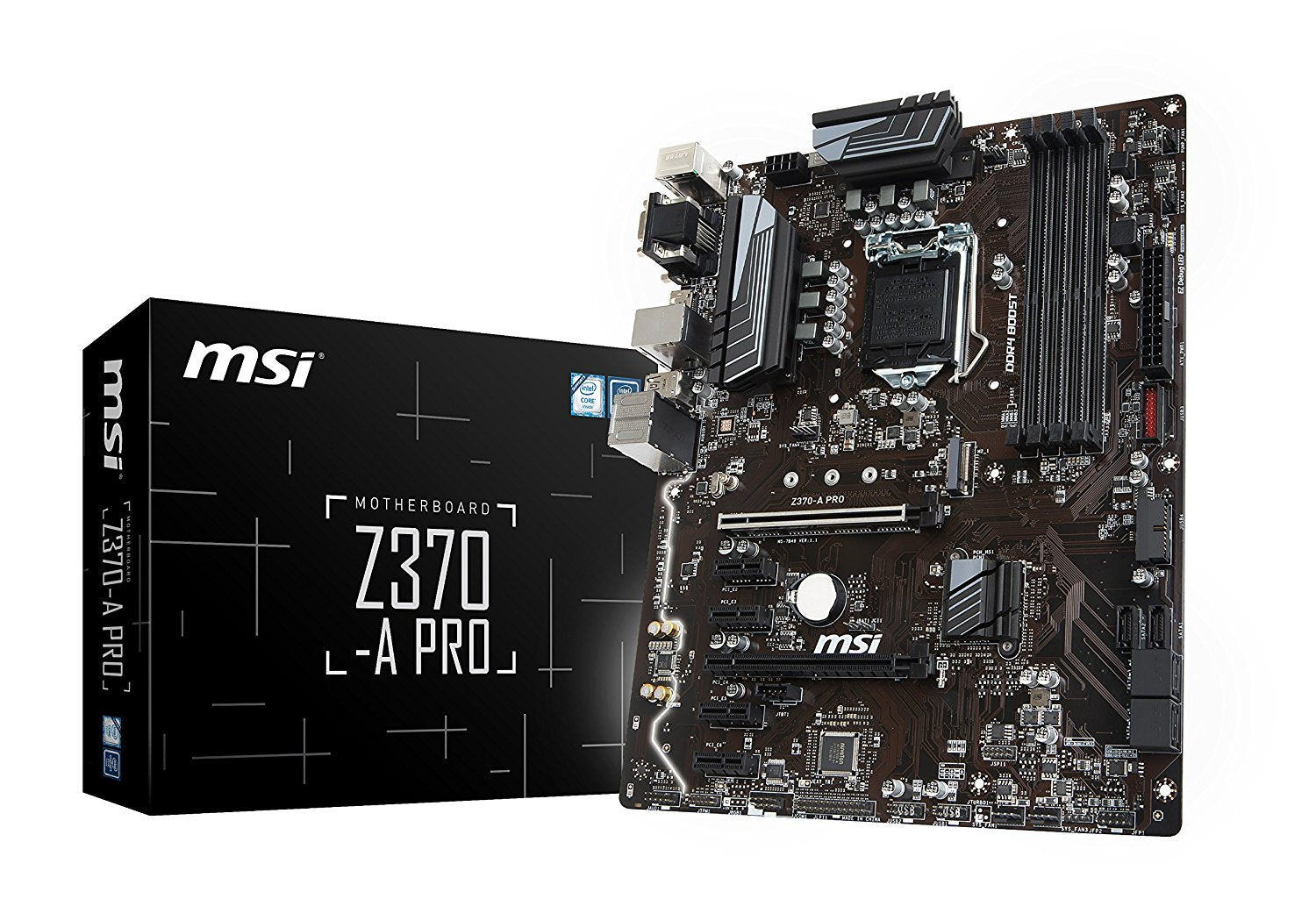

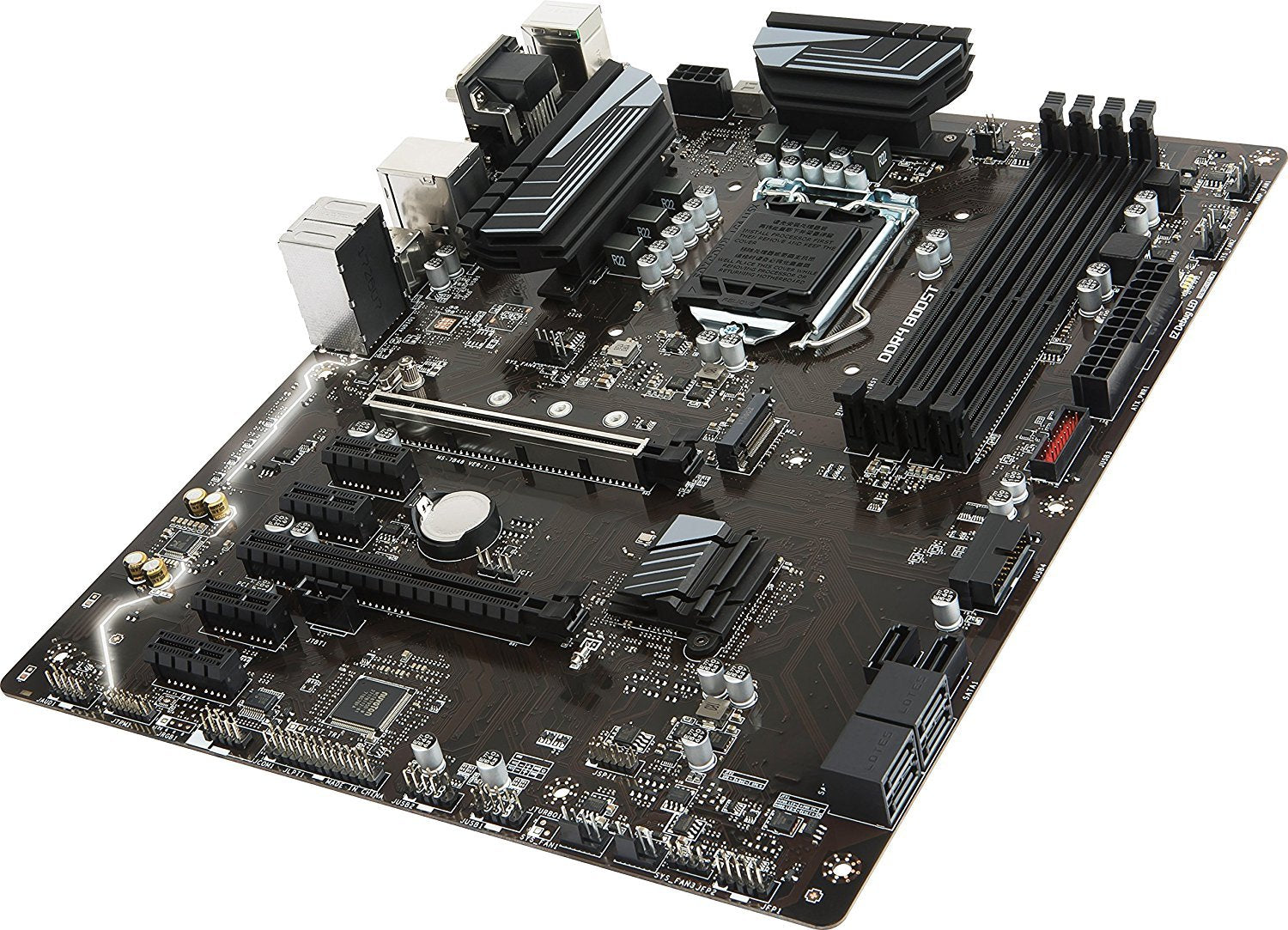

MSI Z370-A PRO Intel Compatible Motherboard for Desktop Computer/PC

Motherboard

MSI Z370-A PRO

Brand

MSI

Compatible with

Intel

Socket Type

LGA1151

Chipset

Intel Z370 Chipset

Form Factor

ATX

Supported Memory (Ram) Type

DDR4

No. of RAM Slots

• 4 x DDR4 memory slots, support up to 64GB
• Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

• Supports 2-Way AMD® CrossFire™ Technology

Available Expansion Slots

• 1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
• 1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
• 4 x PCIe 3.0 x1 slots

LAN

• 1 x Intel® RTL8111H Gigabit LAN controller

Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio

Available USB Ports

• Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Special Features

Supports 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket

Supports DDR4 Memory, up to 4000+(OC) MHz

DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.

AUDIO BOOST :Reward your ears with studio grade sound quality for the most immersive audio experience

MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire™

Heavy plated heatsinks：Leading heatsink design, for maximum cooling

EZ Debug LED: Easiest way to troubleshoot

Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready

PCI-E Steel Armor：Protecting VGA cards against bending and EMI

X-Boost: Great tool to boost your USB & Storage performance

Double ESD Protection: Double layer grounding motherboard mounting holes

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

VR Ready: Best virtual reality game experience without latency, reduces motion sicknes

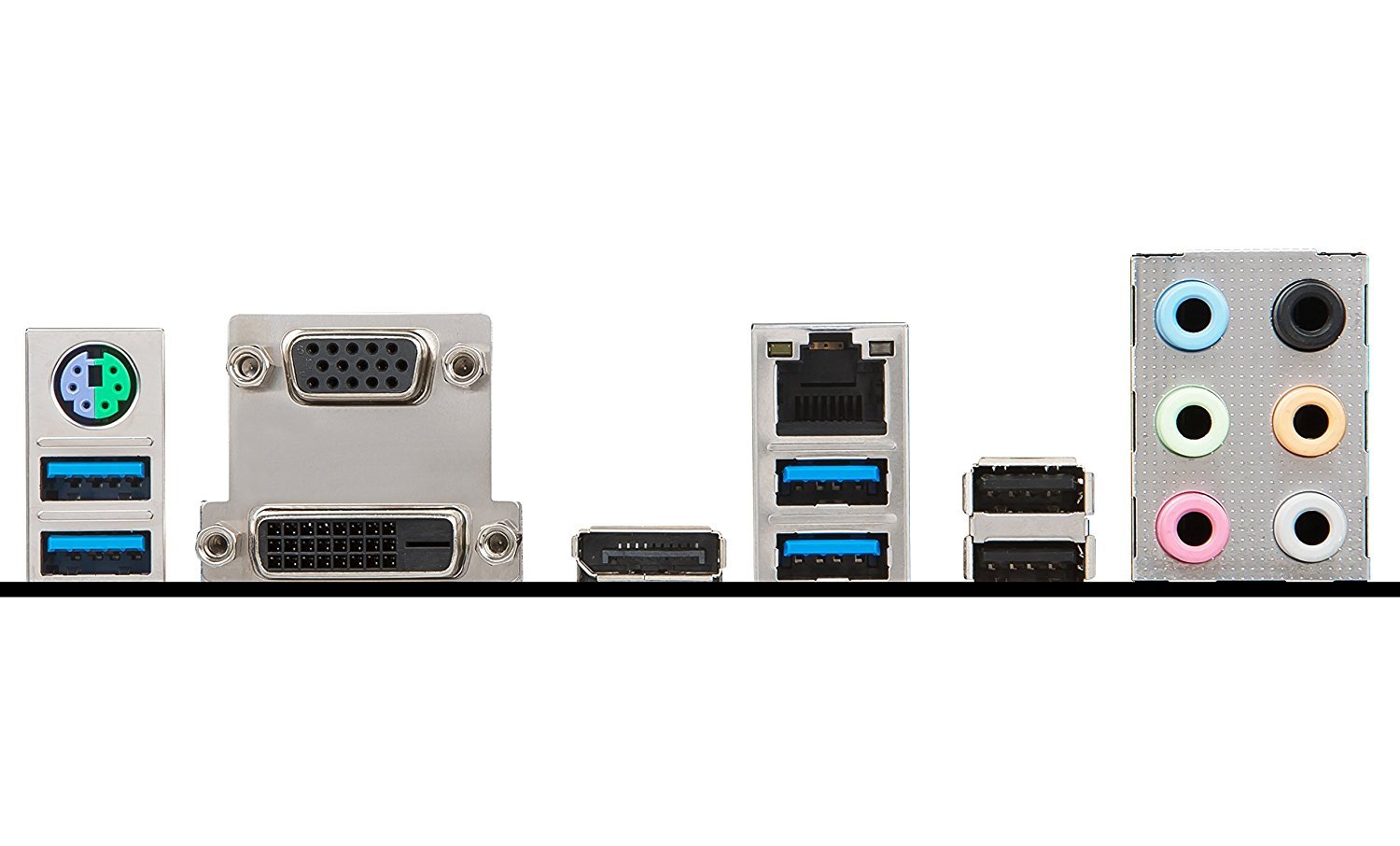

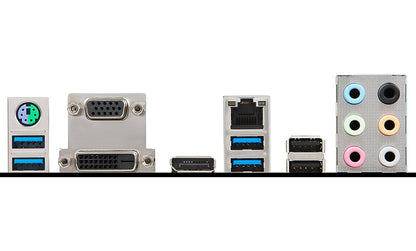

Back I/O Ports

- 1 x PS/2 mouse & keyboard combo port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x LAN (RJ45) port
- 2 x USB 2.0 ports
- 6 x audio jack

Internal I/O

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Thunderbolt Add-on Card Connector
- 1 x Clear CMOS jumper

WARRANTY

3 YEARS
